3. Wiring DC Power Inputs

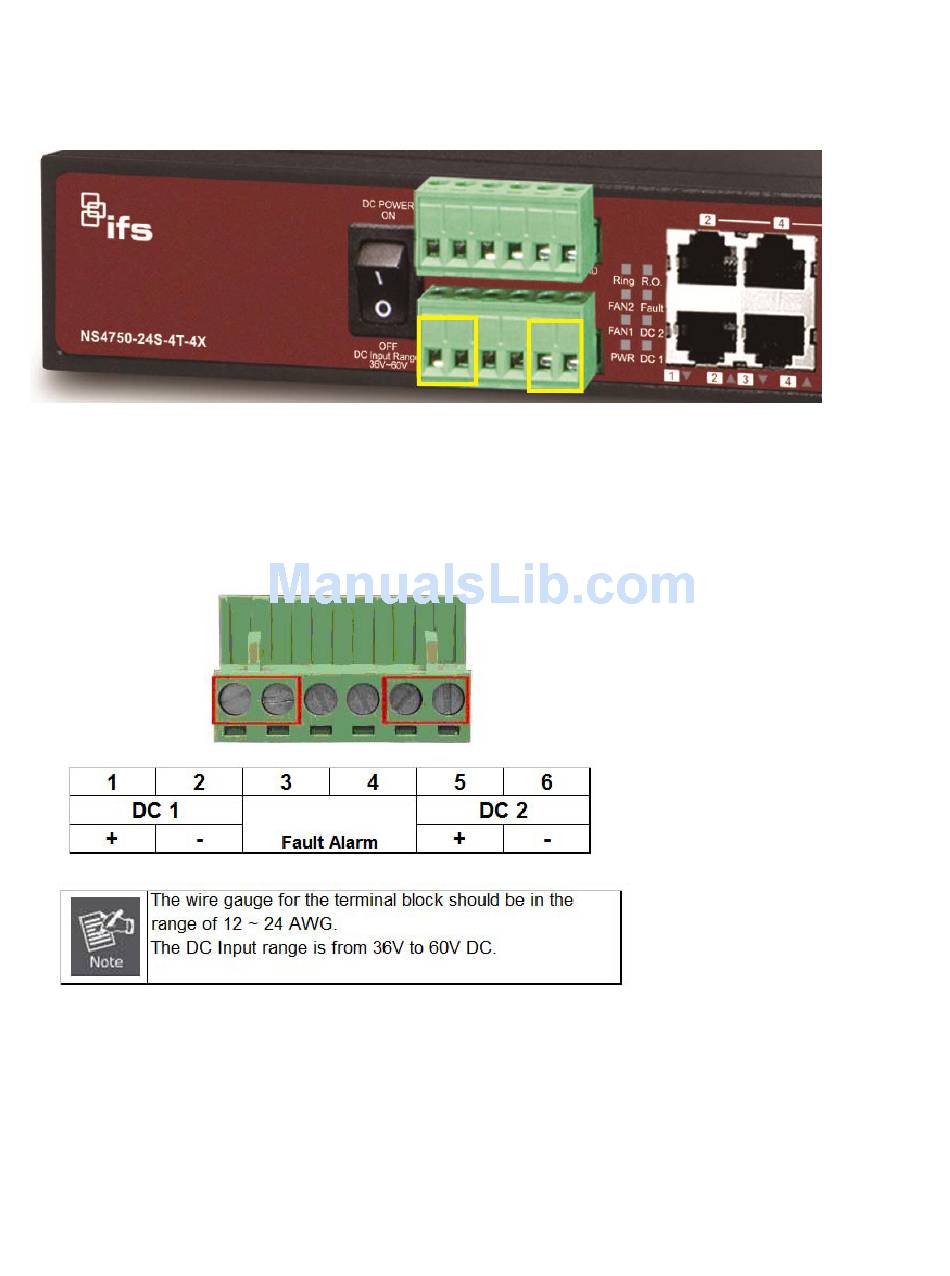

The 6-contact terminal block connector on the rear panel of the NS4750-24S-4T-4X is used for two DC redundant
power inputs. Please follow the steps below to insert the power wire.
Insert positive / negative DC power wires into contacts 1 and 2 for DC POWER 1, or 5 and 6 for DC POWER 2.
1. Tighten the wire-clamp screws for preventing the wires from loosening.
- 6 -
