Login the Managed Switch
1.
Use Internet E xplorer 8.0 or above Web browser and enter IP address http://192.168.0.100 (the factory-default IP address or
that you have just changed in console) to access the Web interface.
2.
When the following dialog box appears, please enter the default username and password "admin" (or the password you have
changed via console). The login screen in Figure 7-2 appears.
Default Username: admin
Default Password: admin
3.
After entering the password, the main screen appears as shown in Figure 7-3.

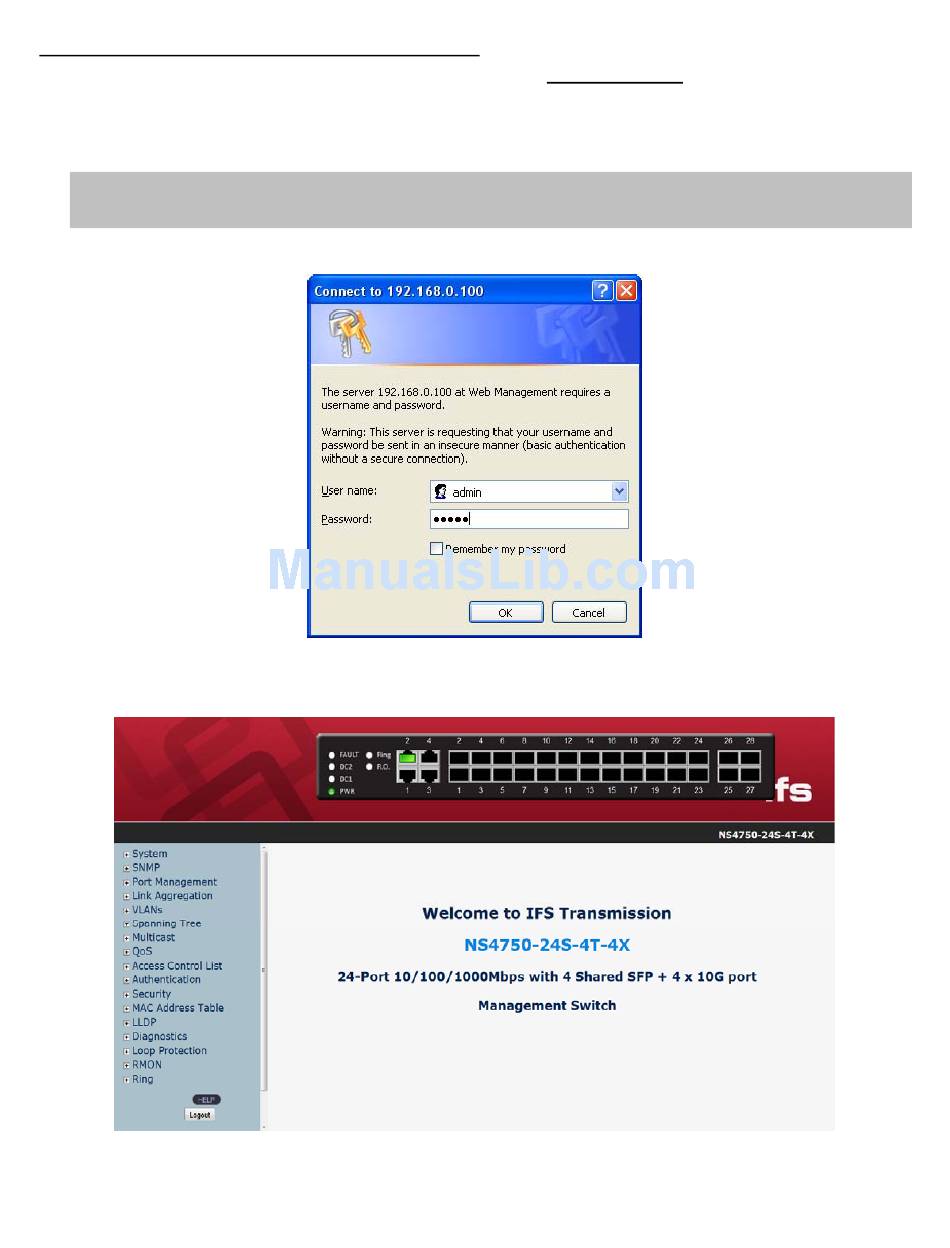

Figure 7-2: Login Screen
Figure 7-3: Web Main Screen of the Managed Switch
- 13 -
