nest Learning Thermostat Installation Manual page 5

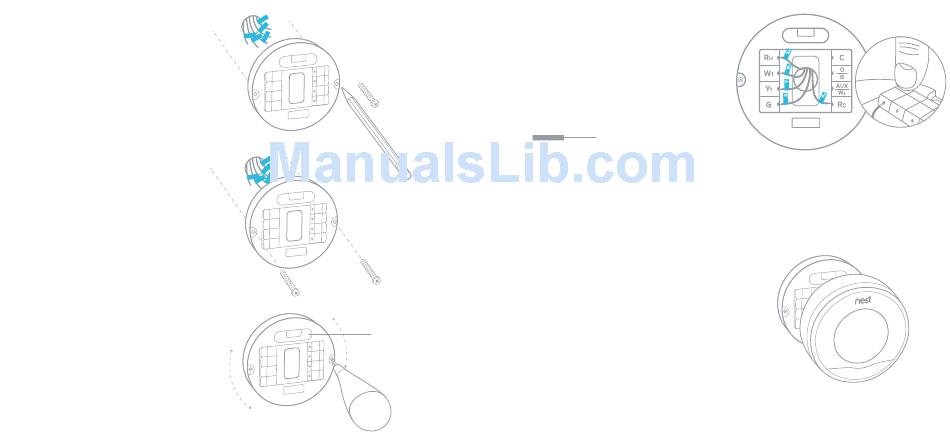

5. Create holes in the wall
Pull the labeled wires through the
center hole of the base. Use the
screws to mount Nest to plain
drywall. For panelling, plaster-and-
lath, or if there is a stud behind the
thermostat, pre-drill a hole using a
3/32" bit first.
Using the bubble level on the base,
adjust the base so it is level before
tightening the screws.
6. Reconnect wires
The exposed part of the wire
should be trimmed between
1/3" and 1/2". Push and hold the
connector with your thumb while
inserting each wire straight into
the connector. Release when
each wire is fully inserted.
Ensure the exposed
wire is straight.
7. Attach display
Make sure that the bundle of wires
is flush with the connectors by
pushing excess wire into the wall.
This will ensure that the display
connects properly to the base.
Position the display directly on to
Bubble level
the base with the logo at the top
and press until it clicks into place.
Ensur
expos
Push down on wire i
connector. straig
