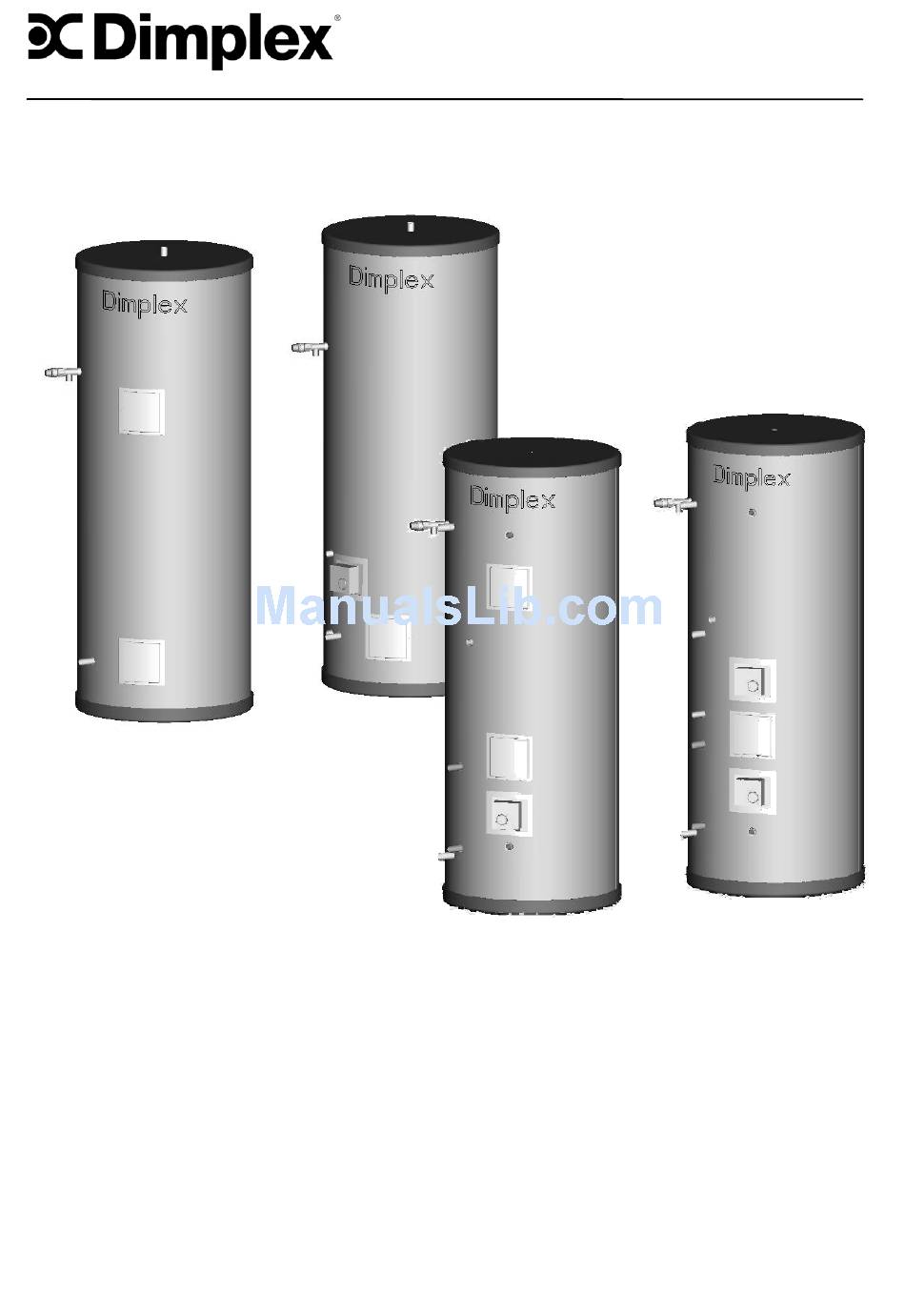

- Page 1 WATER Unvented hot water cylinder – SCxn…d/i, SCxn…sd/si Installation and operating instructions Page 1 of 28 ST0109 – C 05/09...
-
Page 2: Overall View
Unvented hot water cylinder – SCxn…d/i, SCxn…sd/si WATER 0 Overall view Standard SCxn cylinder SCxn80/130/150/175/215/255/305d SCxn80/130/150/175/215/255/305i Figure 1 – Overall view of proposed installation sequence SCxn…d/i Page 2 of 28 ST0109 – C 05/09... - Page 3 Unvented hot water cylinder – SCxn…d/i, SCxn…sd/si WATER SCxn175/215/255/305sd Solar SCxn cylinder SCxn175/215/255/305si Figure 2 – Overall view of proposed installation sequence SCxn…sd/si Page 3 of 28 ST0109 – C 05/09...
-
Page 4: Table Of Contents
Unvented hot water cylinder – SCxn…d/i, SCxn…sd/si WATER 1 Contents 0 OVERALL VIEW 1 CONTENTS 2 BEFORE YOU START ENERAL OMPETENCE EALTH AND AFETY ISK ASSESSMENT 3 SCOPE OF DELIVERY 4 PRODUCT FEATURES AND DESCRIPTIONS 5 INSTALLATION 5.1 G ENERAL ADVICE 5.2 S ITING CONSIDERATIONS 5.3 C... -
Page 5: Before You Start
- in accordance with Dimplex instructions and the current relevant regulations and leg- islation - the product being registered with Dimplex at the time of installation using the form in the Dimplex On Site Guide - records showing the date of maintenance in accordance with the maintenance sched-... -
Page 6: Risk Assessment
Unvented hot water cylinder – SCxn…d/i, SCxn…sd/si WATER Risk assessment The compilation of a risk assessment is strongly recommended before installing the product. The following areas require particular consideration in addition to the informa- tion required by the Health and Safety at Work Act. - scalding: where appropriate or required by law a thermostatic mixing valve is to be fitted to the hot water outlet of the cylinder - explosion: the unit is fully equipped with all relevant safety equipment to comply with... -
Page 7: Product Features And Descriptions
Figure 3 – Scope of delivery 4 Product features and descriptions ® The Dimplex unvented stainless steel cylinder range incorporates many features to ensure the highest level of comfort in providing hot water while minimising energy re- quirements and environmental impact during manufacturing, operation and disposal. - Page 8 Unvented hot water cylinder – SCxn…d/i, SCxn…sd/si WATER SCxn Feature Materials - inner cylinder Duplex stainless steel - outer cylinder Dove grey leather grain coated steel - inlet/outlet Stainless steel - coils Corrugated stainless steel - insulation 60mm PU foam (GWP=1, ODP=0) Maximum operating conditions - potable water temperature 70°C...
-
Page 9: Installation
Unvented hot water cylinder – SCxn…d/i, SCxn…sd/si WATER 5 Installation 5.1 General advice Please read the following section carefully before commencing installation. If in any doubt, please call the appropriate help desk. Disregarding the instructions given in this manual in its entirety and any relevant regulations, standards and codes of practice will void the guarantee of this product. -
Page 10: Siting Considerations
- frost protection The Dimplex SCxn cylinder range is designed to be floor standing, vertically mounted, indoors and in a frost free environment. The cylinder may be located on any flat and level surface, provided it is sufficiently robust to support the weight of the cylinder when full of water (see chapter 10). - Page 11 Unvented hot water cylinder – SCxn…d/i, SCxn…sd/si WATER It is recommended to install a drain valve in the lowest point of the cold water feed to the cylinder. This allows the cylinder to be drained in a controlled manner should this become necessary.
-
Page 12: Hot Water Outlet
Unvented hot water cylinder – SCxn…d/i, SCxn…sd/si WATER Figure 6 – Cold water supply and discharge pipe work installation 5.4 Hot water outlet The hot water pipe work is to be directly connected to the how water outlet connections of the cylinder as indicated in Figures 1 and 2. Should a thermostatic mixing valve be required the valve is to be installed following the manufacturers instructions. -
Page 13: Indirect Heating Loop
Unvented hot water cylinder – SCxn…d/i, SCxn…sd/si WATER Note: The cylinder must be filled with water before switching on the immersion heater. Failure to do so will damage the element and void any guarantee on the product. 5.6 Indirect heating loop The indirect heating source can be connected to the cylinder in various ways as de- scribed by the chosen control system supplier. -
Page 14: Solar Loop
Unvented hot water cylinder – SCxn…d/i, SCxn…sd/si WATER The port connections for the indirect heating flow and return are identified in Figure 1 for the SCxn…i range and in Figure 2 for the SCxn…si range. Should the flow connection be the highest point in the indirect heating loop an adequate device for de-aeration has to be installed. -
Page 15: Secondary Return
The wiring schematic for the solar loop is detailed in chapter 5.12. Please note: the so- lar loop does not require a motorised two port valve as long as: - the Dimplex SOLPU1/2 pump unit is being used (non return valves in flow and return) - the cylinder is located lower than the solar panels... -
Page 16: Wiring Schematic Auxiliary Loop
The pre-charge should be >2bar. 5.11 Wiring schematic auxiliary loop The auxiliary heating system can be interfaced with the Dimplex SCxn cylinder in vari- ous. Two common examples are given in Figures 11 and 12. - Page 17 Unvented hot water cylinder – SCxn…d/i, SCxn…sd/si WATER Figure 11 – Auxiliary loop integration 2x motorised two port valve Page 17 of 28 ST0109 – C 05/09...
- Page 18 Unvented hot water cylinder – SCxn…d/i, SCxn…sd/si WATER Figure 12 - Auxiliary loop integration 1x motorised two port valve and mid-position valve Page 18 of 28 ST0109 – C 05/09...
-
Page 19: Wiring Schematic Solar Loop
Unvented hot water cylinder – SCxn…d/i, SCxn…sd/si WATER 5.12 Wiring schematic solar loop The integration of the Dimplex solar SCxn cylinder is shown in Figures 11 and 12. The wiring schematic for the solar loop is shown in Figure 13. Figure 13 – Solar loop integration 5.13 Solar sensor installation... - Page 20 Unvented hot water cylinder – SCxn…d/i, SCxn…sd/si WATER Figure 14 – Solar sensor boss positions and sensor installation Page 20 of 28 ST0109 – C 05/09...
-
Page 21: Commissioning
Unvented hot water cylinder – SCxn…d/i, SCxn…sd/si WATER 6 Commissioning The following commissioning procedure only details the required steps to be taken for the potable water loop and not for the direct heating, auxiliary or solar loops. Please refer to relevant manuals for these operations. 6.1 SCxn …... -
Page 22: Operation
Once the system has been fully commissioned, no user interference should be required to fully enjoy the comfort and benefits of the Dimplex SCxn hot water cylinder. The hot water temperature can be set to various requirements. Ideally it should be around 60°C. -
Page 23: Water Temperature Auxiliary Heating
Unvented hot water cylinder – SCxn…d/i, SCxn…sd/si WATER The hot water temperature achieved by the direct electric heating element can be ad- justed by removing the cover from the immersion heater and adjusting the dial up or down as indicated in Figure 15. 7.2 Water temperature auxiliary heating The water temperature achieved by the auxiliary heating system depends on the setting of the thermostat on:... -
Page 24: Troubleshooting
Unvented hot water cylinder – SCxn…d/i, SCxn…sd/si WATER 9 Troubleshooting Fault Cause Solution A.1 Open stop valve A No water A.1 Stop valve closed from hot A.2 Strainer blocked A.2 Turn water supply off, water taps clean strainer and re- commission A.3 Pressure reducing valve fitted A.3 Re-fit with arrow showing... -
Page 25: Technical Data
Unvented hot water cylinder – SCxn…d/i, SCxn…sd/si WATER 10 Technical data 10.1 SCxn … d/i SCxn Capacity Weight [kg] Heat loss 1.12 1.50 1.82 2.10 2.59 2.73 2.88 [kWh] Heat [mns] Re-heat [mns] A [mm] B [mm] C [mm] 1269 1526 D [mm] 1116... -
Page 26: Scxn
Unvented hot water cylinder – SCxn…d/i, SCxn…sd/si WATER 10.2 SCxn … sd/si SCxn Capacity Weight [kg] Heat loss [kWh] sd/si 1.78 2.19 2.31 2.51 Heat up [mns] Re-heat [mns] A [mm] sd/si B [mm] sd/si 531/589 C [mm] 1087 1355 1631 D/N/P [mm] sd/si... - Page 27 Unvented hot water cylinder – SCxn…d/i, SCxn…sd/si WATER Page 27 of 28 ST0109 – C 05/09...
- Page 28 Unvented hot water cylinder – SCxn…d/i, SCxn…sd/si WATER Dimplex UK Limited Millbrook House Grange Drive, Hedge End, Southampton SO30 2DF Te.: 01489 773 052, Fax.: 01489 773 061 e-mail: customer.services@dimplex.co.uk www.dimplex.co.uk Page 28 of 28 ST0109 – C 05/09...
