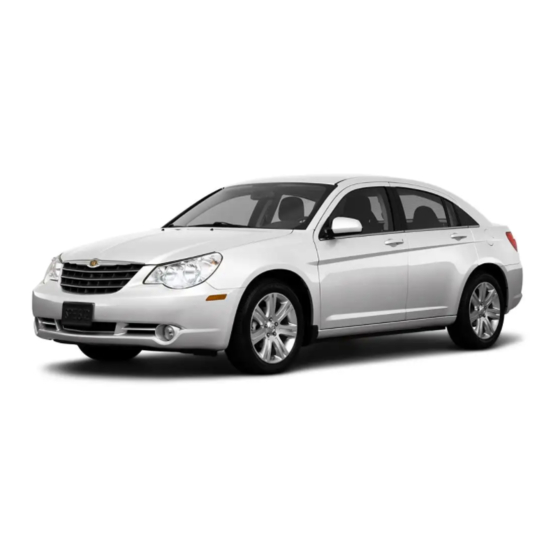

Chrysler Sebring 2010 Owner's Manual

Chrysler Sebring 2010 Owner's Manual

Hide thumbs Also See for Sebring 2010:

Owner's manual (444 pages)

,

User manual (76 pages)

,

User manual (72 pages)

Table of Contents

Advertisement

Quick Links

See also: User Manual

Sebring

2 0 1 0

OWNE R ' S MANUAL

Table of Contents

Advertisement

Chapters

Table of Contents

Need help?

Need help?

Do you have a question about the Sebring 2010 and is the answer not in the manual?

Questions and answers

Summary of Contents for Chrysler Sebring 2010

Page 1 Sebring 2 0 1 0 OWNE R ’ S MANUAL...
Page 2: Table Of Contents
TABLE OF CONTENTS SECTION PAGE ............3 INTRODUCTION .
Page 4 INTRODUCTION CONTENTS Introduction ......4 Vehicle Identification Number ....6 How To Use This Manual .
Page 5: Introduction
4 INTRODUCTION INTRODUCTION When it comes to service, remember that your authorized Congratulations on selecting your new Chrysler Group dealer knows your vehicle best, has factory-trained tech- LLC vehicle. Be assured that it represents precision nicians and genuine MOPAR parts, and cares about workmanship, distinctive styling, and high quality - all your satisfaction.
Page 6 INTRODUCTION 5...
Page 7: Warnings And Cautions
6 INTRODUCTION WARNINGS AND CAUTIONS This Owner’s Manual contains WARNINGS against op- erating procedures that could result in an accident or bodily injury. It also contains CAUTIONS against proce- dures that could result in damage to your vehicle. If you do not read this entire manual, you may miss important information.
Page 8: Vehicle Modifications/Alterations
INTRODUCTION 7 VEHICLE MODIFICATIONS/ALTERATIONS WARNING! Any modifications or alterations to this vehicle could seriously affect its roadworthiness and safety and may lead to an accident resulting in serious injury or death.
Page 10: Things To Know Before Starting Your Vehicle
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE CONTENTS ▫ Rearming The System ....18 A Word About Your Keys ....12 ▫...
Page 11 10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE ▫ Remote Open Window Feature — If Power Windows ..... . . 35 Equipped .
Page 12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11 ▫ Rear Seat Belts ..... . . 49 ▫ Advanced Front Airbag Features ..58 ▫...
Page 13: A Word About Your Keys
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE A WORD ABOUT YOUR KEYS The authorized dealer that sold you your vehicle has the key code numbers for your vehicle locks. These numbers can be used to order duplicate keys from your authorized dealer.
Page 14: Ignition Key Removal
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13 Ignition Key Removal Automatic Transaxle Place the shift lever in PARK. Turn the ignition switch to the ACC position, push the key and cylinder inward, rotate the key to the LOCK position, and remove the key. Ignition Switch Positions 1 —...
Page 15 14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE NOTE: switches, radio, hands–free system (if equipped), and • If you try to remove the key before you place the shift power outlets will remain active for up to 10 minutes lever in PARK, the key may become trapped tempo- after the ignition switch is turned to the LOCK posi- rarily in the ignition switch lock cylinder.
Page 16: Key-In-Ignition Reminder
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15 You can insert the key with either side up. To lock the CAUTION! door, turn the key rearward. To unlock the door, turn the key forward. For door lock lubrication, see “Maintenance An unlocked car is an invitation to thieves.
Page 17: Replacement Keys
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE NOTE: A key which has not been programmed is also CAUTION! considered an invalid key even if it is cut to fit the ignition switch lock cylinder for that vehicle. Always remove the Sentry Key from the vehicle and lock all doors when leaving the vehicle unattended.
Page 18: Customer Key Programming
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17 At the time of purchase, the original owner is provided 2. Insert the first valid key into the ignition switch. Turn with a four-digit Personal Identification Number (PIN). the ignition switch to the ON position for at least three The PIN is required for authorized dealer replacement of seconds, but no longer than 15 seconds.
Page 19: General Information
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE • This device must accept any interference that may be The new Sentry Key is programmed. The Remote Keyless Entry (RKE) transmitter will also be pro- received, including interference that may cause undes- ired operation.
Page 20: To Arm The System
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19 horn after three minutes, turn off all of the visual signals opened, the ignition switch is turned ON, or the power after 15 minutes, and then the Vehicle Security Alarm will door locks are unlocked in any manner, the Vehicle rearm itself.
Page 21 20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE NOTE: whether you are in the vehicle or not. If you remain in the • The driver’s door key cylinder and the trunk button on vehicle and open a door, the alarm will sound. If this the RKE transmitter cannot arm or disarm the Vehicle occurs, disarm the Vehicle Security Alarm.
Page 22: Illuminated Entry - If Equipped
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21 ILLUMINATED ENTRY — IF EQUIPPED NOTE: • The front courtesy overhead console and door cour- The courtesy/reading lights will turn on when you use the Remote Keyless Entry (RKE) transmitter or open tesy lights do not turn on if the dimmer control is in either door.
Page 23: To Unlock The Doors
22 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE NOTE: To Unlock the Doors • The line of transmission must not be blocked with Press and release the UNLOCK button on the RKE metal objects. transmitter once to unlock the driver’s door, or twice to unlock all doors.
Page 24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 23 • For vehicles not equipped with the EVIC, perform the NOTE: Pressing the LOCK button on the RKE transmit- following procedure: ter while you are inside the vehicle will activate the Vehicle Security Alarm system. Opening a door with the 1.
Page 25: To Lock The Doors
24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE • For vehicles not equipped with the EVIC, perform the activated will cause the alarm to sound. Press the UN- following procedure: LOCK button to deactivate the Vehicle Security Alarm system. 1. Press and hold the UNLOCK button on a programmed RKE transmitter for at least four seconds, but not longer Illuminated Approach —...
Page 26: To Unlatch The Trunk
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 25 3. Test the feature while outside of the vehicle, by Sound Horn with Lock This feature will cause the horn to chirp when the doors pressing the LOCK button on the RKE transmitter with are locked with the RKE transmitter.
Page 27: Remote Open Window Feature - If Equipped
26 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Remote Open Window Feature — If Equipped The Panic Alarm will stay on for three minutes unless The RKE remotely lowers both driver and passenger you turn it off by pressing the PANIC button a second front windows simultaneously.
Page 28: General Information
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 27 1. With the RKE transmitter buttons facing down, use a 2. Remove and replace the battery. Avoid touching the flat blade to pry the two halves of the RKE transmitter new battery with your fingers. Skin oils may cause apart.
Page 29: Remote Start System - If Equipped
28 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE If your RKE transmitter fails to operate from a normal How to Use Remote Start distance, check for these two conditions. All of the following conditions must be met before the engine will remote start: 1.
Page 30 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 29 NOTE: WARNING! • If an engine fault is present the vehicle will start and • Do not start or run an engine in a closed garage or then shut down 10 seconds later. confined area.
Page 31: Door Locks
30 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE To Exit Remote Start Mode Without Driving the DOOR LOCKS Vehicle Manual Door Locks Press and release the REMOTE START button one time or To lock each door, push the door lock plunger on each allow the engine to run for the entire 15 minute cycle.
Page 32 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 31 WARNING! CAUTION! • For personal security and safety in the event of an An unlocked vehicle is an invitation to thieves. accident, lock the vehicle doors as you drive as Always remove the key from the ignition and lock all well as when you park and leave the vehicle.
Page 33: Power Door Locks
32 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Power Door Locks Automatic Door Locks feature can be enabled or disabled A door lock switch is located on the driver and passenger by your authorized dealer. See your authorized dealer for door panel.
Page 34 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 33 3. Press the power door unlock switch to unlock the Auto Unlock On Exit Programming The Automatic Unlock Doors on Exit feature can be doors. enabled or disabled as follows: 4. A single chime will indicate the completion of the •...
Page 35: Child Protection Door Lock System (Rear Doors)
34 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Child Protection Door Lock System (Rear Doors) WARNING! The Child Protection Door Lock (Rear Doors) are located inside the rear edge of the door. Insert the tip of the Avoid trapping anyone in a vehicle in a collision. ignition key or similar flat-bladed object into the lock and Remember that the rear doors can only be opened rotate approximately one-quarter turn to the lock or...
Page 36: Power Windows
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 35 There is a single window control on the front and rear POWER WINDOWS passenger’s door trim panel, which operates the front Power Window Switches and rear passenger door windows. The window controls The control on the driver’s door has up/down switches will operate when the ignition switch is turned to the ON that give you fingertip control of all four power win-...
Page 37: Auto Window Down - If Equipped
36 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Auto Window Down — If Equipped For vehicles equipped with EVIC, the power window The front window controls on the driver and passenger switches will remain active for up to 10 minutes after the door trim panels have an Auto-Down feature.
Page 38 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 37 To close the window part way, lift the window switch to WARNING! the first detent and release it when you want the window to stop. When the window is almost closed, there is no anti-pinch protection.
Page 39: Window Lockout Switch
38 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Window Lockout Switch Wind Buffeting The window lockout switch on the driver’s door allows Wind buffeting can be described as the perception of you to disable the window control on the other doors. To pressure on the ears or a helicopter-type sound in the disable the window controls on the other doors, press the ears.
Page 40: Trunk Lock And Release
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 39 With the ignition switch in the LOCK position or with the TRUNK LOCK AND RELEASE Use the Remote Keyless Entry key out, the word “deck” will display until the trunk is (RKE) transmitter to open the closed.
Page 41: Trunk Internal Emergency Release
40 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Trunk Internal Emergency Release As a security measure, a Trunk Internal Emergency Release lever is built into the trunk latching mechanism. In the event of an individual being locked inside the trunk, the trunk can be simply opened by pulling on the glow-in-the-dark handle attached to the trunk latching mechanism.
Page 42: Occupant Restraints
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 41 • An energy-absorbing steering column and steering OCCUPANT RESTRAINTS Some of the most important safety features in your wheel vehicle are the restraint systems. The following safety • Knee bolsters/blockers for front seat occupants features are standard on all vehicles: •...
Page 43 42 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE infant and child restraint systems. For more information WARNING! on LATCH, see Lower Anchors and Tether for CHildren (LATCH). In a collision, you and your passengers can suffer much greater injuries if you are not properly buckled NOTE: The Advanced Front Airbags have a multistage up.
Page 44: Lap/Shoulder Belts
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 43 ejection and the risk of injury caused by striking the WARNING! (Continued) inside of the vehicle. Everyone in a motor vehicle should • It is extremely dangerous to ride in a cargo area, be belted at all times.
Page 45 44 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE WARNING! (Continued) • Two people should never be belted into a single seat belt. People belted together can crash into one another in an accident, hurting one another badly. Never use a lap/shoulder belt or lap belt for more than one person, no matter what their size.
Page 46 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 45 WARNING! • A belt that is buckled into the wrong buckle will not protect you properly. The lap portion could ride too high on your body, possibly causing internal injuries. Always buckle your belt into the buckle nearest you.
Page 47 46 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 4. Position the lap belt across your thighs, below your WARNING! abdomen. To remove slack in the lap belt portion, pull up • A belt that is worn under your arm is very danger- on the shoulder belt.
Page 48: Lap/Shoulder Belt Untwisting Procedure
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 47 6. To release the belt, push the red button on the buckle. WARNING! The belt will automatically retract to its stowed position. • A lap belt worn too high can increase the risk of If necessary, slide the latch plate down the webbing to allow the belt to retract fully.
Page 49: Adjustable Upper Shoulder Belt Anchorage
48 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 1. Position the latch plate as close as possible to the anchor point. 2. At about 6 to 12 in (15 to 30 cm) above the latch plate, grasp and twist the belt webbing 180 degrees to create a fold that begins immediately above the latch plate.
Page 50: Rear Seat Belts
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 49 Rear Seat Belts How To Use The Automatic Locking Mode The shoulder belt anchorages of the rear three-point belts 1. Buckle the combination lap and shoulder belt. are nonadjustable for outboard and center rear passen- gers on sedans.
Page 51: Supplemental Rear Impact Active Head Restraints (Ahr)
50 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE by assuring that the belt is tight about the occupant early split in two halves, with the front half being soft foam in a collision. Pretensioners work for all size occupants, and trim, the back half being decorative plastic. including those in child restraints.
Page 52 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 51 However if during a front impact, a secondary rear CAUTION! impact occurs, the AHR may deploy based on the sever- ity and type of the impact. All occupants, including the driver, should not oper- ate a vehicle or sit in a vehicle’s seat until the head restraints are placed in their proper positions in order to minimize the risk of neck injury in the event of an...
Page 53 52 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 1. Grasp the deployed AHR from the rear seat. 3. Pull down then rearward towards the rear of the vehicle then down to engage the locking mechanism. Hand Positioning Points On AHR 2.
Page 54 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 53 AHR In Reset Position 3 — Final Downward Movement To Engage Locking Mecha- nism NOTE: • If you have difficulties or problems resetting the head 4. The AHR front soft foam and trim half should lock restraints, see an authorized dealer.
Page 55: Enhanced Seat Belt Use Reminder System (Beltalert )
START position. Once the warning is triggered, the BeltAlert will con- • Chrysler Group LLC does not recommend deactivat- tinue to chime and flash the Seat Belt Reminder Light for 96 seconds or until the driver’s seat belt is buckled. The ing BeltAlert .
Page 56: Seat Belts And Pregnant Women
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 55 NOTE: Watch for the Seat Belt Reminder Light to turn Pregnant women should wear the lap part of the belt on while unbuckling and off while re-buckling the seat across the thighs and as snug across the hips as possible. belt.
Page 57: Supplemental Restraint System (Srs) - Airbags
56 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE WARNING! Using a seat belt extender when not needed can increase the risk of injury in a collision. Only use when the lap belt is not long enough when it is worn low and snug, and in the recommended seating positions.
Page 58: Airbag System Components
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 57 • Driver Front Airbag The Advanced Front Airbags have a multistage inflator design. This allows the airbag to have different rates of • Front Passenger Airbag inflation that are based on the severity and type of •...
Page 59: Advanced Front Airbag Features
58 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Advanced Front Airbag Features WARNING! The Advanced Front Airbag system has multistage driver • No objects should be placed over or near the and front passenger airbags. This system provides output appropriate to the severity and type of collision as airbag on the instrument panel, because any such determined by the Occupant Restraint Controller (ORC), objects could cause harm if the vehicle is in a crash...
Page 60 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 59 Supplemental Side Seat Airbags — If Equipped Supplemental side seat airbags provide enhanced protec- tion and work together with supplemental Side Airbag Inflatable Curtains (SABIC) to help protect an occupant during a side impact. The supplemental side seat airbag is marked with an airbag label sewn into the outboard side of the seat.
Page 61 60 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Supplemental Side Airbag Inflatable Curtain (SABIC) — If Equipped SABIC airbags offer side-impact and vehicle rollover protection to front and rear seat outboard occupants in addition to that provided by the body structure. Each airbag features inflated chambers placed adjacent to the head of each outboard occupant that reduce the potential for side-impact head injuries.
Page 62 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 61 The system includes sensors adjacent to both front and Knee Impact Bolsters rear seat occupants that are calibrated to deploy the The Knee Impact Bolsters help protect the knees of the SABIC airbags during impacts that require airbag occu- driver and the front passenger, and position everyone for pant protection.
Page 63 62 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE You should read the instructions provided with your WARNING! child restraint to make sure that you are using it properly. Infants in rear facing child restraints should NEVER 2. All occupants should ALWAYS wear their lap and ride in the front seat of a vehicle with a passenger shoulder belts properly.
Page 64: Airbag Deployment Sensors And Controls
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 63 Airbag Deployment Sensors and Controls WARNING! Occupant Restraint Controller (ORC) • Relying on the airbags alone could lead to more The ORC is part of a Federally regulated safety system severe injuries in a collision. The airbags work required for this vehicle.
Page 65 64 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE The Advanced Front Airbags will not deploy in all frontal The ORC monitors the readiness of the electronic parts of collisions, including some that may produce substantial the system whenever the ignition switch is in the START vehicle damage —...
Page 66 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 65 It also includes diagnostics that will illuminate the instru- the Advanced Front Airbags. Different airbag inflation ment cluster Airbag Warning Light if a malfunction is rates are possible, based on the collision type and sever- noted.
Page 67 66 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE The ORC determines if a side collision requires the side Supplemental Side Airbag Inflatable Curtain airbags to inflate based on the severity and type of (SABIC) Inflator Units — If Equipped collision. During collisions where the impact is confined to a particular area of the side of the vehicle, the ORC may The ORC monitors the readiness of the electronic parts of...
Page 68 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 67 • Cut off fuel to the engine. Because airbag sensors estimate deceleration over time, vehicle speed and damage are not good indicators of • Flash hazard lights as long as the battery has power or whether or not an airbag should have deployed.
Page 69 68 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE If you do have a collision, which deploys the airbags, any throat irritation, move to fresh air. If the irritation or all of the following may occur: continues, see your doctor. If these particles settle on your clothing, follow the garment manufacturer’s in- •...
Page 70 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 69 Maintaining Your Airbag System WARNING! (Continued) • Do not attempt to modify any part of your ad- WARNING! vanced airbag system. The airbag may inflate • Modifications to any part of the airbag system accidentally or may not function properly if modi- could cause it to fail when you need it.
Page 71: Event Data Recorder (Edr)
70 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Airbag Warning Light located on the inside of the fuse block cover for the You will want to have the airbags ready to proper airbag fuses. See your authorized dealer if the inflate for your protection in a collision.
Page 72 Chrysler Group LLC, such investigations may be re- hicle, or crash, will be treated confidentially. Confidential quested by customers, insurance carriers, government data will not be disclosed by Chrysler Group LLC to any officials, and professional crash researchers, such as those third party except when: associated with universities, and with hospital and insur- ance organizations.
Page 73: Child Restraints
72 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 3. Requested by police under a legal warrant. United States and all Canadian provinces require that small children ride in proper restraint systems. This is the 4. Otherwise required by law. law, and you can be prosecuted for ignoring it. Data parameters that are recorded: Children 12 years and younger should ride properly •...
Page 74 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 73 There are different sizes and types of restraints for vehicle. Convertible child seats often have a higher children from newborn size to the child almost large weight limit in the rearward-facing direction than enough for an adult safety belt.
Page 75 74 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE vehicle by the lap/shoulder belt or the LATCH child WARNING! restraint anchorage system. Refer to “LATCH — Child • Improper installation can lead to failure of an Seat Anchorage System (Lower Anchors and Tether for CHildren)”.
Page 76 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 75 • All passenger seating positions contain automatic bend over the front of the seat when their back is against the seatback, should use the lap/shoulder belt locking retractors. However, any seat belt system will in a rear seat.
Page 77 76 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE • Buckle the child into the seat according to the child Anchors and Tether for CHildren. The LATCH system restraint manufacturer’s directions. provides for the installation of the child restraint without using the vehicle seat belt. All rear seating positions have CAUTION! lower anchorages that are capable of accommodating LATCH-compatible child seats having flexible, webbing-...
Page 78 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 77 Rear Seat LATCH Anchors Child restraints systems having attachments designed to connect to the lower anchorages are now available. Child restraints having tether straps and hooks for connection to the top tether anchorage, have been available for some time.
Page 79 78 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE have tether straps, and you are urged to take advantage Installing the LATCH-Compatible Child Restraint of all of the available attachments provided with your System child restraint in any vehicle. We urge you to carefully follow the directions of the manufacturer when installing your child restraint.
Page 80 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 79 window. These tether strap anchorages are under a most direct path between the anchor and the child plastic cover with this symbol on it. restraint. Finally, tighten all three straps as you push the child restraint rearward and downward into the seat, Many, but not all restraint systems will be equipped with removing slack in the straps according to the child...
Page 81 80 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE the child restraint belt path and then buckle it. This should stow the seat belt out of the reach of an inquisitive child. Remind all children in the vehicle that the seat belts are not toys and should not be played with, and never leave your child unattended in the vehicle.
Page 82 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 81 route the tether strap under the head restraint and Installing Child Restraints Using the Vehicle Seat between the two posts. If not possible, lower the head Belts restraint and pass the tether strap around the outboard The passenger seat belts are equipped with Automatic side of the head restraint.
Page 83: Transporting Pets
82 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE In the rear seat, you may have trouble tightening the over the front of the seat when their back is against the lap/shoulder belt on the child restraint because the seatback, should use the lap/shoulder belt in a rear seat. buckle or latch plate is too close to the belt path opening Make sure that: on the restraint.
Page 84: Engine Break-In Recommendations
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 83 Pets should be restrained in the rear seat in pet harnesses The engine oil installed in the engine at the factory is a or pet carriers that are secured by seat belts. high-quality energy conserving type lubricant.
Page 85: Safety Tips
84 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE SAFETY TIPS Exhaust Gas Transporting Passengers WARNING! NEVER TRANSPORT PASSENGERS IN THE CARGO AREA. Exhaust gases can injure or kill. They contain carbon monoxide (CO), which is colorless and odorless. WARNING! Breathing it can make you unconscious and can eventually poison you.
Page 86: Safety Checks You Should Make Inside The Vehicle
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 85 If you are required to drive with the trunk/liftgate open, Safety Checks You Should Make Inside the make sure that all windows are closed and the climate Vehicle control BLOWER switch is set at high speed. DO NOT Seat Belts use the recirculation mode.
Page 87: Periodic Safety Checks You Should Make Outside The Vehicle
86 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Defroster Lights Check operation by selecting the defrost mode and place Have someone observe the operation of exterior lights the blower control on high speed. You should be able to while you work the controls. Check turn signal and high feel the air directed against the windshield.
Page 88: Understanding The Features Of Your Vehicle
UNDERSTANDING THE FEATURES OF YOUR VEHICLE CONTENTS ▫ Manual Front Seat Adjustment ... . 96 Mirrors ......91 ▫...
Page 89 88 UNDERSTANDING THE FEATURES OF YOUR VEHICLE ▫ Folding Rear Seat ....106 ▫ Daytime Running Lights — If Equipped ..114 ▫...
Page 90 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 89 ▫ To Set a Desired Speed ....122 ▫ Auto Sunroof Express With Anti-Pinch Protection — If Equipped ....132 ▫...
Page 91 90 UNDERSTANDING THE FEATURES OF YOUR VEHICLE ▫ Cargo Area ......138 ▫ Video Console — If Equipped ... 142 Console Features .
Page 92: Mirrors
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 91 MIRRORS Inside Day/Night Mirror A two-point pivot system allows for horizontal and vertical mirror adjustment. Adjust the mirror to center on the view through the rear window. Headlight glare can be reduced by moving the small control under the mirror to the night position (toward the rear of the vehicle).
Page 93: Automatic Dimming Mirror - If Equipped
92 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Automatic Dimming Mirror — If Equipped CAUTION! This mirror will automatically adjust for headlight glare from vehicles behind you. Push in the button on the face To avoid damage to the mirror during cleaning, never of the mirror to activate the dimming feature.
Page 94: Adjusting Sideview Mirrors
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 93 Power Mirror Switch Mirror Directions After selecting a mirror, move the knob in the same Adjusting Sideview Mirrors direction you want the mirror to move. When finished, Outside Mirror — Driver Side return the knob to the center (Off) position to guard Adjust the outside mirror to center on the adjacent lane of against accidentally moving a mirror position.
Page 95: Illuminated Vanity Mirrors - If Equipped
94 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Outside Mirror — Passenger Side Illuminated Vanity Mirrors — If Equipped Adjust the convex outside mirror so you can just see the An illuminated vanity mirror is on each sun visor. To use side of your vehicle in the part of the mirror closest to the the mirror, lower the sun visor and rotate the mirror vehicle.
Page 96: Uconnect™ Phone - If Equipped
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 95 Uconnect™ Phone — IF EQUIPPED WARNING! Refer to “Uconnect™ Phone” in the Uconnect™ User • DO NOT allow people to ride in any area of your Manual located on the DVD for further details. vehicle that is not equipped with seats and seat belts.
Page 97: Manual Front Seat Adjustment
96 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Manual Front Seat Adjustment The manual seat adjustment bar is at the front of the seat, near the floor. Pull the bar upward to move the seat forward or rearward. Release the bar once the seat is in the position desired.
Page 98: Driver Seat Manual Height Adjuster - If Equipped
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 97 WARNING! Adjusting a seat while the vehicle is moving is dangerous. The sudden movement of the seat could cause you to lose control. The seat belt might not be properly adjusted and you could be injured. Adjust the seat only while the vehicle is parked.
Page 99: Reclining Bucket Seats
98 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Reclining Bucket Seats WARNING! The recliner control is on the side of the seat. To recline, • Adjusting a seat while the vehicle is moving is lean forward slightly before lifting the lever, then lean back to the desired position and release the lever.
Page 100: Power Seats - If Equipped
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 99 Lumbar Support Power Seat Switches Power Seats — If Equipped 1 — Front Switch 2 — Rear Switch The power seat switches are on the outboard side of the seat near the floor. Use the front switch to move the seat up, down, forward, rearward, or to tilt the seat.
Page 101 100 UNDERSTANDING THE FEATURES OF YOUR VEHICLE WARNING! CAUTION! • Adjusting a seat while the vehicle is moving is DO NOT place any article under a power seat or dangerous. The sudden movement of the seat impede its ability to move as it may cause damage to could cause you to lose control.
Page 102: Adjusting Active Head Restraints
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 101 To raise the head restraint, pull upward on the head Adjusting Active Head Restraints Active Head Restraints can reduce the risk of injury in restraint (on some models, you may need to press the the event of a rear impact.
Page 103 102 UNDERSTANDING THE FEATURES OF YOUR VEHICLE For comfort the Active Head Restraints can be tilted forward and backward. To tilt the head restraint closer to the back of your head, pull outward on the bottom of the head restraint. Push rearward on the bottom of the head restraint to move the head restraint away from your head.
Page 104 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 103 • In the event of deployment of an Active Head Re- WARNING! (Continued) straint, refer to “Occupant Restraints/Resetting Active • Do not place items over the top of the Active Head Head Restraints (AHR)” in “Things to Know Before Restraint, such as coats, seat covers or portable Starting Your Vehicle”...
Page 105: Heated Seats - If Equipped
104 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Heated Seats — If Equipped WARNING! This feature heats leather or cloth front driver and • Persons who are unable to feel pain to the skin passenger seats. The switches for the heated seats are located in the center console above the climate controls.
Page 106: Fold-Flat Passenger Seatback
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 105 CAUTION! Repeated overheating of the seat could damage the heating element and/or degrade the material of the seat. Fold-Flat Passenger Seatback The recline handle on the front passenger seat also releases the seatback to fold forward. Seatback Adjustment...
Page 107: Folding Rear Seat
106 UNDERSTANDING THE FEATURES OF YOUR VEHICLE The hard seatback features a work surface and a molded Folding Rear Seat rim for retaining items stored on the seatback panel. To provide additional storage area, the rear seatback can be folded forward. Pull on the loops shown in the picture to fold down either or both seatbacks.
Page 108: Folding Rear Seat Center Armrest
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 107 WARNING! The rear cargo area of the vehicle (with the rear seatbacks in the locked-up or folded down position) should not be used as a play area by children. They could be seriously injured in an accident. Children should be seated and using the proper restraint system.
Page 109: To Open And Close The Hood
108 UNDERSTANDING THE FEATURES OF YOUR VEHICLE TO OPEN AND CLOSE THE HOOD 2. Then lift the secondary latch located under the front To open the hood, two latches must be released. edge of the hood, near the center and raise the hood. 1.
Page 110 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 109 Use the hood prop rod to secure the hood in the open CAUTION! position. Place the upper end of the prop rod in the hole on the left underside of the hood. To prevent possible damage, do not slam the hood to close it.
Page 111: Lights
110 UNDERSTANDING THE FEATURES OF YOUR VEHICLE LIGHTS Headlights and Parking Lights Turn the end of the multifunction lever to the first detent Multifunction Lever for parking light operation. Turn to the second detent for The multifunction lever controls the operation of the headlight operation.
Page 112: Automatic Headlights - If Equipped
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 111 With the engine running and the multifunction lever in Automatic Headlights — If Equipped Turning the end of the multifunction lever to the third the AUTO position, the headlights will turn on and turn detent (AUTO), will activate the automatic headlight off based on the surrounding light levels.
Page 113: Turn Signals
112 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Turn Signals light bulb. If an indicator fails to light when the lever is Move the multifunction lever up or down and the arrows moved, it would suggest that the indicator bulb is on each side of the instrument cluster flash to show defective.
Page 114: Fog Lights - If Equipped
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 113 NOTE: If the multifunction lever is held in the flash-to- pass position for more than 15 seconds, the high beams will shut off. If this occurs, wait 30 seconds for the next flash-to-pass operation. Fog Lights —...
Page 115: Daytime Running Lights - If Equipped
114 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Daytime Running Lights — If Equipped Instrument Panel Dimmer The high beam headlights will turn on as Daytime Rotate the center portion of the lever to the extreme Running Lights (DRL) and operate at lower intensity bottom position to fully dim the instrument panel lights whenever the ignition is ON, the engine is running, the and prevent the interior lights from illuminating when a...
Page 116: Map/Reading/Interior Lights
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 115 will remain on until the switch is pressed a second time, so be sure they have been turned off before leaving the vehicle. They will not turn off automatically. Interior lighting also comes on when a door is opened or the dimmer control is turned fully upward, past the second detent.
Page 117: Windshield Wipers And Washers
116 UNDERSTANDING THE FEATURES OF YOUR VEHICLE There is a second light located midway back in the headliner. To protect the battery, the interior lights will turn off automatically 10 minutes after the ignition switch is moved to the LOCK position. This will occur if the interior lights were switched on manually or are on because a door is open.
Page 118: Intermittent Wiper System
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 117 CAUTION! • Turn the windshield wipers off when driving through an automatic car wash. Damage to the windshield wipers may result if the wiper control is left in any position other than off. •...
Page 119: Windshield Washers
118 UNDERSTANDING THE FEATURES OF YOUR VEHICLE regulate the wipe interval from a minimum of one cycle Windshield Washers every second to a maximum of approximately 18 seconds To use the washer, pull the windshield wiper/washer between cycles. control lever toward you and hold it for as long as washer spray is desired.
Page 120: Mist Feature
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 119 WARNING! Sudden loss of visibility through the windshield could lead to an accident. You might not see other vehicles or other obstacles. To avoid sudden icing of the windshield during freezing weather, warm the windshield with defroster before and during wind- shield washer use.
Page 121: Tilt/Telescoping Steering Column
120 UNDERSTANDING THE FEATURES OF YOUR VEHICLE column) is placed in the AUTO position. In addition, the headlights will turn off when the wipers are turned off if they were turned on by this feature. The headlights with wipers feature can be turned on or off through the Electronic Vehicle Information Center (EVIC) —...
Page 122: Electronic Speed Control
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 121 WARNING! Do not adjust the steering column while driving. Adjusting the steering column while driving or driv- ing with the steering column unlocked, could cause the driver to lose control of the vehicle. Be sure the steering column is locked before driving your ve- hicle.
Page 123: To Activate
122 UNDERSTANDING THE FEATURES OF YOUR VEHICLE To Activate To Set a Desired Speed Push and release the ON/OFF button located on the end When the vehicle reaches the speed desired, press down of the Electronic Speed Control lever. The CRUISE indi- on the lever and release SET DECEL.
Page 124: To Resume Speed
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 123 To decrease speed while the Electronic Speed Control is To Resume Speed If you deactivated the Electronic Speed Control without set, push down and hold the SET DECEL lever. If the erasing the set speed from memory and your vehicle lever is continually held in the SET DECEL position, the speed is above 20 mph (32 km/h) you can resume the set speed will continue to decrease until the lever is...
Page 125: To Accelerate For Passing
124 UNDERSTANDING THE FEATURES OF YOUR VEHICLE To Accelerate for Passing WARNING! Press the accelerator as you would normally. When the pedal is released, the vehicle will return to the set speed. Electronic Speed Control can be dangerous where the system cannot maintain a constant speed.
Page 126 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 125 The HomeLink buttons that are located in the headliner WARNING! or sun visor designate the three different HomeLink • Your motorized door or gate will open and close channels. while you are training the universal transceiver. Do not train the transceiver if people, pets or other objects are in the path of the door or gate.
Page 127: Programming Homelink
126 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Programming HomeLink Place the handheld transmitter 1 to 3 in (3 to 8 cm) away from the HomeLink button you wish to program while Before You Begin keeping the indicator light in view. If you have not trained any of the HomeLink buttons, erase all channels before you begin training.
Page 128 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 127 • After training a HomeLink channel, if the garage This can usually be found where the hanging antenna door does not operate with HomeLink and the ga- wire is attached to the garage door opener motor. It is rage door opener was manufactured after 1995, the NOT the button normally used to open and close the garage door opener may have a rolling code.
Page 129 128 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 6. Firmly press and release the LEARN or TRAINING Using HomeLink button. The name and color of the button may vary by To operate, press and release the programmed manufacturer. HomeLink button. Activation will now occur for the trained device (i.e., garage door opener, gate operator, NOTE: You have 30 seconds in which to initiate the next security system, entry door lock, home/office lighting,...
Page 130: Gate Operator/Canadian Programming
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 129 Gate Operator/Canadian Programming successfully accepted the frequency signal. The indica- Canadian radio frequency laws require transmitter sig- tor light will flash slowly and then rapidly when fully nals to time-out (or quit) after several seconds of trans- trained.
Page 131: Troubleshooting Tips
130 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Troubleshooting Tips 2. This device must accept any interference that may be If you are having trouble programming HomeLink , here received including interference that may cause undesired are some of the most common solutions: operation.
Page 132: Power Sunroof - If Equipped
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 131 POWER SUNROOF — IF EQUIPPED WARNING! The sunroof controls are mounted between the dome/ • Never leave children in a vehicle with the key in reading lights. the ignition switch. Occupants, particularly unat- tended children, can become entrapped by the power sunroof while operating the power sunroof switch.
Page 133: Sunroof Operation
132 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Sunroof Operation Venting Sunroof — Express Press and release the “Vent” button, the sunroof will Opening Sunroof Manually open to the vent position. This is called “Express Vent”. Press the switch rearward and hold, and the sunroof will open automatically from any position.
Page 134: Wind Buffeting
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 133 NOTE: The sunshade cannot be closed if the sunroof is Ignition Off Operation open. For vehicles not equipped with the Electronic Vehicle Information Center (EVIC), the power sunroof switch Wind Buffeting will remain active for 45 seconds after the ignition switch Wind buffeting can be described as the perception of is turned OFF.
Page 135 134 UNDERSTANDING THE FEATURES OF YOUR VEHICLE The instrument panel power outlet, located below the The center console power outlet is powered directly from climate control knobs, has power available only when the the battery (power available at all times). Items plugged ignition is ON.
Page 136 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 135 NOTE: CAUTION! • To ensure proper operation a MOPAR knob and • Many accessories that can be plugged in draw element must be used. power from the vehicle’s battery, even when not in •...
Page 137: Cigar Lighter And Ash Receiver - If Equipped
136 UNDERSTANDING THE FEATURES OF YOUR VEHICLE CIGAR LIGHTER AND ASH RECEIVER — IF CAUTION! EQUIPPED An optional ash receiver is available from your autho- For vehicles equipped with the heated and cooled rized dealer and will fit in the center console front cupholder, locate the cup holder ash receiver in the cupholder.
Page 138 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 137 Front Cupholders Rear Bottle Holder Rear Seat Bottle Holder WARNING! There are built-in bottle holders located in both rear door trim panels. If containers of hot liquid are placed in the bottle holder, they can spill when the door is closed, burn- ing the occupants.
Page 139: Storage
138 UNDERSTANDING THE FEATURES OF YOUR VEHICLE STORAGE Driver’s Side Sunglass Holder — If Equipped An integrated sunglass holder is located in the headliner above the sun visor. To access the sunglass holder, lower the sun visor. Small items such as toll tickets can be stored between the two straps, while sunglasses or other items can be stored above the two straps.
Page 140 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 139 When the seatback is folded to the upright position, make WARNING! (Continued) sure it is latched by strongly pulling on the top of the • To help protect against personal injury, passengers seatback above the seat strap. should not be seated in the rear cargo area.
Page 141: Console Features
140 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Do not pile luggage or cargo higher than the top of the seatback. This could impair visibility or become a dan- gerous projectile in a sudden stop or collision. CONSOLE FEATURES The center console armrest slides forward from design position to provide added user comfort.
Page 142: Dual Storage Bins
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 141 The left latch opens to the top storage area. Dual Storage Bins Lifting a latch at the front of the hinged armrest provides The lower bin can be accessed directly, without first access to these storage areas. exposing the upper bin, by operating the right latch with the armrest down.
Page 143: Video Console - If Equipped
142 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Video Console — If Equipped The optional Video Entertainment System (VES)™ in- cludes the following components: • The screen for a rear seat DVD player is stored under the armrest. • Remote Control •...
Page 144: Rear Window Features
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 143 REAR WINDOW FEATURES CAUTION! Rear Window Defroster Failure to follow these cautions can cause damage to The rear window defroster button is located on the the heating elements: climate control (Mode) knob. Press this button to •...
Page 146 UNDERSTANDING YOUR INSTRUMENT PANEL CONTENTS ▫ Personal Settings (Customer-Programmable Instrument Panel Features ....148 Features) ......171 Instrument Cluster .
Page 147 146 UNDERSTANDING YOUR INSTRUMENT PANEL ▫ List Button (Disc Mode For ▫ Operating Instructions — Radio Mode ..195 MP3/WMA Play) ....188 ▫...
Page 148 UNDERSTANDING YOUR INSTRUMENT PANEL 147 Uconnect™ Multimedia (Satellite Radio) — If Remote Sound System Controls — Equipped (REN/REQ/RER/RBZ/RES Radios If Equipped ......224 Only).
Page 149: Instrument Panel Features
148 UNDERSTANDING YOUR INSTRUMENT PANEL INSTRUMENT PANEL FEATURES 1 — Air Outlet 6 — Radio 11 — Storage Compartment 2 — Side Window Demister Outlet 7 — Passenger Airbag 12 — Climate Control 3 — Instrument Cluster 8 — Glove Compartment 13 —...
Page 150: Instrument Cluster
UNDERSTANDING YOUR INSTRUMENT PANEL 149 INSTRUMENT CLUSTER...
Page 151: Instrument Cluster Descriptions
150 UNDERSTANDING YOUR INSTRUMENT PANEL INSTRUMENT CLUSTER DESCRIPTIONS removes this heat. You can also turn the Temperature control to maximum heat, the Mode control to Floor and 1. Temperature Gauge the Fan control to High. This allows the heater core to act The temperature gauge shows engine coolant tempera- as a supplement to the radiator and aids in removing heat ture.
Page 152 UNDERSTANDING YOUR INSTRUMENT PANEL 151 If jump starting is required, refer to “Jump Starting 5. Low Fuel Light When the fuel level drops to approximately 2.0 gal- Procedures” in “What To Do In Emergencies”. lons (7.6 Liters), the fuel symbol will light and a 7.
Page 153 152 UNDERSTANDING YOUR INSTRUMENT PANEL you do not buckle up, the light will remain on. Refer to 10. Engine Temperature Warning Light “Occupant Restraints” in “Things To Know Before Start- This light warns of an overheated engine condi- ing Your Vehicle” for further information. tion.
Page 154 UNDERSTANDING YOUR INSTRUMENT PANEL 153 The light will remain on until the cause is corrected. In the event of an EBD failure, the Brake Warning Light will turn on along with the ABS Light. Immediate repair NOTE: The light may flash momentarily during sharp to the ABS system is required.
Page 155 154 UNDERSTANDING YOUR INSTRUMENT PANEL 12. Tachometer driven. If your odometer needs to be repaired or serviced, The silver area of the scale shows the permissible engine the repair technician should leave the odometer reading revolutions-per-minute (RPM x 1000) for each gear range. the same as it was before the repair or service.
Page 156 UNDERSTANDING YOUR INSTRUMENT PANEL 155 Vehicle Odometer Messages LoW TirE When the appropriate conditions exist, the odometer will When the appropriate condition exists, the odometer display the following messages: display will toggle between LoW and TirE for three cycles. door ......Door Ajar HOTOIL deck .
Page 157 156 UNDERSTANDING YOUR INSTRUMENT PANEL tighten the fuel filler cap properly and press the odom- To turn off the message temporarily, press and release the eter reset button to turn off the “gASCAP” message. Trip Odometer button on the instrument cluster. To reset (Refer to “Onboard Diagnostic System —...
Page 158 UNDERSTANDING YOUR INSTRUMENT PANEL 157 15. Cruise Indicator — If Equipped Dual Trip Odometer — If Equipped This indicator shows that the Electronic Speed Press and release this button to change the display from Control System is ON. odometer to “Trip A.” Press and release it a second time to change the display to “Trip B.”...
Page 159 158 UNDERSTANDING YOUR INSTRUMENT PANEL If the light is flashing when the engine is running you 20. Turn Signal Indicators may experience power loss, an elevated/rough idle, and The arrows will flash in unison with the exterior increased brake pedal effort, and your vehicle may turn signal, when using the turn signal lever.
Page 160 UNDERSTANDING YOUR INSTRUMENT PANEL 159 If the ABS light remains on or comes on during driving, 24. Electronic Stability Control (ESC) Malfunction it indicates that the Anti-Lock portion of the brake system Indicator Light — If Equipped is not functioning and that service is required, however, The “ESC Indicator Light”...
Page 161 160 UNDERSTANDING YOUR INSTRUMENT PANEL apply as little throttle as possible. Be sure to adapt your has tires of a different size than the size indicated on the speed and driving to the prevailing road conditions. vehicle placard or tire inflation pressure label, you should determine the proper tire inflation pressure for those NOTE: tires.)
Page 162 UNDERSTANDING YOUR INSTRUMENT PANEL 161 maintain correct tire pressure, even if under-inflation has tires or wheels on your vehicle, to ensure that the not reached the level to trigger illumination of the TPMS replacement or alternate tires and wheels allow the TPMS low tire pressure telltale.
Page 163 162 UNDERSTANDING YOUR INSTRUMENT PANEL 26. Malfunction Indicator Light (MIL) CAUTION! The Malfunction Indicator Light (MIL) is part of an onboard diagnostic system called OBD that Prolonged driving with the MIL on could cause monitors emissions, engine, and automatic trans- damage to the engine control system.
Page 164 UNDERSTANDING YOUR INSTRUMENT PANEL 163 27. Transmission Temperature Warning Light — If WARNING! Equipped During sustained high speed driving on hot In some circumstances a Transmission Temperature days, the automatic transmission oil may be- Warning Light, under continued operation, could come too hot.
Page 165: Electronic Vehicle Information Center (Evic) - If Equipped
164 UNDERSTANDING YOUR INSTRUMENT PANEL ELECTRONIC VEHICLE INFORMATION CENTER The EVIC consists of the following: (EVIC) – IF EQUIPPED • System status The Electronic Vehicle Information Center (EVIC) fea- • Vehicle information warning message displays tures a driver-interactive display that is located in the instrument cluster.
Page 166 UNDERSTANDING YOUR INSTRUMENT PANEL 165 The system allows the driver to select information by Press and release the COMPASS button to pressing the following buttons on the instrument panel display the compass heading and the outside switch bank located below the climate controls: temperature.
Page 167: Electronic Vehicle Information Center (Evic) Displays
166 UNDERSTANDING YOUR INSTRUMENT PANEL • Door(s) Ajar (with a single chime if vehicle is in Electronic Vehicle Information Center (EVIC) Displays motion) When the appropriate conditions exist, the EVIC displays • Trunk Ajar (with a single chime) the following messages. •...
Page 168: Trip Functions
UNDERSTANDING YOUR INSTRUMENT PANEL 167 • ECO (Fuel Saver Indicator) — If Equipped Unless reset, this message will continue to display each time you turn the ignition switch to the ON/RUN • Average Fuel Economy position. To turn off the message temporarily, press and •...
Page 169 168 UNDERSTANDING YOUR INSTRUMENT PANEL • Average Fuel Economy When the DTE value is less than 30 miles (48 km) Shows the average fuel economy since the last reset. estimated driving distance, the DTE display will change When the fuel economy is reset, the display will read, to a text display of LOW FUEL”.
Page 170: Compass Display
UNDERSTANDING YOUR INSTRUMENT PANEL 169 To reset all resettable functions, press and release the Automatic Compass Calibration RESET button a second time within three seconds of This compass is self-calibrating, which eliminates the resetting the currently displayed function (Reset ALL will need to calibrate the compass manually.
Page 171 170 UNDERSTANDING YOUR INSTRUMENT PANEL Manual Compass Calibration Compass Variance If the compass appears erratic or inaccurate, and the Compass Variance is the difference between Magnetic variance has been properly set, you may wish to manu- North and Geographic North. To compensate for the ally recalibrate the compass.
Page 172: Personal Settings (Customer-Programmable Features)
UNDERSTANDING YOUR INSTRUMENT PANEL 171 3. Press and release the STEP button until “Compass Variance” and the current Variance Value displays in the EVIC. 4. Press and release the RESET button to increment the Variance Value by one, (one button press per update), until the proper variance zone is selected according to the map.
Page 173 172 UNDERSTANDING YOUR INSTRUMENT PANEL Press and release the MENU button until “Personal Remote Key Unlock Settings” displays in the EVIC. When “Driver Door 1st Press” is selected, only the driver’s door will unlock on the first press of the Remote Press and release the STEP button to display the follow- Keyless Entry (RKE) transmitter UNLOCK button.
Page 174 UNDERSTANDING YOUR INSTRUMENT PANEL 173 headlights will also turn off when the wipers are turned Flash Lights with Lock When ON is selected, the front and rear turn signals will off if they were turned on by this feature. To make your flash when the doors are locked or unlocked with the selection, press and hold the RESET button until ON or RKE transmitter.
Page 175: Setting The Analog Clock
174 UNDERSTANDING YOUR INSTRUMENT PANEL Illuminated Approach SETTING THE ANALOG CLOCK When this feature is selected, the headlights will activate To set the analog clock, lo- and remain on for up to 90 seconds when the doors are cated at the top center of the unlocked with the remote keyless entry transmitter.
Page 176: Media Center 230 (Req) - Am/Fm Stereo Radio And 6-Disc Cd/Dvd Changer (Mp3/Wma Aux Jack)
UNDERSTANDING YOUR INSTRUMENT PANEL 175 MEDIA CENTER 230 (REQ) — AM/FM STEREO Operating Instructions - Radio Mode RADIO AND 6–DISC CD/DVD CHANGER NOTE: The ignition switch must be in the ON or ACC (MP3/WMA AUX JACK) position to operate the radio. NOTE: The radio sales code is located on the lower right Power Switch/Volume Control (Rotary) side of the radio faceplate.
Page 177 176 UNDERSTANDING YOUR INSTRUMENT PANEL SEEK Buttons Voice Command Button Uconnect™ Phone — If Press and release the SEEK buttons to search for the next Equipped listenable station in AM/FM mode. Press the right switch Press this button to operate the Uconnect™ Phone feature to seek up and the left switch to seek down.
Page 178 UNDERSTANDING YOUR INSTRUMENT PANEL 177 If your vehicle is not equipped with or this feature is not 5. To exit, press any button/knob or wait five seconds. available on your vehicle, a “Not Equipped With The clock can also be set by pressing the SETUP button Uconnect”...
Page 179 178 UNDERSTANDING YOUR INSTRUMENT PANEL Setting the Tone, Balance, and Fade Push the rotary TUNE/SCROLL control knob a fifth time Push the rotary TUNE/SCROLL control knob and BASS and FADE will display. Turn the TUNE/SCROLL control will display. Turn the TUNE/SCROLL control knob to knob to the left or right to adjust the sound level between the right or left to increase or decrease the bass tones.
Page 180 UNDERSTANDING YOUR INSTRUMENT PANEL 179 Toggle the MUSIC TYPE button to select the following 16-Digit Character Program Type format types: Display 16-Digit Character Personality Persnlty Program Type Display Public Public No program type Rhythm and Blues R & B None or undefined Religious Music Rel Musc...
Page 181 180 UNDERSTANDING YOUR INSTRUMENT PANEL • DISC Play/Pause - You can toggle between By pressing the SEEK button when the Music Type icon is displayed, the radio will be tuned to the next frequency playing the DVD and pausing the DVD by station with the same selected Music Type name.
Page 182 UNDERSTANDING YOUR INSTRUMENT PANEL 181 TUNE/SCROLL control knob to adjust the minutes. NOTE: • The available selections for each of the above entries Press the TUNE/SCROLL control knob again to save varies depending upon the disc. changes. • These selections can only be made while playing a •...
Page 183 182 UNDERSTANDING YOUR INSTRUMENT PANEL down and selecting other. Enter the country code using Aspect Ratio — If Equipped the TUNE/SCROLL control knob to scroll up and down Selecting this item allows you to choose between wide to select the number and then push to select. screen, pan scan, and letter box.
Page 184: Operation Instructions - (Disc Mode For Cd And Mp3/Wma Audio Play, Dvd-Video)
UNDERSTANDING YOUR INSTRUMENT PANEL 183 Every time a preset button is used, a corresponding SET Button — To Set the Pushbutton Memory When you are receiving a station that you wish to button number will display. commit to pushbutton memory, press the SET button. Buttons 1 - 6 The symbol SET 1 will now show in the display window.
Page 185 184 UNDERSTANDING YOUR INSTRUMENT PANEL Radio display will show LOADING DISC when the disc CAUTION! is loading and “READING DISC” when the radio is reading the disc. The radio may shut down during extremely hot conditions. When this occurs, the radio will indicate CAUTION! “Disc Hot”...
Page 186: Notes On Playing Mp3/Wma Files
UNDERSTANDING YOUR INSTRUMENT PANEL 185 The disc can be ejected with the radio and ignition OFF. RW/FF (CD MODE) Press and hold FF (Fast Forward) and the CD player will SEEK Button (CD MODE) begin to fast forward until FF is released, or RW or Press the right SEEK button for the next selection on the another CD button is pressed.
Page 187 186 UNDERSTANDING YOUR INSTRUMENT PANEL Supported Medium Formats (File Systems) Multisession disc formats are supported by the radio. The medium formats supported by the radio are ISO 9660 Multisession discs may contain combinations of normal Level 1 and Level 2 and includes the Joliet extension. CD audio tracks and computer files (including MP3/ When reading discs recorded using formats other than WMA files).
Page 188 UNDERSTANDING YOUR INSTRUMENT PANEL 187 frequencies in the following table are supported. In ID3 Tag information for artist, song title, and album title addition, variable bit rates (VBR) are also supported. The are supported for ID3 version 1 tags. ID3 version 2 is not majority of MP3/WMA files use a 44.1 kHz sampling rate supported by the radios.
Page 189: List Button (Disc Mode For Mp3/Wma Play)
188 UNDERSTANDING YOUR INSTRUMENT PANEL • Number of files and folders - Loading times will INFO Button (DISC Mode for MP3/WMA Play) increase with more files and folders Pressing the INFO button repeatedly will scroll through the following TAG information: Song Title, Artist, File To increase the speed of disc loading, it is recommended Name, and Folder Name (if available).
Page 190 UNDERSTANDING YOUR INSTRUMENT PANEL 189 Pressing the AUX button will change the mode to auxil- TIME Button (Auxiliary Mode) iary device if the AUX jack is connected. Press the TIME button to change the display from elapsed playing time to time of day. The time of day will NOTE: The AUX device must be turned on and the display for five seconds.
Page 191: Media Center 730N/430 (Rer/Ren/Rbz) - Am/Fm Stereo Radio And Cd/Dvd/Hdd/Nav - If Equipped
190 UNDERSTANDING YOUR INSTRUMENT PANEL Operating Instructions - Uconnect™ Phone (If Macrovision Equipped) This product incorporates copyright protection technol- Refer to “Uconnect™ Phone” in the Uconnect™ User ogy that is protected by U.S. patents and other intellec- Manual located on the DVD for further details. tual property rights.
Page 192: Operating Instructions - Voice Command System - If Equipped
UNDERSTANDING YOUR INSTRUMENT PANEL 191 The REN, RER and RBZ radios contain a CD/DVD Clock Setting Procedure — RBZ Radio player, USB port, and a 30-gigabyte hard drive (HDD). To Manually Set the Clock Sirius Satellite Radio is optional. The 6.5 in (16.5 cm) touch screen allows for easy menu selection.
Page 193 192 UNDERSTANDING YOUR INSTRUMENT PANEL 5. To save the new time setting, touch the screen where 1. Turn on the radio. the word “Save” is displayed. 2. Touch the screen where the time is displayed. The Changing Daylight Savings Time clock setting menu will appear on the screen.
Page 194: Clock Setting Procedure - Rer/Ren Radio
UNDERSTANDING YOUR INSTRUMENT PANEL 193 want to select, touch the screen where the word “Page” is 4. To move the hour forward, touch the screen where the displayed to view additional time zones in the menu. word “Hour” with the arrow pointing upward is dis- played.
Page 195 194 UNDERSTANDING YOUR INSTRUMENT PANEL 2. Touch the screen where “User Clock” is displayed, the Touch the screen where the words “Show Time if Radio is clock setting menu will appear on the screen. Off” are displayed to change the current setting. 3.
Page 196: Media Center 130 (Res) - Am/Fm Stereo Radio With Cd Player (Mp3 Aux Jack)
UNDERSTANDING YOUR INSTRUMENT PANEL 195 MEDIA CENTER 130 (RES) — AM/FM STEREO Operating Instructions — Radio Mode RADIO WITH CD PLAYER (MP3 AUX JACK) NOTE: The ignition switch must be in the ON or ACC NOTE: The radio sales code is located on the lower right position to operate the radio.
Page 197 196 UNDERSTANDING YOUR INSTRUMENT PANEL to seek up and the left switch to seek down. The radio 4. Adjust the minutes using the right side TUNE/ will remain tuned to the new station until you make SCROLL control knob. Press the TUNE/SCROLL control another selection.
Page 198 UNDERSTANDING YOUR INSTRUMENT PANEL 197 Push the rotary TUNE/SCROLL control knob a second Push the rotary TUNE/SCROLL control knob again to time and MID will display. Turn the TUNE/SCROLL exit setting tone, balance, and fade. control knob to the right or left to increase or decrease the AM/FM Button mid-range tones.
Page 199: Operation Instructions - Cd Mode For Cd And Mp3 Audio Play
198 UNDERSTANDING YOUR INSTRUMENT PANEL You may add a second station to each pushbutton by Operation Instructions — CD MODE For CD And repeating the above procedure with this exception: Press MP3 Audio Play the SET/RND button twice and SET 2 will show in the NOTE: display window.
Page 200 UNDERSTANDING YOUR INSTRUMENT PANEL 199 If you insert a disc with the ignition ON and the radio EJECT Button - Ejecting a CD ON, the unit will switch from radio to CD mode and Press the EJECT button to eject the CD. begin to play when you insert the disc.
Page 201: Notes On Playing Mp3 Files
200 UNDERSTANDING YOUR INSTRUMENT PANEL the current selection. Pressing and holding the SEEK SET/RND Button (Random Play Button) button will allow faster scrolling through the tracks in Press this button while the CD is playing to activate CD and MP3 modes. Random Play.
Page 202 UNDERSTANDING YOUR INSTRUMENT PANEL 201 exceeding 20 folders will result in this display. With Supported Medium Formats (File Systems) The medium formats supported by the radio are ISO 9660 200 files, exceeding 50 folders will result in this Level 1 and Level 2 and includes the Joliet extension. display.) When reading discs recorded using formats other than •...
Page 203 202 UNDERSTANDING YOUR INSTRUMENT PANEL Supported MP3 File Formats MPEG Sampling Bit Rate (kbps) The radio will recognize only files with the *.MP3 exten- Specification Frequency (kHz) sion as MP3 files. Non-MP3 files named with the *.MP3 160, 128, 144, extension may cause playback problems.
Page 204: Operation Instructions - Auxiliary Mode
UNDERSTANDING YOUR INSTRUMENT PANEL 203 Loading times for playback of MP3 files may be affected MP3 player, or cassette player, and utilize the vehicle’s by the following: audio system to amplify the source and play through the vehicle speakers. • Media - CD-RW media may take longer to load than CD-R media Pressing the DISC/AUX button will change the mode to auxiliary device if the AUX jack is connected.
Page 205: Media Center 130 (Res/Rsc) - Am/Fm Stereo Radio With Cd Player (Mp3 Aux Jack) And Sirius Radio
204 UNDERSTANDING YOUR INSTRUMENT PANEL MEDIA CENTER 130 (RES/RSC) — AM/FM Operating Instructions — Radio Mode STEREO RADIO WITH CD PLAYER (MP3 AUX NOTE: The ignition switch must be in the ON or ACC JACK) AND SIRIUS RADIO position to operate the radio. NOTE: The radio sales code is located on the lower right Power Switch/Volume Control (Rotary) side of the radio faceplate.
Page 206 UNDERSTANDING YOUR INSTRUMENT PANEL 205 If your vehicle is not equipped with or this feature is not SEEK Buttons Press and release the SEEK buttons to search for the next available on your vehicle, a “Not Equipped With listenable station in AM/FM mode. Press the right switch Uconnect”...
Page 207 206 UNDERSTANDING YOUR INSTRUMENT PANEL Clock Setting Procedure starting at Step 2. For vehicles not equipped with satellite radio, press the SETUP button and then follow the above 1. Press and hold the TIME button until the hours blink. procedure, starting at Step 2. 2.
Page 208 UNDERSTANDING YOUR INSTRUMENT PANEL 207 Push the rotary TUNE/SCROLL control knob a fifth time Setting the Tone, Balance, and Fade Push the rotary TUNE/SCROLL control knob and BASS and FADE will display. Turn the TUNE/SCROLL control will display. Turn the TUNE/SCROLL control knob to knob to the left or right to adjust the sound level between the right or left to increase or decrease the bass tones.
Page 209 208 UNDERSTANDING YOUR INSTRUMENT PANEL Toggle the MUSIC TYPE button to select the following 16-Digit Character Program Type format types: Display 16-Digit Character Personality Persnlty Program Type Display Public Public No program type Rhythm and Blues R & B None or undefined Religious Music Rel Musc...
Page 210 UNDERSTANDING YOUR INSTRUMENT PANEL 209 By pressing the SEEK button when the Music Type icon the minutes using the right side TUNE/SCROLL is displayed, the radio will be tuned to the next frequency control knob. Press the TUNE/SCROLL control knob station with the same selected Music Type name.
Page 211: Operation Instructions - Cd Mode For Cd And Mp3 Audio Play
210 UNDERSTANDING YOUR INSTRUMENT PANEL You may add a second station to each pushbutton by Operation Instructions — CD MODE for CD and repeating the above procedure with this exception: Press MP3 Audio Play the SET/RND button twice and SET 2 will show in the NOTE: display window.
Page 212 UNDERSTANDING YOUR INSTRUMENT PANEL 211 If you insert a disc with the ignition ON and the radio EJECT Button - Ejecting a CD ON, the unit will switch from radio to CD mode and Press the EJECT button to eject the CD. begin to play when you insert the disc.
Page 213: Notes On Playing Mp3 Files
212 UNDERSTANDING YOUR INSTRUMENT PANEL the current selection. Pressing and holding the SEEK SET/RND Button (Random Play Button) button will allow faster scrolling through the tracks in Press this button while the CD is playing to activate CD and MP3 modes. Random Play.
Page 214 UNDERSTANDING YOUR INSTRUMENT PANEL 213 exceeding 20 folders will result in this display. With Supported Medium Formats (File Systems) The medium formats supported by the radio are ISO 9660 200 files, exceeding 50 folders will result in this Level 1 and Level 2 and includes the Joliet extension. display.) When reading discs recorded using formats other than •...
Page 215 214 UNDERSTANDING YOUR INSTRUMENT PANEL Supported MP3 File Formats MPEG Sampling Bit Rate (kbps) The radio will recognize only files with the *.MP3 exten- Specification Frequency (kHz) sion as MP3 files. Non-MP3 files named with the *.MP3 160, 128, 144, extension may cause playback problems.
Page 216: List Button (Cd Mode For Mp3 Play)
UNDERSTANDING YOUR INSTRUMENT PANEL 215 Loading times for playback of MP3 files may be affected begin playing the files contained in that folder (or the by the following: next folder in sequence if the selection does not contain playable files). •...
Page 217: Uconnect™ Multimedia (Satellite Radio) - If Equipped (Ren/Req/Rer/Rbz/Res Radios Only)
216 UNDERSTANDING YOUR INSTRUMENT PANEL Operation Instructions - Auxiliary Mode Operating Instructions - Uconnect™ Phone (If The auxiliary (AUX) jack is an audio input jack which Equipped) allows the user to plug in a portable device such as an Refer to “Uconnect™ Phone” in the Uconnect™ User MP3 player or cassette player and utilize the vehicle’s Manual located on the DVD for further details.
Page 218: System Activation
UNDERSTANDING YOUR INSTRUMENT PANEL 217 NOTE: Sirius service is not available in Hawaii and has 2. Your Vehicle Identification Number. limited coverage in Alaska. To access the ESN/SID, refer to the following steps: System Activation ESN/SID Access With REQ/RES Radios Sirius Satellite Radio service is pre-activated, and you With the ignition switch in the ON/RUN or ACC posi- may begin listening immediately to the one year of audio...
Page 219: Selecting Uconnect™ Multimedia (Satellite) Mode
218 UNDERSTANDING YOUR INSTRUMENT PANEL • Dense tree coverage may interrupt reception in the Selecting Uconnect™ Multimedia (Satellite) Mode Press the SAT button until SAT appears in the display. A form of short audio mutes. CD may remain in the radio while in the Satellite radio •...
Page 220 UNDERSTANDING YOUR INSTRUMENT PANEL 219 SCAN Button TUNE Control (Rotary) Pressing the SCAN button causes the tuner to search for Turn the rotary TUNE/SCROLL control knob clockwise the next channel, pausing for eight seconds before con- to increase or counterclockwise to decrease the channel. tinuing to the next.
Page 221: Operating Instructions - Uconnect™ Phone (If Equipped)
220 UNDERSTANDING YOUR INSTRUMENT PANEL SETUP Button the SET button twice and SET 2 will show in the display Pressing the SETUP button allows you to select the window. Each button can be set for SET 1 and SET 2. This following items: allows a total of 12 Satellite channels to be stored into pushbutton memory.
Page 222: Video Entertainment System (Ves)™ - If Equipped
UNDERSTANDING YOUR INSTRUMENT PANEL 221 VIDEO ENTERTAINMENT SYSTEM (VES)™ — IF EQUIPPED The optional Video Entertainment System (VES)™ in- cludes the following components for rear seat entertain- ment: • A diagonal 7 in (17.8 cm) Liquid Crystal Display (LCD) screen integrated into the center console armrest. The screen features brightness control for optimum day- time and nighttime viewing.
Page 223: 222 Understanding Your Instrument Panel
222 UNDERSTANDING YOUR INSTRUMENT PANEL • The LCD screen swings up from the rear of the armrest NOTE: Close the armrest after the LCD screen has been to allow the rear seat passenger(s) to view the display. raised to its viewing position. •...
Page 224 UNDERSTANDING YOUR INSTRUMENT PANEL 223 Audio/Video RCA Jacks (AUX Jacks) on the rear of the center console enable the monitor to display video directly from a video camera, connect video games for display on the screen, or play music directly from an MP3 player.
Page 225: Remote Sound System Controls - If Equipped
224 UNDERSTANDING YOUR INSTRUMENT PANEL REMOTE SOUND SYSTEM CONTROLS — IF EQUIPPED The remote sound system controls are located on the rear surface of the steering wheel. The left and right controls are rocker-type switches with a pushbutton in the center of each switch.
Page 226: Left-Hand Switch Functions For Radio Operation
UNDERSTANDING YOUR INSTRUMENT PANEL 225 • Press the button in the center of the switch to change beginning of the previous track if it is within one modes (i.e., AM, FM, etc.). second after the current track begins to play. •...
Page 227: Radio Operation And Cellular Phones
226 UNDERSTANDING YOUR INSTRUMENT PANEL 4. Do not use solvents such as benzene, thinner, cleaners, RADIO OPERATION AND CELLULAR PHONES or anti-static sprays. Under certain conditions, the cellular phone being on in your vehicle can cause erratic or noisy performance from 5.
Page 228: Manual Heating And Air Conditioning
UNDERSTANDING YOUR INSTRUMENT PANEL 227 Manual Heating and Air Conditioning Blower Control Rotate this control to regulate the amount of air forced through the ven- tilation system in any mode. The blower speed increases as you move the control to the right from the “O” (OFF) position.
Page 229 228 UNDERSTANDING YOUR INSTRUMENT PANEL Temperature Control Mode Control (Air Direction) Rotate this control to regulate the tem- Rotate this control to choose from sev- perature of the air inside the passenger eral patterns of air distribution. You compartment. Rotating the dial left can select either a primary mode as into the blue area of the scale indicates identified by the symbols on the con-...
Page 230 UNDERSTANDING YOUR INSTRUMENT PANEL 229 NOTE: For all settings except full cold or full hot, there Defrost is a difference in temperature between the upper and Air is directed through the windshield and side lower outlets. The warmer air flows to the floor outlets. window demist outlets.
Page 231 230 UNDERSTANDING YOUR INSTRUMENT PANEL will cause the LED in the control button to illuminate. several times then go out. Recirculation will be dis- After ten minutes, the system will return to normal mode abled automatically is these modes are selected. function and the LED will turn off.
Page 232: Automatic Temperature Control (Atc) - If Equipped
UNDERSTANDING YOUR INSTRUMENT PANEL 231 NOTE: The air conditioning compressor will not engage Automatic Temperature Control (ATC) — If until the engine has been running for about 10 seconds. Equipped • MAX A/C For maximum cooling use the A/C and recirculation buttons at the same time.
Page 233 232 UNDERSTANDING YOUR INSTRUMENT PANEL Operation of the system is quite simple. the “O” (OFF) position on the blower control stops the system completely and closes the outside air intake. 1. Turn the Mode Control knob (on the right) and the Blower Control knob (on the left) to AUTO.
Page 234 UNDERSTANDING YOUR INSTRUMENT PANEL 233 the radiator and through the condenser. Fabric front Manual Operation fascia protectors may reduce airflow to the condenser, This system offers a full complement of manual override reducing air conditioning performance. features, which consist of Blower Preferred Automatic, Mode Preferred Automatic, or Blower and Mode Pre- •...
Page 235 234 UNDERSTANDING YOUR INSTRUMENT PANEL...
Page 236 UNDERSTANDING YOUR INSTRUMENT PANEL 235 • Floor The operator can override the AUTO mode setting to change airflow distribution by rotating the Mode Control Air is directed through the floor outlets with a knob (on the right) to one of the following positions. small amount flowing through the defrost and side window demist outlets.
Page 237 236 UNDERSTANDING YOUR INSTRUMENT PANEL • Air Conditioner Control dust, or high humidity are present. Activating recircula- Press this button to turn on the air tion will cause the LED in the control button to illumi- conditioning during manual operation nate.
Page 238: Operating Tips
UNDERSTANDING YOUR INSTRUMENT PANEL 237 visibility. For this reason, the system will not allow Operating Tips Recirculation to be selected while in floor, defrost, or NOTE: Refer to the chart at the end of this section for Mix mode. Attempting to use the recirculation while in suggested control settings for various weather condi- these modes will cause the LED in the control button tions.
Page 239 238 UNDERSTANDING YOUR INSTRUMENT PANEL Vacation Storage Side Window Demisters Anytime you store your vehicle, or keep it out of service A side window demister outlet is located at each end of (i.e., vacation) for two weeks or more, run the air the instrument panel.
Page 240 UNDERSTANDING YOUR INSTRUMENT PANEL 239 A/C Air Filter — If Equipped The A/C Filter prevents most dust and pollen from entering the cabin. The filter acts on air coming from outside the vehicle and recirculated air within the pas- senger compartment. Refer to “Maintenance Procedures” in “Maintaining Your Vehicle”...
Page 241 240 UNDERSTANDING YOUR INSTRUMENT PANEL Control Setting Suggestions for Various Weather Conditions...
Page 242 STARTING AND OPERATING CONTENTS ▫ Key Ignition Park Interlock ... . . 250 Starting Procedures ....245 ▫...
Page 243 242 STARTING AND OPERATING ▫ Brake Assist System (BAS) ....268 Driving On Slippery Surfaces ... . . 258 ▫...
Page 244 STARTING AND OPERATING 243 ▫ Tire Spinning ..... . . 289 ▫ 3.5L Engine ......304 ▫...
Page 245 244 STARTING AND OPERATING ▫ Selection Of Engine Oil For Flexible Fuel ▫ Overloading ......318 Vehicles (E85) And Gasoline Vehicles ..312 ▫...
Page 246: Starting Procedures
STARTING AND OPERATING 245 STARTING PROCEDURES Automatic Transaxle Before starting your vehicle, adjust your seat, adjust the The shift lever must be in the PARK or NEUTRAL inside and outside mirrors, fasten your seat belt, and if position before you can start the engine. Apply the brakes present, instruct all other occupants to buckle their seat before shifting to any driving gear.
Page 247: Extreme Cold Weather (Below 20°F Or 29°C)
246 STARTING AND OPERATING For vehicles equipped with Tip Start (Six-Speed Trans- If Engine Fails To Start axle), turn the ignition switch to the START position and WARNING! release it as soon as the starter engages. The starter motor will continue to run, and it will disengage automatically •...
Page 248 STARTING AND OPERATING 247 If the engine shows no sign of starting after two 15- Without Tip Start If the engine fails to start after you have followed the second periods of cranking with the accelerator pedal “Normal Starting” or “Extreme Cold Weather” proce- held to the floor, repeat the “Normal Starting”...
Page 249: After Starting
248 STARTING AND OPERATING The engine block heater cord is bundled under the hood CAUTION! between the headlight assembly and the Totally Inte- grated Power Module (Fuse Box) on the driver’s side of To prevent damage to the starter, wait 10 to 15 sec- the vehicle.
Page 250 STARTING AND OPERATING 249 CAUTION! (Continued) WARNING! • Shift the shift lever into or out of REVERSE only • It is dangerous to move the shift lever out of PARK after the vehicle has come to a complete stop and or NEUTRAL if the engine speed is higher than the engine is at idle speed.
Page 251: Key Ignition Park Interlock
250 STARTING AND OPERATING can only be removed from the ignition when the ignition WARNING! (Continued) is in the LOCK position and once removed the shift lever • Unintended movement of a vehicle could injure is locked in PARK. those in and near the vehicle. As with all vehicles, Brake/Transaxle Interlock System you should never exit a vehicle while the engine is This vehicle is equipped with a Brake Transmission Shift...
Page 252: Automatic Transaxle Ignition Interlock System
STARTING AND OPERATING 251 • Insert the ignition key into the ignition switch and Automatic Transaxle Ignition Interlock System rotate it to the ON position. This system prevents the key from being removed unless the shift lever is in PARK. It also prevents shifting out of •...
Page 253: Four-Speed/Six-Speed Automatic Transaxle
252 STARTING AND OPERATING Four-Speed/Six-Speed Automatic Transaxle The electronically controlled transaxle provides a precise shift schedule. The transaxle electronics are self- calibrating; therefore, the first few shifts on a new vehicle may be somewhat abrupt. This is a normal condition, and precision shifts will develop within a few hundred miles/kilometers.
Page 254: Gear Ranges
STARTING AND OPERATING 253 Gear Ranges WARNING! PARK Never use PARK as a substitute for the parking This range supplements the parking brake by locking the brake. Always apply parking brake fully when transaxle. The engine can be started in this range. Never parked to guard against vehicle movement and pos- attempt to use PARK while vehicle is in motion.
Page 255 254 STARTING AND OPERATING NEUTRAL transaxle shifting occurs in the DRIVE range. For ex- This range is used when vehicle is standing for pro- ample: When operating the vehicle under heavy loading longed periods with engine running. Engine may be conditions, (i.e., in hilly terrain, traveling into strong started in this range.
Page 256 STARTING AND OPERATING 255 NOTE: If your vehicle is equipped with AutoStick , you LOW — Four-Speed Transaxle can reduce the frequency of transaxle shifting during This range should be used for engine braking when heavy loading, hilly terrain, strong headwinds, or while descending very steep grades.
Page 257: Autostick - If Equipped
256 STARTING AND OPERATING second gear (third gear for six–speed) despite the for- NOTE: Even if the transaxle can be reset, it is recom- ward gear selected. PARK, REVERSE, and NEUTRAL mended that you visit a dealer at your earliest possible will continue to operate.
Page 258: Operation
STARTING AND OPERATING 257 Operation General Information By placing the shift lever one shift-level below the DRIVE • You can start out, from a stop, in any gear except sixth. position, it can be moved from side to side. This allows The system will ignore attempts to upshift at too low the driver to select a higher or lower range of gears.
Page 259: Driving On Slippery Surfaces
258 STARTING AND OPERATING • If a downshift would cause the engine to overspeed, WARNING! that shift will not occur until it is safe for the engine. Mostly the transaxle will stay in the manually selected Rapid acceleration on slippery surfaces is dangerous. ratio, however.
Page 260: Driving Through Water
STARTING AND OPERATING 259 2. Slow down if the road has standing water or puddles. Flowing/Rising Water 3. Replace the tires when tread wear indicators first WARNING! become visible. Do not drive on or across a road or path where water 4.
Page 261 260 STARTING AND OPERATING CAUTION! CAUTION! (Continued) • Driving through standing water may cause dam- • Always check the depth of the standing water age to your vehicle’s drivetrain components. Al- before driving through it. Never drive through ways inspect your vehicle’s fluids (i.e., engine oil, standing water that is deeper than the bottom of transmission/transaxle, axle, etc.) for signs of con- the tire rims mounted on the vehicle.
Page 262: Power Steering
STARTING AND OPERATING 261 POWER STEERING WARNING! The standard power steering system will give you good • Driving through standing water limits your vehi- vehicle response and increased ease of maneuverability in tight spaces. The system will provide mechanical cle’s traction capabilities. Do not exceed 5 mph steering capability if power assist is lost.
Page 263: Power Steering Fluid Check
262 STARTING AND OPERATING system. This noise should be considered normal, and it checked if a leak is suspected, abnormal noises are does not in any way damage the steering system. apparent, and/or the system is not functioning as antici- pated.
Page 264: Parking Brake
STARTING AND OPERATING 263 If necessary, add fluid to restore to the proper indicated level. With a clean cloth, wipe any spilled fluid from all surfaces. Refer to “Fluids, Lubricants, and Genuine Parts” in “Maintaining Your Vehicle” for further information. PARKING BRAKE Before leaving the vehicle, make sure that the parking brake is fully applied.
Page 265 264 STARTING AND OPERATING NOTE: WARNING! • When the parking brake is applied and the transaxle is • Never use the PARK position as a substitute for placed in gear, the “Brake Warning Light” will flash. If vehicle speed is detected, a chime will sound to alert the parking brake.
Page 266: Anti-Lock Brake System (Abs)
STARTING AND OPERATING 265 computer to modulate the hydraulic pressure to prevent WARNING! (Continued) wheel lock-up and avoid skidding on slippery surfaces. • Always fully apply the parking brake when leav- ing your vehicle or it may roll and cause damage or WARNING! injury.
Page 267 266 STARTING AND OPERATING portion of the brake system is not functioning and that WARNING! (Continued) service is required. However, the conventional brake • The ABS cannot prevent accidents, including system will continue to operate normally if the “Brake those resulting from excessive speed in turns, Warning Light”...
Page 268: Electronic Brake Control System
STARTING AND OPERATING 267 self-check cycle to ensure that the ABS system is working WARNING! properly. This self check occurs each time the vehicle is started and accelerated past 7 mph (11 km/h). The Anti-Lock Brake System contains sophisticated electronic equipment that may be susceptible to ABS is activated during braking under certain road or interference caused by improperly installed or high stopping conditions.
Page 269: Anti-Lock Brake System (Abs)
268 STARTING AND OPERATING together to enhance vehicle stability and control in vari- spinning faster than the other, the system will apply the ous driving conditions and are commonly referred to as brake of the spinning wheel. This will allow more engine ESC.
Page 270: Hill Start Assist (Hsa) - If Equipped
STARTING AND OPERATING 269 reduce brake pedal pressure unless braking is no longer WARNING! (Continued) desired. Once the brake pedal is released, the BAS is • The capabilities of a BAS-equipped vehicle must deactivated. never be exploited in a reckless or dangerous manner, which could jeopardize the user’s safety WARNING! or the safety of others.
Page 271 270 STARTING AND OPERATING During operation, HSA will activate the brake control WARNING! system and a clicking noise may occur. If your foot is on the brake pedal during operation you may feel a slight There may be situations on minor hills (i.e., less than pedal movement.
Page 272 STARTING AND OPERATING 271 7. Press the “ESC Off” switch four times within 20 sec- HSA Off onds. The “ESC Off Indicator Light” should turn on and Non-EVIC Equipped Vehicles turn off two times. If you wish to turn off the HSA system, follow this procedure: 8.
Page 273: Electronic Stability Control (Esc)
272 STARTING AND OPERATING Electronic Stability Control (ESC) ESC Off Indicator Light The “ESC Off Indicator Light” (located in the This system enhances directional control and stability of instrument cluster) starts to flash as soon as the the vehicle under various driving conditions. ESC cor- tires lose traction and the ESC system becomes rects for over/under steering of the vehicle by applying active.
Page 274 STARTING AND OPERATING 273 several ignition cycles, and the vehicle has been driven WARNING! (Continued) several miles (kilometers) at speeds greater than 30 mph • ESC cannot prevent accidents, including those (48 km/h), see your authorized dealer as soon as possible resulting from excessive speed in turns, driving on to have the problem diagnosed and corrected.
Page 275 274 STARTING AND OPERATING ESC Operating Modes other stability features of ESC function normally, with the All ESC equipped vehicles can choose the following ESC exception of engine power reduction. This mode is operating modes: intended to be used if the vehicle is in deep snow, sand, or gravel conditions and more wheel spin than ESC ESC On would normally allow is required to gain traction.
Page 276: Tire Safety Information
STARTING AND OPERATING 275 NOTE: To improve the vehicle’s traction when driving TIRE SAFETY INFORMATION with snow chains, or starting off in deep snow, sand or Tire Markings gravel, it may be desirable to switch to the “Partial Off” mode by pressing the “ESC Off” switch. Once the situa- tion requiring ESC to be switched to the “Partial Off”...
Page 277 276 STARTING AND OPERATING NOTE: tires is the same as for P-Metric tires except for the • P (Passenger) - Metric tire sizing is based on U.S. letters “LT” that are molded into the sidewall preced- design standards. P-Metric tires have the letter “P” ing the size designation.
Page 278 STARTING AND OPERATING 277 Tire Sizing Chart EXAMPLE: Size Designation: P = Passenger car tire size based on U.S. design standards ..blank..= Passenger car tire based on European design standards LT = Light truck tire based on U.S. design standards T = Temporary spare tire 31 = Overall diameter in inches (in) 215 = Section width in millimeters (mm)
Page 279 278 STARTING AND OPERATING EXAMPLE: Service Description: 95 = Load Index — A numerical code associated with the maximum load a tire can carry H = Speed Symbol — A symbol indicating the range of speeds at which a tire can carry a load corresponding to its load index under certain operating conditions —...
Page 280: Tire Identification Number (Tin)
STARTING AND OPERATING 279 Look for the TIN on the outboard side of black sidewall Tire Identification Number (TIN) The TIN may be found on one or both sides of the tire, tires as mounted on the vehicle. If the TIN is not found on however, the date code may only be on one side.
Page 281: Tire Terminology And Definitions
280 STARTING AND OPERATING Tire Terminology and Definitions Term Definition The vehicle B-Pillar is a structural member of the body located B-Pillar between the front and rear door (of a four-door vehicle) running from the sill to the roof. Cold tire inflation pressure is defined as the tire pressure after the Cold Tire Pressure vehicle has not been driven for at least 3 hours, or driven less than 1 mile (1.6 km) after sitting for a three hour period.
Page 282: Tire Loading And Tire Pressure
STARTING AND OPERATING 281 Tire Loading and Tire Pressure Tire and Loading Information Placard Tire Placard Location NOTE: The proper cold tire inflation pressure is listed on the driver’s side B-Pillar. Tire and Loading Information Placard This placard tells you important information about the: 1) number of people that can be carried in the vehicle 2) total weight your vehicle can carry 3) tire size designed for your vehicle...
Page 283 282 STARTING AND OPERATING Loading occupants and cargo should never exceed XXX lbs or The vehicle maximum load on the tire must not exceed XXX kg” on the Tire and Loading Information placard. the load carrying capacity of the tire on your vehicle. You The combined weight of occupants, cargo/luggage and will not exceed the tire’s load carrying capacity if you trailer tongue weight (if applicable) should never exceed...
Page 284 STARTING AND OPERATING 283 4. The resulting figure equals the available amount of 6. If your vehicle will be towing a trailer, load from your cargo and luggage load capacity. For example, if “XXX” trailer will be transferred to your vehicle. Consult this amount equals 1,400 lbs (635 kg) and there will be five manual to determine how this reduces the available 150 lb (68 kg) passengers in your vehicle, the amount of...
Page 285 284 STARTING AND OPERATING...
Page 286: Tires - General Information
STARTING AND OPERATING 285 Safety WARNING! WARNING! Overloading of your tires is dangerous. Overloading can cause tire failure, affect vehicle handling, and • Improperly inflated tires are dangerous and can increase your stopping distance. Use tires of the cause accidents. recommended load capacity for your vehicle.
Page 287: Tire Inflation Pressures
286 STARTING AND OPERATING Tire Inflation Pressures WARNING! (Continued) The proper cold tire inflation pressure is listed on the • Unequal tire pressures from one side of the ve- driver’s side B-Pillar. hicle to the other can cause the vehicle to drift to Some vehicles may have Supplemental Tire Pressure the right or left.
Page 288 STARTING AND OPERATING 287 Tire pressures change by approximately 1 psi (7 kPa) per CAUTION! 12°F (7°C) of air temperature change. Keep this in mind when checking tire pressure inside a garage, especially in After inspecting or adjusting the tire pressure, al- the winter.
Page 289: Radial-Ply Tires
288 STARTING AND OPERATING loading may be required for high-speed vehicle opera- Radial-Ply Tires tion. Refer to original equipment or an authorized tire WARNING! dealer for recommended safe operating speeds, loading and cold tire inflation pressures. Combining radial ply tires with other types of tires on your vehicle will cause your vehicle to handle WARNING! poorly.
Page 290: Tire Spinning
STARTING AND OPERATING 289 Do not install a wheel cover or attempt to mount a WARNING! conventional tire on the compact spare wheel since the wheel is designed specifically for the compact spare. Temporary use spare tires are for emergency use only. With these tires, do not drive more than 50 mph Do not install more than one compact spare tire/wheel (80 km/h).
Page 291: Tread Wear Indicators
290 STARTING AND OPERATING Refer to “Freeing A Stuck Vehicle” in “What To Do In Emergencies” for further information. WARNING! Fast spinning tires can be dangerous. Forces gener- ated by excessive wheel speeds may cause tire dam- age or failure. A tire could explode and injure some- one.
Page 292: Life Of Tire
STARTING AND OPERATING 291 Life of Tire Replacement Tires The service life of a tire is dependent upon varying The tires on your new vehicle provide a balance of many factors including but not limited to: characteristics. They should be inspected regularly for wear and correct cold tire inflation pressure.
Page 293 292 STARTING AND OPERATING WARNING! WARNING! (Continued) • Failure to equip your vehicle with tires having • Do not use a tire, wheel size or rating other than adequate speed capability can result in sudden tire that specified for your vehicle. Some combinations failure and loss of vehicle control.
Page 294: Tire Chains
STARTING AND OPERATING 293 poorer than that of non-studded tires. Some states pro- TIRE CHAINS Due to limited clearance, tire chains are not recom- hibit studded tires; therefore, local laws should be mended. checked before using these tire types. TIRE ROTATION RECOMMENDATIONS CAUTION! Tires on the front and rear axles of vehicles operate at Damage to the vehicle may result if tire chains are...
Page 295: Tire Pressure Monitor System (Tpms)
294 STARTING AND OPERATING Refer to “Maintenance Schedule” for the proper mainte- TIRE PRESSURE MONITOR SYSTEM (TPMS) nance intervals. More frequent rotation is permissible if The Tire Pressure Monitor System (TPMS) will warn the desired. The reasons for any rapid or unusual wear driver of a low tire pressure based on the vehicle recom- should be corrected prior to rotation being performed.
Page 296 STARTING AND OPERATING 295 The TPM System will warn the driver of a low tire For example, your vehicle may have a recommended pressure if the tire pressure falls below the low-pressure cold (parked for more than three hours) placard pressure warning limit for any reason, including low temperature of 30 psi (207 kPa).
Page 297 296 STARTING AND OPERATING NOTE: CAUTION! • The TPMS is not intended to replace normal tire care • The TPMS has been optimized for the original and maintenance, or to provide warning of a tire failure or condition. equipment tires and wheels. TPMS pressures and warning have been established for the tire size •...
Page 298: Base System
STARTING AND OPERATING 297 • Seasonal temperature changes will affect tire pressure, Tire Pressure Monitoring Low Pressure Warnings and the TPMS will monitor the actual tire pressure in The “Tire Pressure Monitoring Telltale Light” will the tire. illuminate in the instrument cluster and a chime will sound when tire pressure is low in one or Base System more of the four active road tires.
Page 299 298 STARTING AND OPERATING will repeat, providing the system fault still exists. The NOTE: “Tire Pressure Monitoring Telltale Light” will turn off 1. The compact spare tire (if so equipped) does not have when the fault condition no longer exists. A system fault a tire pressure monitoring sensor.
Page 300: Premium System - If Equipped
STARTING AND OPERATING 299 5. Once you repair or replace the original road tire, and The TPMS consists of the following components: reinstall it on the vehicle in place of the compact spare, • Receiver Module the TPMS will update automatically and the “TPM •...
Page 301 300 STARTING AND OPERATING Tire Pressure Monitoring Low Pressure Warnings The “Tire Pressure Monitoring Telltale Light” will illuminate in the instrument cluster and a chime will sound when tire pressure is low in one or more of the four active road tires. In addition, the Electronic Vehicle Information Center (EVIC) will display a graphic showing the pressure values of each tire with the low tire pressure values flashing.
Page 302 STARTING AND OPERATING 301 will turn off. The vehicle may need to be driven for up to 20 minutes above 15 mph (25 km/h) in order for the TPMS to receive this information. Check TPMS Warning When a system fault is detected, a chime will sound and the “Tire Pressure Monitoring Telltale Light”...
Page 303 302 STARTING AND OPERATING If the ignition key is cycled, this sequence will repeat, NOTE: providing the system fault still exists. If the system fault 1. The compact spare tire (if so equipped) does not have no longer exists, the “Tire Pressure Monitoring Telltale a tire pressure monitoring sensor.
Page 304: General Information
STARTING AND OPERATING 303 4. For each subsequent ignition key cycle, a chime will General Information sound, the “TPM Telltale Light” will flash on and off for This device complies with part 15 of the FCC rules and 75 seconds and then remain on solid, and the EVIC will RSS 210 of Industry Canada.
Page 305: Fuel Requirements
304 STARTING AND OPERATING FUEL REQUIREMENTS for optimum performance. The use of premium gasoline is not recommended, as it will not provide any benefit 2.4L and 2.7L Engine over regular gasoline in these engines. All engines are designed to meet all emis- sion regulations and provide excellent fuel Light spark knock at low engine speeds is not harmful to economy and performance when using...
Page 306: Reformulated Gasoline
STARTING AND OPERATING 305 vehicle. The manufacturer recommends the use of gaso- Gasoline/Oxygenate Blends lines that meet the WWFC specifications if they are Some fuel suppliers blend unleaded gasoline with oxy- available. genates such as 10% ethanol, MTBE, and ETBE. Oxygen- ates are required in some areas of the country during the Reformulated Gasoline winter months to reduce carbon monoxide emissions.
Page 307: E-85 Usage In Non-Flex Fuel Vehicles
306 STARTING AND OPERATING • OBD II “Malfunction Indicator Light” on NOTE: The 2.7L engine is now rated for E85 Ethanol use (EXCEPT CALIFORNIA EMISSION STATES). Only • poor engine performance vehicles with the E-85 fuel filler door label can operate on •...
Page 308: Mmt In Gasoline
STARTING AND OPERATING 307 MMT is prohibited in Federal and California reformu- MMT in Gasoline MMT is a manganese containing metallic additive that is lated gasolines. blended into some gasoline to increase octane. Gasoline Materials Added to Fuel blended with MMT provides no performance advantage All gasoline sold in the United States is required to beyond gasoline of the same octane number without contain effective detergent additives.
Page 309: Fuel System Cautions
308 STARTING AND OPERATING Fuel System Cautions CAUTION! (Continued) • The use of fuel additives, which are now being CAUTION! sold as octane enhancers, is not recommended. Follow these guidelines to maintain your vehicle’s Most of these products contain high concentra- performance: tions of methanol.
Page 310: Carbon Monoxide Warnings
STARTING AND OPERATING 309 Carbon Monoxide Warnings WARNING! (Continued) • Guard against carbon monoxide with proper WARNING! maintenance. Have the exhaust system inspected Carbon monoxide (CO) in exhaust gases is deadly. every time the vehicle is raised. Have any abnor- Follow the precautions below to prevent carbon mal conditions repaired promptly.
Page 311 310 STARTING AND OPERATING the other sections of this manual for information on features that are common between Flexible Fuel and gasoline-only powered vehicles. NOTE: The 2.7L engine is now rated for E85 Ethanol use (EXCEPT CALIFORNIA EMISSION STATES). Only vehicles with the E85 fuel filler door label can operate on E85.
Page 312: Ethanol Fuel (E85)
STARTING AND OPERATING 311 WARNING! Ethanol vapors are extremely flammable and could cause serious personal injury. Never have any smok- ing materials lit in or near the vehicle when remov- ing the fuel filler tube cap (gas cap) or filling the tank.
Page 313: Selection Of Engine Oil For Flexible Fuel Vehicles (E85) And Gasoline Vehicles
MOPAR engine oils, and in equivalent oils meeting during warm up. Chrysler Specification MS-6395. The manufacturer only NOTE: recommends engine oils that are API Certified and meet • Use seasonally adjusted E85 fuel (ASTM D5798). With the requirements of Material Standard MS-6395.
Page 314: Cruising Range
STARTING AND OPERATING 313 NOTE: Use of the engine block heater (if equipped) is CAUTION! beneficial for E85 startability when the ambient tempera- ture is less than 32°F (0°C). Replacing fuel system components with non-ethanol compatible components can damage your vehicle. Cruising Range Because E85 fuel contains less energy per gallon/liter Maintenance...
Page 315: Adding Fuel
314 STARTING AND OPERATING ADDING FUEL Fuel Filler Cap (Gas Cap) The gas cap is behind the fuel filler door, on the left rear quarter panel of the vehicle. If the gas cap is lost or damaged, be sure the replacement cap is for use with this vehicle.
Page 316 STARTING AND OPERATING 315 CAUTION! • Damage to the fuel system or emission control system could result from using an improper fuel tank filler tube cap (gas cap). • A poorly fitting gas cap may cause the “Malfunc- tion Indicator Light (MIL)” to turn on. •...
Page 317: Loose Filler Cap Message
316 STARTING AND OPERATING on if the gas cap is not secured properly. Make sure WARNING! that the gas cap is tightened each time the vehicle is • Never have any smoking materials lit in or near refueled. the vehicle when the gas cap is removed or the •...
Page 318: Vehicle Loading
STARTING AND OPERATING 317 The bar code allows a computer scanner to read the VEHICLE LOADING Vehicle Identification Number (VIN). Vehicle Certification Label Your vehicle has a certification label attached to the rear Gross Vehicle Weight Rating (GVWR) of the driver’s door. The GVWR is the total allowable weight of your vehicle.
Page 319: Overloading
318 STARTING AND OPERATING Figure out the weight on the front and rear of the vehicle WARNING! separately. It is important that you distribute the load evenly over the front and rear axles. Because the front wheels steer the vehicle, it is important that you do not exceed the maximum front Overloading can cause potential safety hazards and or rear GAWR.
Page 320: Trailer Towing
STARTING AND OPERATING 319 TRAILER TOWING Gross Vehicle Weight Rating (GVWR) In this section, you will find safety tips and information The GVWR is the total allowable weight of your vehicle. on limits to the type of towing you can reasonably do This includes driver, passengers, cargo, and tongue with your vehicle.
Page 321 320 STARTING AND OPERATING Gross Axle Weight Rating (GAWR) Frontal Area The GAWR is the maximum capacity of the front and rear The frontal area is the maximum height and maximum axles. Distribute the load over the front and rear axles width of the front of a trailer and its cargo.
Page 322: Trailer Hitch Classification
STARTING AND OPERATING 321 Trailer Hitch Classification Trailer Hitch Classification Definitions The following chart provides the industry standard for Class Max. Trailer Hitch Industry the maximum trailer weight a given trailer hitch class can Standards tow and should be used to assist you in selecting the Class I - Light Duty 2,000 lbs (907 kg) correct trailer hitch for your intended towing condition.
Page 323: Trailer Towing Weights (Maximum Trailer Weight Ratings)
322 STARTING AND OPERATING Trailer Towing Weights (Maximum Trailer Weight Ratings) The following chart provides the maximum trailer weight ratings towable for your given drivetrain. Maximum Trailer Weight Ratings Engine/Transaxle Max. Frontal Area Max. GTW (Gross Trailer Wt.) Max. Trailer Tongue Wt. 2.4L/Auto See Note 1,000 lbs (450 kg)
Page 324: Trailer And Tongue Weight
STARTING AND OPERATING 323 Trailer and Tongue Weight Always load a trailer with 60% to 65% of the weight in the front of the trailer. This places 10% of the Gross Trailer Weight (GTW) on the tow hitch of your vehicle. Loads balanced over the wheels or heavier in the rear can cause the trailer to sway severely side to side which will cause loss of control of vehicle and trailer.
Page 325: Towing Requirements
324 STARTING AND OPERATING NOTE: Remember that everything put into or on the Towing Requirements trailer adds to the load on your vehicle. Also, additional To promote proper break-in of your new vehicle drive- factory-installed options, or authorized dealer-installed train components the following guidelines are recom- options, must be considered as part of the total load on mended: your vehicle.
Page 326 STARTING AND OPERATING 325 WARNING! WARNING! (Continued) • Safety chains must always be used between your Improper towing can lead to an injury accident. vehicle and trailer. Always connect the chains to Follow these guidelines to make your trailer towing the frame or hook retainers of the vehicle hitch.
Page 327 326 STARTING AND OPERATING • Check for signs of tire wear or visible tire damage WARNING! (Continued) before towing a trailer. Refer to “Tires – General 3. GAWR Information” in “Starting and Operating” for informa- 4. Trailer tongue weight rating for the trailer hitch tion on tread wear indicators and for proper inspection utilized (This requirement may limit the ability to procedure.
Page 328 STARTING AND OPERATING 327 • An electronically actuated trailer brake controller is WARNING! required when towing a trailer with electronically • Do not connect trailer brakes to your vehicle’s actuated brakes. When towing a trailer equipped with a hydraulic surge actuated brake system, an electronic hydraulic brake lines.
Page 329: Towing Tips
328 STARTING AND OPERATING Towing Tips If you REGULARLY TOW a trailer for more than 45 min- Before setting out on a trip, practice turning, stopping, utes of continuous operation, then change the automatic and backing the trailer in an area located away from transaxle fluid and filter according to the interval speci- heavy traffic.
Page 330: Recreational Towing (Behind Motorhome, Etc.)
STARTING AND OPERATING 329 Cooling System RECREATIONAL TOWING (BEHIND To reduce potential for engine and transaxle overheating, MOTORHOME, ETC.) take the following actions: Towing This Vehicle Behind Another Vehicle (Flat • City Driving towing with all four wheels on the ground) When stopped for short periods of time, shift the trans- CAUTION! axle into NEUTRAL and increase engine idle speed.
Page 332: What To Do In Emergencies
WHAT TO DO IN EMERGENCIES CONTENTS ▫ Jump-Starting Procedure ....343 Hazard Warning Flasher ....332 If Your Engine Overheats .
Page 333: Hazard Warning Flasher
332 WHAT TO DO IN EMERGENCIES HAZARD WARNING FLASHER IF YOUR ENGINE OVERHEATS The Hazard Warning flasher switch is located on the In any of the following situations, you can reduce the instrument panel, below the radio. potential for overheating by taking the appropriate ac- tion.
Page 334: Engine Oil Overheating (2.4L Engine Only) - If Equipped
WHAT TO DO IN EMERGENCIES 333 NOTE: There are steps that you can take to slow down Engine Oil Overheating (2.4L Engine Only) — If an impending overheat condition: Equipped During sustained high-speed driving or trailer tow up • If your air conditioner (A/C) is on, turn it off. The A/C long grades on a hot day, the engine oil temperature may system adds heat to the engine cooling system and become too hot.
Page 335: Jacking And Tire Changing
334 WHAT TO DO IN EMERGENCIES JACKING AND TIRE CHANGING Spare Tire Stowage The compact spare tire is stowed under the rear load floor WARNING! in the trunk. • Being under a jacked-up vehicle is dangerous. The Spare Tire Removal Lift up the load floor cover and remove the hold down.
Page 336: Preparations For Jacking
WHAT TO DO IN EMERGENCIES 335 4. Turn OFF the ignition. Preparations For Jacking 1. Park the vehicle on a firm, level surface. Avoid ice or 5. Turn on the Hazard Warning flasher. slippery areas. 6. Block both the front and rear of the wheel diagonally opposite the jacking WARNING! position.
Page 337: Jacking Instructions
336 WHAT TO DO IN EMERGENCIES Jacking Instructions WARNING! (Continued) • Do not let anyone sit in the vehicle when it is on a WARNING! jack. Carefully follow these tire changing warnings to • Do not get under the vehicle when it is on a jack. help prevent personal injury or damage to your •...
Page 338 WHAT TO DO IN EMERGENCIES 337 Jack Warning Label 1. Remove the scissors jack and lug wrench from the spare wheel as an assembly. Turn the jack screw to the left to loosen the lug wrench, and remove the wrench from the jack assembly.
Page 339 338 WHAT TO DO IN EMERGENCIES Jacking Locations...
Page 340 WHAT TO DO IN EMERGENCIES 339 CAUTION! WARNING! Do not attempt to raise the vehicle by jacking on Raising the vehicle higher than necessary can make locations other than those indicated in Step 3. the vehicle less stable. It could slip off the jack and hurt someone near it.
Page 341 340 WHAT TO DO IN EMERGENCIES WARNING! WARNING! To avoid possible personal injury, handle the wheel A loose tire or jack thrown forward in a collision or covers with care to avoid contact with any sharp hard stop could endanger the occupants of the ve- edges.
Page 342: Jump-Starting
WHAT TO DO IN EMERGENCIES 341 JUMP-STARTING WARNING! If your vehicle has a discharged battery it can be jump- started using a set of jumper cables and a battery in When temperatures are below the freezing point, another vehicle or by using a portable battery booster electrolyte in a discharged battery may freeze.
Page 343: Preparations For Jump-Start
342 WHAT TO DO IN EMERGENCIES Preparations for Jump-Start WARNING! The battery in your vehicle is located between the left • Take care to avoid the radiator cooling fan when- front headlight assembly and the left front wheel splash shield. To allow jump-starting there are remote battery ever the hood is raised.
Page 344: Jump-Starting Procedure
WHAT TO DO IN EMERGENCIES 343 3. Remove the protective cover over the remote positive WARNING! (+) battery post. To remove the cover, press the locking tab and pull upward on the cover. Do not allow vehicles to touch each other as this could establish a ground connection and personal injury could result.
Page 345 344 WHAT TO DO IN EMERGENCIES 1. Connect the positive (+) end of the jumper cable to the 5. Start the engine in the vehicle that has the booster remote positive (+) post of the discharged vehicle. battery, let the engine idle a few minutes, and then start the engine in the vehicle with the discharged battery.
Page 346: Freeing A Stuck Vehicle
WHAT TO DO IN EMERGENCIES 345 10. Reinstall the protective cover over the remote posi- front wheels. Then shift back and forth between RE- tive (+) battery post of the discharged vehicle. VERSE and FIRST gear. Using minimal accelerator pedal pressure to maintain the rocking motion, without spin- If frequent jump-starting is required to start your vehicle ning the wheels, is most effective.
Page 347: Towing A Disabled Vehicle
346 WHAT TO DO IN EMERGENCIES TOWING A DISABLED VEHICLE CAUTION! (Continued) • Revving the engine or spinning the wheels too fast Towing With The Ignition Key may lead to transmission overheating and failure. Front Wheel Drive It can also damage the tires. Do not spin the Your vehicle may be towed (with all four wheels flat on wheels above 30 mph (48 km/h) while in gear (no the ground), under the following conditions:...
Page 348: Towing Without The Ignition Key
WHAT TO DO IN EMERGENCIES 347 If you must use the accessories (wipers, defrosters, etc.) CAUTION! (Continued) while being towed, the key must be in the ON position, • If the transaxle is inoperative, or if the vehicle is to not the ACC position.
Page 349: Towing This Vehicle Behind Another Vehicle
348 WHAT TO DO IN EMERGENCIES Towing This Vehicle Behind Another Vehicle Battery power is required to release the brake/transaxle Flat towing with all four wheels on the ground of vehicles interlock system. There is an override system that allows equipped with an automatic transmission, is only permit- you to shift out of PARK in case of loss of power.
Page 350: Maintaining Your Vehicle
MAINTAINING YOUR VEHICLE CONTENTS Engine Compartment — 2.4L ... . . 351 Maintenance Procedures ....357 ▫...
Page 351 350 MAINTAINING YOUR VEHICLE ▫ Adding Washer Fluid ....368 Bulb Replacement ..... 394 ▫...
Page 352: Engine Compartment - 2.4L
MAINTAINING YOUR VEHICLE 351 ENGINE COMPARTMENT — 2.4L 1 — Engine Coolant Reservoir 7 — Air Cleaner Filter 2 — Power Steering Fluid Reservoir 8 — Engine Oil Fill 3 — Automatic Transaxle Dipstick 9 — Coolant Pressure Cap 4 — Brake Fluid Reservoir 10 —...
Page 353: Engine Compartment - 2.7L
352 MAINTAINING YOUR VEHICLE ENGINE COMPARTMENT — 2.7L 1 — Engine Coolant Reservoir 7 — Power Distribution Center 2 — Coolant Pressure Cap 8 — Air Cleaner Filter 3 — Power Steering Fluid Reservoir 9 — Engine Oil Dipstick 4 — Automatic Transaxle Dipstick (Four-Speed Only) 10 —...
Page 354: Engine Compartment - 3.5L
MAINTAINING YOUR VEHICLE 353 ENGINE COMPARTMENT — 3.5L 1 — Engine Coolant Reservoir 6 — Air Cleaner Filter 2 — Coolant Pressure Cap 7 — Engine Oil Dipstick 3 — Power Steering Fluid Reservoir 8 — Engine Oil Fill 4 — Brake Fluid Reservoir 9 —...
Page 355: Onboard Diagnostic System - Obd Ii
354 MAINTAINING YOUR VEHICLE ONBOARD DIAGNOSTIC SYSTEM — OBD II CAUTION! Your vehicle is equipped with a sophisticated Onboard • Prolonged driving with the “Malfunction Indica- Diagnostic system called OBD II. This system monitors the performance of the emissions, engine, and automatic tor Light”...
Page 356: Emissions Inspection And Maintenance Programs
MAINTAINING YOUR VEHICLE 355 the gas cap is properly tightened. Press the trip odometer Normally, the OBD II system will be ready. The OBD II “Reset” button to turn off the message. If the problem system may not be ready if your vehicle was recently persists, the message will appear the next time the serviced, recently had a dead battery or a battery replace- vehicle is started.
Page 357: Replacement Parts
356 MAINTAINING YOUR VEHICLE 4. Approximately 15 seconds later, one of two things will Regardless of whether your vehicle’s OBD II system is happen: ready or not, if the MIL is illuminated during normal vehicle operation you should have your vehicle serviced a.
Page 358: Maintenance Procedures
Only do service work for which you mance. Immediately have potential malfunctions have the knowledge and the proper equipment. If examined by an authorized Chrysler Group LLC you have any doubt about your ability to perform a dealership or qualified repair center.
Page 359: Engine Oil
358 MAINTAINING YOUR VEHICLE fully warmed engine is shut off. Do not check oil level CAUTION! (Continued) before starting the engine after it has sat overnight. • Your vehicle has been built with improved fluids Checking engine oil level when the engine is cold will that protect the performance and durability of give you an incorrect reading.
Page 360 Do not overfill the engine. Overfilling the engine mends engine oils that are API Certified and meet the will cause oil aeration, which can lead to loss of oil requirements of Chrysler Material Standard MS-6395. pressure and an increase in oil temperature. This could damage your engine.
Page 361 360 MAINTAINING YOUR VEHICLE Lubricants which do not have both the engine oil certi- CAUTION! fication mark and the correct SAE viscosity grade num- ber should not be used. Do not use chemical flushes in your engine oil as the chemicals can damage your engine.
Page 362: Engine Oil Filter
MAINTAINING YOUR VEHICLE 361 Lubricants which do not have both, the engine oil certi- environment. Contact your authorized dealer, service fication mark and the correct SAE viscosity grade num- station, or governmental agency for advice on how and ber should not be used. where used oil and oil filters can be safely discarded in your area.
Page 363: Engine Air Cleaner Filter
362 MAINTAINING YOUR VEHICLE Engine Air Cleaner Filter Engine Air Cleaner Filter Selection The quality of replacement engine air cleaner filters WARNING! varies considerably. Only high quality filters should be used to assure most efficient service. MOPAR engine air The air induction system (air cleaner, hoses, etc.) can cleaner filters are high quality and are recommended.
Page 364 MAINTAINING YOUR VEHICLE 363 WARNING! CAUTION! • Battery fluid is a corrosive acid solution and can • It is essential when replacing the cables on the burn or even blind you. Do not allow battery fluid battery that the positive cable is attached to the to contact your eyes, skin, or clothing.
Page 365: Air Conditioner Maintenance
364 MAINTAINING YOUR VEHICLE Air Conditioner Maintenance WARNING! For best possible performance, your air conditioner • Use only refrigerants and compressor lubricants should be checked and serviced by an authorized dealer at the start of each warm season. This service should approved by the manufacturer for your air condi- include cleaning of the condenser fins and a performance tioning system.
Page 366: A/C Air Filter - If Equipped
MAINTAINING YOUR VEHICLE 365 The A/C Air Filter is located in the fresh air inlet behind Refrigerant Recovery and Recycling R-134a air conditioning refrigerant is a hydrofluoro- the glove box. Perform the following procedure to re- carbon (HFC) that is endorsed by the Environmental place the filter: Protection Agency and is an ozone-saving product.
Page 367: Body Lubrication
366 MAINTAINING YOUR VEHICLE 5. Disengage the two retaining tabs that secure the filter 7. Install the A/C Air Filter with the arrow on the filter cover to the HVAC housing and remove the cover. pointing toward the floor. When installing the filter cover, make sure the retaining tabs fully engage the cover.
Page 368: Windshield Wiper Blades
MAINTAINING YOUR VEHICLE 367 quiet, easy operation and to protect against rust and mild non-abrasive cleaner or use the washer solvent. This wear. Prior to the application of any lubricant, the parts will remove accumulations of salt, waxes, or road film concerned should be wiped clean to remove dust and and help reduce streaking and smearing.
Page 369: Adding Washer Fluid
368 MAINTAINING YOUR VEHICLE present please proceed to clean wiper blades with humid Exhaust System cloth removing any debris that may be affecting its The best protection against carbon monoxide entry into function. the vehicle body is a properly maintained engine exhaust system.
Page 370 MAINTAINING YOUR VEHICLE 369 Under normal operating conditions, the catalytic con- WARNING! verter will not require maintenance. However, it is im- portant to keep the engine properly tuned to assure Exhaust gases can injure or kill. They contain carbon proper catalyst operation and prevent possible catalyst monoxide (CO) which is colorless and odorless.
Page 371: Cooling System
370 MAINTAINING YOUR VEHICLE NOTE: Intentional tampering with emissions control To minimize the possibility of catalyst damage: systems can result in civil penalties being assessed • Do not shut off the engine or interrupt the ignition against you. when the transaxle is in gear and the vehicle is in motion.
Page 372 MAINTAINING YOUR VEHICLE 371 Check the coolant recovery bottle tubing for brittle rub- WARNING! (Continued) ber, cracking, tears, cuts, and tightness of the connection • You or others can be badly burned by hot engine at the bottle and radiator. Inspect the entire system for coolant (antifreeze) or steam from your radiator.
Page 373 372 MAINTAINING YOUR VEHICLE CAUTION! CAUTION! (Continued) • This vehicle has not been designed for use with • Mixing of engine coolant (antifreeze) other than Propylene Glycol based engine coolant (anti- specified HOAT engine coolant (antifreeze), may freeze). Use of Propylene Glycol based engine result in engine damage and may decrease corro- coolant (antifreeze) is not recommended.
Page 374 MAINTAINING YOUR VEHICLE 373 When adding engine coolant (antifreeze): Please note that it is the owner’s responsibility to main- tain the proper level of protection against freezing ac- • The manufacturer recommends using MOPAR cording to the temperatures occurring in the area where Antifreeze/Coolant 5 Year/100,000 Mile Formula the vehicle is operated.
Page 375 374 MAINTAINING YOUR VEHICLE rules for your community. To prevent ingestion by ani- WARNING! mals or children, do not store ethylene glycol based • The warning words “DO NOT OPEN HOT” on engine coolant (antifreeze) in open containers or allow it to remain in puddles on the ground.
Page 376 MAINTAINING YOUR VEHICLE 375 The radiator normally remains completely full, so there is If an examination of your engine compartment shows no no need to remove the radiator cap unless checking for evidence of radiator or hose leaks, the vehicle may be engine coolant (antifreeze) freeze point or replacing cool- safely driven.
Page 377: Brake System
376 MAINTAINING YOUR VEHICLE • Make sure that the radiator and coolant recovery WARNING! bottle overflow hoses are not kinked or obstructed. Riding the brakes can lead to brake failure and • Keep the front of the radiator clean. If your vehicle is possibly an accident.
Page 378 MAINTAINING YOUR VEHICLE 377 Clean the top of the master cylinder area before removing WARNING! the cap. If necessary, add fluid to bring the fluid level up • Use only manufacturer’s recommended brake to the requirements described on the brake fluid reser- voir.
Page 379: Automatic Transaxle
378 MAINTAINING YOUR VEHICLE WARNING! (Continued) WARNING! (Continued) • To avoid contamination from foreign matter or • Do not allow petroleum based fluid to contami- moisture, use only new brake fluid or fluid that nate the brake fluid. Brake seal components could has been in a tightly closed container.
Page 380 MAINTAINING YOUR VEHICLE 379 driven at least 15 miles (24 km). Hot fluid cannot be held Fluid Level Check – 2.4L and 2.7L Engines Use the following procedure to check the automatic comfortably between the fingertips. Cold fluid is at a transaxle fluid level properly: temperature below 80°F (27°...
Page 381 380 MAINTAINING YOUR VEHICLE Fluid Level Check – 3.5L Engine CAUTION! The automatic transaxle has no dipstick and is dealer • Using a transmission fluid other than the manu- serviced only. facturer’s recommended fluid may cause deterio- Transmission Fluid and Filter Changes ration in transaxle shift quality and/or torque Refer to “Maintenance Schedule”...
Page 382: Appearance Care And Protection From Corrosion
MAINTAINING YOUR VEHICLE 381 The following maintenance recommendations will enable CAUTION! you to obtain maximum benefit from the corrosion resistance built into your vehicle. Do not use chemical flushes in your transaxle as the chemicals can damage your transaxle components. What Causes Corrosion? Such damage is not covered by the New Vehicle Corrosion is the result of deterioration or removal of...
Page 383 382 MAINTAINING YOUR VEHICLE Washing CAUTION! • Wash your vehicle regularly. Always wash your ve- Do not use abrasive or strong cleaning materials such hicle in the shade using MOPAR Car Wash or equiva- as steel wool or scouring powder, which will scratch lent, or a mild car wash soap, and rinse the panels metal and painted surfaces.
Page 384 MAINTAINING YOUR VEHICLE 383 • If your vehicle is damaged due to an accident or heavy soil and/or excessive brake dust, use MOPAR similar cause which destroys the paint and protective Wheel Cleaner or equivalent or select a nonabrasive, coating, have your vehicle repaired as soon as pos- non-acidic cleaner.
Page 385 384 MAINTAINING YOUR VEHICLE • Do not use any harsh solvents or any other form of Do not use abrasive cleaning components, solvents, steel wool or other aggressive material to clean the lenses. protectants on Stain Repel products. Stain Repel Fabric Cleaning Procedure – If Interior Care Equipped Instrument Panel Cover...
Page 386 MAINTAINING YOUR VEHICLE 385 Cleaning Leather Upholstery WARNING! MOPAR Total Clean or equivalent is specifically recom- mended for leather upholstery. Do not use volatile solvents for cleaning purposes. Many are potentially flammable, and if used in Your leather upholstery can be best preserved by regular closed areas they may cause respiratory harm.
Page 387: Cleaning Center Console Cupholders
386 MAINTAINING YOUR VEHICLE Cleaning Plastic Instrument Cluster Lenses Replace the belts if they appear frayed or worn or if the The lenses in front of the instruments in this vehicle are buckles do not work properly. molded in clear plastic. When cleaning the lenses, care Dry with a soft tissue.
Page 388: Fuses
MAINTAINING YOUR VEHICLE 387 Installation Align the liner in the cupholder and press down firmly. FUSES Totally Integrated Power Module (TIPM) The TIPM is located in the engine compartment near the air cleaner assembly. This center contains cartridge fuses and mini fuses. A label that identifies each component may be printed on the inside of the cover.
Page 389 388 MAINTAINING YOUR VEHICLE Cartridge Cartridge Cavity Mini Fuse Description Cavity Mini Fuse Description Fuse Fuse Battery Feed – Ignition Off 30 Amp Center High — Draw (IOD) Green — 10 Amp Red Mounted Stop Sense 2 Light (CHMSL)/ Battery Feed – Brake Switch Power Seats –...
Page 390 MAINTAINING YOUR VEHICLE 389 Cartridge Cartridge Cavity Mini Fuse Description Cavity Mini Fuse Description Fuse Fuse 20 Amp Yel- Ignition Off — — Draw (IOD) – Wireless Control Ignition Off — 10 Amp Red Module (WCM)/ Draw (IOD) – Clock/Steering Cabin Compart- —...
Page 391 390 MAINTAINING YOUR VEHICLE Cartridge Cartridge Cavity Mini Fuse Description Cavity Mini Fuse Description Fuse Fuse — 10 Amp Red — Auto Shutdown 15 Amp Lt. — (ASD) Relay Ignition Run – Blue Feed 2 Climate — 10 Amp Red Controls/Hot Ignition Run –...
Page 392 MAINTAINING YOUR VEHICLE 391 Cartridge Cartridge Cavity Mini Fuse Description Cavity Mini Fuse Description Fuse Fuse Hot Car (No Battery Feed – — — Fuse Required) Anti-Lock Brakes (ABS) Module – Ignition Run – 20 Amp Yel- 30 Amp If Equipped/ —...
Page 393: Vehicle Storage
392 MAINTAINING YOUR VEHICLE Cartridge CAUTION! (Continued) Cavity Mini Fuse Description Fuse • When replacing a blown fuse, it is important to Battery Feed – use only a fuse having the correct amperage rating. Passenger Door 30 Amp The use of a fuse with a rating other than indicated —...
Page 394: Replacement Bulbs
MAINTAINING YOUR VEHICLE 393 REPLACEMENT BULBS LIGHT BULBS – Exterior Bulb No. All the inside bulbs are brass or glass wedge base. Low Beam Headlamp ..... H11 Aluminum base bulbs are not approved and should not High Beam Headlamp .
Page 395: Bulb Replacement
394 MAINTAINING YOUR VEHICLE BULB REPLACEMENT Headlamp 1. Raise and prop open the hood. Locate the connector behind the headlamp. NOTE: It may be necessary to remove the air cleaner filter housing and position the totally integrated power module aside prior to replacing the low beam headlamp on the driver’s side of the vehicle.
Page 396 MAINTAINING YOUR VEHICLE 395 3. Rotate bulb and connector one-quarter turn and pull 4. Pull the bulb out of the socket and replace the bulb. outward from assembly. 5. If the bulb comes in contact with any oily surface, clean the bulb with rubbing alcohol. CAUTION! 6.
Page 397: Front Turn Signal/Parking Lamp
396 MAINTAINING YOUR VEHICLE Front Turn Signal/Parking Lamp 3. Remove the bulb from the connector socket and install the replacement bulb. 1. Raise and prop open the hood. 4. Install the bulb and connector assembly into the 2. Rotate the bulb’s electrical connector one-quarter turn headlamp housing and rotate the connector one-quarter counterclockwise and remove it from the headlamp turn clockwise to lock it in place.
Page 398 MAINTAINING YOUR VEHICLE 397 CAUTION! Do not touch the new bulb with your fingers. Oil contamination will severely shorten bulb life. If the bulb comes in contact with an oily surface, clean the bulb with rubbing alcohol. 3. Install the bulb and connector assembly into the fog lamp housing and rotate the connector one-quarter turn clockwise to lock it in place.
Page 399: Tail/Stop, Rear Turn Signal And Backup Lamps
398 MAINTAINING YOUR VEHICLE Tail/Stop, Rear Turn Signal and Backup Lamps Changing the Tail/Stop Lamp or Rear Turn Signal The taillamps are a two piece design. The turn signal, Lamp brake and taillamps are located in the rear corner body 1.
Page 400 MAINTAINING YOUR VEHICLE 399 2. Remove the two plastic wing nuts from the taillamp 4. Rotate the applicable bulb’s electrical connector one- housing. quarter turn counterclockwise and remove it from the taillamp housing. 3. Grasp the taillamp housing and pull it firmly outward while pushing gently on the studs from inside to disen- 1 —...
Page 401 400 MAINTAINING YOUR VEHICLE 6. Install the bulb and connector assembly into the taillamp housing and rotate the connector one-quarter turn clockwise to lock it in place. 7. Reinstall the taillamp housing. Changing the Backup Lamp 1. Open the trunk. 2.
Page 402: License Plate Lamp
MAINTAINING YOUR VEHICLE 401 2. Gently pry the lens loose. License Plate Lamp 1. Remove two retaining screws holding the lamp lens in 3. Pull bulb from socket, replace and reattach the lamp place. lens with the two retaining screws.
Page 403: Center High-Mounted Stop Lamp (Chmsl)
402 MAINTAINING YOUR VEHICLE Center High-Mounted Stop Lamp (CHMSL) 3. Remove the bulb from the connector socket and install the replacement bulb. 1. Open the trunk lid. 4. Install the bulb and connector assembly into the 2. Rotate the bulb’s electrical connector one-quarter turn CHMSL housing and rotate the connector one-quarter counterclockwise and remove it from the CHMSL hous- turn clockwise to lock it in place.
Page 404: Fluid Capacities
MAINTAINING YOUR VEHICLE 403 FLUID CAPACITIES U.S. Metric Fuel (Approximate) All Engines — (Except 2.4L PZEV) 16.9 Gallons 64 Liters 2.4L PZEV (Partial Zero Emissions Vehicle) 18.5 Gallons 70 Liters Engine Oil with Filter 2.4L Engine (SAE 5W-20, API Certified) 4.5 Quarts 4.4 Liters 2.7L Engine (SAE 5W-20, API Certified)
Page 405: Fluids, Lubricants, And Genuine Parts
Engine Coolant (Hybrid Organic Additive Technology) or equivalent. Use API Certified SAE 5W-20 Engine Oil, meeting the requirements of Chrysler Material Standard MS-6395. Refer to your engine oil filler Engine Oil – 2.4L and 2.7L Engines cap for correct SAE grade.
Page 406: Chassis
MAINTAINING YOUR VEHICLE 405 Chassis Component Fluid, Lubricant, or Genuine Part MOPAR ATF+4 Automatic Transmission Fluid or equivalent licensed Automatic Transaxle ATF+4 product. MOPAR DOT 3 and SAE J1703 should be used. If DOT 3 brake fluid is not Brake Master Cylinder available, then DOT 4 is acceptable.
Page 408 MAINTENANCE SCHEDULES CONTENTS ▫ Required Maintenance Intervals ..410 Emissions Control System Maintenance ..408 Maintenance Schedule ....408...
Page 409 408 MAINTENANCE SCHEDULES EMISSIONS CONTROL SYSTEM MAINTENANCE MAINTENANCE SCHEDULE The Scheduled Maintenance services listed in bold type The oil change indicator system will remind you that it is must be done at the times or mileages specified to ensure time to take your vehicle in for scheduled maintenance. the continued proper functioning of the emissions control On Electronic Vehicle Information Center (EVIC) system.
Page 410 MAINTENANCE SCHEDULES 409 if it has been six months since your last oil change even At Each Stop for Fuel if the oil change indicator message is NOT illumi- • Check the engine oil level about five minutes after a nated.
Page 411 410 MAINTENANCE SCHEDULES • Check all lights and other electrical items for correct Required Maintenance Intervals operation. Refer to the Maintenance Schedules on the following pages for the required maintenance intervals. At Each Oil Change • Change the engine oil filter. •...
Page 412 ❏ Inspect the front suspension, tie rod ends and boot seals for cracks or leaks and all parts for damage, wear, improper looseness or end play; replace if necessary. Odometer Reading Date Odometer Reading Date Repair Order # Dealer Code Repair Order # Dealer Code Signature Authorized Chrysler Dealer Signature Authorized Chrysler Dealer...
Page 413 ❏ Inspect the front suspension, tie rod ends and boot seals for cracks or leaks and all parts for damage, wear, improper looseness or end play; replace if necessary. Odometer Reading Date Odometer Reading Date Repair Order # Dealer Code Repair Order # Dealer Code Signature Authorized Chrysler Dealer Signature Authorized Chrysler Dealer...
Page 414 ❏ Inspect the front suspension, tie rod ends and boot seals for cracks or leaks and all parts for except PZEV*). damage, wear, improper looseness or end play; replace if necessary. Odometer Reading Date Odometer Reading Date Repair Order # Dealer Code Repair Order # Dealer Code Signature Authorized Chrysler Dealer Signature Authorized Chrysler Dealer...
Page 415 ❏ Inspect the front suspension, tie rod ends and boot seals for cracks or leaks and all parts for damage, wear, improper looseness or end play; replace if necessary. Odometer Reading Date Odometer Reading Date Repair Order # Dealer Code Repair Order # Dealer Code Signature Authorized Chrysler Dealer Signature Authorized Chrysler Dealer...
Page 416 ❏ Inspect the front suspension, tie rod ends and boot seals for cracks or leaks and all parts for damage, wear, improper looseness or end play; replace if necessary. Odometer Reading Date Odometer Reading Date Repair Order # Dealer Code Repair Order # Dealer Code Signature Authorized Chrysler Dealer Signature Authorized Chrysler Dealer...
Page 417 ❏ Inspect the front suspension, tie rod ends and boot seals for cracks or leaks and all parts for damage, wear, improper looseness or end play; replace if necessary. Odometer Reading Date Odometer Reading Date Repair Order # Dealer Code Repair Order # Dealer Code Signature Authorized Chrysler Dealer Signature Authorized Chrysler Dealer...
Page 418 ❏ Inspect the front suspension, tie rod ends and boot seals for cracks or leaks and all parts for damage, wear, improper looseness or end play; replace if necessary. Odometer Reading Date Odometer Reading Date Repair Order # Dealer Code Repair Order # Dealer Code Signature Authorized Chrysler Dealer Signature Authorized Chrysler Dealer...
Page 419 ❏ Inspect the front suspension, tie rod ends and boot seals for cracks or leaks and all parts for necessary†. damage, wear, improper looseness or end play; replace if necessary. Odometer Reading Date Odometer Reading Date Repair Order # Dealer Code Repair Order # Dealer Code Signature Authorized Chrysler Dealer Signature Authorized Chrysler Dealer...
Page 420 ❏ Inspect accessory drive belt, replace if necessary. Odometer Reading Date Odometer Reading Date Repair Order # Dealer Code Repair Order # Dealer Code Signature Authorized Chrysler Dealer Signature Authorized Chrysler Dealer...
Page 421 ❏ Change the automatic transaxle fluid & filter. Odometer Reading Date Odometer Reading Date Repair Order # Dealer Code Repair Order # Dealer Code Signature Authorized Chrysler Dealer Signature Authorized Chrysler Dealer...
Page 422 ❏ Inspect the front suspension, tie rod ends and boot seals for cracks or leaks and all parts for damage, wear, improper looseness or end play; replace if necessary. Odometer Reading Date Odometer Reading Date Repair Order # Dealer Code Repair Order # Dealer Code Signature Authorized Chrysler Dealer Signature Authorized Chrysler Dealer...
Page 423 ❏ Inspect the front suspension, tie rod ends and boot seals for cracks or leaks and all parts for damage, wear, improper looseness or end play; replace if necessary. Odometer Reading Date Odometer Reading Date Repair Order # Dealer Code Repair Order # Dealer Code Signature Authorized Chrysler Dealer Signature Authorized Chrysler Dealer...
Page 424 • Failure to properly inspect and maintain your vehicle could result in a component malfunction and effect vehicle handling and performance. This Odometer Reading Date could cause an accident Repair Order # Dealer Code Signature Authorized Chrysler Dealer...
Page 426: If You Need Consumer Assistance
Reporting Safety Defects ....430 ▫ Chrysler Group LLC Customer Center ..428 ▫ In The 50 United States And Washington, D.C.
Page 427 426 IF YOU NEED CONSUMER ASSISTANCE ▫ Traction Grades ..... 433 Publication Order Forms ....431 ▫...
Page 428: If You Need Consumer Assistance 427
IF YOU NEED CONSUMER ASSISTANCE 427 the service advisor and list the items in order of priority. SUGGESTIONS FOR OBTAINING SERVICE FOR YOUR VEHICLE At many authorized dealers, you may obtain a rental vehicle at a minimal daily charge. If you need a rental, it Prepare For The Appointment is advisable to make these arrangements when you call If you’re having warranty work done, be sure to have the...
Page 429 • Vehicle delivery date and mileage This is why you should always talk to an authorized dealer’s service manager first. Most matters can be re- Chrysler Group LLC Customer Center solved with this process. P.O. Box 21–8004 • If for some reason you are still not satisfied, talk to the Auburn Hills, MI 48321–8004...
Page 430 IF YOU NEED CONSUMER ASSISTANCE 429 the manufacturer’s service contracts. If you purchased a Customer Assistance For The Hearing Or Speech Impaired (TDD/TTY) manufacturer’s service contract, you will receive Plan To assist customers who have hearing difficulties, the Provisions and an Owner Identification Card in the mail manufacturer has installed special TDD (Telecommuni- within three weeks of the vehicle delivery date.
Page 431 See the Warranty Information Booklet, located on the has also made a major investment in facilities, tools, and DVD, for the terms and provisions of Chrysler Group training to assure that you are absolutely delighted with LLC warranties applicable to this vehicle.
Page 432: Publication Order Forms
Customer Service Department imme- need in diagnosing/troubleshooting, problem solving, diately. Canadian customers who wish to report a safety maintaining, servicing, and repairing Chrysler Group defect to the Canadian government should write to: LLC vehicles. A complete working knowledge of the...
Page 433 These Owner’s Manuals have been prepared with the straightforward language with illustrations, diagrams, assistance of service and engineering specialists to and charts. acquaint you with specific Chrysler Group LLC ve- hicles. Included are starting, operating, emergency • Diagnostic Procedure Manuals and maintenance procedures as well as specifications, Diagnostic Procedure Manuals are filled with dia- capabilities and safety tips.
Page 434: Traction Grades
IF YOU NEED CONSUMER ASSISTANCE 433 significantly from the norm due to variations in driving DEPARTMENT OF TRANSPORTATION UNIFORM TIRE QUALITY GRADES habits, service practices, and differences in road charac- The following tire grading categories were established by teristics and climate. the National Highway Traffic Safety Administration.
Page 435 434 IF YOU NEED CONSUMER ASSISTANCE Temperature Grades WARNING! The temperature grades are A (the highest), B, and C, representing the tire’s resistance to the generation of heat The temperature grade for this tire is established for and its ability to dissipate heat, when tested under a tire that is properly inflated and not overloaded.
Page 436 INDEX...
Page 437 436 INDEX About Your Brakes ..... . . 263 Airbag, Side ..... . 59,63,65,66 ABS (Anti-Lock Brake System) .
Page 438 INDEX 437 Automatic Transaxle ....13,245,248,378 Body Mechanism Lubrication ....366 Adding Fluid ....379,380,405 B-Pillar Location .
Page 439 438 INDEX Caps, Filler Checks, Safety ......84 Fuel ....... 314 Child Restraint .
Page 440 INDEX 439 Console, Floor ..... . . 107,140 Customer Assistance ..... 427 Contract, Service .
Page 441 440 INDEX Door Locks, Automatic ....32 Emergency Trunk Release ....39,40 Door Opener, Garage .
Page 442 INDEX 441 Oil Selection ..... . . 359,403 Automatic Transaxle ....380 Oil Synthetic .
Page 443 442 INDEX Fluid Level Checks Gasoline ......304 Automatic Transaxle ....379,380 Gauge .
Page 444 INDEX 443 Gauges Head Restraints ......101 Coolant Temperature ....150 Headlights .
Page 445 444 INDEX Ignition ....... 13 Jack Location ......334 Key .
Page 446 INDEX 445 Latches ....... . 86 Headlights On With Wipers ....119 Hood .
Page 447 446 INDEX Voltage ......151 Malfunction Indicator Light (Check Engine) . . 162,355 Warning (Instrument Cluster Description) .
Page 448 INDEX 447 Occupant Restraints ..... 63,67 Viscosity ......360,403 Occupant Restraints (Sedan) .
Page 449 448 INDEX Placard, Tire and Loading Information ..281 Radiator Cap (Coolant Pressure Cap) ..373 Power Radio Operation ......226 Deck Lid Release .
Page 450 INDEX 449 Remote Starting System ....28 Safety Tips ......84 Remote Trunk Release .
Page 451 450 INDEX Seat Belts (Sedan) ......41 Settings, Personal ......171 Seats .
Page 452 INDEX 451 Steering Theft Alarm (Security Alarm) ....18 Power ......261,262 Theft System (Security Alarm) .
Page 453 452 INDEX Load Capacity ..... 281,282 Traction ......258 Pressure Monitor System (TPMS) .
Page 454 INDEX 453 Transmitter Battery Service Upholstery Care ......384 (Remote Keyless Entry) ....26 Transmitter, Garage Door Opener (HomeLink ) .
Page 455 454 INDEX Washer, Adding Fluid ..... 368 Windows ......35 Washers, Windshield .
Page 456 Chrysler Group LLC 10C41-126-AB Printed in U.S.A. 2nd Edition...

Save PDF
