FlameWheel450
User Manual
V 1.7
www.dji-innovations.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F450 and is the answer not in the manual?

Questions and answers

Summary of Contents for dji F450

  • Page 1 FlameWheel450 User Manual V 1.7 www.dji-innovations.com...
  • Page 2: Disclaimer

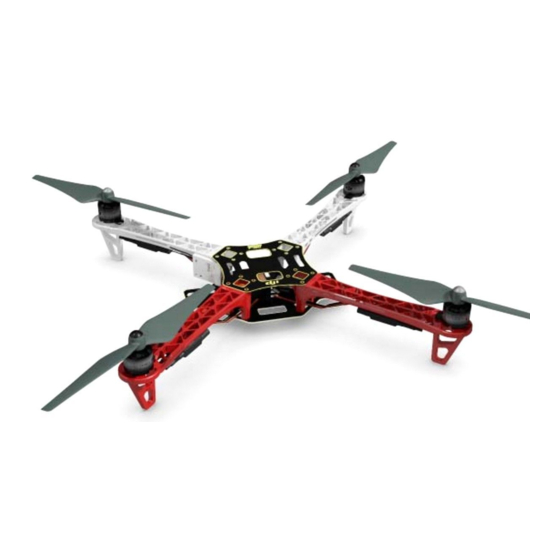

    F450 Profile FlameWheel450 (F450) is a multi-rotor designed for all pilots for fun or AP. With DJI WKM or NAZA autopilot system, it can achieve hovering, cruising, even rolling and other flight elements. It can be...
  • Page 3: Table Of Contents

    Contents Disclaimer ........................2 F450 Profile ........................2 Contents .........................3 Product Usage Cautions....................3 In Box ..........................4 Tools Needed .........................5 ESC Wiring ........................5 Assembly ........................6 ESC Sound Introduction ....................7 Specifications .........................7 Product Usage Cautions When flying, the fast rotating propellers of FlameWheel450 will cause serious damage and injury.
  • Page 4: In Box

    In Box Top Board 450FBT ×1 Bottom Board 450FBB ×1 Frame Arms 450FAC ×2 10in Propeller Pairs 450P10×2 Frame Arms 450FAW ×2 8in Propeller Pairs 450P08×2 Motors 450MOT ×4 ESC 450ESC ×4 OPTO Screws 450-M3×8 ×16 Screws 450-M2.5×5 ×24 Magic Strap 450MSX ×1, Battery Band 450BBX ×1 Power Line Pair 450PLP ×1...
  • Page 5: Tools Needed

    Tools Needed 2.0mm Hex Wrench For frame and motors installation. Screw Glue For fastening screws. Nylon Cable Tie Scissors For binding devices and wires. Diagonal Cutting Pliers Foam Double Sided Adhesive Tape For fixing receiver, controller and other modules. Soldering-iron & wires For connecting ESCs’...
  • Page 6: Assembly

    Assembly...
  • Page 7: Esc Sound Introduction

    ESC Sound Introduction ESC State Sound ♪1234567 Ready Throttle stick is not at bottom BBBBBB… Input signal abnormal B--------B--------B… Input voltage abnormal BB---BB---BB---BB… Tips: DJI ESCs are specially designed for multi-rotors. When use with DJI autopilot systems, you do not have to setup any parameters or calibrate travel range.
  • Page 8 Sales: sales@dji-innovations.com Technical support: support@dji-innovations.com Others: info@dji-innovations.com DJI FLAME WHEEL is registered trademark of Dajiang Innovation Technology Co. Ltd. Names of product, brand, etc., appearing in this manual are trademarks or registered trademarks of their respective owner companies. This product and manual are copyrighted by Dajiang Innovation Technology Co.
