DJI Flamewheel F450 RTF Package

USER MANUAL

Need help?

Do you have a question about the Flamewheel F450 and is the answer not in the manual?

Questions and answers

Summary of Contents for dji Flamewheel F450

Page 2 DISCLAIMER Please read this disclaimer carefully before using this product. This product is a hobby with motors but not a toy which is not suitable for people under the age of 18. By using this product, you hereby agree to this disclaimer and signify that you have read them fully.

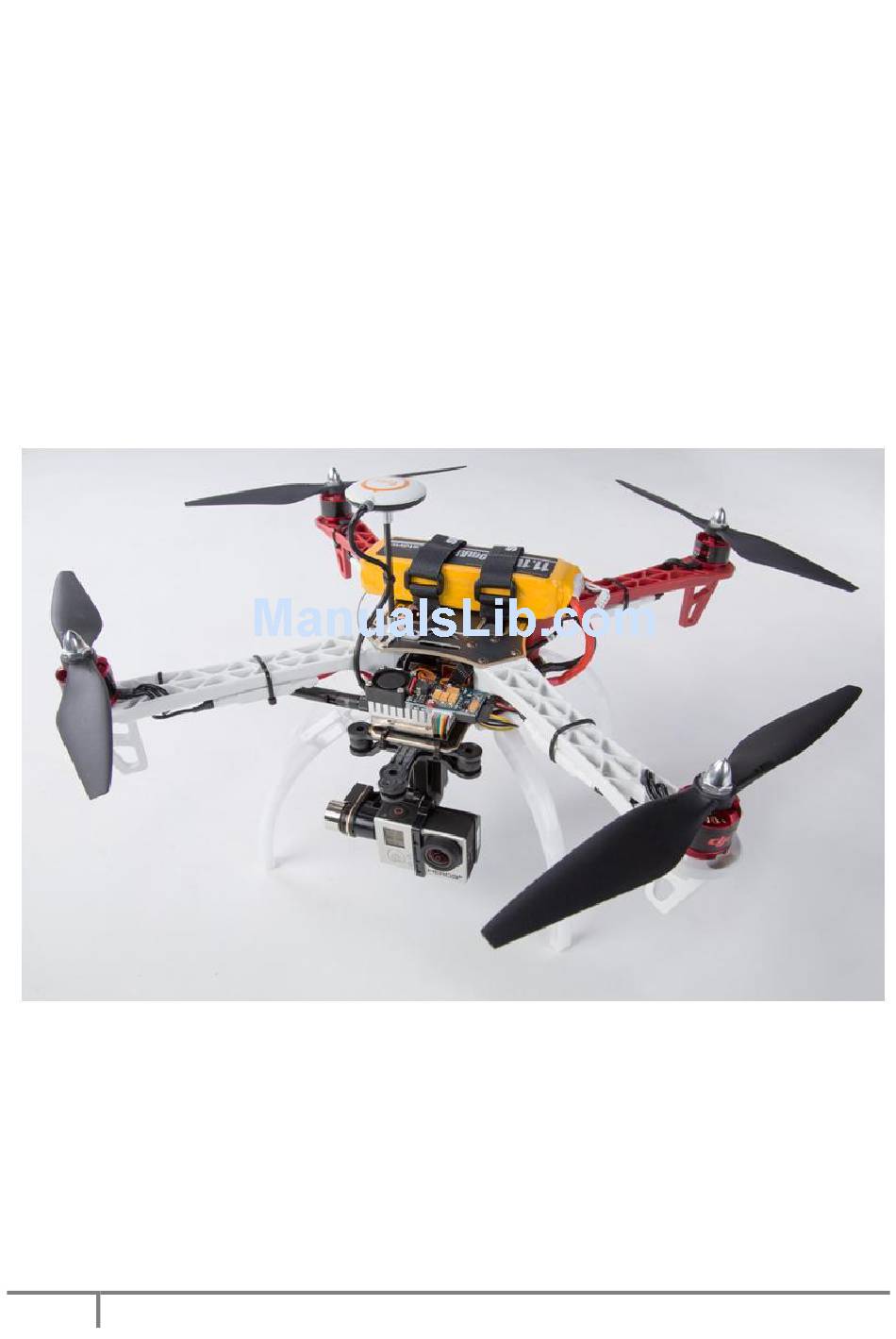

Page 3 Package includes: 1. Fully Assembled DJI F450 GPS Drone (w/ NAZA Lite/ NAZA V2 GPS System) 2. RadioLink 2.4Ghz AT9 Radio System w/ R9D 9-Ch Receiver 3. 14.8V 4000mah 30C Li-Po Battery 4. 3pcs Clockwise Blade Propeller (1 of them are spare parts) 5.
Page 8 Auto Go Home If the drone has been started up correctly and the GPS signal is good (with 6 or more satellites are found), the drone can undergo Go-Home features when it lost signal with radio controller 1) If the attitude of the drone more than 20 meters, it will go home horizontally. 2) If the attitude of the drone below 20 meters, it will ascend to 20 meters and go home horizontally.
Page 9 2. NAZA V2 Manual It is important to learn more about the NAZA GPS Controller. You can download the manual here: http://download.dji-innovations.com/downloads/nazam-v2/en/NAZA-M- V2_Quick_Start_Guide_en.pdf NAZA m Lite - http://download.dji-innovations.com/downloads/naza-m%20lite/en/NAZA- M%20LITE_User_Manual_v2.00_en.pdf Copyright@2015 HeliPal.com. All Rights Reserved...
Page 12 Lost connection with radio controller If you’re the drone cannot response to the radio controller stick travel, the connection between radio controller and receiver may lost and you can try to re-bind them by following the procedure below: Press the switch inside the receiver twice with small screwdrivers to make LED indicator turns PURPLE to set the control mode to D Bus Mode.
Page 13 Radio Controller Parameters If you reset your radio controller (AT9) setting, you can apply the setting below: 2) [STK-MODE] = 2 (Stick Mode) 1) Press and Hold the controller wheel (With wordings [LockScreen] = 30s (Time to lock screen) “PUSH”) to unlock the manual. Press and Hold Mode Button to go into basic menu page [SELECT] = 01 3) [TYPE] = AIRCRAFT...
Page 14 [CH7]->[L]= 56% (Move the toggle Switch G to lowest) [AUX2] = -13 [CH7]->[H]= 56% (Move the toggle Switch G to highest) 10) [1] [TIME] = 10:00 [AUX1] = REV [1] [MODE] = UP [AUX2] = REV [1] [ON][1] = ST-THK (Using Throttle Stick to start the [AUX3] = REV timer) [1][ON] [2] = 15% ( Move the indicator over the value,...
