12. Referring to Table 5.2, select the correct drill size. Use this drill
bit to check the hole diameters of the venturi inlets in the
tangential inlet ring. If the holes are worn beyond the
corresponding maximum throat diameter number shown in
Table 5.2, then replacing the venturi insert should be
considered.
13. Examine the flat faces of the base and nose cone, which form
the front and rear of the vortex chamber, respectively. Although
slight "dimpling" of the surfaces adjacent to the inlet holes is
normal, pitting and scoring is not. Clean these surfaces with
solvent if they appear oily or sooty.
14. Clean any accumulated carbon from the internal bore of the
nose cone, but do not scratch or mar these surfaces.

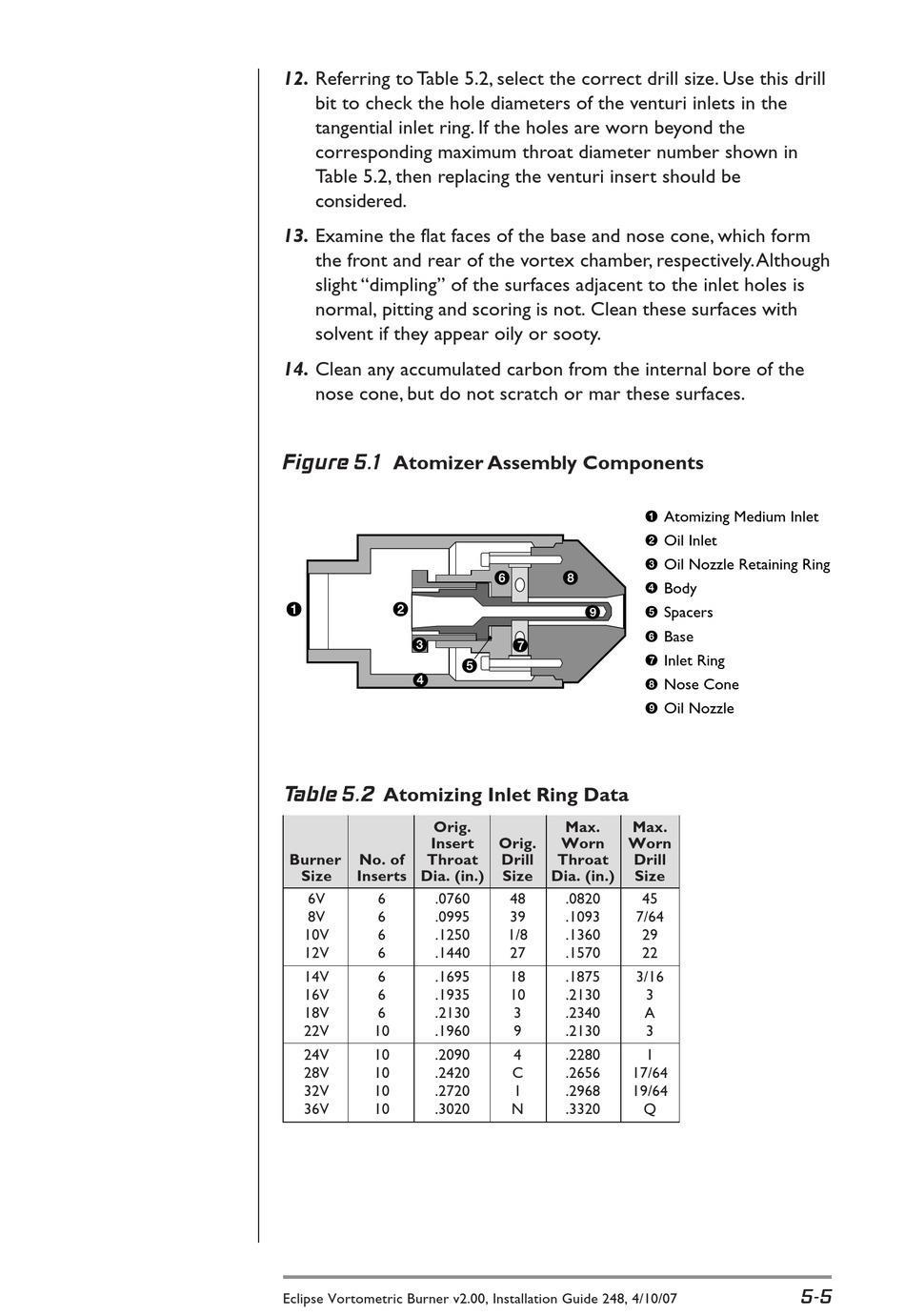

Figure 5.1 Atomizer Assembly Components
1 2
3
5
4
Table 5.2 Atomizing Inlet Ring Data
Orig.
Insert
Burner No. of Throat
Size Inserts Dia. (in.)
6V 6 .0760
8V 6 .0995
10V 6 .1250
12V 6 .1440
14V 6 .1695
16V 6 .1935
18V 6 .2130
22V 10 .1960
24V 10 .2090
28V 10 .2420
32V 10 .2720
36V 10 .3020
Eclipse Vortometric Burner v2.00, Installation Guide 248, 4/10/07
Atomizing Medium Inlet
1
Oil Inlet
2
Oil Nozzle Retaining Ring
3
6 8
Body
4
9 Spacers
5
Base
6
7
Inlet Ring
7
Nose Cone
8
Oil Nozzle
9
Max. Max.
Orig. Worn Worn
Drill Throat Drill
Size Dia. (in.) Size
48 .0820 45
39 .1093 7/64
1/8 .1360 29
27 .1570 22
18 .1875 3/16
10 .2130 3
3 .2340 A
9 .2130 3
4 .2280 1
C .2656 17/64
I .2968 19/64
N .3320 Q
5-5
