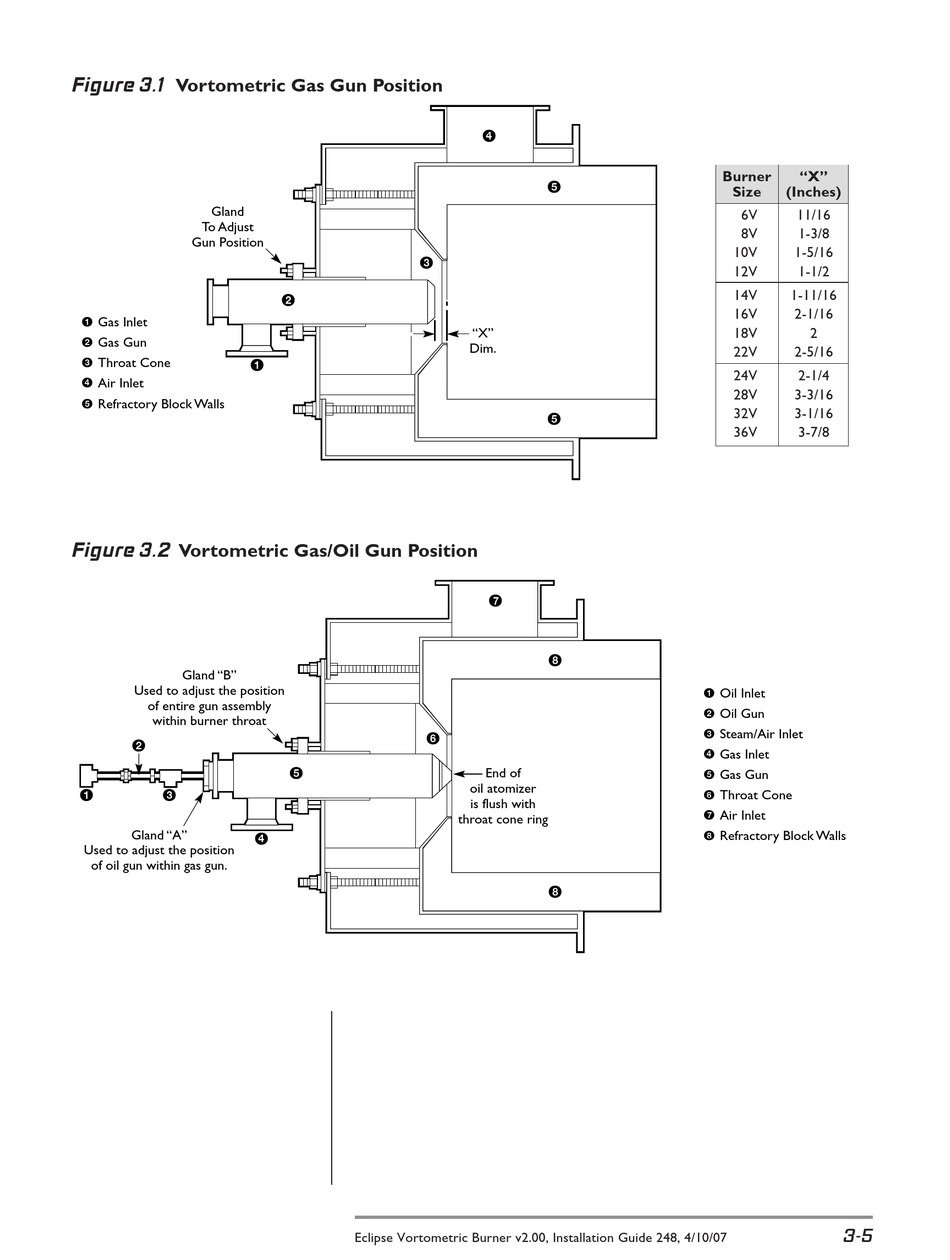

Figure 3.1 Vortometric Gas Gun Position
Gland
To Adjust
Gun Position
Gas Inlet
1
Gas Gun
2
Throat Cone
3
Air Inlet
4
Refractory Block Walls
5
Figure 3.2 Vortometric Gas/Oil Gun Position
Gland "B"
Used to adjust the position
of entire gun assembly
within burner throat
2
1 3
Gland "A"
Used to adjust the position
of oil gun within gas gun.
3
2
1
6
5
4
Eclipse Vortometric Burner v2.00, Installation Guide 248, 4/10/07
4
5
"X"
Dim.
5
7
8
End of
oil atomizer
is flush with
throat cone ring
8
Burner "X"
Size (Inches)
6V 11/16
8V 1-3/8
10V 1-5/16
12V 1-1/2
14V 1-11/16
16V 2-1/16
18V 2
22V 2-5/16
24V 2-1/4
28V 3-3/16
32V 3-1/16
36V 3-7/8
Oil Inlet
1
Oil Gun
2
Steam/Air Inlet
3
Gas Inlet
4
Gas Gun
5
Throat Cone
6
Air Inlet
7
Refractory Block Walls
8
