ATX Power Supply - 80 Plus® Certified
ATX2PW430WH / ATX2PW500WH / ATX2PW530WH /
ATX2PW550WH / ATX2PW630WH / ATX2PW450BR /
ATX2PW450GO
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 11/14/2013

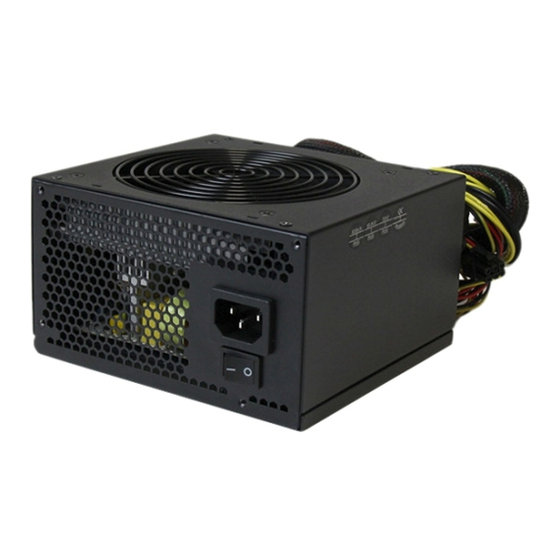

*ATX2PW430WH shown
Advertisement
Table of Contents
Related Manuals for StarTech.com ATX2PW430WH
Summary of Contents for StarTech.com ATX2PW430WH
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 11/14/2013...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................2 Packaging Contents ..........................2 System Requirements ..........................2 Installation ....................2 Hardware Installation ................3 Specifications ..................4 DC Output ....................7 Connectors for ..................8 Connectors for ..................9 Technical Support ..................10 Warranty Information ................10 Instruction Manual... -
Page 4: Introduction
Installation of a power supply requires some mechanical skill and requires that you open your computer case to disconnect and reconnect wires. If you are unfamiliar with this kind of work, consider bringing your computer and new StarTech.com power supply to your local computer store for help. -
Page 5: Hardware Installation
Hardware Installation 1. If replacing an existing power supply, turn your computer off and any peripherals connected to the computer (i.e. printers, external hard drives, etc.). 2. If replacing an existing power supply check to see if it has a power switch on it, set it to the “0”... -
Page 6: Specifications
Specifications ATX2PW430WH ATX2PW500WH ATX12V v2.3 Standards EPS12V v2.92 80% @ 20% - 86 Watt 80% @ 20% - 110 Watt Efficiency Rating 80% @ 50% - 215 Watt 80% @ 50% - 275 Watt 80% @ 100% - 430 Watt... - Page 7 Specifications cont... ATX2PW530WH ATX2PW550WH ATX12V v2.3 Standards EPS12V v2.92 80% @ 20% - 106 Watt 80% @ 20% - 110 Watt Efficiency Rating 80% @ 50% - 265 Watt 80% @ 50% - 275 Watt 80% @ 100% - 530 Watt 80% @ 100% - 550 Watt Maximum Power 530W...
- Page 8 Specifications cont... ATX2PW630WH ATX2PW450BR ATX2PW450GO ATX12V v2.3 Standards EPS12V v2.92 80% @ 20% - 126 81% @ 20% - 90 87% @ 20% - 90 Watt Watt Watt Efficiency 80% @ 50% - 315 85% @ 50% - 225 90% @ 50% - 225 Rating Watt Watt...
-
Page 9: Dc Output
DC Output ATX2PW450GO +3.3V +12V1 +12V2 +12V3 +12V4 -12V +5Vsb 0.5A 2.5A ATX2PW450BR +3.3V +12V1 +12V2 +12V3 +12V4 -12V +5Vsb 0.5A 2.5A ATX2PW430W +3.3V +12V1 +12V2 +12V3 +12V4 -12V +5Vsb 0.5A 2.5A ATX2PW500W +3.3V +12V1 +12V2 +12V3 +12V4 -12V +5Vsb 0.5A 2.5A ATX2PW530W... -
Page 10: Connectors For
Connectors for ATX2PW430WH / ATX2PW500WH / ATX2PW530WH / ATX2PW550WH / ATX2PW450BR / ATX2PW450GO 1 x 4+4 -pin ATX 12V (8-pin 1X ATX 20+4-pin EPS12V) 1 x 6-pin PCI Express 4x 15-pin SATA 3 x 4-pin Molex Power (LP4) 1 x 4-pin... -
Page 11: Connectors For
Connectors for ATX2PW630WH 1 x 4+4 -pin ATX 12V (8-pin EPS12V) 1X ATX 20+4-pin 2 x 6-pin PCI Express 6x 15-pin SATA 3 x 4-pin Molex Power (LP4) 1 x 4-pin 2x 6+2-Pin pin PCI Express Instruction Manual... -
Page 12: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 13 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
