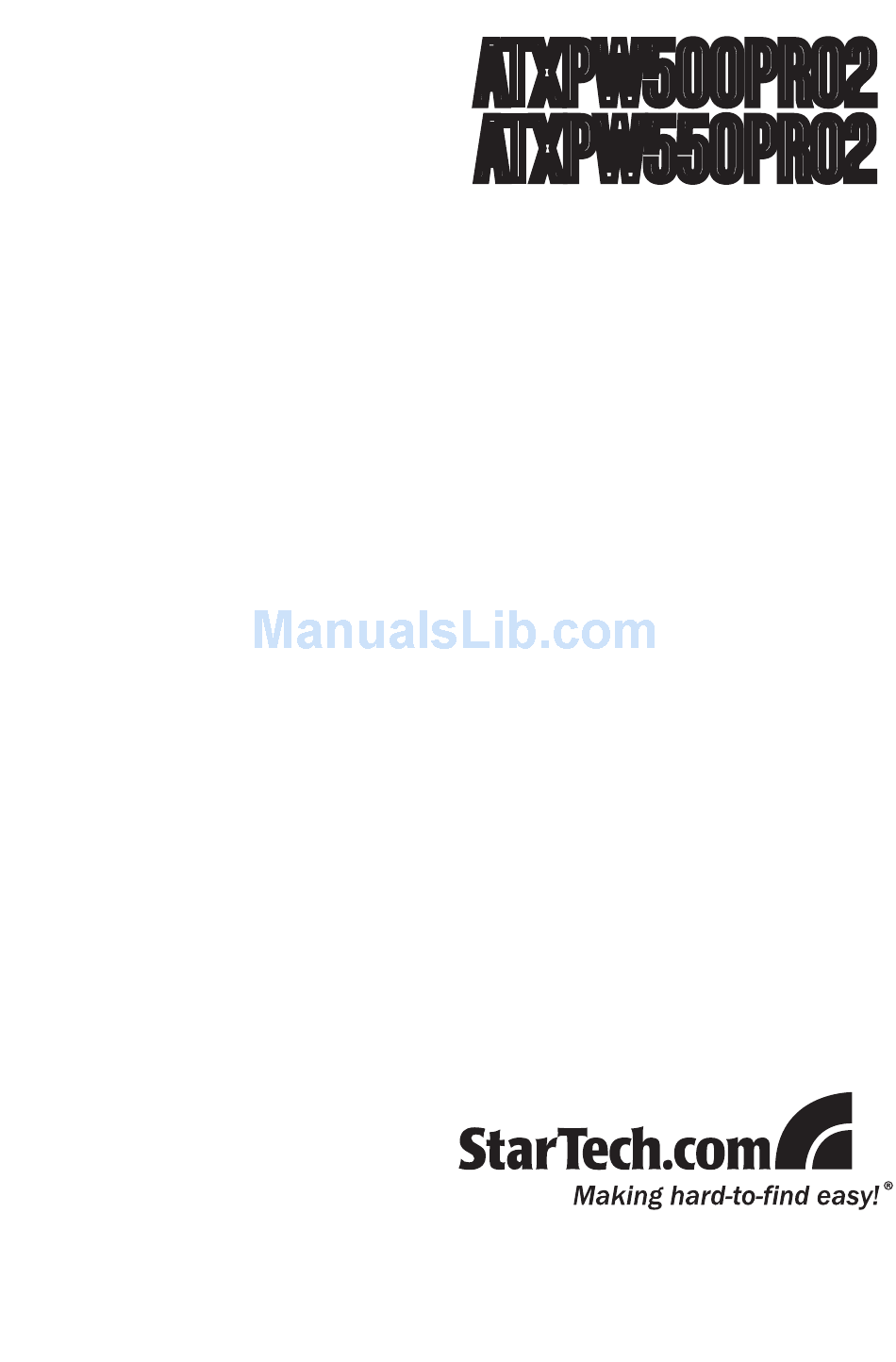

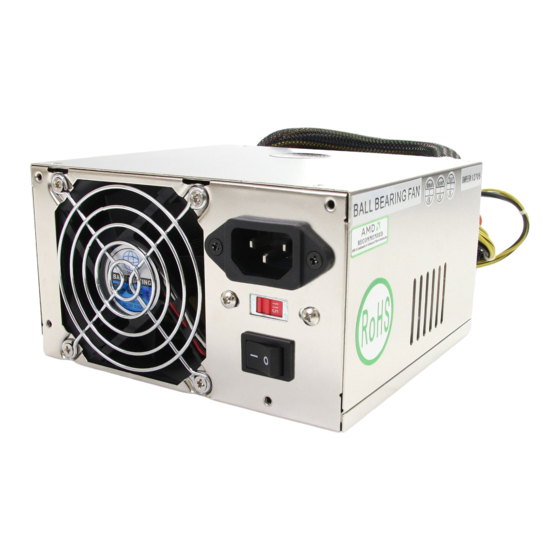

- Page 1 ATXPW500PRO2 ATXPW550PRO2 Instruction Manual Professional ATX Power Supply Professional 500W/550W ATX12V 2.01, EPS Computer Power Supply with PCI Express and SATA...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Table of Contents Introduction ..............1 Packaging Contents ..................1 System Requirements ................1 Installation ..............2 Hardware Installation .................2 Specifications ............... 4 ATXPW500PRO2 Power Output ...............4 ATXPW550PRO2 Power Output ...............5 Connectors ....................5 Technical Support ............6 Warranty Information ........... 6... -
Page 4: Introduction
Introduction The StarTech.com ATX12V/EPS12V series of professional power supplies provide support for both Intel and AMD based CPU designs as well as PCI Express and SATA devices. With two PCI Express power connectors, even some higher end graphics cards are supported. Compliant with ATX12V 2.01 and EPS12V 2.92 revision standards, and dual 12V power rails ensures... -
Page 5: Installation
If you are unfamiliar with this kind of work, consider bringing your computer and new StarTech.com power supply to your local computer store for help. Hardware Installation Turn your computer off and any peripherals connected to the computer (i.e. - Page 6 Connect the power connectors from the power supply to the motherboard and peripheral devices that were disconnected previously. Note that this power supply uses a 20+4 pin ATX connector, so it can be used on motherboards with either a 20-pin or 24-pin connector. Simply detach the extra 4-pin attachment for use on 20-pin motherboards.
-
Page 7: Specifications
0°C ~ 40°C (32°F ~ 104°F) Temperature Storage Temperature -20°C ~ 80°C (-4°F ~ 176°F) Humidity 10 ~ 90% RH Dimensions (LxWxH) 140.0mm x 150.0mm x 86.0mm Weight 1800g 1830g ATXPW500PRO2 Power Output +3.3V +12V1 +12V2 -12V +5Vsb Output 2.5A 275W 380W 12.5W Power 475.5W... -
Page 8: Atxpw550Pro2 Power Output
1 x ATX 20+4 pin 1 x 4+4 pin ATX12V (8-pin EPS12V) 2 x 6-pin PCI Express 5 x 15-pin SATA (ATXPW500PRO2) 7 x 15-pin SATA (ATXPW550PRO2) 5 x 4-pin Molex Power (LP4) 2 x 4-pin Mini-Power (SP4) *photos are for reference purposes... -
Page 9: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or... - Page 10 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Server...
