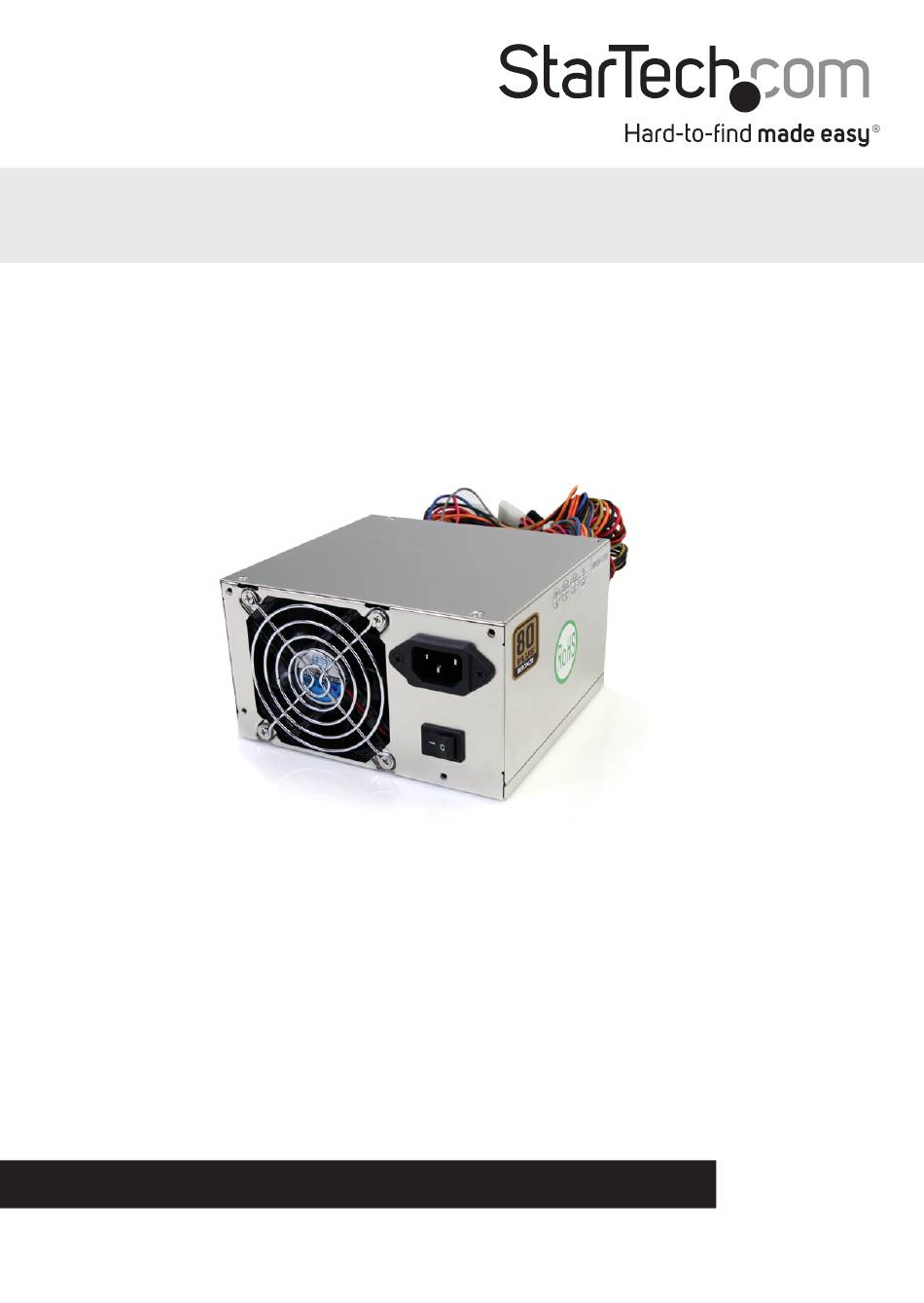

Professional 430 or 530W ATX12V 2.3 80
Plus Computer Power Supply
ATX2PW430PRO
ATX2PW530PRO
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 01/27/2012
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com Professional 430
Summary of Contents for StarTech.com Professional 430
- Page 1 Professional 430 or 530W ATX12V 2.3 80 Plus Computer Power Supply ATX2PW430PRO ATX2PW530PRO *actual product may vary from photos DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Installation ....................2 Hardware Installation ..........................2 Specifications ..................4 Technical Support ..................6 Warranty Information ................6 Instruction Manual... -
Page 4: Introduction
Introduction The StarTech.com ATX12V 2.3/ EPS12V 2.91 series power supplies are 80 Plus® certified, providing stable power while balancing energy-efficiency. Compliant with ATX12V 2.3 standards and certified SLI® ready, this power supply offers the versatility and support for AMD or Intel CPU based entry level servers, gaming PCs and high end work stations, or a higher level energy-efficient replacement/upgrade power supply for Desktop PC’s. -
Page 5: Installation
Installation of a power supply requires some mechanical skill and requires that you open your computer case to disconnect and reconnect wires. If you are unfamiliar with this kind of work, consider bringing your computer and new StarTech.com power supply to your local computer store for help. - Page 6 Make sure the power switch on the power supply is set to “0”, then insert the power cable into the socket on the power supply. If the old power cable looks worn or damaged in any way, replace with the supplied power cable, otherwise it is safe to reuse it.
-
Page 7: Specifications
Specifications ATX2PW430PRO ATX2PW530PRO Standards ATX12V v2.3 EPS12V v2.92 Maximum Power Output 430W 530W Efficiency Rating 84.08%@20% load 84.72%@20% load 84.81%@50% load 85.61%@50% load 82.47%@100% load 82.01@100% load Fans 1 x 80mm Input Power 100 ~ 240VAC, 10 ~ 5A, 47 ~ 63Hz Operating Temperature 0°C ~ 40°C (32°F ~ 104°F) @ 90% Load Storage Temperature... - Page 8 ATX2PW530PRO Power Output +3.3V +12V1 +12V2 +12V3 +12V4 -12V +5Vsb Output 0.5A 2.5A 140W 492W 12.5W Power 511.5W Connectors 1 x ATX 20+4 pin 1 x 4+4 pin ATX12V (8-pin EPS12V) 2 x 6-pin PCI Express 5 x 15-pin SATA 3 x 4-pin Molex Power (LP4) 1 x 4-pin Mini-Power (SP4) Instruction Manual...
-
Page 9: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 10 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
