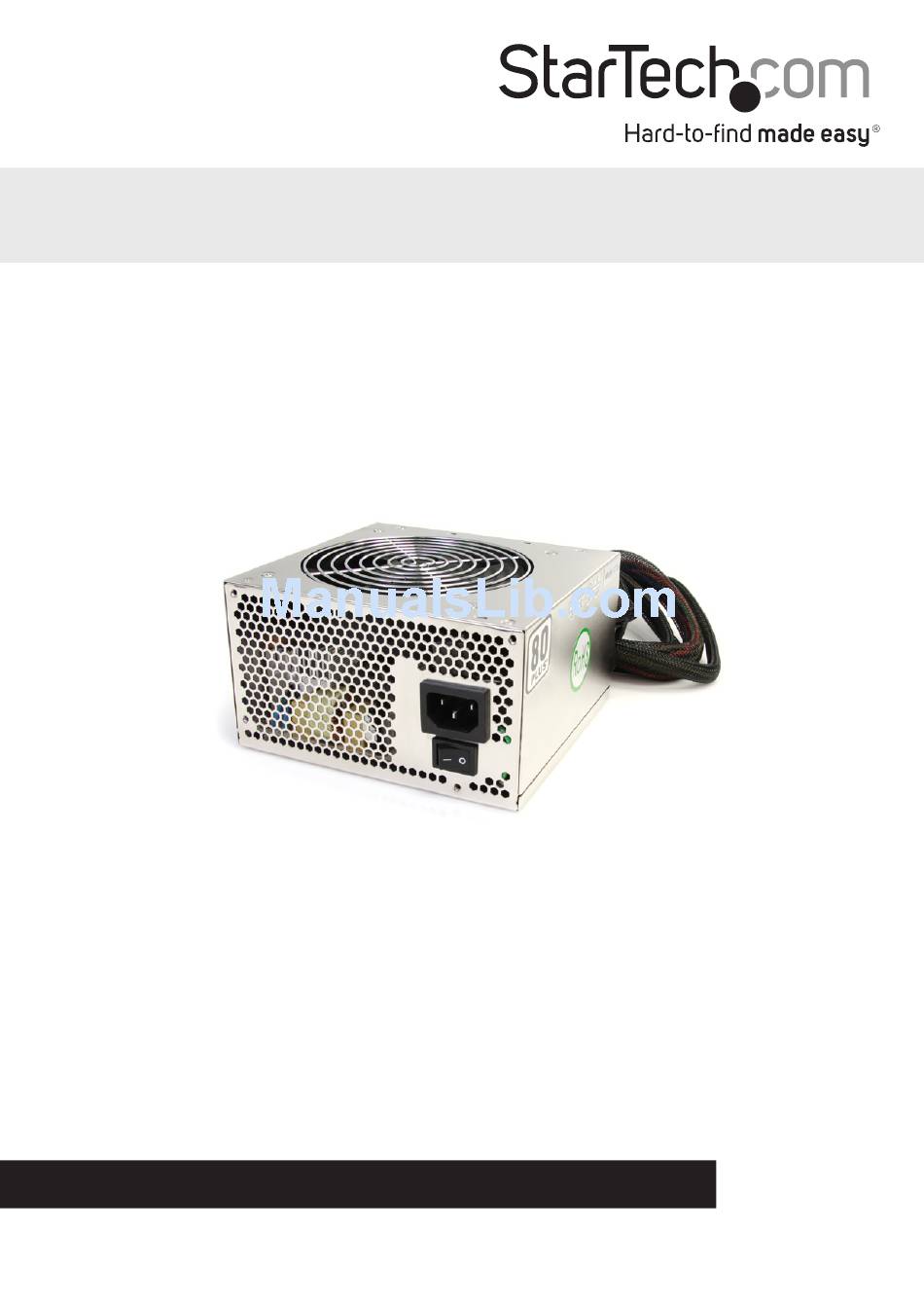

- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 02/03/2012...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Installation ....................2 Hardware Installation ..........................2 Specifications ..................5 Connectors ..............................6 Technical Support ..................7 Warranty Information ................7 Instruction Manual... -
Page 4: Introduction

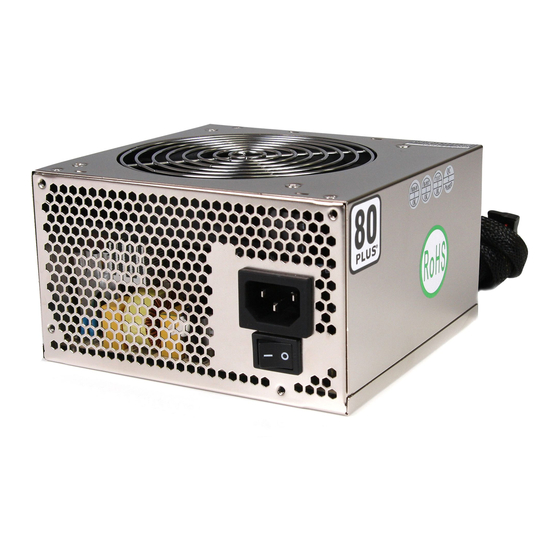

Introduction The StarTech.com Modular ATX12V 2.3/ EPS12V 2.91 series power supplies use a modular cable design, enabling you to selectively choose the connectors you require while also ® being 80 Plus certified, thus providing stable power while balancing energy-efficiency. Compliant with ATX12V 2.3 standards, this power supply offers the versatility and... -
Page 5: Installation
Installation of a power supply requires some mechanical skill and requires that you open your computer case to disconnect and reconnect wires. If you are unfamiliar with this kind of work, consider bringing your computer and new StarTech.com power supply to your local computer store for help. - Page 6 Peripheral Modular connector PCI Express Modular connector 7. Mount and install the new power supply by reversing the steps used to remove the old power supply. 8. Connect the power connectors from the power supply to the motherboard and peripheral devices that were disconnected previously. Note that this power supply uses a 20+4 pin split ATX connector, so it can be used on motherboards with either a 20-pin or 24-pin connector.
- Page 7 into the socket on the power supply. If the old power cable looks worn or damaged in any way, replace with the supplied power cable, otherwise it is safe to reuse it. 12. Reconnect all other connectors/cables that were removed in Step 2. 13.
-
Page 8: Specifications
@ 90% Load Storage Temperature -20°C ~ 80°C (-4°F ~ 176°F) Humidity 10 ~ 90% RH MTBF 100, 000 hours Dimensions (LxWxH) 141.0mm x 150.0mm x 86.0mm Weight 2100g ATX2PW630PRO Power Output +3.3V +12V1 +12V2 +12V3 +12V4 -12V +5Vsb Output 0.5A 2.5A... -
Page 9: Connectors
Connectors 1 x ATX 20+4 pin 1 x 4+4 pin ATX12V (8-pin EPS12V) 1 x 6-pin PCI Express 2 x 8-pin PCI Express (6+2) 3 x 4-pin Molex Power (LP4) 1 x 4-pin Mini-Power (SP4) 6 x 15-pin SATA Instruction Manual... -
