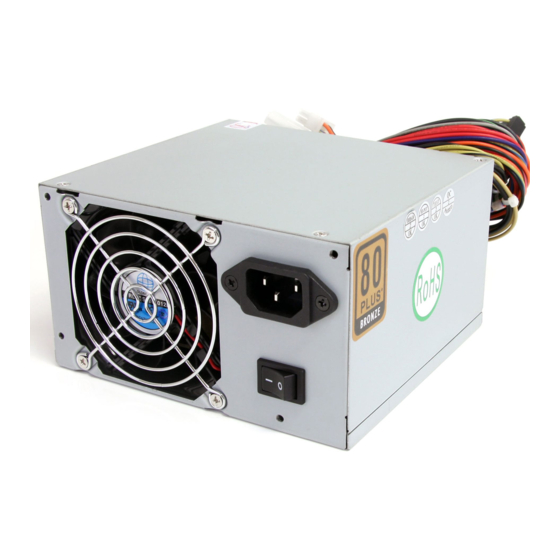

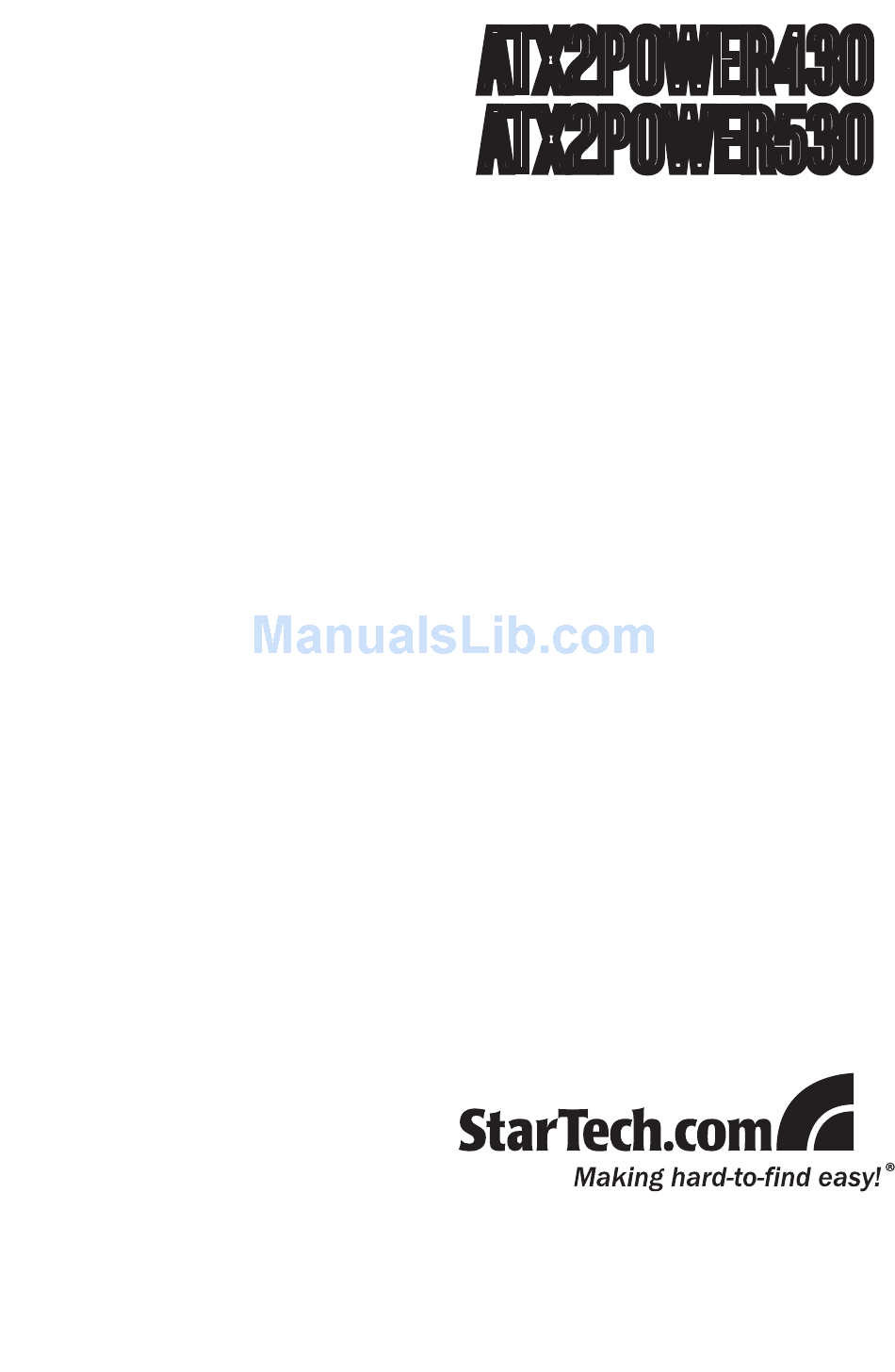

- Page 1 ATX2POWER430 ATX2POWER530 Instruction Manual ATX Power Supply 430W/530W ATX12V 2.3 EPS Computer Power Supply ® - 80 Plus Certified...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Table of Contents Introduction ..............1 Packaging Contents..............1 System Requirements ..............1 Installation ............... 2 Hardware Installation ..............2 Specifications ..............4 ATX2POWER430 Power Output ..........4 ATX2POWER530 Power Output ..........5 Connectors ..................5 Technical Support ............6 Warranty Information ............6... -
Page 4: Introduction
Introduction The StarTech.com ATX12V 2.3/ EPS12V 2.91 series power supplies ® are 80 Plus certified, providing stable power while balancing energy- ® efficiency. Compliant with ATX12V 2.3 standards and certified SLI ready, this power supply offers the versatility and support for AMD or... -
Page 5: Installation
Installation of a power supply requires some mechanical skill and requires that you open your computer case to disconnect and reconnect wires. If you are unfamiliar with this kind of work, consider bringing your computer and new StarTech.com power supply to your local computer store for help. Hardware Installation Turn your computer off and any peripherals connected to the computer (i.e. - Page 6 Install and mount the new power supply by reversing the steps used to remove the old power supply. Connect the power connectors from the power supply to the motherboard and peripheral devices that were disconnected previously. Note that this power supply uses a 20+4 pin ATX connector, so it can be used on motherboards with either a 20-pin or 24-pin connector.
-
Page 7: Specifications
Temperature Storage Temperature -20°C ~ 80°C (-4°F ~ 176°F) Humidity 5 ~ 90% RH MTBF 100,000 Hours Dimensions (LxWxH) 140.0mm x 150.0mm x 86.0mm Weight 1710g ATX2POWER430 Power Output +3.3V +12V1 +12V2 +12V3 +12V4 -12V Output 0.5A 2.5A 140W 396W 12.5W... -
Page 8: Atx2Power530 Power Output
ATX2POWER530 Power Output +3.3V +12V1 +12V2 +12V3 +12V4 -12V Output 0.5A 2.5A 140W 492W 12.5W Power 511.5W Connectors 1 x ATX 20+4 pin 1 x 4+4 pin ATX12V (8-pin EPS12V) 2 x 6-pin PCI Express 5 x 15-pin SATA 3 x 4-pin Molex Power (LP4) 1 x 4-pin Mini-Power (SP4) -
Page 9: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or... - Page 10 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Server...
