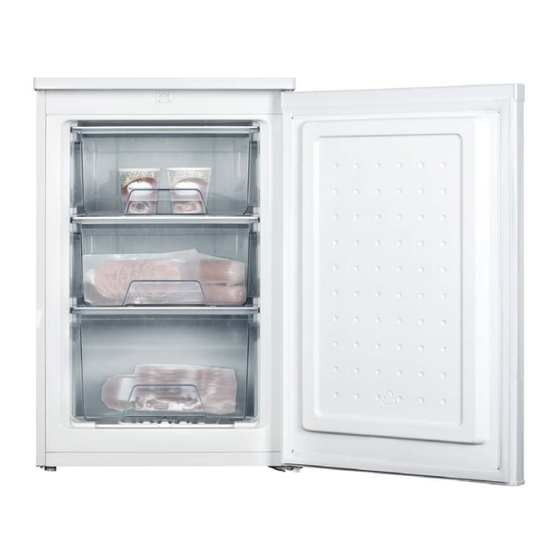

- Page 1 BZ550W Under counter freezer...
- Page 2 USER MANUAL FOR YOUR BAUMATIC BZ550W Under counter freezer NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference, for you or any person not familiar with the operation of the appliance.
-
Page 3: Table Of Contents
Contents Environmental note Important safety information 5 - 7 Specifications of your freezer Description of the appliance Using your Baumatic freezer 9-10 Before switching on During first use Switching on the appliance and setting the thermostat The **** freezer 11-13... -
Page 4: Environmental Note
Disable the door lock to make sure that children cannot get stuck inside the appliance. o The packaging materials that Baumatic uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the... -
Page 5: Important Safety Information
It is suitable for storing food that needs to be kept frozen. If it is used for any other purpose or it is not used correctly, then Baumatic Ltd. will accept no liability for any damage that is caused. - Page 6 o Do not place any objects on top of the appliance, as this may damage the table top. Child safety o Packaging material should be kept away from children. o Children should not be allowed to touch the controls or play with the appliance. General safety o Do not pull on the power supply cable to remove the plug from your mains supply socket.
-
Page 7: Specifications Of Your Freezer
You should not attempt to repair the appliance yourself, as this could cause injury or a more serious malfunction. If you require a service call then please contact the Baumatic Customer Care Department. Specifications of your freezer o Freezer gross capacity: 95 litres... -
Page 8: Description Of The Appliance
Description of the appliance 1) Top cover 2) Freezer drawers 3) Refrigerator feet / levelling foot 4) Freezer door... -
Page 9: Using Your Baumatic Freezer
Using your Baumatic freezer Before switching on o Make sure that it has been installed by a suitably qualified person, information contained Baumatic’s installation instructions. o After delivery, wait for eight hours before connecting the appliance to your mains supply. This will allow any refrigerant gasses that may have been disturbed during the transportation process to settle. -
Page 10: Switching On The Appliance And Setting The Thermostat
Switching on the appliance and setting the thermostat o You switch on your appliance by connecting it to your mains supply and setting the thermostat. The thermostat dial is located by opening the door of the freezer and looking behind the freezer drawers. -
Page 11: The **** Freezer
The **** freezer The freezer is suitable for storing and freezing food. o The freezer temperature must have already reached -18 degrees centigrade (or lower) before you attempt to store food that is already frozen or freezing fresh food. o The freezer compartment is only able to freeze a certain quantity of fresh food at one time. -
Page 12: Storing Commercially Frozen Food
Storing commercially frozen food o The storage time and recommended temperature for storing commercially frozen foods are indicated on the packaging. o Always follow the manufacturer’s instructions for storage and use of frozen food. o When shopping, be careful to choose food which is adequately packed and is provided with complete storage instructions. -
Page 13: Normal Operating Noises
Normal operating noises Ice cracking noise o Can be caused by expansion and contraction within the freezer. Short cracking noise o Can be heard when the thermostat turns the compressor on and off. Compressor noise o There will be an operating noise when the compressor is running. o After installation, the compressor may be noisier for a short period of time. -
Page 14: Defrosting The Freezer
Defrosting the freezer The frost in the freezer should be removed periodically. You can use a plastic scraper to keep down the amount of frost that builds. IMPORTANT: The freezer should be defrosted at least twice a year. The number of times that you need to defrost it, will depend on the setting of your thermostat and how much food you freeze and store in the compartment. -
Page 15: Prolonged Off Periods
o You should not attempt to freeze fresh food inside the freezer until this 24 hour time period has elapsed. o Do not defrost the appliance with other electrical devices (e.g. hair dryer). Do not use sharp metal objects to remove the ice on the freezer, as this could cause damage to the refrigerant system. -
Page 16: Positioning
Brown Live Blue Neutral Green and yellow Earth o As the colours of the wires in the appliance’s mains lead may not correspond with the coloured markings identifying the terminals in your spur box, please proceed as follows: The brown wire must be connected to the terminal marked “L” (live), or coloured red. -
Page 17: Levelling The Appliance
o Place the appliance flatly and firmly on a solid base. The appliance is fitted with adjustable feet on the front side, which can be used to level the appliance. o To ensure proper ventilation for your freezer, there should be a gap of at least 2 cm on each side between walls, 2 cm between the back of the freezer and the wall and 3 cm between the top and the roof or ceiling. - Page 18 2. Unscrew the two screws on the top cover to remove it. 3. Unscrew the three screws on the top hinge. 4. Move the top hinge to the opposite side to its original position. Move the top hinge pin, shaft sheath and block piece to the opposite side to their original positions also.
- Page 19 7. Move the adjustable foot to the opposite side from its original positions. 8. Reattach the door on the bottom hinge, making sure that it is correctly aligned, before re-fixing the top hinge and reinstalling the top cover. IMPORTANT: Check that the door opens and shuts correctly, without fouling, after you have completed the door reversal process.
-
Page 20: Troubleshooting
Troubleshooting IMPORTANT: If your freezer appears not to be operating properly, before contacting the Baumatic Customer Care Department, please refer to the checklist below. My freezer does not appear to be working/there is no power to my appliance. o Check that the plug is fully inserted into the power socket. - Page 21 Or any installation other than the one specified by Baumatic Ltd. has been completed. Please refer to the conditions of guarantee that appear on the warranty card that you receive with the appliance.
-
Page 22: Baumatic Consumables
BC005 Stainless Steel Cleaner and Protector (250 ml) o BC007 E-Cloth – General Purpose Cloth o BC008 Microwave Cover To order a Baumatic consumable product please call 0123 5437 244 and quote the product code. You can also order online from eshop.baumatic.co.uk... -
Page 23: Technical Data
Technical Data Manufacturer BAUMATIC LTD Model Number BZ550W Product Category 8 – Upright Freezer Energy Efficiency Class (1) Annual Energy Consumption (2) 172 kWh Storage Volume of Fridge Compartment Storage Volume of Freezer 83 litres Compartment Star Rating Frost Free Compartments... -
Page 24: Contact Details
United Kingdom Baumatic Ltd., Baumatic Buildings, Czech Republic 6 Bennet Road, Baumatic CR s.r.o. Reading, Berkshire Lípová 665 RG2 0QX 460 01 Liberec 4 United Kingdom Czech Republic Sales Telephone +420 483 577 200 (0118) 933 6900 Sales Fax www.baumatic.cz...
