Summary of Contents for Baumatic BZ500W
- Page 1 BZ500W Undercounter freezer...
- Page 2 USER MANUAL FOR YOUR BAUMATIC BZ500W Undercounter freezer NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference, for you or any person not familiar with the operation of the appliance.
-
Page 3: Table Of Contents
Contents Environmental note Important safety information 5 - 7 Specifications of your freezer Description of the appliance Using your Baumatic freezer 9-10 Before switching on During first use Switching on the appliance and setting the thermostat The **** freezer 11-13... -
Page 4: Important Safety Information
Disable the door lock to make sure that children cannot get stuck inside the appliance. o The packaging materials that Baumatic uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the environment. - Page 5 It is suitable for storing food that needs to be kept frozen. If it is used for any other purpose or it is not used correctly, then Baumatic Ltd. will accept no liability for any damage that is caused.
- Page 6 o Do not place any objects on top of the appliance, as this may damage the table top. Child safety o Packaging material should be kept away from children. o Children should not be allowed to touch the controls or play with the appliance. General safety o Do not pull on the power supply cable to remove the plug from your mains supply socket.
-
Page 7: Specifications Of Your Freezer
You should not attempt to repair the appliance yourself, as this could cause injury or a more serious malfunction. If you require a service call then please contact the Baumatic Customer Care Department. Specifications of your freezer o Freezer gross capacity: 71 litres... -

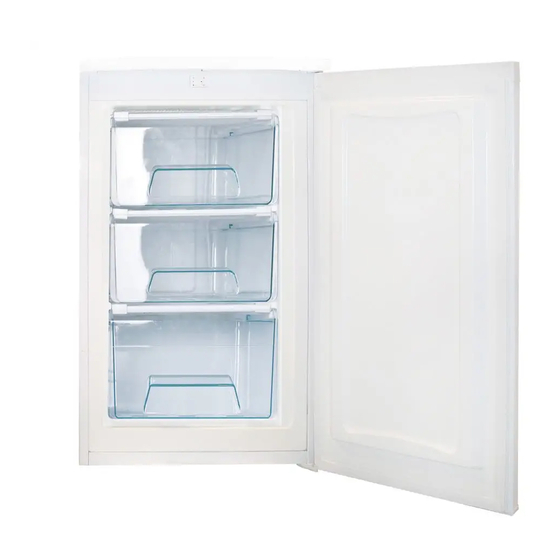

Page 8: Description Of The Appliance
Description of the appliance 1) Top cover 2) Freezer drawers 3) Adjustable feet 4) Freezer door... -
Page 9: Using Your Baumatic Freezer
Using your Baumatic freezer Before switching on o Make sure that it has been installed by a suitably qualified person, information contained Baumatic’s installation instructions. o After delivery, wait for eight hours before connecting the appliance to your mains supply. This will allow any refrigerant gasses that may have been disturbed during the transportation process to settle. -
Page 10: Switching On The Appliance And Setting The Thermostat
Switching on the appliance and setting the thermostat o You switch on your appliance by connecting it to your mains supply and setting the thermostat. The thermostat dial is located by opening the door of the freezer and looking behind the freezer drawers. -
Page 11: The **** Freezer
The **** freezer The freezer is suitable for storing and freezing food. o The freezer temperature must have already reached -18 degrees centigrade (or lower) before you attempt to store food that is already frozen or freezing fresh food. o The freezer compartment is only able to freeze a certain quantity of fresh food at one time. -
Page 12: Storing Commercially Frozen Food
Storing commercially frozen food o The storage time and recommended temperature for storing commercially frozen foods are indicated on the packaging. o Always follow the manufacturer’s instructions for storage and use of frozen food. o When shopping, be careful to choose food which is adequately packed and is provided with complete storage instructions. -
Page 13: Cleaning And Maintenance
Bubbling and burbling sound o This noise is emitted as the coolant flows through the pipework within the freezer. Cleaning and maintenance WARNING: PLEASE ENSURE THAT YOUR APPLIANCE IS DISCONNECTED FROM YOUR MAINS SUPPLY BEFORE ATTEMPTING TO CLEAN IT. o Do not clean the appliance by pouring water onto it or spraying water over it. - Page 14 o DO NOT PLACE FOOD BACK IN THE FREEZER THAT HAS STARTED TO THAW. o Set the thermostat knob to position <0> and disconnect the appliance from your mains supply. o Remove the drawers from the freezer and leave the door open. You can place a bowl of warm water inside the freezer to speed up the defrost process.
-
Page 15: Installation
Installation IMPORTANT: Before installation and usage read all the instructions and make sure that the voltage (V) and the frequency (Hz) indicated on the rating plate are exactly the same as the voltage and frequency in your home. The rating plate can be found behind the bottom drawer in the freezer. -
Page 16: Positioning
o When the connection is completed, no stray strands or cut wire should be present. The cord clamp must be secured over the outer sheath. Positioning o It is advisable that your appliance is only installed in a location where the ambient temperature of the room, corresponds with the climate classification that is stated on the rating plate of your appliance. -
Page 17: Reversing The Door
Reversing the door IMPORTANT: BEFORE COMMENCING THE DOOR REVERSAL PROCESS THE APPLIANCE MUST BE DISCONNECTED FROM YOUR MAINS SUPPLY. o We suggest that two people complete the door reversal process. o We recommend that the door reversal process is done before the appliance is placed in its final position. - Page 18 5. Carefully remove the appliance door, placing it gently on a cushioned surface, so that it doesn’t get damaged. 6. Carefully tilt the appliance to a 60° angle. Unscrew the three screws on the bottom hinge and move them to the opposite side from...
-
Page 19: Troubleshooting
BEFORE SWITCHING THE APPLIANCE BACK ON. Troubleshooting IMPORTANT: If your freezer appears not to be operating properly, before contacting the Baumatic Customer Care Department, please refer to the checklist below. My freezer does not appear to be working/there is no power to my appliance. - Page 20 My freezer appears to be performing poorly. o Check that the appliance isn’t overloaded and that food hasn’t been packed too tightly into it. o The thermostat setting is too low; you should turn the thermostat up higher. o Ensure that the door is closing properly and that the door has not been opened for a prolonged period in error.
- Page 21 Or any installation other than the one specified by Baumatic Ltd. has been completed. Please refer to the conditions of guarantee that appear on the warranty card that you receive with the appliance.
-
Page 22: Contact Details
Czech Republic United Kingdom Baumatic CR spol s.r.o. Baumatic Ltd., Průmyslová zóna Sever 696 Baumatic Buildings, 460 11 Liberec 11 6 Bennet Road, Czech Republic Reading, Berkshire RG2 0QX +420 483 577 200 United Kingdom www.baumatic.cz Sales Telephone (0118) 933 6900... - Page 24 24 24...
