Flexible Architecture
The ESP-88 employs a flexible, modular architecture.
The flexible architecture provides two levels of DSP
performance – up to 32 general-purpose I/O and up to
64 digital audio channels – or up to 32 analog audio
channels.
The base model ESP-88, includes a DSP card, two 4x4
Mic/Line cards and one GPIO card. In this configura-
tion, four audio and one GPIO slot are available for
expansion.
Optional Cards
Three types of optional cards are available: DSP
expansion; GPIO; and Audio.
DSP expansion card
Daughter card for main DSP card. Increases
performance by 300%. One card can be added to
an ESP-88.
GPIO card
Fits in one of the two GPIO slots. Eight control
inputs and eight control outputs. One GPIO card
can be added to an ESP-88.

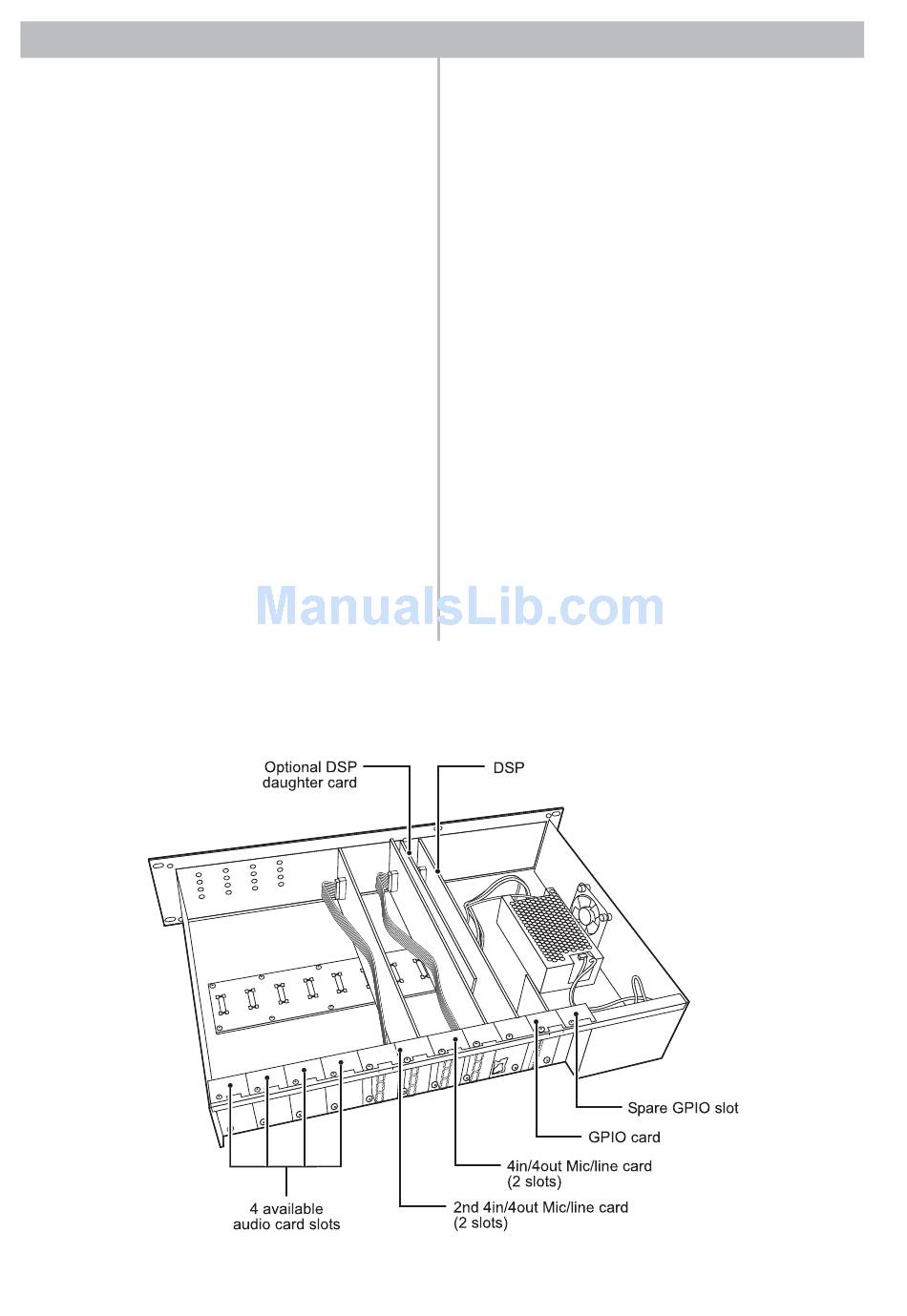

ESP-88 Inside View
(Shown with optional DSP daughter card)
Modularity and Expansion
8
Audio Cards:
4x4 mic/line card
Occupies two audio slots. Four microphone or line
level inputs (software selectable), and four line level
outputs. The ESP-88 includes two 4x4 Mic/line cards.
Two 4x4 cards can be added.
EDR line level output card
Occupies one audio slot. Four highest-quality, line
level outputs.
EDR line level input card
Occupies one audio slot. Four highest-quality, line
level inputs.
AES3 output card
Occupies one audio slot. Eight AES3 outputs (two per
output connector).
AES3 Input card
Occupies one audio slot. Eight AES3 inputs (two per
input connector).
