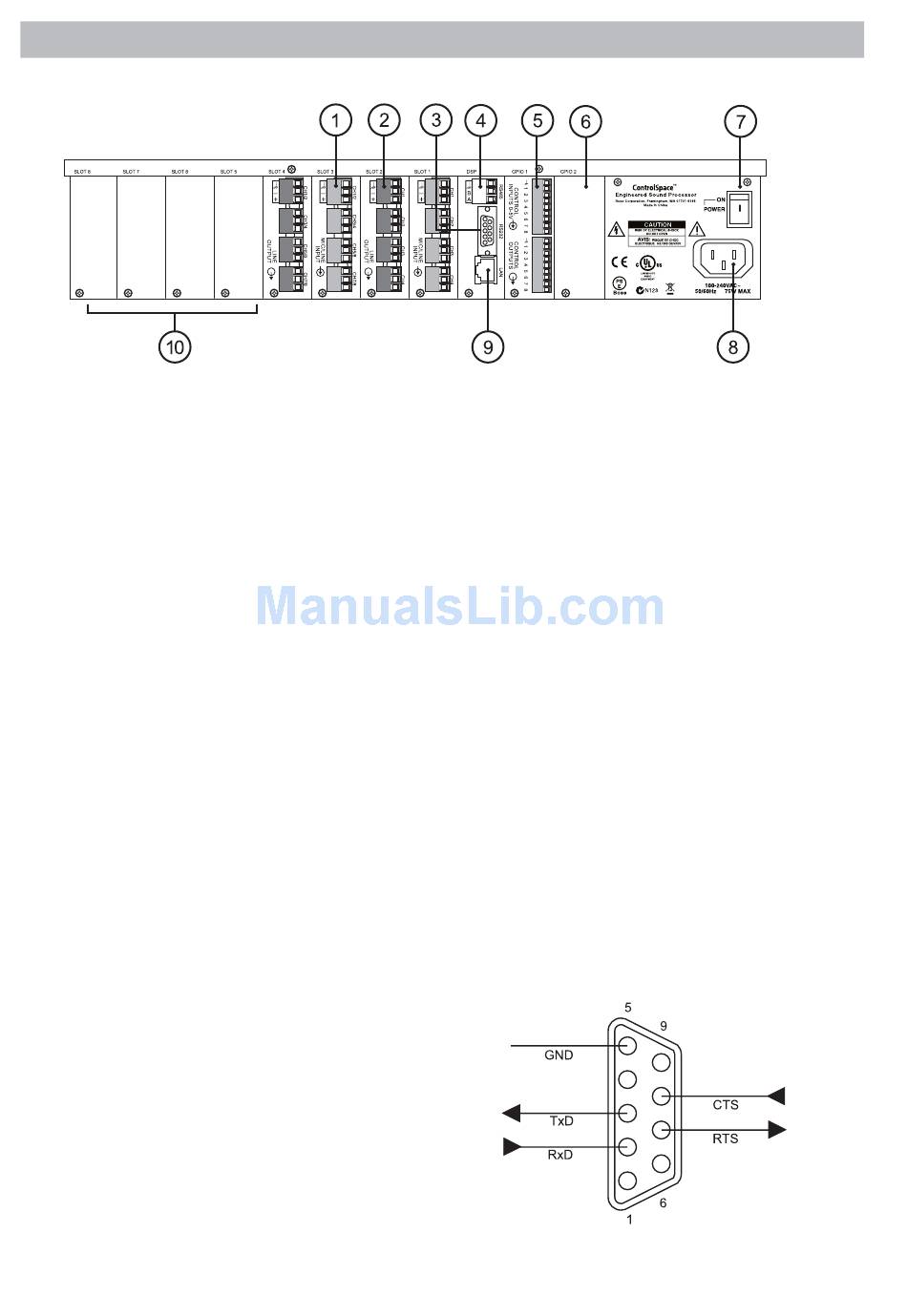

Rear Panel
1. Mic/line inputs
Four balanced mic/line inputs (audio
input connectors are green) in slots 1
and 3. These are inputs S1-1 through
S1-4, and S3-1 through S3-4 in the
ControlSpace
2. Line outputs
Four balanced line outputs (audio
output connectors are orange) in slots 2
and 4. These are outputs S2-1 through
S2-4 and S4-1 through S4-4 in the
Designer software.
3. RS-232C connector
DB-9 male (DTE)
4. RS-485 connector
Connect ControlSpace CC-16
controllers.
5. GPIO card
Eight general purpose control inputs
Eight general purpose control outputs
RS-232C Serial Port
The ESP-88 features a serial port that can be used to
send control strings to other equipment (such as a video
switcher). The serial port is a DB9 male. The pin-out is
shown in this illustration.

Rear Panel Controls and Connections

Designer software.
™
6. GPIO slot 2
For optional 2nd GPIO card
7. Power switch
ON/OFF AC power
8. AC cord inlet
Connect the AC cord appropriate for
your area.
9. Ethernet LAN connector
Connect to your PC with enclosed
crossover cable. Or, connect directly
to a hub or router with a straight-
through cable.
10. Audio slots 5 - 8
For optional audio cards
6
male
DB9
