Permutit 307-311 Timetronic User Manual page 9

-
/
~

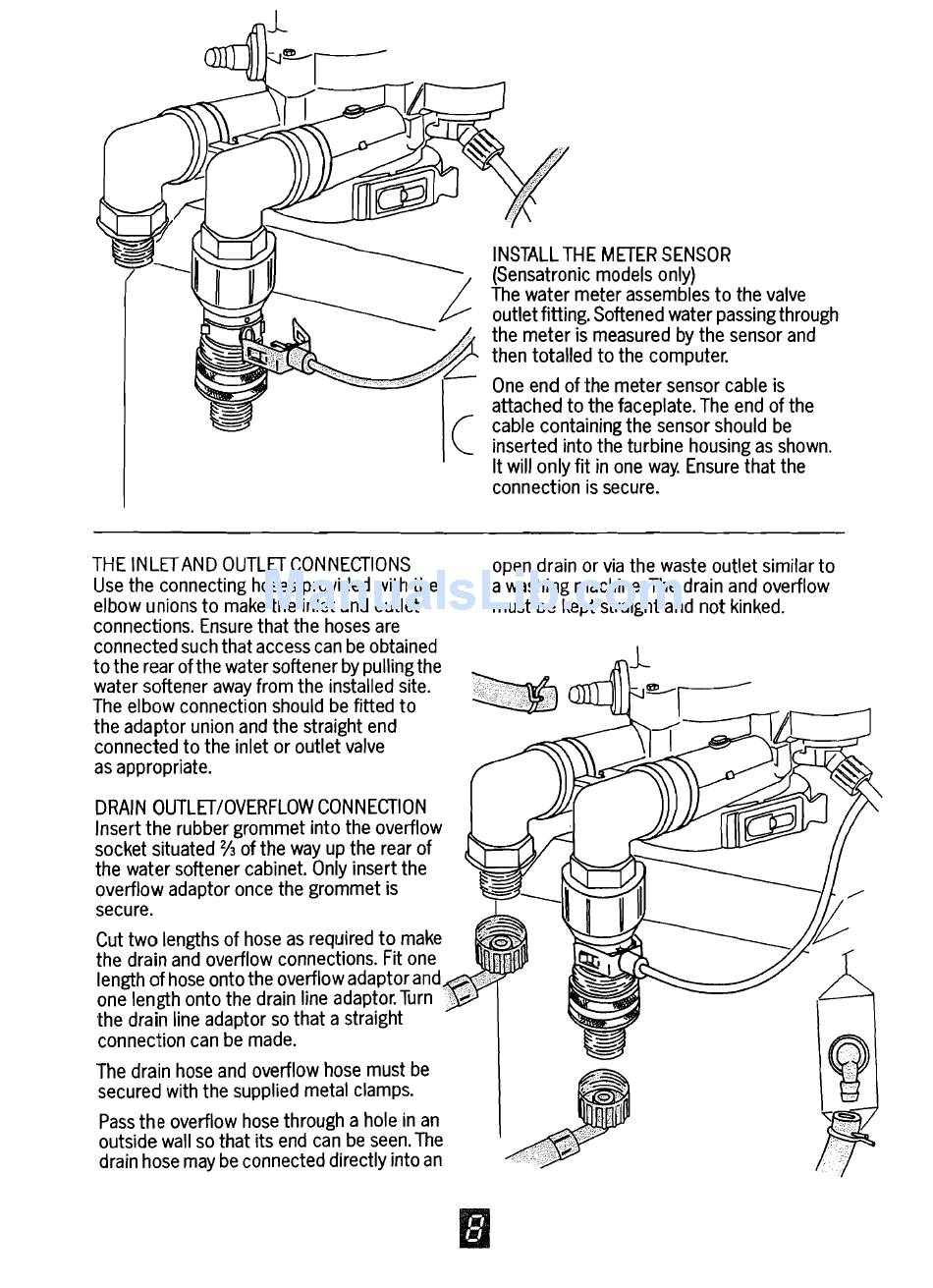

INSTALL THE METER SENSOR
(Sensatronic models only)
The water meter assembles to the valve
outlet fitting. Softened water passing through
the meter is measured by the sensor and
then totalled to the computer.
One end of the meter sensor cable is
attached to the faceplate. The end of the
C
cable containing the sensor should be
inserted into the turbine housing as shown.
It will only fit in one way. Ensure that the
connection is secure.
THE INLET AND OUTLET CONNECTIONS
open drain or via the waste outlet similar to
Use the connecting hoses provided with the a washing machine. The drain and overflow
elbow unions to make the inlet and outlet must be kept straight and not kinked.
connections. Ensure that the hoses are
connected such that access can be obtained
to the rear of tile water softener by pulling the
water softener away from the installed site.
­
The elbow connection should be fitted to
the adaptor union and the straight end
connected to the inlet or outlet valve
as appropriate.
DRAIN OUTLET/OVERFLOW CONNECTION
Insert the rubber grommet into the overflow
socket situated
%
of the way up the rear of
the water softener cabinet. Only insert the
overflow adaptor once the grommet is
secure.
Cut two lengths of hose as required to make
the drain and overflow connections. Fit one
length of hose onto the overflow adaptor and.6:v
cf
j;:::r
one length onto the drain line adaptor. Turn
the drain line adaptor so that a straight
connection can be made.
The drain hose and overflow hose must be
~
secured with the supplied metal clamps.
l!
.c:::::o
Pass th eoverflow hose through a hole in an
outside wall so that its end can be seen. The
drain hose may be connected directly into an
"~'
" .
