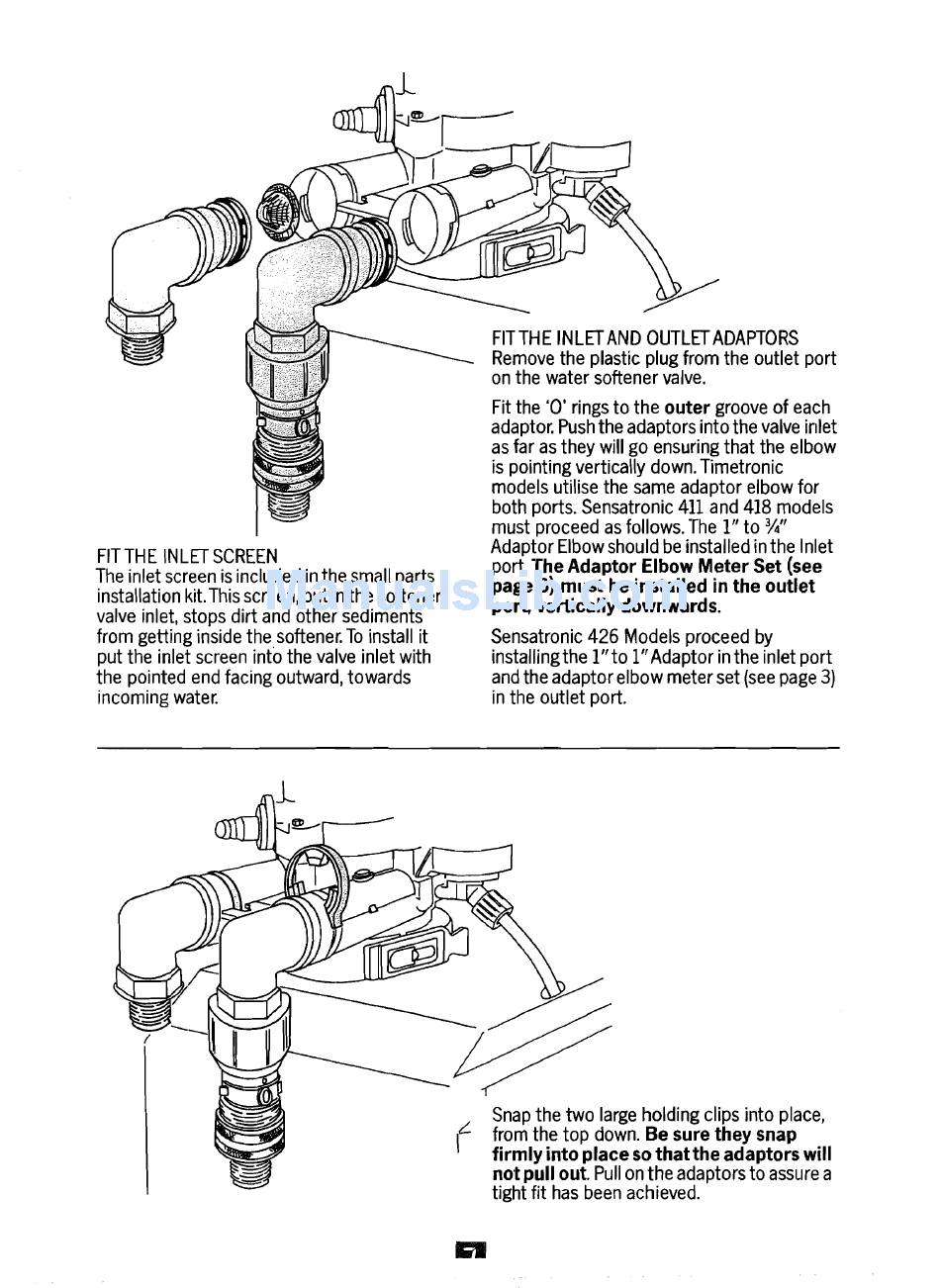

FIT THE INLET AND OUTLET ADAPTORS
Remove the plastic plug from the outlet port
on the water softener valve.
Fit the '0' rings to the outer groove of each
adaptor. Push the adaptors into the valve inlet
as far as they will go ensuring that the elbow
is pointing vertically down. Timetronic
models utilise the same adaptor elbow for
both ports. Sensatronic 411 and 418 models
FIT THE INLET SCREEN
The inlet screen is included in the small parts
installation kit. This screen, put in the softener
valve inlet, stops dirt and other sediments
from getting inside the softener. To install it
put the inlet screen into the valve inlet with
the pointed end facing outward, towards
incoming water.
must proceed as follows. The 1" to
%"
Adaptor Elbow should be installed in the Inlet
port. The Adaptor Elbow Meter Set (see
page 3) must be installed in the outlet
port, vertically downwards.
Sensatronic 426 Models proceed by
installing the l"to 1" Adaptor in the inlet port
and the adaptor elbow meter set (see page 3)
in the outlet port.
Snap the two large holding clips into place,
I~ from the top down. Be sure they snap
firmly into place so thatthe adaptors will
not pull out. Pull on the adaptors to assure a
tight fit has been achieved.
