PLUMBING
Turn off the water supply at the incoming
main and begin plumbing as per the
installation on the previous page.
FIT TH E BYPASS KIT
Cut the rising main and install the check
valve. Next, plumb the bypass, inlet and outlet
valves so that the water supply can be turned
on. For ease and future customer confidence,
follow the typical installation illustration
below. Use the red valve for the inlet, the blue
valve for the outlet and the grey valve as the
bypass. Before turning the water back on,
make sure the bypass is open and the inlet
and outlet valves are closed. This will allow
water to pass directly to the household
system without it diverting to the water
softener. (The use of the plastic plumbing
'fittings with copper pipe may affect the
electrical earthing or bonding of the
copper pipe. We advise that you contact an
electrician about the implications on
your system.)

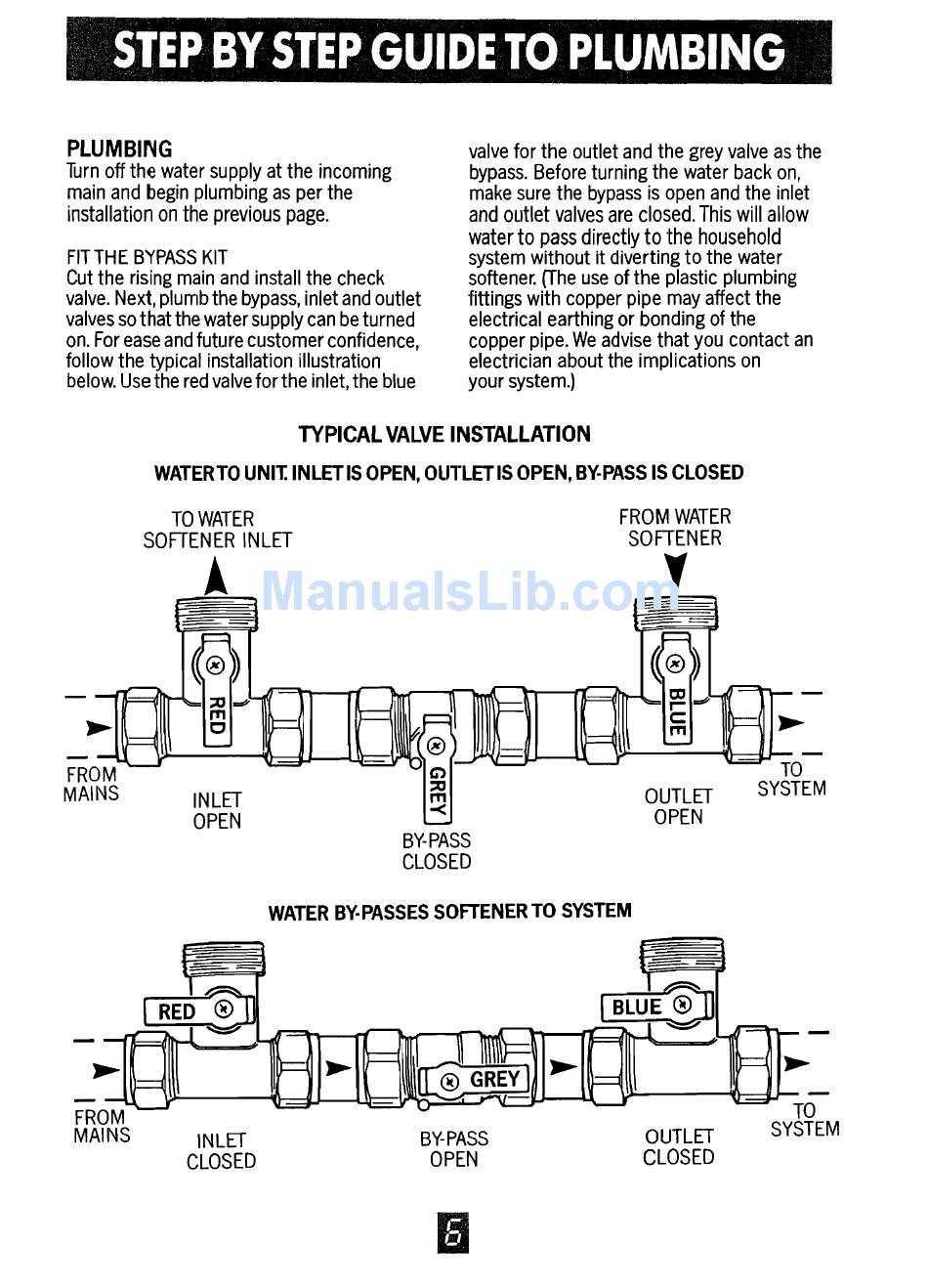

TYPICAL VALVE INSTALLATION
WATERTO UNIT.INLETIS OPEN, OUTLET IS OPEN, BY-PASS IS CLOSED
TO WATER
SOFrENER INLET
A.
FROM WATER
SOFTENER
Y
=:allr-"","-I:::O ,.;
rn
c
INLET
OPEN
TO
SYSTEM
OUTLET
OPEN
BY-PASS
CLOSED
WATER BY·PASSES SOFTENER TO SYSTEM
INLET
CLOSED
TO
SYSTEM
BY-PASS
OUTLET
OPEN
CLOSED
