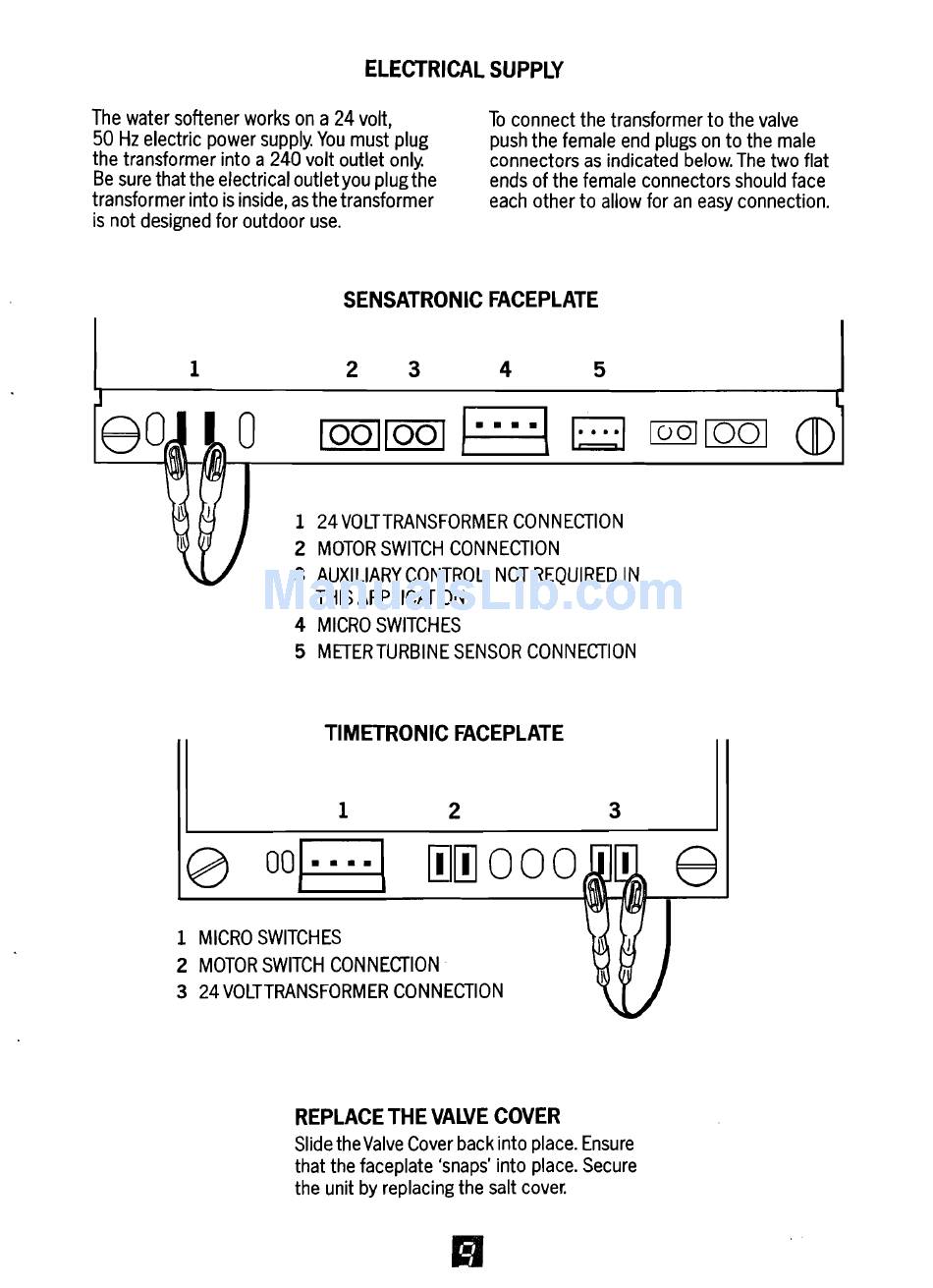

ELECTRICAL SUPPLY
The water softener works on a 24 volt,
To connect the transformer to the valve
50 Hz electric power supply. You must plug
push the female end plugs on to the male
the transformer into a 240 volt outlet only.
connectors as indicated below. The two flat
Be sure that the electrical outlet you plug the
ends of the female connectors should face
transformer into is inside, as the transformer
each other to allow for an easy connection.
is not designed for outdoor use.
SENSATRONIC FACEPLATE
1
2 3 4 5
1 24 VOLTTRANSFORMER CONNECTION
2 MOTOR SWITCH CONNECTION
3 AUXILIARY CONTROL. NOT REQUIRED IN
THIS APPLICATION
4 MICRO SWITCHES
5 METER TURBINE SENSOR CONNECTION
T_~METR_O_N_IC_:_~_C_E_PL_Jf._J_E
1
__ __3 _ _
_____' 1
<2'
DOg
0000
000
8
1 MICRO SWITCHES
2 MOTOR SWITCH CONNECTION
3 24 VOLTTRANSFORMER CONNECTION
REPLACE THE VALVE COVER
Slide the Valve Cover back into place. Ensure
that the faceplate 'snaps' into place. Secure
the unit by replacing the salt cover.
