MODEL NO: JENC-LP
MODEL NAME:
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, keep away from the
appliance and immediately call your gas
supplier or your fire department.
ASSEMBLY, USE AND CARE MANUAL

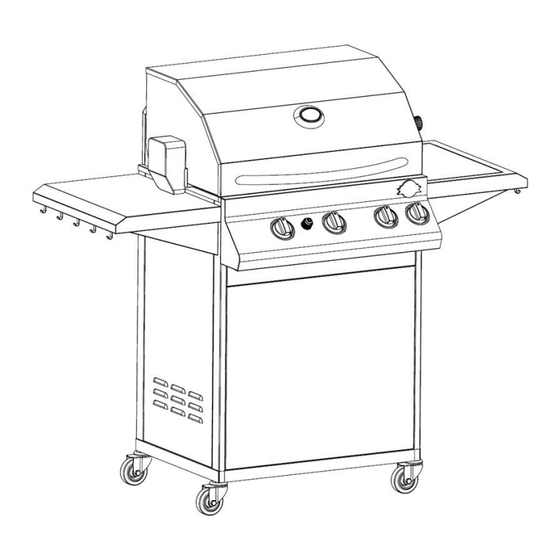

Jackson Grills Encore
FOR OUTDOOR
WARNING
1. Do not store or use gasoline or other
flammable liquids or vapors in the
vicinity of this or any other appliance.
2. An LP cylinder not connected for use
shall not be stored in the vicinity of this
or any other appliance.
USE ONLY
Advertisement
Table of Contents
Related Manuals for Jackson Grills JENC-LP
Summary of Contents for Jackson Grills JENC-LP
- Page 1 ASSEMBLY, USE AND CARE MANUAL MODEL NO: JENC-LP Jackson Grills Encore MODEL NAME: FOR OUTDOOR USE ONLY DANGER WARNING If you smell gas: 1. Do not store or use gasoline or other 1. Shut off gas to the appliance. flammable liquids or vapors in the 2.
-
Page 2: Table Of Contents
Leaking Test-------------------------------13 MESSAGE TO OUR USERS Thank you for purchasing your new Jackson Grill. We hope you will have great enjoyment in using our fine product Do not attempt to assemble and use this grill unless you read this entire manual thoroughly. - Page 3 Please take the time to read the whole manual and familiarize yourself with all of the features of the Jackson Grill. This manual also contains important safety information and operation instructions. Ensure that this manual remains handy to the barbeque for quick reference.
-
Page 4: Important
IMPORTANT The symbols and boxes shown below explain what each symbol means. Read and follow every message found in this manual. !!! DANGER !!! DANGER: Indicates an imminently hazardous situation which will result in death or serious bodily injury if not followed. !!! WARNING !!! WARNING: Warning of the possibility of serious bodily injury if the instructions are not followed strictly. -
Page 5: Installation Safety Precautions
INSTALLATION SAFETY PRECAUTIONS !!!WARNING!!! Do not try to install this appliance without reading the “INSTALLATION SAFETY PRECAUTIONS” section of this manual. 1. This grill is designed to use L.P. gas only. Only use this grill with L.P. gas and the regulator assembly supplied by the manufacturer. -
Page 6: Exploded View & Parts List
EXPLODED VIEW & PARTS LIST... -
Page 7: Thermometer
EXPLODED VIEW & PARTS LIST REF# DESCRIPTION REF# DESCRIPTION Q’TY Q’TY Hood Control Panel Thermometer Rear Burner Ignition Module Red Insulator Pedestal Side Pedestal Corner Bracket – front right Hood Handle Inner Hood Pedestal Front Support Warming Rack Pedestal Front Rotisserie Handle Swivel Casters Rotisserie Rod/Forks... -
Page 8: Assembly Instructions
ASSEMBLY INSTRUCTIONS Please ensure the proper tools are used for ease of installation. Please remove all components from the packaging and inspect all components to ensure there is no damage to any components in the packaging. Please remove all packaging from all components of the gas grill before operating. -
Page 9: Gas Connections
removed from these parts. These flame diffusers should be placed on the pins provided on the firebox front and rear. Ensure that all of the flame diffusers have been installed correctly on the pins provided or the unit will not work correctly. 2. - Page 10 1. Make sure tank valve is in its full off position (turn clockwise to stop). 2. Check tank valve to assure it has proper external male threads (type I connection per ANSIZ21.81). 3. Make sure all burner knobs are in their off position. 4.
-
Page 11: Natural Gas Conversion
VERY IMPORTANT: DISCONNECT THE TANK WHEN THIS GRILL IS NOT IN USE. To disconnect L.P. gas tank: 1. Turn all the knobs off. 2. Turn the tank valve off fully (turn clockwise to stop). 3. Detach the regulator assembly from tank valve by turning the quick coupling nut counterclockwise. 4. -
Page 12: Burner Cotter Pin
work area. This will ensure you do not re-install the propane orifices. Using an approved thread sealant, replace the main burner orifices with the NEW natural gas orifices supplied. Before reinstalling the main burners make sure to close the air shutter on each burner half of what it is set for propane use. -
Page 13: Leaking Test
10. DO NOT STORE L.P. TANK IN OR NEAR AN AREA WHERE CHILDREN PLAY. 11. DISCONNECTED THE TANK AND REMOVE FROM THE GRILL IF THE GRILL IS STORED INDOORS. 12. ANY OTHER PROBLEM, SEE “TROUBLESHOOTING” OR CONTACT JACKSON GRILLS AT 888-287-3333. -
Page 14: Installer Final Check List
INSTALLER FINAL CHECK LIST At least 36” clearance maintained from combustible constructions to the sides and back of this grill. There is no unprotected combustible construction over the grill. All internal packaging removed. Burners are sitting properly on orifices. ... - Page 15 the grill as possible when lighting 3. Open lid during lighting. 4. Push and turn rear burner control knob to the “HIGH” position. Push and hold igniter button until burner lights. Up to 5 seconds is allowed for ignition. 5. Follow match lighting instruction if burner can’t be lit after repeating above steps 3-4 times. ...
-
Page 16: Operation Instructions
10. Turn off the gas supply when the grill is not in use. Always turn off the L.P. tank completely and detach from the grill before moving. TOTAL GAS CONSUMPTION: Total gas consumption (per hour) of JENC-LP grill with all burners on “HI”: Main burners 45,000 Btu/hr Rear burner... - Page 17 USING THE GRILL: Grilling requires high heat for searing and proper browning. Most foods are cooked at the “HI” heat setting for the entire cooking time. However, when grilling large pieces of meat or poultry, it may be necessary to turn the heat to a lower setting after the initial browning. This cooks the food through without burning the outside.
-
Page 18: Care & Maintenance
CARE & MAINTENANCE MAINTENANCE 1. Keep the grill area clear and free from combustible materials, gasoline and other flammable vapors and liquids. 2. Keep the holes in the three sides of the cart clear and free from debris, thus ensure the flow of combustion and ventilation air is unobstructed. -
Page 19: Trouble Shooting
TROUBLE SHOOTING SPIDER AND INSECT WARNING Spiders and insects can nest in the burners after storing, these nest can cause fires inside the tube or beneath the grill. This is very dangerous condition. So always clean the burners before use after storing. ... -
Page 20: Grilling Tips
The Flow Limiting Device or Bypass Safety Feature What is the Flow Limiting Device/ Bypass Safety Feature? LP tanks are required to add a Flow Limiting Device (FLD) to all 20 lb tanks. This device prohibits gas flow when an excessive amount is detected Why does this occur? ... -
Page 21: Limited Warranty
Jackson Grills Inc. or its parties will not be responsible for the installation, labor or any other costs or expenses related to the re installation of the warranted part, and such expenses are not covered by this warranty.
