Glorystar Installation Guide

Christian Satellite System

Fortec Mercury II

V.6 7.1.08

Free Christian Satellite TV and Radio

Important Notice:

be activated before installation. Please follow

the simple activation process on page 22 of this

manual.

Your equipment must

Table of Contents

Need help?

Do you have a question about the Fortec Mercury II and is the answer not in the manual?

Questions and answers

Summary of Contents for Glorystar Fortec Mercury II

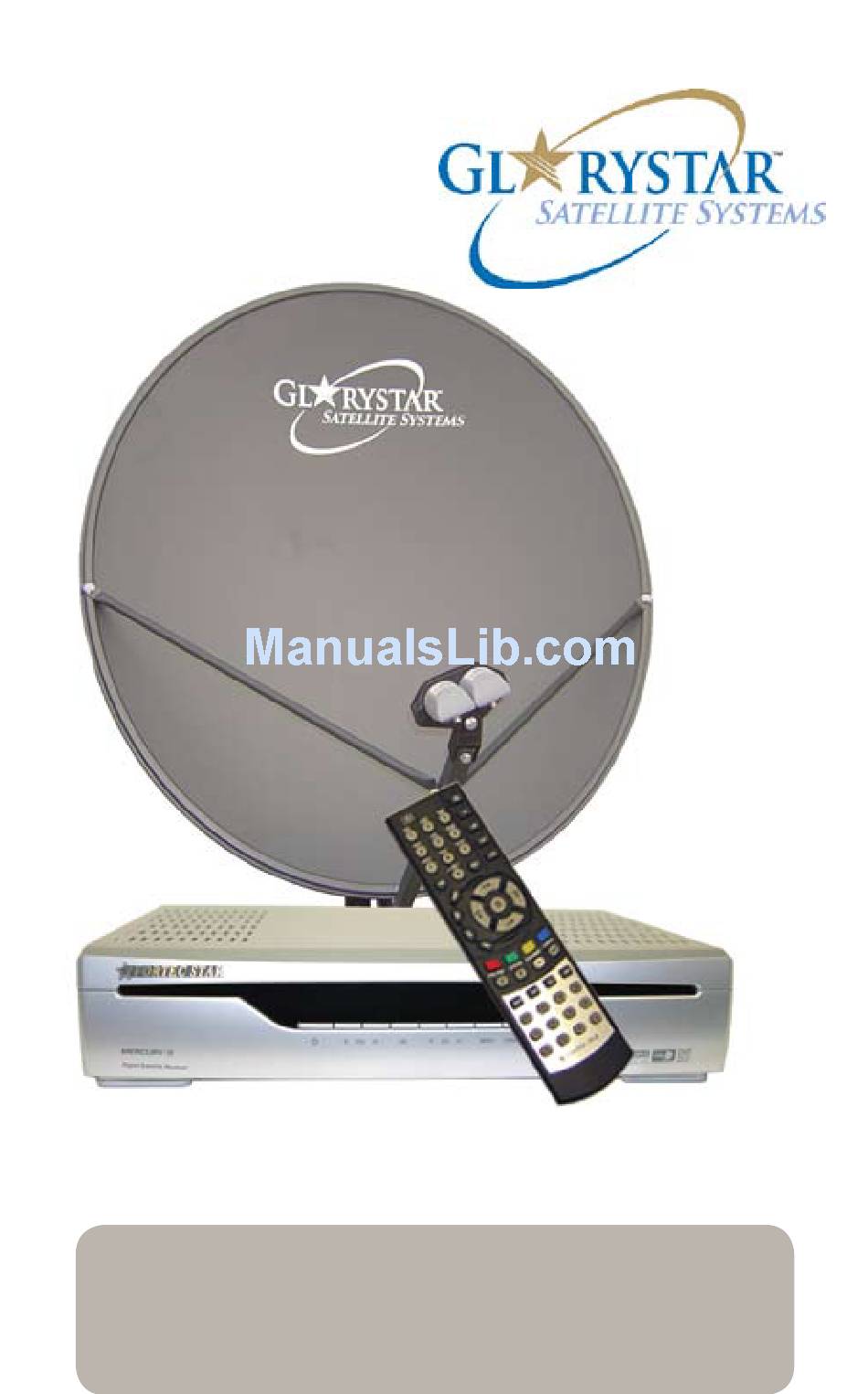

Page 1 Glorystar Installation Guide Christian Satellite System Fortec Mercury II V.6 7.1.08 Free Christian Satellite TV and Radio Important Notice: Your equipment must be activated before installation. Please follow the simple activation process on page 22 of this manual.
Page 2 You have 30 days from the date of delivery to return the equipment for refund or exchange to Glorystar. Before unpacking or assembly of any item, review the warranty, exchange and refund policy on page 34 of this manual.
Page 3: Table Of Contents
Warranty, Exchange and Refund Policy Quick Install Guide for Professional Installers Satellite Elevation Finder Materials contained in this installation manual are the property of: Glorystar Satellite Systems 8801 Washington Blvd., Suite 101 Roseville, CA 95678 www.glorystar.tv ©2008 Glorystar Satellite Systems www.glorystar.tv Toll Free 866-597-0728...
Page 4 Grounding the system as recommended in the National Electric Code. NOTE: If you don’t feel completely comfortable with these tasks, please contact Glorystar toll free at 866-597-0728 or local 916-218- 7882 for information on having your system installed by a local installer.
Page 5: Parts List
Deluxe Glorystar Satellite System Parts List Reflector (1) Tripod Support Leg (2) LNBF ARM (1) Post (1) LNBF Arm Supports (2) DiSEqC Switch (1) LNBF (2) Twin LNBF Clamp (1) 3’ Coax Jumper (2) Installation Kit (1) Satellite Receiver (1)
Page 6: Important Safeguards
Please refer servicing to qualified service personnel only. Note: Hardware / software modifications not expressly authorized by Glorystar will void any system warranty. CAUTION: To prevent electric shock, do not use your receiver’s (polarized) plug with an extension cord receptacle or other outlet unless the blades can be fully inserted to prevent blade exposure.
Page 7 Water and Moisture Do not use this product near water. For example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement, near a swimming pool, etc. www.glorystar.tv Toll Free 866-597-0728...
Page 9 Never spill liquid of any kind on the product. Heat The product should be placed away from heat sources such as radiators, heat registers, stoves, or any product that produces heat. www.glorystar.tv Toll Free 866-597-0728...
Page 10 Refer all servicing to qualified service personnel. Modification to the hardware or software without authorization by Glorystar the will result in voiding any warranty. Service assistance may be arranged by contacting Glorystar technical support at 866- 597-0728.
Page 11: Site Survey
Christian satellite systems as a ministry outreach. Will a Glorystar Christian Satellite System work at your home? Before assembling any equipment it is important to verify that the installation location has a suitable area to safely and securely mount the satellite dish and have a clear line of site to receive the satellite signal.
Page 12 30 and 60 degrees. Southern US point more toward 60 degrees; northern US point more toward 30 degrees. Northern Canada and Hawaiian elevations can be as low as 10 degrees, but Central American dishes will be aimed almost straight up! Dish Elevation Angle: ___________ ©2008 Glorystar Satellite Systems...
Page 13 4 degrees apart. The aiming coordinates provided are for a point between AMC4 and Galaxy25 (IA5). This spacing is very close and only during rare installations would the line of sight be so narrow that only one satellite could be received. www.glorystar.tv Toll Free 866-597-0728...
Page 14 Wall Mount Roof Mount The Glorystar system includes a heavy duty universal wall / roof post mount. This mount can be attached at almost any angle and provides a stable secure mount even in high wind regions if properly attached.
Page 15: Dish Assembly
If any area of the edge is raised by even an 1/8th of an inch reception of the satellite signal could be affected! It is important to check the reflector for warping before assembly of the satellite dish. www.glorystar.tv Toll Free 866-597-0728...
Page 16 Hex Tap Bolt M6 - 90mm Fastener Insert Please contact Glorystar at 866-597-0728 if any of these parts are missing or damaged. Most replacement or damaged hardware items can be found at a local hardware supply store. ©2008 Glorystar Satellite Systems...
Page 17 A is visible on the Post Clamp, the dish has been assembled to use Scale B for measuring the Elevation Angle. After verifying the reflector is not warped, mount to the Elevation Bracket and install the two LNBF arm side supports. www.glorystar.tv Toll Free 866-597-0728...
Page 18 +23, set the pointer to a position between +20° and +25° counter clockwise. and tighten the locking nut securely to prevent any movement. This setting should be adjusted, locked and not require any further adjustment. Example: Negative -40 ©2008 Glorystar Satellite Systems...
Page 19 This allows the dish to be mounted with either a higher reach above a roof (as pictured) or outward reach away from a wall when using the slots on the opposite end of the post. www.glorystar.tv Toll Free 866-597-0728...
Page 20 The post is not designed to solely support the dish. If you hire a local installer, please be sure that the legs are installed. Glorystar will charge back contracted professional installers if these legs are not installed. ©2008 Glorystar Satellite Systems...
Page 21: Dish Aiming Angles
(leveled on all sides). The dish elevation angle cannot be set using an angle finder on the LNBF arm or on the face of the dish. www.glorystar.tv Toll Free 866-597-0728...
Page 22 Semi-tighten the post clamp nuts, but allow the dish to be just loose enough to be moved left or right by gripping the elevation bracket with applying light pressure. ©2008 Glorystar Satellite Systems...
Page 23: Connect Receiver And Television
LOCATION OR IN VIOLATION OF SAFEGUARDS PROVIDED IN THIS MANUAL OR ANY OTHER EQUIPMENT MANUAL PROVIDED WITH THIS GLORYSTAR SATELLITE SYSTEM. Remove the satellite receiver and remote control from the packaging. Inspect the unit before operation. If any equipment is damaged or if you have any questions, please immediately contact Glorystar at 866-597-0728.
Page 24: Activate Preprogrammed Channels
Activate Preprogrammed Channels This equipment must be activated for the preprogrammed Glorystar Television and Radio Services on satellites Galaxy25 and AMC4. Press the STB button on the remote to control the Set Top Box with the universal remote control. If required, press VOL/Right arrow to select an alternative language.
Page 25: Locate And Peak Satellite Signals
Note: Once set, do not re-adjust the skew rotation of the twin LNBF clamp or adjust the LNBFs rotation or placement. This would make the installation process very difficult! www.glorystar.tv Toll Free 866-597-0728...
Page 26 If not, peak Quality reading by fine tuning the dish angles. Congratulations! The 1st satellite, AMC4 is now tuned and the next few steps will optimize your installation for reception of all Christian channels on the 2nd satellite Galaxy25. ©2008 Glorystar Satellite Systems...
Page 27 Press CH/UP arrow to place the receiver on CNL, Ch. 24 (This is a weaker transponder on 2nd satellite). Verify the Quality reading is 50% +. If not, continue to fine tune the dish elevation and azimuth. www.glorystar.tv Toll Free 866-597-0728...
Page 28 If these adjustments do not increase the signal quality, slight adjustments to the LNBFs rotation or placement may be necessary. Note the channels with the lowest signal quality and use the CH UP and CH DOWN arrows to switch between while making adjustments. ©2008 Glorystar Satellite Systems...
Page 29: Optional: Lnbf Adjustments
Galaxy25 channel and slowly slide LNBF #2 in or out. If no improvement, return the LNBF to the 20mm (3/4”) offset . Tighten the two Phillips head screws to secure the twin LNBF clamp. www.glorystar.tv Toll Free 866-597-0728...
Page 30 Often these cables are not rated for satellite applications or have splitters and other devices that are not compatible with a Glorystar satellite system. Always connect the RG-6 type coax cable directly from the satellite dish LNBF through the grounding block and attach to the LNBF IN Digital connection on the rear of the Satellite Receiver.
Page 31: Basic Operation
CH/DOWN buttons. The volume is adjusted by pressing the VOL/UP or VOL/DOWN buttons. Note: Volume is also controlled by the TV. Glorystar suggests that the satellite receiver volume be set at mid-level and use the TV to adjust the sound level.
Page 32: Frequently Asked Questions
Snow or ice build up can interfere with the satellite signal. Mount the dish where snow can be gently brushed off. Dish covers and heaters are available for locations with regular ice and snow accumulations. ©2008 Glorystar Satellite Systems...
Page 33 TV and Radio services. Many free national and international services are available. Do this at your own risk, as Glorystar will only provide the warranty free technical support for the reception of the Glorystar programming. Scanning the Satellite for Additional Channels (optional) Press MENU on the remote, verify that the receiver is in the Installation Menu.
Page 34: Connection Examples
VCR or DVD Recorder Please consult the owners manual provided with TV, VCR or other device that will be connected to the Glorystar satellite receiver. The manual will include important connection and operational information. Please contact Glorystar technical support for assistance in connecting the receiver to a television.
Page 35: Accessories
Accessories Glorystar carries a large selection of satellite accessories and replacement items. Please call 866-597-0728 or www.glorystar.tv for additional items or to place an order. Satellite Finder Meter Installs Faster, Easier Non-Penetrating Roof Mount No Holes or Temporary Universal Remote...
Page 36: Glorystar Satellite Systems 8801 Washington Blvd., Suite
No other representations or claims shall bind or obligate Glorystar in any way. Any warranty applicable to this product is limited to the period described above. In no event will Glorystar be liable for any special, incidental, or consequential damages, loss of revenues, cost of replacement goods, cost of professional services, or installer fees resulting from the use or malfunction of these products or to the equipment systems on which they are used.
Page 37 This is a summary of the installation process. This section is designed for use ONLY by the experienced professional installer. Glorystar equipment is preprogrammed to receive all Christian Television and Radio Services on satellites Galaxy25 (IA5) and AMC4. Follow these steps to activate the preprogrammed channels.
Page 38 Repeat if needed until the edges lay perfectly flat. Perform a thorough site survey using the included dish aiming coordinates for Glorystar Twin Satellite System. The dish arm will be aimed near the DirecTV 101w location. Verify line of site for the 4 degrees between Galaxy25 (IA5) 97w and AMC4 101w.
Page 39 DirecTV LNBF into the LNBF #1 position. Locate the DirecTV 101w satellite with a meter or DirecTV receiver. Replace the Glorystar LNBFs into the clamp. The Dish is now roughly aimed and will only require fine tuning for optimal reception of the linear satellites.
