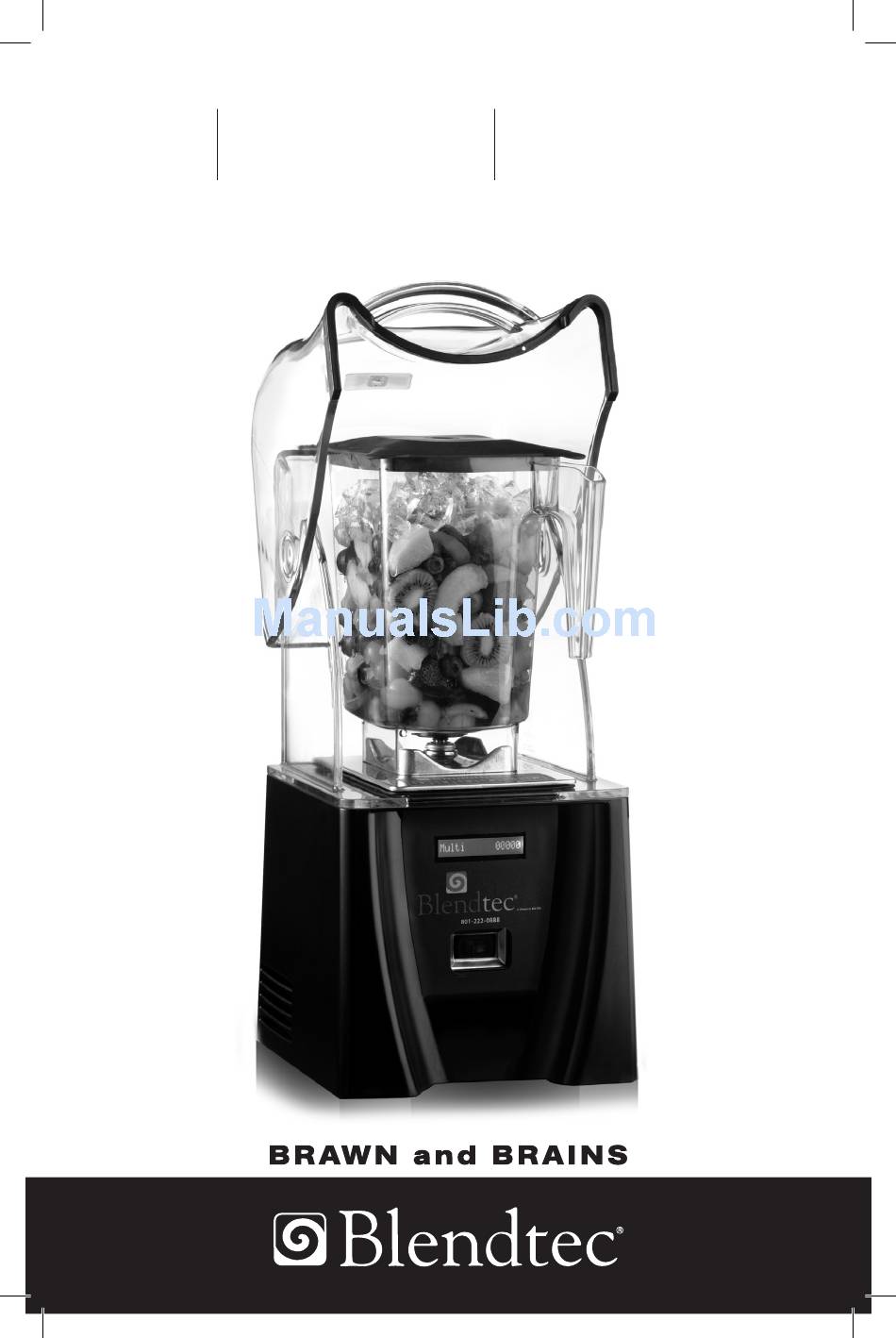

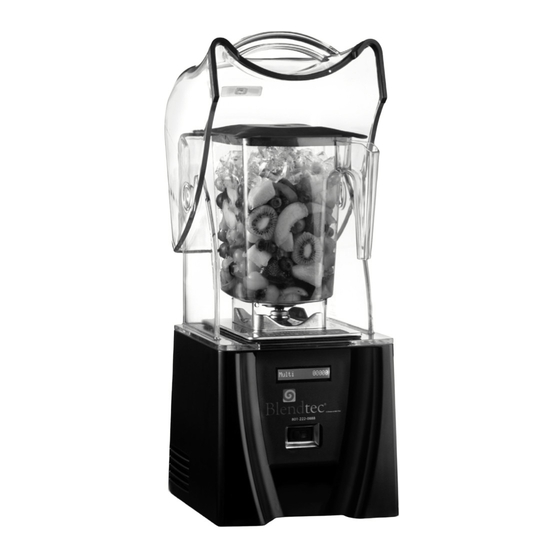

- Page 1 ABC SMOOTHER SPACESAVER MANUAL...
-
Page 3: Table Of Contents
Table Of Contents Section Page ..Important Safeguards Section 1 ..Component Overview Section 2 ..Unpacking Section 3 ..Installation Section 4 ..Operating Instructions Section 5 ..Warranty and Service Section 6 ..ABC Operation Appendix A ..Product Diagrams Appendix B... -
Page 5: Section 1 - Important Safeguards
SECTION 1 – IMPORTANT SAFEGUARDS READ ALL INSTRUCTIONS CAREFULLY BEFORE USING YOUR BLENDTEC MACHINE. 1.1 SAFETY CERTIFICATION The ABC, Smoother, and SpaceSaver blenders and accessories are certified by ETL to UL standard 763, and to CSA standard C22.2 No. 195-m1987, and to CE Standards. - Page 6 1.8 NEVER OPERATE IF THE UNIT APPEARS DAMAGED If the blender malfunctions call the service agent first. If it is dropped or damaged in any way, return the blender to a Blendtec service agent immediately for examination, repair, electrical or mechanical adjustment, or possible replacement.
-
Page 7: Section 2: Component Overview
1.16 NEVER CLEAN THIS UNIT WITH A WATER JET. 1.17 THE POWER CORD RECEPTACLE WHICH POWERS THE BLENDER MUST ALWAYS BE ACCESSIBLE. SAVE THESE INSTRUCTIONS SECTION 2: COMPONENT OVERVIEW 2.1 BLENDER MOTOR The blender motor consists of the blender base shell, touch pad control, Liquid Crystal Display (LCD) information center, and the power unit. - Page 8 This allows for portable operation of the blender. 2.5 POWER SPECIFICATIONS Blendtec Blenders are made with power specifications listed below according to your specific model. 110/120 VOLT BLENDTEC BLENDERS ARE REQUIRED TO BE PROTECTED BY A DEDICATED 20 AMP CIRCUIT BREAKER OR FUSE.
-
Page 9: Section 3: Unpacking
5. Inspect all items to ensure no damage occurred in shipment. 6. If any damage has occurred contact your Blendtec service agent immediately. 3.2 RECORDING YOUR SERIAL NUMBER AND DATE OF SHIPMENT Record your blender base serial number and date of purchase in the space below. -
Page 10: Section 4: Installation
SECTION 4: INSTALLATION 4.1 Above Counter Installation (For SpaceSaver model, disregard mention of sound enclosure) 1. Insure that an electrical receptacle is readily accessible when you locate the equipment. 2. Be sure the unit is switched off and unplugged. Remove the lid (top) of the sound enclosure by either sliding the piano hinge pin out of the hinges. - Page 11 · If installing a sound enclosure, allow a clearance of at least 8-1/2 in. (216 mm) from the sound enclosure to the wall and 26 in. (660 mm) from the counter top to any over-the-counter cabinetry. · Ensure lower cabinetry allows adequate airflow. There should be at least 8-1/8 in.
-
Page 12: Section 5: Operating Instructions
3. Press the button on the touchpad of your desired blender cycle. 5.2 AUTOMATIC CYCLE OPERATION If not otherwise specified, Blendtec blenders are programmed to the default Multipurpose blender program. See the Blendtec Cycle Chart included with this manual for details regarding programming and operation of your blender. - Page 13 If a jar is excessively noisy, or if the blade assembly seems loose or sounds “gravelly” when turned by hand, contact your Blendtec service center for assistance. BLENDED TEXTURE UNSATISFACTORY: If the blended texture of product is lumpy or uneven, do the following: ·...
- Page 14 TRIED EVERYTHING? If none of the preceding suggestions work, contact your Blendtec service agent for further assistance. 5.5 CLEAN BLENDER JAR DAILY 1. Using hot tap water, add 4 cups (1liter) of water and 1 to 2 drops (7 ml) of liquid dish washing soap to the blender jar.
- Page 15 5.7 DAILY CLEANING OF MOTOR 1. Make sure the main power switch is off and motor is unplugged before cleaning. 2. Remove motor from sound enclosure. Remove the rubber gasket from the rim of the steel base and wash the gasket with a mild detergent. 3.
-
Page 16: Section 6: Warranty And Service
SECTION 6: WARRANTY AND SERVICE PROCEDURE 6.1 WARRANTY DESCRIPTION MOTOR: Standard Blendtec United States (US) warranties are as follows: ABC18, ABC15, ABC13, Smoother20 3 years or 20,000 cycles Smoother18, Smoother15, Smoother13 2 years or 15,000 cycles SpaceSaver15, SpaceSaver13 1 year or 10,000 cycles... - Page 17 2. If you are not under warranty and wish to have your unit repaired, box up your existing unit and ship the unit to your authorized Blendtec service agent. Your Blendtec service agent will bill you for services rendered.
- Page 18 APPENDIX A: ABC BLENDER OPERATION A1: Operation The ABC models features an interlock safety switch that prevents the unit from operating unless the sound enclosure is completely shut. To operate the ABC, press the desired button. A red LED will light up above the button selected and will remain lit until another button is selected or the button is touched a second time during operation.
- Page 21 APPENDIX B - PRODUCT DIAGRAMS FIGURE 1.1 - FRONT VIEW: BLENDER MOTOR AND JAR Blade Assembly LCD Screen Power Switch FIGURE 1.2 - TOP VIEW: MOTOR Drive Socket Touchpad...
- Page 22 FIGURE 2.1 - ABOVE COUNTERTOP: ABC, SMOOTHER...
- Page 23 FIGURE 2.2 - ABOVE COUNTERTOP: ABC, SMOOTHER (WITH Q SERIES COMPONENTS) 2.59” (65.78 mm)
- Page 24 FIGURE 2. 3 - ABOVE COUNTERTOP: SPACESAVER...
- Page 25 FIGURE 3.1 - IN - COUNTER: ABC, SMOOTHER 6.02” (152.9 mm)
- Page 26 FIGURE 3.2 - IN - COUNTER: ABC, SMOOTHER (WITH Q SERIES COMPONENTS) 3.03” (77 mm)
- Page 27 FIGURE 4 - Countertop Hole Template 5-7/8” (149.22 mm) 4-3/8” (111.125 mm)
- Page 28 1206 South 1680 West Orem, UT 84058 801-222-0888 www. blendtec.com OWN-CE-010 Manual for ABC, Smoother, and SpaceSaver Rev 06 March 09...
