BD8
MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BD8 and is the answer not in the manual?

Questions and answers

arnold cavazos
January 20, 2025

do you all have any parts for this blender

0
1 comments:
Mr. Anderson
May 14, 2025

Yes, Blendtec offers parts for blender model BD8, including back panels and dispensing system components. However, some parts are currently out of stock and may require visiting a Blendtec Service Center for replacement.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for Blendtec BD8

Summary of Contents for Blendtec BD8

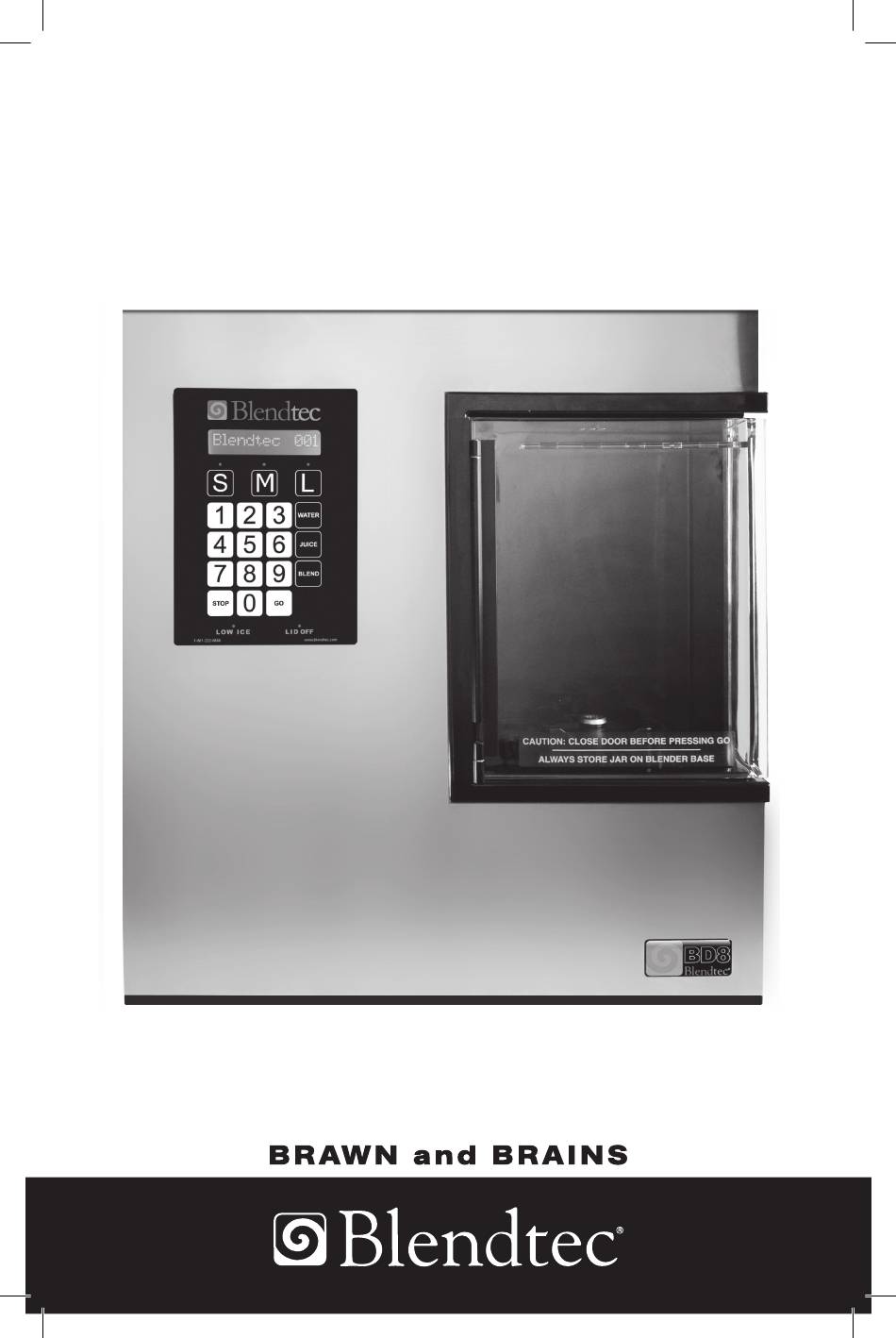

  • Page 1 MANUAL...

  • Page 3: Table Of Contents

    Table of Contents Section Page 1 Important Safeguards..............5 2 Introduction..................7 3.Installation....................8 3.1.Counter.Placement 3.2.Electrical.Connections 3.3.Water.Connection 3.4.Product.Line.and.Connection 4.Basic Operations................9 4.1.Making.Drinks 4.2.Dispense.Products.Only 4.3.Dispense.Water.Only 4.4.Run.Blender.Only 5.Cleaning and Sanitizing..............9 5.1.After.Each.Use 5.2.Jar.Care 5.3.Short.Term 5.4.Long.Term 6.Basic Programming................12 6.1.Program.Mode 6.2.Adjusting.Product 6.3.Adjusting.Water 6.4.Adjusting.Ice 6.5.Adjusting.Blend.Times 6.6.Adjusting.Blend.Cycles 6.7.Adjusting.Pause...
  • Page 4 8.4.Drinks.too.thick.or.cavitation.in.blender 8.5..Little.or.no.flavor.in.drinks 8.6.Too.much.flavor.in.drinks 8.7.Ice.chunks.in.drinks 8.8.Water.won’t.dispense 8.9.Product.bag.is.leaking 9 Warranty Information including Service.......21 10 Blank Drink Template..............22 11 Pre-Installation Check List.............23...

  • Page 5: Important Safeguards

    Section 1: Important Safeguards READ ALL INSTRUCTIONS CAREFULLY BEFORE USING YOUR BD8 1.1 Safety Certification Model.BD8-502.is.certified.by.ETL.to.comply.with.UL/ANSI.standard.763-2000,. 3rd.Edition,.November.30,.2000.and.to.comply.with.CSA.standard.C22.2.No.. 195-M1987..Model.BD8-503.is.a.240VAC.version.that.is.certified.to. CE.standards. 1.2 Health Certification All.BD8.models.are.certified.by.NSF.International.to.comply.with. Standard.8. 1.3 Precautions: •. Avoid.contact.with.moving.parts. •. Keep.fingers,.hair,.hands,.and.clothing.away.from.all.moving.parts. •. Keep.utensils.away.from.drive.socket.and.blender.blades.during.operation... Metal.utensils.will.damage.blades. •. NEVER.place.a.jar.into.the.drive.socket.if.the.blender.motor.is.operating. •. DO NOT.rock.the.blender.jar.while.it.is.operating...Keep.the.blender.jar. straight.up.until.the.operation.is.complete. These.precautions.will.prevent.personal.injury.and/or.damage.to.the.blender.
  • Page 6 1.9 NEVER.put.items.such.as.metal,.rocks,.or.other.hard.materials.into.the. blender.jar...Metal.utensils.and.other.hard.objects.can.damage.the.blender.jar. and.will.void.the.warranty. 1.10 NEVER.operate.the.unit.with.attachments.not.sold.or.authorized.by. Blendtec...The.use.of.unauthorized.attachments.may.cause.fire,.electric.shock,. unit.malfunction,.or.injury...Damage.incurred.by.the.use.of.such.attachments. will.not.be.covered.by.warranty. 1.11 ALWAYS.operate.the.blender.with.the.clear.door.closed. 1.12 ALWAYS.secure.the.blender.jar.lid.before.starting.the.machine. Even.within.the.blending.chamber.it.is.important.to.put.a.lid.on.the.blender.jar. before.initiating.a.blend.cycle. 1.13.The.blender.jar.blades.are.sharp.–.handle.carefully. 1.14 Power Requirements. Model BD8-502 POWER.CORD 120V,.1800W,.15A,.50-60.Hz..It.is.recom- mended.that.a.dedicated.20A.receptical.be. NEMA.5-15P used.. Model BD8-503 POWER.CORD 120V,.1800W,.7.5A,.50-60.Hz..It.is.recom- mended.that.a.dedicated.10A.receptical.be. Varies.by.Country used.. 1.15 DO NOT.use.any.other.electrical.equipment.on.the.same.circuit.as.the. unit.or.you.risk.overloading.the.circuit.and.either.burning.the.fuse.or.possibly. the.electronics.inside.the.unit..This.will.void.the.warranty..ALWAYS.use.a.surge.

  • Page 7: Introduction

    •. Fast.delivery.to.large.crowds. •. Controlled.labor.and.finished.product.costs. •. Portability.and.easy.set-up. •. Maximum.revenue.generated.per.square.foot. •. Multiple.drink.combinations.from.one.machine. The.BD8.is.a.microprocessor-controlled.machine.designed.to.quickly.make.pre- cise.blended.drinks.from.concentrates.or.other.liquids.(including.alcohol),.ice,. and.water...It.has.two.main.sections,.the.blend.station.and.the.control.board. section...The.following.pages.will.introduce.you.to.the.most.advanced.blending. system.available.today... 2.1 Blend Station: Contains.a.powerful.blender.motor.that.is.controlled.by.the.microprocessor.in. the.control.board...You.can.select.the.speed.and.duration.of.each.blend.cycle. for.each.drink.size. 2.2 Control Board:.. Contains.the.microprocessor.that.controls.all.of.the.functions.of.the.unit...The. control.board.is.utilized.to.make.and.program.drinks. 2.3 Water Input Line:.. Allows.cold.water.to.be.added.to.drinks.to.help.reconstitute.concentrated. purees.or.to.help.increase.volume. 2.4 BD8 models Voltage: Model BD8-502. 120.VAC Model..BD8-503 240.VAC...

  • Page 8: Installation

    Size:.. Models.BD8-502,.BD8-503 Height:.21” Width:.18.5” Length.(depth):.14.5” Limitations: Volume Limited - Models.BD8-502,.BD8-503 Products.other.than.those.dispensed.by.the.unit.(ice.cream,.yogurt,.etc.).can. be.added.to.the.blending.jar.before.dispensing...This.limits.the.finished.drink. size.to.32.ounces. Section 3: Installation Read.all.instructions,.cautions,.notes,.and.warnings.before.attempting.to. operate.this.machine...Warranties.may.be.voided.if.this.machine.is.improperly. installed. 3.1 Counter Placement:. Ensure.there.are.at.least.4.inches.of.space.on.each.side.and.at.least.6.inches. in.back.(room.for.plumbing)..Counter.location.should.be.near.water,.ice,.and. storage.area.for.product.bags. 3.2 Electrical Connections: See.power.requirements.in.section.1.14. .3.3 Water Connection: . A.3/8”.compression.fitting.is.located.behind.the.(optional).vanity.panel.in. the.upper.right-hand.corner.(from.the.rear.of.the.machine)..You.must.use.a. reinforced.water.line.with.this.unit...Incoming.water.must.have.a.pressure.rating. of.at.least.30.PSI.(207.KPA).and.no.greater.than.120.PSI.(827.KPA).to.operate. correctly..You.must.add.a.water.filter.with.a.flow.rate.of.at.least.1.gallon.per. minute.(3.78.Liters.per.minute)..Unit.must.be.installed.with.adequate.back-flow. protection.to.comply.with.Federal,.state,.or.local.codes.having.jurisdiction.

  • Page 9: Dispense.products.only

    water,.and.then.blend...All.parameters.for.drink.production.can.be.manipulated. to.suit.your.needs.(see.Section.6). 4.2 Dispense Product Only: You.can.dispense.product.only.by.pressing.the.number.of.the.pump.(1-8).and. then.pressing.and.holding.the.JUICE.button...The.unit.will.dispense.the.product. selected.until.you.release.the.JUICE.button...The.maximum.time.that.the.JUICE. button.will.dispense.is.25.seconds...This.feature.allows.you.to.prime.your.prod- uct.lines.easily.with.little.waste. 4.3 Dispense Water Only: By.pressing.and.holding.the.WATER.button.you.can.dispense.cold.water.as. desired...The.maximum.amount.of.time.the.feature.will.run.is.25.seconds... 4.5 Run Blender Motor Only: This.feature.can.be.used.in.two.ways:.as.a.ramp.pulse.(gradually.increasing. speed).or.to.run.at.a.constant.speed...To.use.as.a.ramp.pulse,.press.and.hold. the.BLEND.button.until.the.drink.is.completed..The.motor.will.stop.when.the. BLEND.button.is.released...To.run.at.a.constant.speed,.select.the.speed.(1-9). and.then.press.and.hold.the.BLEND.button...The.unit.will.run.until.the.BLEND. button.is.released.or.for.25.seconds. Section 5: Cleaning and Sanitizing 5.1 After Each Use: After.every.use.of.the.unit,.the.operator.should.ensure.that.the.blender.jar.has. been.rinsed,.the.blend.station.has.been.wiped.out.if.there.is.spillage,.and.that. the.blender.door.is.wiped.down.if.there.is.spillage...ALWAYS.keep.an.empty.jar. on.the.blender.motor.base.when.the.unit.is.not.in.use...This.helps.catch.any.

  • Page 10: Long.term

    5.4 Long Term (Unit): As.time.permits.(monthly),.sanitize.the.blend.station.utilizing.the.steps.below... The.best.time.to.perform.this.cleaning.is.either.before.or.after.work.hours.when. you.have.plenty.of.time...Mix.up.2-5.gallons.of.sanitizer.solution.per.the.manu- facturer’s.directions. BLEND STATION: •. Remove.the.blender.jar.from.the.blender.station.(empty.if.needed). •. Using.a.mild.soapy.solution,.wipe.down.all.surfaces.of.the.blend.station... •. Use.a.damp.cloth.to.remove.the.soap.from.the.surfaces.of.the.blend.station... Avoid.getting.excess.water.on.the.motor. •. To.sanitize.the.surfaces.of.the.blend.station.either.spray.or.wipe.the.surfaces. of.the.blend.station.with.the.sanitizing.solution. •. Remove.the.blend.station.door.by.opening.the.door.and.gently.lifting.it.off. the.hinges.(do.not.lose.the.small.plastic.washers)...Wash.the.door.in.the.sink. and.allow.to.air.dry. •. Dry.any.water.off.the.blender.motor.area.and.replace.the.blender.door.. Avoid.getting.liquids.directly.on.the.motor.(the.area.where.the.jar.shaft.con- nects.to.the.motor). PRODUCT TUBES:. There.are.two.options.to.sanitize.product.lines...The.first.is.to.use.the.sanitizing. cycle.built.into.the.machine;.the.second.is.a.simpler.method.using.the.JUICE. button...You.may.use.either.one.depending.on.preference;.the.beginning.steps. are.the.same. •. Disconnect.all.product.bags.from.the.product.lines. •. Place.an.empty.blender.jar.in.the.blend.station. •. Empty.each.product.line.by.pressing.the.number.of.the.pump.(1-8)..and.then. holding.the.juice.button.down..This.will.remove.the.bulk.of.the.remaining.

  • Page 11: Basic Programming

    •. Run.each.pump.individually.to.clear.the.remaining.sanitizing.solution.from. the.product.tubes. •. Reconnect.the.product.tubes.to.the.product.bags,.prime.each.line. Method 2 Sanitizing Cycle: •. Using.the.JUICE.button,.follow.the.steps.above.EXCEPT.do.not.use.9-8-0- GO;.instead,.press.the.button.of.the.product.pump.(1-8).and.then.press.and. hold.the.JUICE.button. •. Once.the.product.has.stopped.dispensing.from.the.unit,.release.the.JUICE. button. •. Repeat.for.all.eight.pumps. •. Follow.the.instructions.for.wash,.rinse,.and.sanitize.above. •. Regardless.of.the.method.used,.refill.the.product.lines.by.pressing.the.pump. number.(1-8).and.the.JUICE.button.until.the.product.dispenses,.then.release. the.JUICE.button. Section 6: Blending 101 & Basic Programming Blending 101: Making.the.ideal.smoothie.with.the.BD8.is.just.a.matter.of. simple.physics..The.input.variables.include.the.temperature.and.thickness. of.the.ingredients,.the.output.variable.is.the.desired.texture.achieved.at.29. degrees.Fahrenheit..A.smoothie.much.warmer.than.this.(above.32.degrees).will. be.runny,.a.smoothie.much.colder.(below.25.degrees).will.cavitate.(develop.an. air.pocket.around.the.blade).and.not.blend..So.let’s.make.a.perfect.smoothie,. simply.
  • Page 12 12.ounce.drink..So.if.the.recipe.called.for.2.ounces.of.product,.you.need.to. put.in.10.ounces.of.ice/water.(5.to.1.ratio)..If.the.recipe.called.for.3.ounces. of.product,.you.would.need.to.put.in.9.ounces.of.ice/water.(3.to.1.ratio).to. make.a.12.ounce.drink. 2. Determine.the.water.to.ice.ratio.necessary.to.bring.the.final.drink.to.29. degrees.Fahrenheit..If.I.had.a.3.to.1.flavor.concentrate,.then.I.will.need.to.put. in.9.ounces.of.some.combination.of.ice.and.water.into.my.12.ounce.drink.. If.I.put.in.all.ice.I.run.the.risk.of.freezing.the.drink.and.failing.to.blend.(aka. cavitation)..If.I.put.in.all.water,.I.am.guaranteed.to.lose.a.customer..So.the. ice/water.ratio.is.like.a.teeter-totter..I.have.to.put.in.9.ounces.total;.the.only. question.is.how.much.of.this.will.be.ice,.and.how.much.will.be.water?.It.is. recommended.that.you.begin.with.approximately.a.4.to.1.ratio.of.ice.to.water. to.start.with..In.the.present.case,.try.7.ounces.of.ice.to.2.ounces.of.water..If. the.drink.is.a.little.too.runny,.go.to.8.ounces.ice.and.1.ounce.water..If.it.is.ini- tially.too.thick,.go.to.6.ounces.ice.and.3.ounces.water..You.get.the.idea..The. two.values.have.to.add.up.to.9.ounces,.so.adjust.according.to.preference.. And.with.the.BD8,.you.do.not.need.to.experiment.with.only.whole.numbers.of. ounces.as.the.computer.allows.dispensing.in.tenths.of.seconds! 3. Determine.the.desired.texture.of.the.finished.drink..The.same.ingredients. (syrup,.water,.and.ice).can.be.blended.slowly.to.achieve.a.nice,.crunchy. Italian.ice,.while.a.more.aggressive.blend.will.turn.them.into.a.velvet.smooth. granita..It’s.your.choice. 4. Now.for.a.little.fine.print..First,.different.ingredients.have.inherent.thickness. differences.within.and.between.flavors..For.instance,.think.of.the.difference.in. thickness.there.is.between.strawberry.juice,.strawberry.syrup,.and.a.straw- berry.puree.with.lots.of.pulp.and.seeds..The.first.two.will.be.on.the.thinner. side,.the.puree.on.the.thicker.side..Now.play.the.same.game.with.fruits.hav- ing.more.fiber.such.as.pineapple.or.mango..You.can.see.that.different.types. of.products.(juice,.syrup,.puree).and.different.flavors.(e.g.,.apple,.mango). have.different.levels.of.thickness.and.fiber..The.thicker.the.ingredients,.the. tougher.the.blend..Second,.be.aware.of.the.brix.factor..Sweeter.liquids.have. higher.dissolved.sugar.ratios.(solids.in.water)..A.100.gram.liquid.with.a.brix. level.of.10.degrees.has.10.grams.of.sugar.combined.with.90.grams.of.water.. A.100.gram.liquid.with.a.brix.level.of.25.degrees.has.25.grams.of.sugar. combined.with.75.grams.of.water..The.higher.the.solids.to.water.ratio,.the.

  • Page 13: Program.mode

    ing.drink..Conversely,.the.colder.the.ingredients,.any.of.them,.the.thicker. the.drink..Fourth,.what.is.an.alternative.spelling.for.alcohol?.Antifreeze..If. you.are.adding.alcohol.to.a.drink,.its.effect.on.drink.consistency.is.greater. than.water,.so.plan.accordingly..In.terms.of.the.ice/water.in.#2.above,.more. ice.is.needed.relative.to.the.amount.of.alcohol.added.to.maintain.the.same. consistency.between.virgin.(non-alcoholic).and.alcoholic.beverages..Finally,. all.ice.values.above.are.in.ounces.by.weight..If.you.do.not.have.a.scale.and. are.instead.measuring.ice.by.volume,.the.melt.ratio.of.ice.to.water.is.2.to.1.. That.is,.two.cups.of.ice.by.volume.melt.to.one.cup.of.water.by.weight.and. 16.ounces.of.ice.by.volume.melt.to.8.ounces.of.water.by.weight..If.your.drink. calls.for.10.ounces.of.ice.by.weight,.be.sure.that.you.are.putting.20.ounces. of.ice.by.volume.into.your.blending.jar! The.rest.of.this.section.will.help.you.with.the.basics.of.programming.and.allows. for.the.programming.of.drinks.to.your.requirements...This.feature.will.give.you. the.opportunity.to.view,.and.if.necessary,.change.your.data.set.parameters. (see.Figure 1.for.the.data.set.sequence). Watr Stime Scycl Mtime Mcycl Ltime Lcycl Pause Pmp1 Pmp2 Pmp3 Pmp4 Pmp5 Pmp6 Pmp7 Pmp8 Drink.1 Drink.2 Drink.64 Figure 1 6.1 Program Mode: This.is.the.mode.that.you.will.utilize.to.change.settings.for.pumps,.water,.blend.

  • Page 14: Adjusting.water

    •. Pump.values.are.recorded.in.tenths.of.a.second..In.other.words,.22.on.the. display.represents.2.2.seconds.of.dispense.time. •. The.dispense.rate.will.vary.slightly.depending.on.the.type.of.product.you.are. using...A.4.to.1.concentrate.will.be.thicker.and.will.therefore.need.more.time. to.dispense.than.a.2.to.1.concentrate..(See.Section.7.1.for.calibration.help.) •. Enter.the.value.you.want.by.pressing.the.correct.numbers.on.the.control. panel.and.then.the.GO.button. •. The.value.will.store.and.then.move.on.to.the.next.pump.or.data.set. •. To.zero.out.a.value,.scroll.to.the.appropriate.pump,.enter.0.on.the.keypad. and.press.GO.. 6.3 Adjusting Water: •. Scroll.to.the.Water.data.set.by.pressing.either.the.L.or.GO.buttons. •. Water.is.also.entered.in.tenths.of.a.second...Water.dispense.rate.should.not. vary.unless.your.water.pressure.coming.into.the.unit.is.less.than.30psi. •. Enter.the.value.required.by.pressing.the.numbers.on.the.control.pad.and. then.pressing.the.GO.button. •. To.zero.out.the.water.value,.enter.0.on.the.keypad.and.press.GO. 6.4 Adjusting Blend Times: •. Scroll.to.the.first.Blend.Time.data.set.(Small).by.pressing.either.the.L.or.GO. buttons. •. Blend.times.are.in.whole.seconds...21.in.the.blend.cycle.set.represents.21. seconds.of.blend.time...The.blender.motor.will.run.for.the.programmed.time. and.then.stop. •. The.blender.motor.will.run.in.the.pattern.as.described.by.the.Cycle.in.the. next.data.set.

  • Page 15: Adjusting.pause

    24.seconds,.the.cycle.will.start.over.at.the.lower.speed.and.repeat.until.the. time.is.up. •. You.must.have.a.cycle.programmed.into.the.data.set.even.if.you.have.no. cycle.time. •. Press.the.GO.button.to.move.to.the.Mcycl.and.Lcycl.data.sets.and.change. or.set.as.needed. 6.6 Adjusting Pause: •. Scroll.to.the.Pause.data.set.(Small).by.pressing.either.the.L.or.GO.buttons. •. Pause.is.the.amount.of.time.the.blender.motor.will.wait.until.it.begins.to. blend. •. The.use.of.Pause.is.to.allow.your.ingredients.to.dispense.into.the.blender.jar. before.the.motor.starts. •. Pause.is.again,.in.whole.seconds...Enter.the.value.with.the.number.keys.on. the.control.panel.and.press.GO.. 6.7 Changing the Drink Size Ratio: •. You.can.set.the.drink.sizes.for.the.S,.M,.and.L.buttons.on.the.keypad. •. To.access.the.menu,.press.7-8-8-GO.on.the.control.pad.(from.the.Enter. Drink.#.screen). •. The.display.will.now.read.“Size.Small.XX”...Enter.the.size,.in.ounces,.of.the. small.drink.you.want.to.make.and.press.GO. •. The.data.set.will.automatically.move.to.the.Size.Medium.data.set;.enter.the. ounces.size.of.your.medium.drink.and.press.GO. •. The.data.set.will.automatically.move.to.the.Size.Large.data.set;.enter.the. ounces.size.of.your.large.drink.and.press.GO.

  • Page 16: Calibration

    7.1 Calibration: There.are.two.ways.to.optimize.the.drinks.made.in.the.BD8...You.can.use.the.trial. and.error.method,.which.involves.making.small.changes.to.a.drink.and.testing. each.change.as.you.go.until.you.get.it.the.way.you.want.it...Or,.you.can.calibrate. the.BD8.and.make.drinks.according.to.a.formula...Because.fittings,.tubing,.tem- perature,.and.product.can.all.cause.the.pumps.to.dispense.at.different.rates,.each. drink.you.wish.to.make.from.a.formula.will.require.a.calibrated.pump...This.section. will.tell.you.how.to.isolate.and.calibrate.each.dispensing.function. •. 7.1.1.Press.7-8-9-GO.to.access.the.program.mode...(If.you.have.not.read.Sec- tions.6,.do.so.now.) •. 7.1.2.Press.0.then.GO...This.will.zero.out.the.pump.run.time.for.Pmp.1.in.Drink. 1..The.display.will.now.read.“Drink.1.Pmp.0.” •. 7.1.3.Press.0.and.GO.until.all.eight.pumps.are.at.0...Continue.to.zero.out.water. and.the.blend.times.(you.cannot.zero.out.the.cycles). •. 7.1.4.Select.the.concentration.ratio.for.the.product.you.use.in.pump.port.1.from. Figure.3.below...The.pumps.deliver.about.1.oz..per.second...Divide.your.recipe’s. product.amount.(the.ounces.required.for.a.small.drink).by.1.0.to.get.the.sug- gested.pump.time...For.example,.if.you.use.2.to.1.product,.divide.4.oz..by.1.0. oz.per.second..4/1.=.4.0.seconds...With.the.display.showing.“Drink.1.Pmp.1.0”. enter.the.suggested.run.time,.remembering.that.what.you.enter.is.in.tenths.of.a. second...In.this.example.enter.“40”.to.get.4.0.seconds,.then.press.GO..Suggested Drink Formulae – Figure 3 Concentration Small Medium Large 18 oz. Drink 1 24 oz.

  • Page 17: Water.flow.rate

    •. 7.1.5.Place.a.jar.in.the.blend.station,.press.STOP.twice.to.exit.the.program. mode,.then.press.S.to.select.a.small.drink...Press1.to.activate.Drink.(pump). 1.then.press.GO... •. 7.1.6.When.the.pump.has.stopped.delivering.product.to.the.blender.jar,.you. may.measure.the.product.and.get.an.actual.dispense.rate.of.the.product. from.pump.number.1...For.example,.if.the.volume.of.product.in.the.jar.is.4.4. ounces,.4.4.oz../.4.seconds.=.1.1.oz.per.second...Calculate.the.actual.pump. time.by.dividing.the.required.ounces.by.the.actual.pump.rate..For.example.. 4.0/1.1.=.3.6.seconds...Record.this.number,.it.will.be.entered.later...Re-enter. the.programming.mode.(7-8-9-GO).and.zero.out.Drink.1.Pmp.1... •. 7.1.7.Repeat.Steps.7.1.1.to.7.1.6.for.each.pump.port...You.may.use.a.differ- ent.concentration.ratio.in.each.pump.and.your.formula.may.call.for.differ- ent.quantities.of.product.than.the.suggested.formula...Keep.a.record.of.the. measured.pump.flow.rates.in.the.chart.below.or.one.similar.. Pump Number Flow Rate Pump.Port.1.Flavor oz./sec Pump.Port.2.Flavor oz/sec Pump.Port.3.Flavor oz/sec Pump.Port.4.Flavor oz/sec Pump.Port.5.Flavor oz/sec Pump.Port.6.Flavor oz/sec Pump.Port.7.Flavor oz/sec Pump.Port.8.Flavor oz/sec 7.2 Water Flow Rate: •.

  • Page 18: Restore.defaults

    Lockout.reverts.to.off.. 7.5 Locking the Machine: •. This.feature.allows.the.manager/owner.to.lock.the.machine.out.of.use.by. other.employees.without.the.use.of.a.code...The.manager/owner.can.decide. and.change.the.lockout.code.at.will. •. Change or set machine lockout code: Enter.7-7-8-GO.on.the.keypad... The.screen.will.then.read.“Enter.Code:”...Enter.the.current.code.(the.factory. default.is.0).and.press.GO...The.screen.now.reads.“New.Code:”..Enter.new. code.(up.to.four.digits).and.press.GO...The.screen.then.reads.“Re-Enter:”. Re-enter.the.desired.code.and.press.GO. •. Lock Machine: To.lock.the.machine.press.7-7-7-GO...This.will.disable.all. functions...The.screen.will.say.“Enter.Code:”..The.machine.will.not.work.until. the.correct.security.code.is.entered.and.the.GO.button.is.pressed..•. Write.your.code.down.and.hide.it.in.case.you.forget...If.you.do.forget.your. code.and.cannot.find.where.you.have.it.written.down.call.Blendtec.Technical. Support.for.assistance.at.800.748-5400,.ext..494.or.248. •. Alcohol Pumps:.If.your.machine.was.set.up.to.include.alcohol.pumps.you. can.lock.them.specifically...This.feature.allows.pumps.6,.7,.and.8.to.be. locked.so.that.product.cannot.be.dispensed.by.using.the.JUICE.button..The. factory.default.is.such.that.Pump.6,.7,.and.8.are.all.unlocked...You.can.also. change.the.code.that.locks/unlocks.the.pumps. •. They.can.be.locked.or.unlocked.individually.by.entering.3-5-3-GO.on.the.

  • Page 19: Drink.counts

    keypad. •. Enter.the.Alcohol.Pump.lockout.code;.the.factory.default.is.0,.and.press.GO.. . The.screen.will.read.“Pump.6.Unlocked”.or.“Pump.6.Locked”...It.can.then.be. changed.to.the.other.by.either.pressing.the.S.or.the.M,.then.press.GO. •. The.screen.will.now.read.“Pump.7.Unlocked”.or.“Pump.7.Locked”...Make.a. selection.by.using.the.S.or.M.button.and.then.press.GO.again.to.make.a. selection. •. The.screen.will.now.read.“Pump.8.Unlocked”.or.“Pump.8.Locked”...Make.a. selection.by.using.the.S.or.M.button.and.then.press.GO.again.to.make.a. selection. •. Once.the.pumps.have.been.configured,.the.menu.can.be.exited.by.pressing. the.STOP.button. •. To.change.the.alcohol.pump.lockout.code.enter.3-5-2-GO.on.the.keypad. •. The.screen.will.then.read.“Enter.Acode:”..Enter.the.current.code.(the.factory. default.is.0).and.press.GO. •. The.screen.now.reads.“New.Acode:”..Enter.new.code.(up.to.four.digits).and. press.GO. •. The.screen.then.reads.“Re-Enter:”..Re-enter.the.desired.code.and.press.GO. •. Press.the.STOP.button.twice.to.exit.the.menu. 7.6 Drink Counts: •. The.following.options.allow.the.user.to.maintain.counts.of.the.individual. drinks.made.by.day.and.total.for.lifespan. •. Total Machine Count:.To.access.the.machine.count,.press.8-0-0-GO...The. machine.count.will.be.displayed...(If.the.number.of.cycles.has.exceeded. 65,535.cycles.then.there.will.be.a.multiplying.counter.that.is.displayed.also...

  • Page 20: Troubleshooting

    •. Press.STOP.twice.to.exit.the.menu. Section 8: Troubleshooting We.hope.you.will.never.have.to.use.this.section.but.if.you.do,.please.don’t.take. offense.at.some.of.the.simplistic.answers...We.have.had.most.of.these.prob- lems.occur.during.our.development.and.with.other.customers. 8.1 Machine won’t run..Check.the.power.cord.to.be.sure.it.is.plugged.into.a. functioning,.properly.grounded.electrical.circuit...Check.that.the.switch.on.the. back.of.the.machine.is.turned.on...Check.in.the.rear.of.the.machine.to.see.if. the.circuit.breaker.button.has.tripped.(little.white.button)...If.it.has,.press.the. breaker.button.back.in.to.reset.it.(the.BD8.uses.a.13.Amp.circuit.breaker). 8.2 Blender Stopped Working:..If.the.unit.does.not.blend,.check.in.the.rear.of. the.machine.to.see.if.the.circuit.breaker.button.has.tripped...If.it.has,.press.the. breaker.button.back.in.to.reset.it.(the.BD8.uses.a.13.Amp.circuit.breaker). 8.3 Drinks too runny..You.may.need.to.add.more.ice,.and.less.water.to.the. drink...See.Section.6.to.reprogram.your.ingredients.if.necessary. 8.4 Drinks too thick or cavitation in blender: Ensure.that.product.bags.are.not.empty;.the.water.supply.is.on.and.unblocked;. the.water.and.product.amounts.are.programmed.correctly...See.Section.6. above.to.reprogram.your.ingredients...Cavitation.is.caused.when.the.liquid.and. ice.mixture.in.the.blender.jar.is.too.thick.and.an.air.pocket.(or.bubble).is.creat- ed.around.the.spinning.blender.blade...This.leaves.your.drink.stuck.to.the.sides.
  • Page 21 8.8 Water Won’t Dispense: Check.that.the.water.is.on.and.that.there.are.no. kinks.in.the.hose.to.the.machine...Call.Blendtec.Technical.Support. 8.9 Product bag is leaking: Replace.the.bag...Call.your.product.distributor.. Section 9: Warranty Information including Service Blendtec.warrants.the.BD8.against.manufacturers.defects.for.1.year,.parts.and. labor...The.jars,.including.all.moving.parts,.are.covered.against.leaking.or.break- age.for.1.year...The.BD8.housing,.pumps,.and.controller.are.warranted.for.one. year...Should.you.experience.any.difficulty.in.using.your.BD8,.please.proceed. as.follows: 9.1 For Warranty Service:.Call.Blendtec.Technical.Support.at.1-800-748-5400,. ext..494.or.248..We.will.discuss.the.problem.with.you.and.decide.on.the.best. way.to.fix.it..We.may.send.a.service.technician.to.your.facility.and.ship.parts.for. the.repair.or.we.may.ship.a.replacement.machine.to.you.. 9.2 Blender Jars:.If.you.experience.trouble.with.your.jars,.call.Blendtec.Cus- tomer.Service.and.we.can.walk.you.through.some.simple.troubleshooting.over. the.phone...If.necessary,.we.will.ship.you.replacement.jars.at.no.charge. 9.3 For Non-Warranty Service:.Call.Blendtec.Technical.Support.at.800.748- 5400,.ext..494.or.248..We.will.discuss.the.problem.with.you.and.decide.on.the.
  • Page 22 Section 10: Blank Drink Template Watr Stime Scycl Mtime Mcycl Ltime Lcycl Pause Drink.1 Drink.2 Drink.3 Drink.4 Drink.5 Drink.6 Drink.7 Drink.8 Drink.9 Drink.10 . Drink.11 . Drink.12 . Drink.13 . Drink.14 . Drink.15 . Drink.16 . Drink.17 . Drink.18 . Drink.19 .
  • Page 23 Section 11: BD8 Pre-Installation Checklist Store.Number.and.Location:.. Completed.By.:.. Date.: CHECK LIST COMMENTS Do.you.know.exactly.where.the.unit.is.going.to.be. installed?.The.unit.is.designed.to.be.placed.on.top.of.a. counter..Counter.location.should.be.near.water.and.ice.. See.section.2.4.for.equipment.dimensions.The.closer.to. the.product.bags.the.better..Product.lines.that.run.more. than.10’.(3.meters).are.not.recommended. Counter.placement:.Ensure.there.are.at.least.4.inches.of. space.on.each.side.and.at.least.6.inches.in.back.(room. for.product.installation)... Is.the.unit.being.installed.in.close.proximity.to.a.sink?. (Needed.for.water.connections.) Are.you.connecting.water.to.the.unit?.(If.yes,.go.to. number.5..If.no,.skip.to.number.6.and.put.N/A.in.the.com- ments.) Have the following requirements been met for water connection to the unit: 1).Water.source.needs.to.set.up.per.local.code,.and. terminated.at.the.unit.with.a.flexible.reinforced.water.line. (Water.line.needs.to.be.at.least.½”.diameter.and.termi- nate.at.the.unit.with.a.3/8”.female.compression..
  • Page 24 ¾” BIB hose connecter on one end and a 3/8” compression end on the other. Have.the.following.requirements.been.met.for.providing.power. to.the.unit:. 1).Power.Requirements.have.been.met.(section.1.14). 2).Do.not.use.any.other.electrical.equipment.on.the.same. circuit.or.you.risk.overloading.the.circuit.and.either.burn- ing.the.fuse.or.possibly.the.electronics.inside.the.unit. 3).You.must.use.a.surge.suppressor.or.a.GFI.protected. outlet. ****Receptacle needs to be within 4 feet of the unit Ice.machine.needs.to.be.installed.and.operational. I.have.personally.verified.that.the.items.on.this.checklist.are.completed.and.the. space.is.ready.for.installation.of.Blendtec.dispensing.equipment..I.understand. that.if.the.prep.work.identified.on.this.installation.checklist.is.not.complete,.my. store.may.be.liable.for.a.portion.or.all.of.the.cost.of.any.service.call.where.a. technician.is.not.able.to.do.the.install.due.to.incomplete.prep.work. Signature:_______________________________________...Date:______________ NOTE:.If.this.Blendtec.dispensing.equipment.is.not.installed.in.accordance.with. the.pre-installation.checklist,.we.cannot.guarantee.the.proper.operation.of.the. equipment.and.your.warranty.will.be.void.
  • Page 28 1206 South 1680 West Orem, UT 84058 801-222-0888 www. blendtec.com OWN-CE-005 Manual BD8 v5 Oct 09...
