2 Port Remote Power Control IP PDU
(Power Distribution Unit)
2 Port Remote Power Control IP PDU with Console
and Sensor Ports
PDU02IP / PDU02IPSC
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 01/02/2014

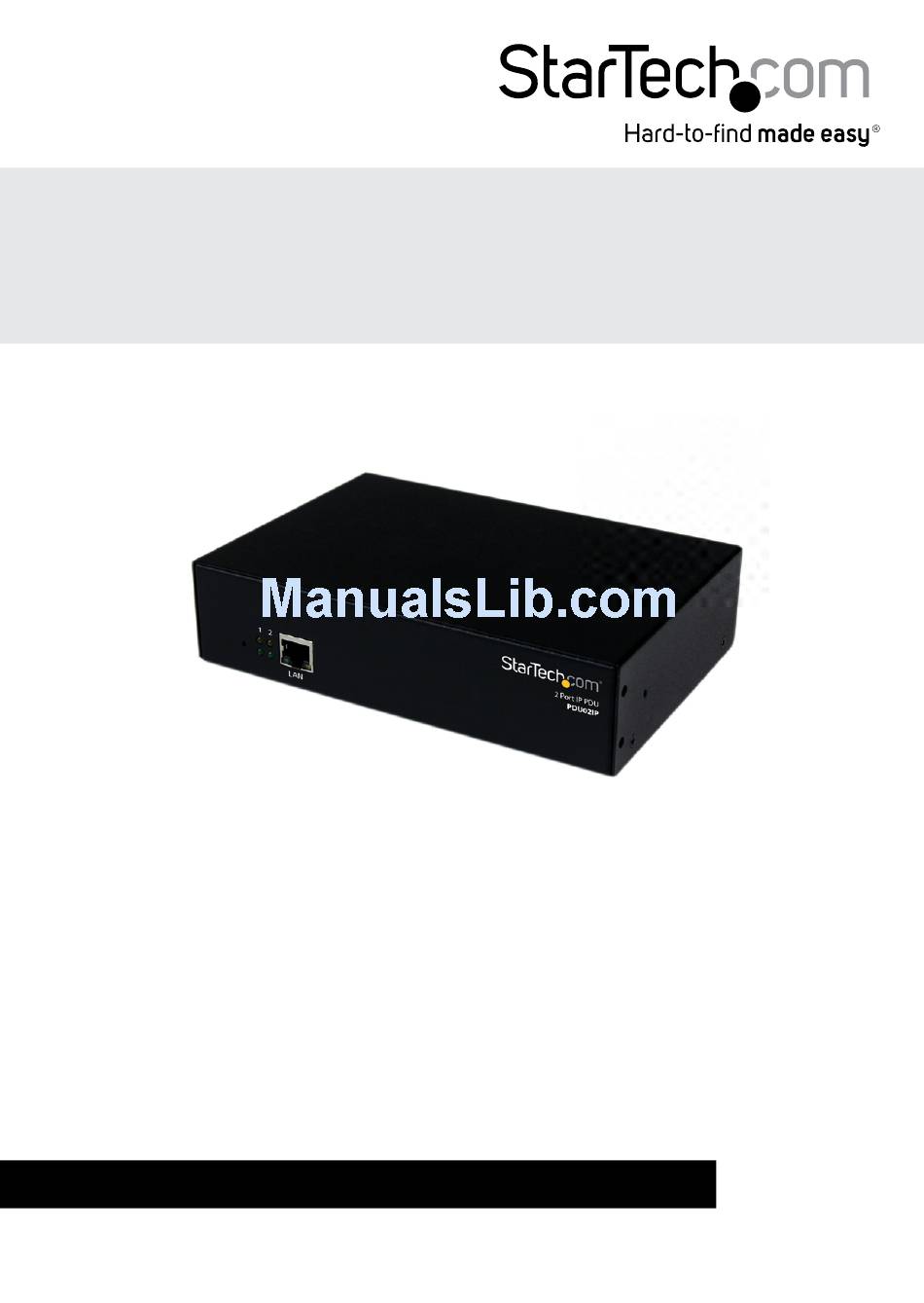

*PDU02IP shown in photo

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PDU02IP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for StarTech.com PDU02IP

  • Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 01/02/2014...
  • Page 2: Fcc Compliance Statement

    StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
  • Page 3: Table Of Contents

    Table of Contents Product Diagram ..................1 Rear View ..............................1 Front View ..............................1 Introduction ....................2 Packaging Contents ..........................2 LED Indicators ..................2 Reset Button ...................2 Installation .....................3 Hardware Installation ..........................3 Logging In for the First Time ......................... 4 Web Console Operation ................6 Power Switch Operation .........................
  • Page 4 Firmware Upgrade Procedure ..............22 Specifications ..................23 Technical Support ..................24 Warranty Information ................24 Instruction Manual...
  • Page 5: Product Diagram

    Product Diagram Rear View Front View PDU02IP Reset Button RJ45 LAN LED Indicators PDU02IPSC Reset Button RJ45 LAN RS232 UPS Console LED Indicators Dry Contact Input Instruction Manual...
  • Page 6: Introduction

    Introduction Packaging Contents • 1 x 2 Port PDU • 1 x Power Cable • 1 x Instruction Manual (CD) LED Indicators LED #1 is illuminated when output receptacle #1 is ON. Port Indicators (Top Row) LED #2 is illuminated when output receptacle #2 is ON. Reset Indicator Reset LED will flash when the Reset function is being (Bottom Left)
  • Page 7: Installation

    Installation Hardware Installation 1. Connect the power cord to the power inlet and to a wall outlet 2. Plug your equipment into the two output receptacles 3. Connect an Ethernet cable from the PDU to your network 4. Turn the power switch to the ON position *Optional connections - PDU02IPSC only Instruction Manual...
  • Page 8: Logging In For The First Time

    Logging In for the First Time The minimum requirement to operate the PDU is to setup the IP Address, subnet mask, and default gateway, which can be done through your web browser or using the IP Search Utility application on the CD. Default Settings: IP address: 192.168.1.10 Subnet mask: 255.255.255.0...
  • Page 9 IP Search Utility NOTE: The workstation and the PDU must be on the same LAN for the IP Search Utility to detect it, and the Windows Firewall must also be turned off. 1. Open the Windows Control Panel 2. Select Windows Firewall 3.
  • Page 10: Web Console Operation

    Web Console Operation Power Switch Operation The global outlet controls can be used to either turn all outlets on, or all outlets off, while each individual outlet allows for On / Off / Reboot controls. • Double clicking the ALL ON button will turn ON both outlets. Double clicking on the ALL OFF button will turn OFF all of the outlets.
  • Page 11: Monitor Section

    Monitor Section The Monitor section shows you the current status of each outlet and allows you to modify the power state of each outlet individually, or make global changes to both. From the Monitor tab you can also Schedule events and configure the Auto-Ping feature.
  • Page 12 Schedule Tab Configure scheduled actions for each outlet. Click on the Set button located on the top corner of each outlet to modify an individual outlet. When the Set button is orange, the outlet is ready to be configured. Recurrence: An Action can be scheduled to occur yearly, monthly, weekly or daily at a specific time for each individual outlet.
  • Page 13: Ups Status (Pdu02Ipsc Only)

    UPS Status (PDU02IPSC Only) The UPS Status information will display to the left of the power switches on the Monitor Tab. If you have connected an APC Smart UPS series device to the RS232 port on the PDU02IPSC, you can monitor the following information about your UPS. Alive - Displays the state of the UPS device as either Normal (1) or Offline (0).
  • Page 14: Dry Contact Input Indication (Pdu02Ipsc Only)

    Dry Contact Input Indication (PDU02IPSC Only) The dry contact status information will display to the right of the power switches on the Monitor Tab. If you have connected and configured the Detectors information (located in System > Detectors section – explained in the following pages), you will see a Normal or Abnormal indication.
  • Page 15 Http Port: Assign the desired HTTP port (default is port 80) for connecting to the PDU via a web browser. If you change the HTTP port, enter the IP address followed by the new HTTP port into your browser address bar (e.g. http://192.168.1.10:8080). Save: Saves all changes.
  • Page 16 SMS Server Tab Configure the SMS Server settings to send text notifications when an event has occurred. Server Address: Enter the SMS server address. Port: Enter the port number for the SMS server. The default value is 2500. Equipment Name: Enter a name/subject to identify the device. Account: Enter the account name if required.
  • Page 17 SNMP/SysLog Tab Configure SNMP Traps and System Logs to be sent to different Network Management Stations (NMS). System Name: Enter the name of the SNMP device. System Contact: Enter the name of the System Administrator. System Location: Enter the location of the SNMP device. Receiver IP Address: The IP Address of the NMS of where the Traps should be sent.
  • Page 18 Detectors Tab (PDU02IPSC Only) Other Tab Set the outlets on the main tab to default to a reboot action, instead of ON/OFF. Reboot Option: Check this box to default to rebooting the outlet instead of just turning the outlet ON/OFF. The Reboot check box on the Monitor screen will be checked when this option is selected.
  • Page 19: Firewall Section

    Firewall Section This menu allows the administrator to configure user privileges and prevent unauthorized access to the device. IP Filter Tab Configure the range of IP addresses that are able to access the PDU. IP Filter Enable: Check this box to enable the IP address filter. Allow IP Address: The first four sections are the beginning of the IP range.
  • Page 20 MAC Filter Tab Configure a specific list of MAC addresses that are able to access the PDU. MAC Filter Enable: Check this box to enable the MAC address filter. Allow MAC Address: Enter the MAC address of the user(s) that you want to have access to the PDU.
  • Page 21: Account Section

    Account Section This menu allows the administrator to setup authorized user accounts and other privileges. The administrator can assign specific access levels for each user account. Example: The administrator can assign user “A” to have access to outlet number 1 and receive email notifications when an event occurs to that specific outlet.
  • Page 22: Timesync Section

    TimeSync Section This menu allows the administrator to set the date and time for the PDU. Equipment Date: Displays the date. This field is not editable. Equipment Time: Displays the time in 24-hour format. This field is not editable. Sync with PC: Check the Sync with PC button to synchronize the PDU’s date and time with the PC.
  • Page 23: Event Section

    Manual Setup: Check the Manual Setup button to manually setup the date and time. Date: Please enter the date with correct format. Time: Please enter the time with correct format. Time Zone: Adjust the time difference between Greenwich Mean Time and your country into this format.
  • Page 24 To Download / save the configuration file: 1. Click the Download button, then select Save from the window that pops up 2. Select the location you would like to place the file (.bin format), then click Save Instruction Manual...
  • Page 25 To upload a previously saved configuration file: 1. Click the Browse button 2. Navigate to the location of your previously saved cfg.bin file, the click Open 3. Click the Upload button to begin. Once the upload is complete, the PDU will restart automatically Instruction Manual...
  • Page 26: Firmware Upgrade Procedure

    Firmware Upgrade Procedure 1. Open the firmware_upgrade.exe program located on the included CD 2. Input the IP Address of the PDU 3. Click on the GetVersion button 4. Click on the browse (…) button to select the new firmware file (.bin) 5.
  • Page 27: Specifications

    Specifications PDU02IP PDU02IPSC Ports 1 - IEC 60320 C14 Power Plug 1 - IEC 60320 C14 Power Plug 1 - DB-9 (9 pin; D-Sub) Male Connectors 1 - RJ-45 Female 2 - RJ-45 Female 2 - NEMA 5-15 Power (North...
  • Page 28: Technical Support

    Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.
  • Page 29 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
