Instruction Manual
8 Outlet PDU Power Distribution Unit 125V 15A (12A UL)
RKPW081915
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
Packaging Contents
• RKPW081915 Power Distribution Unit
• Installation Guide
System Requirements
• 19" front/rear mounting rack/cabinet (EIA 310-D compliant)
• 125VAC power source
Installation
1. The power distribution unit takes up 1U of rack space, so locate an
appropriate location on the rack and mount it against the front or
rear mounting posts.
2. Using the mounting hardware (screws, nuts, etc.) provided with
your rack or from your rack manufacturer, secure the unit to the
posts.
3. Connect the power cable from the distribution unit to a 125VAC
power source.
NOTE: It is recommended that the unit be connected directly to a main
source and not another distribution unit.
4. Toggle the "Reset" switch on the front of the unit to the 'on'
position to energize the unit.
5. The "Surge" LED should light up to indicate surge protection
is active. The "Ground" LED should light up to indicate proper
grounding is present.
6. You may now attach your 125VAC compatible devices to the
distribution unit.
NOTE: Combined power draw from all devices should not exceed 15A,
otherwise the built-in circuit breaker will trip.
7. In the event of an overload scenario, the built-in circuit breaker
will be tripped and power to all outlets will be stopped.
8. Disconnect the problem device or all devices from the distribution
unit and toggle the "Reset" switch to turn the ports back on.
For the most up-to-date information, please visit: www.startech.com

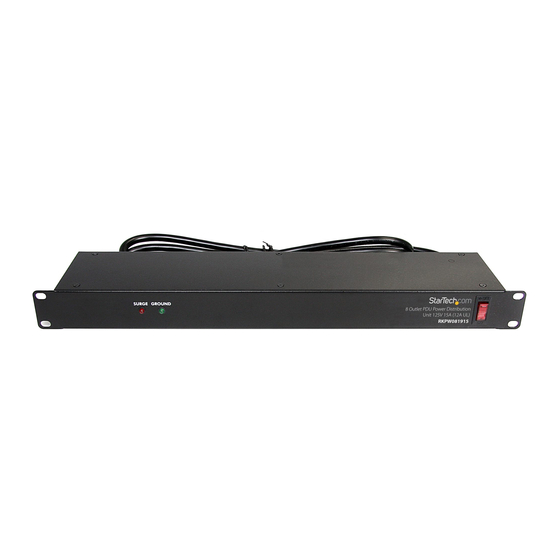

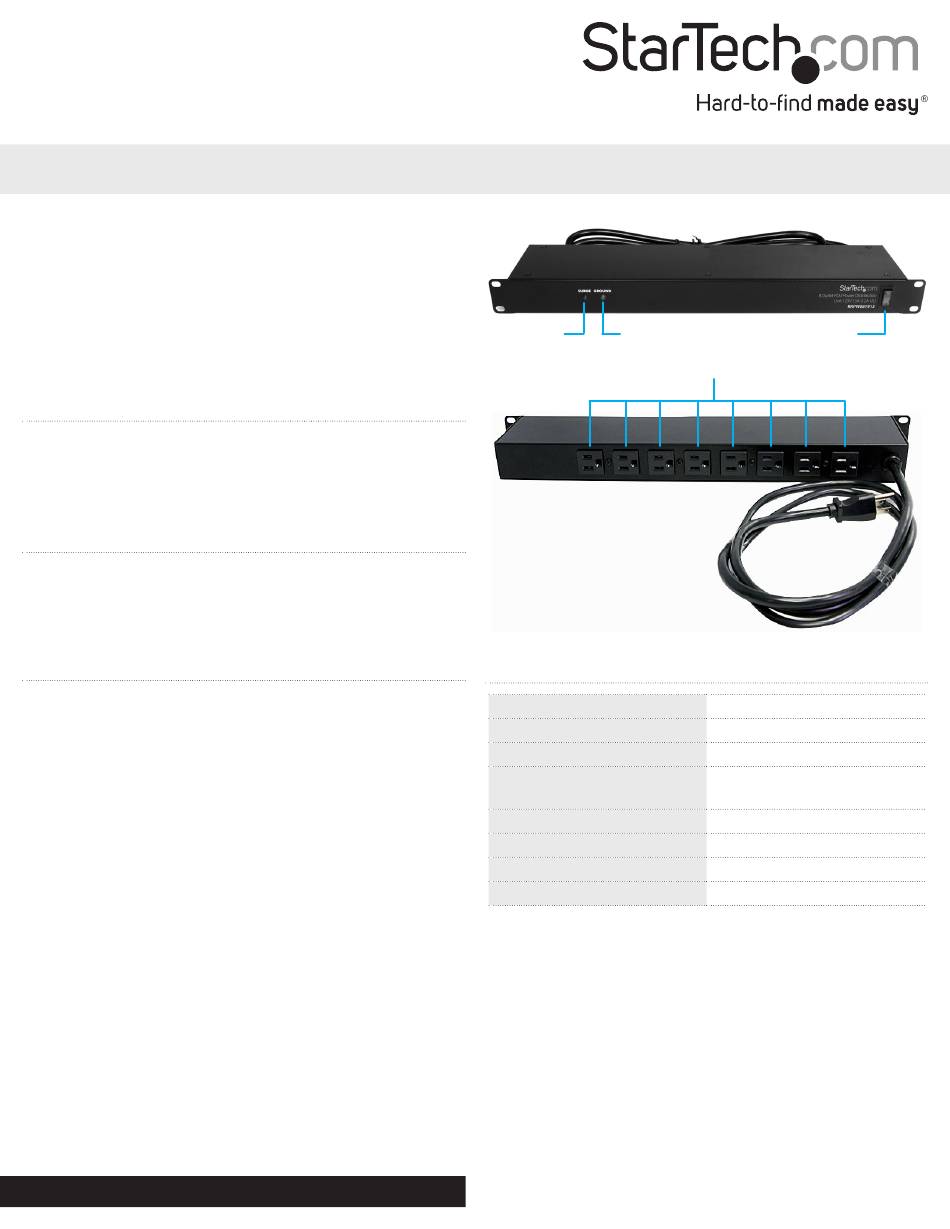

Front View
Surge LED
Ground LED
Rear View
NEMA 5-15 outlets
Specifications
Number of Power Outlets
Connectors
Electrical Rating
LEDs
Operating Temperature
Storage Temperature
Dimensions
Weight
Reset switch
8
8 x NEMA 5-15 female
125VAC / 15A
1 x Ground (green)
1 x Surge (red)
-5oC to 45oC (23oF to 113oF)
-25oC to 65oC (-13oF to 149oF)
482.6mm x 95.5mm x 42.7mm
2016g
Manual Revision: 11/09/2011
