User Manual

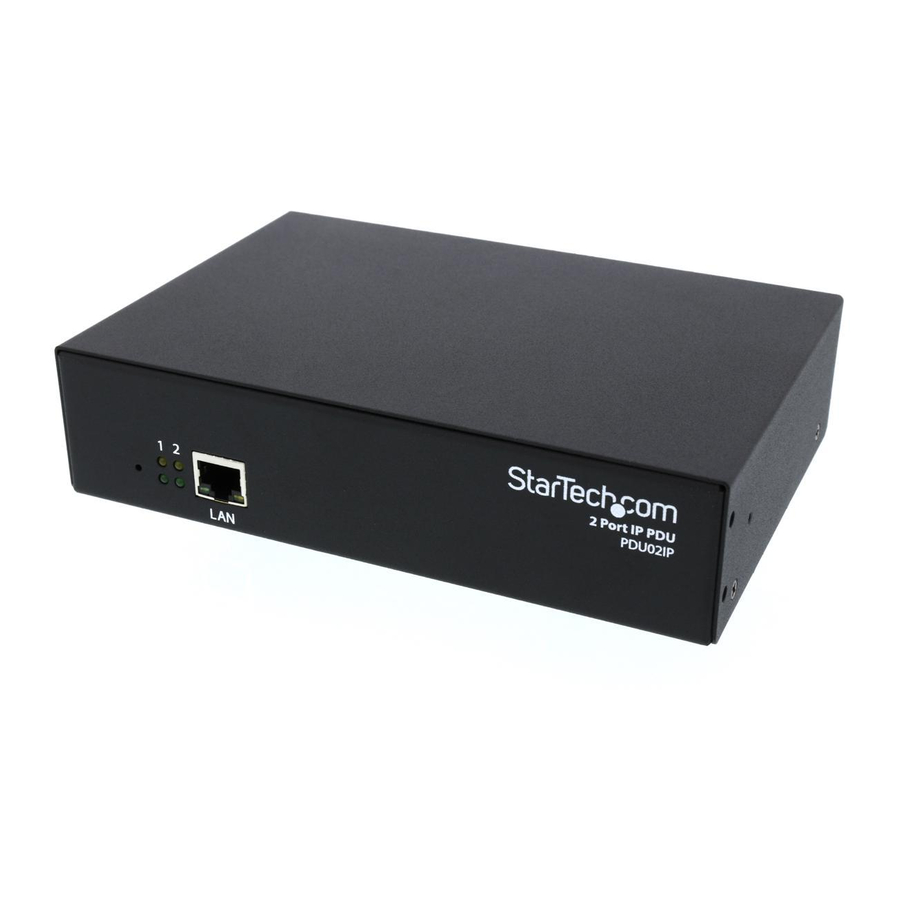

2 Port Remote Power Control IP PDU
(Power Distribution Unit)
PDU02IP -Rev 3
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the latest information, technical specifications, and support for
this product, please visit www.startech.com/PDU02IP.
Manual Revision: 01/18/2016
*actual product may vary from photos
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com PDU02IP
Summary of Contents for StarTech.com PDU02IP
- Page 1 (Power Distribution Unit) PDU02IP -Rev 3 *actual product may vary from photos DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the latest information, technical specifications, and support for this product, please visit www.startech.com/PDU02IP.
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Product Diagram ..................1 Rear View ..............................1 Front View ..............................1 Introduction ....................2 Packaging Contents ..........................2 LED Indicators ..................2 Reset Button ...................2 Installation .....................3 Hardware Installation ..........................3 Logging In for the First Time ......................... 3 Web Console Operation ................5 Power Switch Operation ......................... -
Page 4: Product Diagram
Product Diagram Rear View Front View Reset Button RJ45 LAN LED Indicators Instruction Manual... -
Page 5: Introduction
Introduction Packaging Contents • 1 x 2 Port PDU • 1 x Power Cable • 1 x Instruction Manual (CD) LED Indicators LED #1 is illuminated when output receptacle #1 is ON. Port Indicators (Top Row) LED #2 is illuminated when output receptacle #2 is ON. Reset Indicator Reset LED will flash when the Reset function is being (Bottom Left) -
Page 6: Installation
Installation Hardware Installation 1. Connect the power cord to the power inlet and to a wall outlet. 2. Plug your equipment into the two output receptacles. 3. Connect an Ethernet cable from the PDU to your network. 4. Turn the power switch to the ON position. Logging In for the First Time The minimum requirement to operate the PDU is to set up the IP Address, subnet mask, and default gateway, which can be done through your web browser or using the... - Page 7 4. Insert the provided CD in the CD-ROM drive. 5. Launch the IP Search Utility program. 6. Click on the Refresh button to search for all PDU02IP units on the LAN. 7. Click on the detected PDU and configure the IP address, Gateway and Net Mask, then click the Configure button twice.
-
Page 8: Web Console Operation
Web Console Operation Power Switch Operation The global outlet controls can be used to either turn on all outlets or turn off all outlets, while each individual outlet allows for On / Off / Reboot controls. • Double-clicking the ALL ON button will turn on both outlets. Double-clicking the ALL OFF button will turn off all of the outlets. -
Page 9: Monitor Tab
Monitor Tab The Monitor tab shows you the current status of each outlet and allows you to modify the power state of each outlet individually, or make global changes to both. From the Monitor tab, you can also schedule events and configure the Auto-Ping feature. Configuration Tab Click on the Set button located on the top corner of each outlet to modify an individual outlet. - Page 10 PING Interval Time: Set the time Interval to PING the connected device. Ping Times: If a device fails to respond to a ping continuously and exceeds the specified amount of attempts, the PDU02IP can notify selected personnel via email or SMS.
-
Page 11: System Section
System Section Network Tab Enabled DHCP: Enable this to assign the device IP by DHCP server. IP Address: Set the address IP of the network connecting to this device. Subnet Mask: Set the network mask of this device. IP Gateway: Set the device’ s external gateway address. MAC: Display the device’s MAC value. - Page 12 Email Server Tab Configure the Mail Server settings to send notifications when an event has occurred. Host: Enter the Hostname or IP address of the SMTP Mail Server that will be used to send emails from the PDU. If entering a Hostname, you will also be required to enter the DNS Address on the Network tab.
- Page 13 Host: Enter the SMS server address. Transmission Mode: Select the transmission mode. Device Name: Enter a name/subject to identify the device. Account: Enter the account name if required. Password: Enter the password if required. Message Format: Click the icon to the right of the format text box to see a preview of the message format.
-
Page 14: Firewall Section
Other Tab Set the outlets on the main tab to default to a reboot action, instead of ON/OFF. Language: Select a language. System Timeout: Set the amount of time before the device will automatically log out when no process is underway. Time Format: Select a time format. - Page 15 Enable IP Filter: Select this box to enable the IP address filter. Allowed IP Section: The first four sections are the beginning of the IP range. The last section is the ending of the IP range that is being given access to the device. For example, to authorize the IP range from 192.168.1.110 - 192.168.1.120, input as shown in the image above ADD: Click ADD to place the entered address range in the table.
-
Page 16: Account Section
Account Section This menu allows the administrator to setup authorized user accounts and other privileges. The administrator can assign specific access levels for each user account. Example: The administrator can assign user “A” to have access to outlet number 1 and receive email notifications when an event occurs to that specific outlet. -
Page 17: Timesync Section
TimeSync Section This menu allows the administrator to set the date and time for the PDU. Device Time: Displays the date and time of the device. You can’t edit this field. Sync with computer: Select either Sync with computer or Manual setting. Sync with Time Server: Check the Sync with NTP Server button to synchronize the date and time of the PDU with an NTP server. -
Page 18: Event Section
Event Section This menu displays the events that have occurred with the PDU. Refresh: Check for new events. Download: Save the event log information (.csv format). Delete: Clear the event log. Instruction Manual... - Page 19 To Download / save the configuration file 1. Click the Download button, then click Save. 2. Select the location where you would like to place the file (.bin format), then click Save. Instruction Manual...
- Page 20 To upload a previously saved configuration file 1. Click the Browse button. 2. Navigate to the location of your previously saved cfg.bin file, then click Open. 3. Click the Upload button to begin. Once the upload is complete, the PDU will restart automatically.
-
Page 21: Firmware Upgrade Procedure
Firmware Upgrade Procedure 1. Click Browse. 2. Select the directory of the firmware update files and click Open. The device will automatically restart and finish the firmware upgrade. Instruction Manual... -
Page 22: Specifications
Specifications Ports 1 - IEC 60320 C14 Power Plug Connectors 1 - RJ-45 Female 2 - NEMA 5-15 Power (North America) Receptacle Max. Current load per Port Max. Total Current 12 A Output Power Consumption 4.5 W Enclosure Material Steel Operating 0°C to 40°C (32°F to 104°F) Temperature... -
Page 23: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 24 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
