StarTech.com 8NS8-RACK-MOUNT-PDU Quick Start Manual

8-Outlet 1U Rack-Mount PDU - Individual Outlet Switches - Circuit Breaker
Product ID
8NS8-RACK-MOUNT-PDU

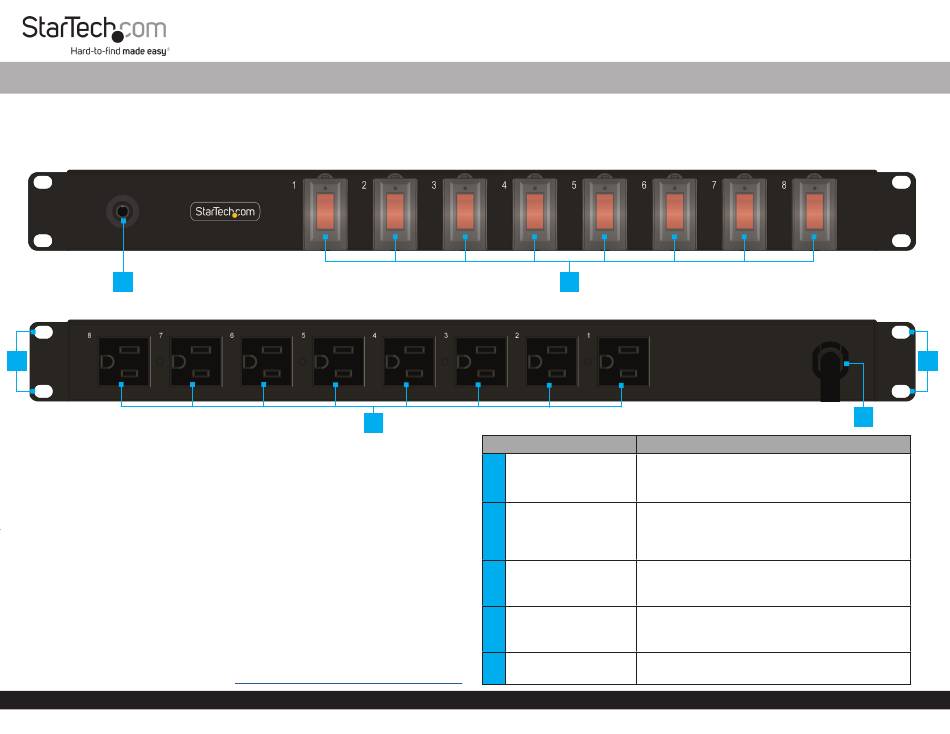

Product Diagram
Front
1
Rear
5
Package Contents
• Rack-Mount PDU x 1
• Quick-Start Guide x 1
Requirements
• Available AC Power Source (NEMA 5-15R Outlet)
• Available 1U of EIA-310 Compliant Rack Space
• 4x Cage Nuts (If the 1U of Rack-Space Features Square Mounting Holes)
• 4x Cabinet Screws
For the latest drivers, manuals, product information, technical specifications, and
declarations of conformance, please visit:
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
3
www.StarTech.com/8NS8-RACK-MOUNT-PDU
2
Component
• Turns-Off All Power, in the Event of a Power Surge
1
Circuit Breaker • 15A Tripping Point
• Push to Reset
• Turns the Corresponding Outlet On or Off
Power Switches with
• Remove Cover to Access Switch
2
LEDs & Switch Covers
• Illuminates Red When the Corresponding
(x8)
Outlet is Turned On
• Connects to an AC Input on Downstream Device(s)
Outlets
3
• NEMA 5-15R Connector
(x8)
• 125V AC / 15A
• Connect to an AC Power Source
4
Built-in Power Cable • NEMA 5-15P Connector
• 125V AC / 15A
• Mounts the PDU into 1U of Rack Space
Built-in 19in Mounting
5
Brackets (x2)
• EIA-310 Compliant
Quick-Start Guide
5
4
Function
Manual Revision: December 18, 2023
