StarTech.com PDU08C13EU Instruction Manual

Instruction manual
8-Port Rack-Mount PDU with C13 Outlets - 1U - 16 A
PDU08C13EU
FR: Guide de l'utilisateur - fr.startech.com
DE: Bedienungsanleitung - de.startech.com
ES: Guía del usuario - es.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
IT: Guida per l'uso - it.startech.com
Introduction
The PDU08C13EU is a cost-effective power distribution solution
that you can mount in your rack to deliver power to your rack-
mounted equipment. The PDU is constructed from durable steel and
mounts horizontally in your rack, taking up only 1U of space. The
PDU features a dual circuit breaker that is designed to protect your
equipment from power surges, and two reset buttons that you can
use to reset the PDU after a power surge.

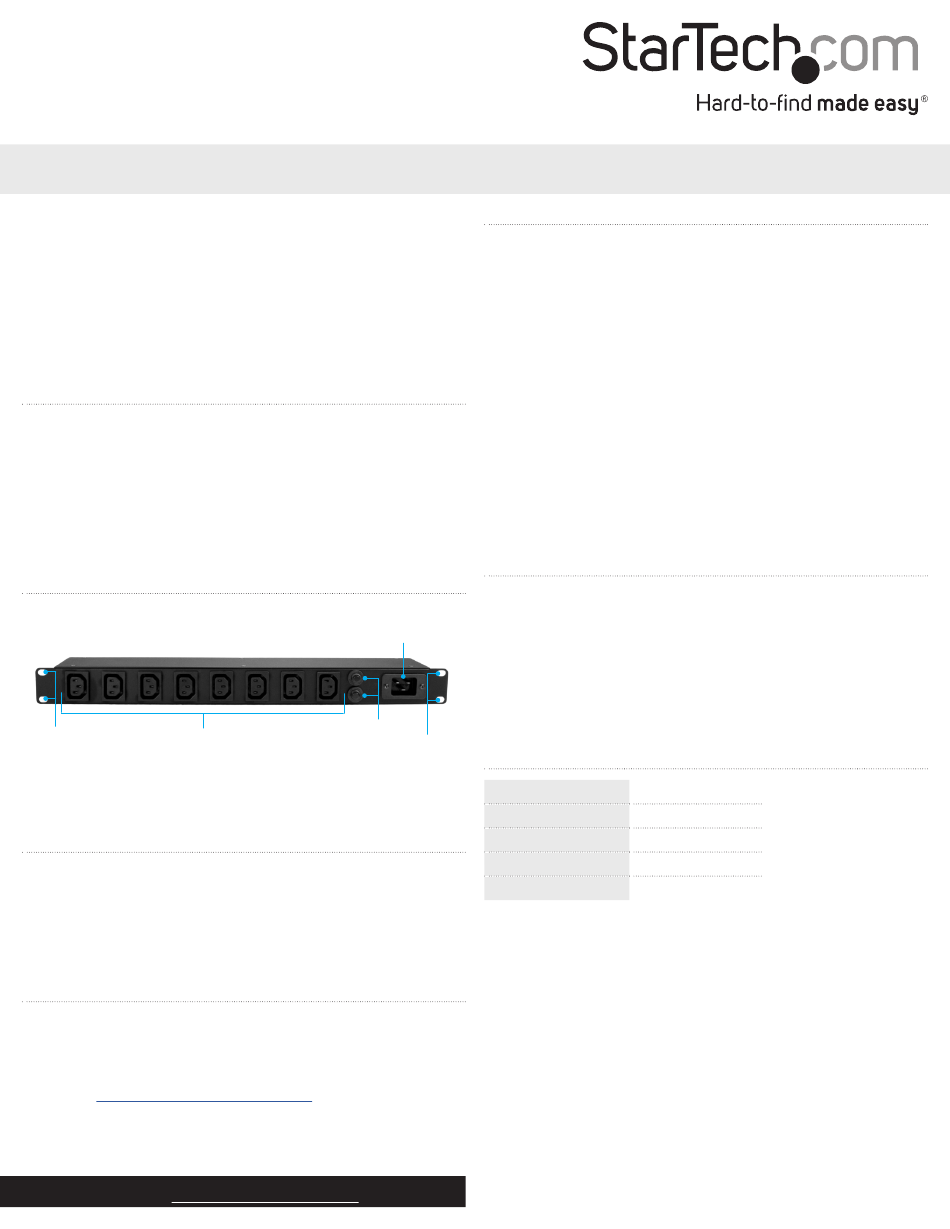

Product diagram
Mounting
C13 outlets
holes
Package contents
• 1 x rack-mount PDU
• 1 x 10 ft. (3 m) C19 to Cee7/7 power cord
• 4 x screws
• 4 x cage nuts
• 1 x instruction manual
Requirements
• Power source
• 1U of space in a server rack
Requirements are subject to change. For the latest requirements,
please visit www.StarTech.com/PDU08C13EU.
For the latest information, technical specifications, and support for
this product, please visit www.StarTech.com/PDU08C13EU.
Install the rack-mount PDU
The rack-mount PDU takes up 1U of space.
1. Line up the Mounting holes on the rack-mount PDU with the
mounting holes on your server rack.
2. Use the provided screws and cage nuts or the mounting hardware
that came with your rack to attach the rack-mount PDU to your
server rack.
3. Connect the power cord to the C20 power port on the rack-
mount PDU and a power source. Make sure that you connect the
power cord directly to the power source and not another PDU.
4. Connect the devices in your server rack to the C13 outlets on the
rack-mount PDU.
Caution! The combined power draw of all of the devices attached to
the rack-mount PDU shouldn't exceed 16 A, otherwise you will trip
the built-in circuit breaker.
Troubleshooting
What do I do if I trip the circuit breaker?
C20 power port If you trip the circuit breaker, complete the following:
1. Make sure that the combined power draw of all of the devices
attached to the rack-mount PDU doesn't exceed 16 A.
2. Press one of the Reset buttons on the rack-mount PDU.
Reset buttons
Mounting
Specifications
holes
*actual product may vary from photos Input
Output
Voltage
Maximum current
Number of fuses
C20
C13 (x8)
100 to 240 V ac
16 A
2
Manual Revision: 09/27/2016
