Prism Sound ADA-8XR Multi-channel A/D D/A Converter

Module Reference - Revision 1.01

Each ADA-8 device connected to your workstation will appear in the device list, the default

name for each device is its GUID. You can find out the GUID of a FireWire I/O Module using

the ADA-8 menu system, as described in Section 9.5.3. Note that if your ADA-8 is fitted with

two FireWire I/O modules they will both appear in the list as separate devices.

You may prefer to use a name for your ADA-8(s). You can do so by selecting the device and

pressing the 'Edit Device Name' button. The name that you enter here will be the one shown

when selecting the device driver in your workstation applications.

Individual input and output channels can also be renamed from the Driver Control Panel in a

similar fashion. Select the Input Channels tab or Output Channels tab to perform these

operations.

9.8.2 Sampling Rate

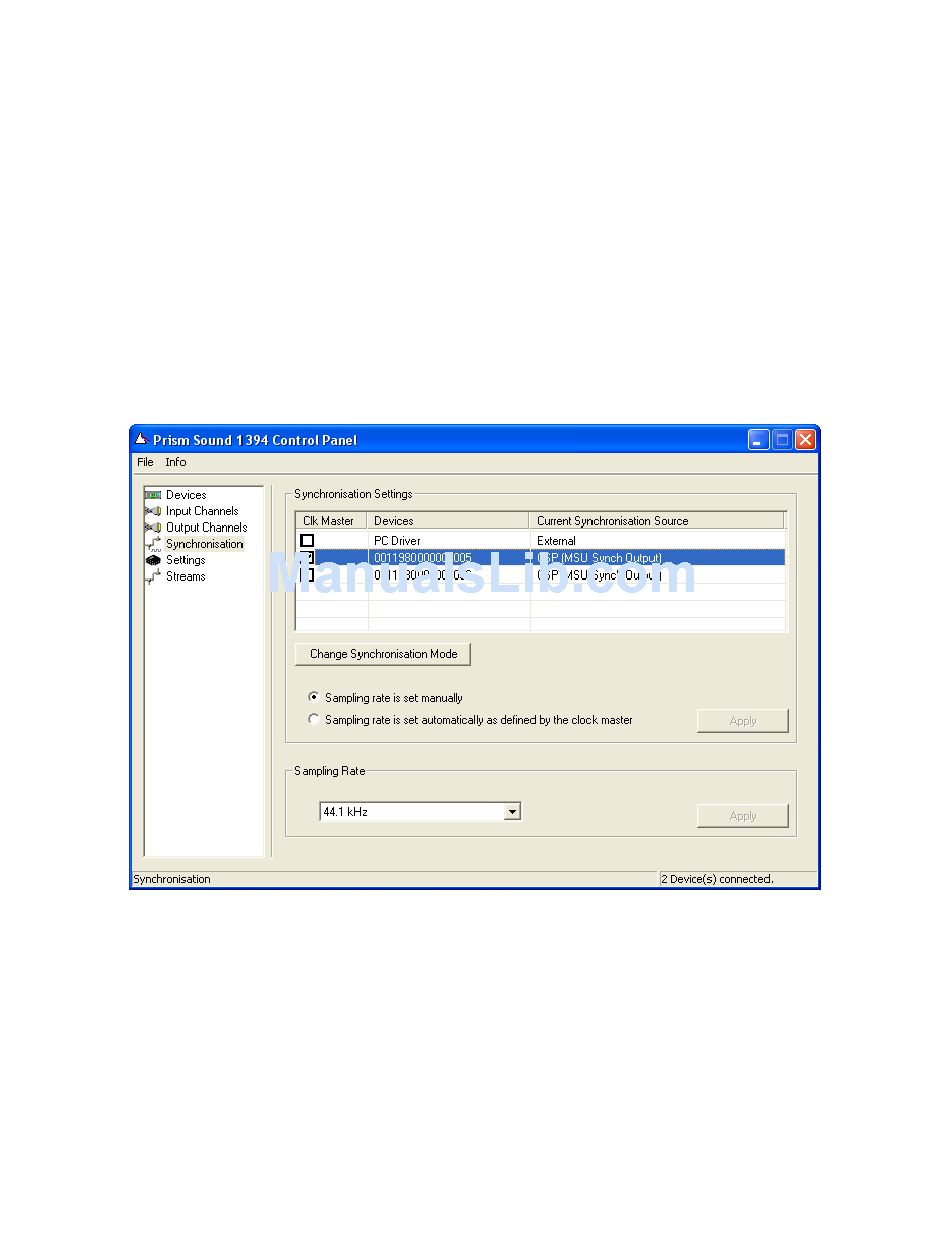

To change the sampling rate of your ADA-8(s) first select the Synchronization tab in the

Driver Control Panel as shown below.

First ensure that the 'Sampling rate is set manually' radio button is selected, as this is the only

valid setting for the ADA-8.

With any of your ADA-8 devices selected in the list, use the drop down Sampling Rate menu

to select the desired rate and then press 'Apply'. The change will automatically be applied to

all of the devices, because the sampling rate of all connected devices must be the same.

The sampling rates available are 32kHz, 44.1kHz, 48kHz, 88.2kHz and 96kHz. If your setup

consists of ADA-8 XR unit(s) fitted with FireWire I/O Module(s) that are all operating in the

4 in / 4 out I/O Configuration Mode, the 176.4kHz and 192kHz sampling rates will also be

available.

Page 3.57
