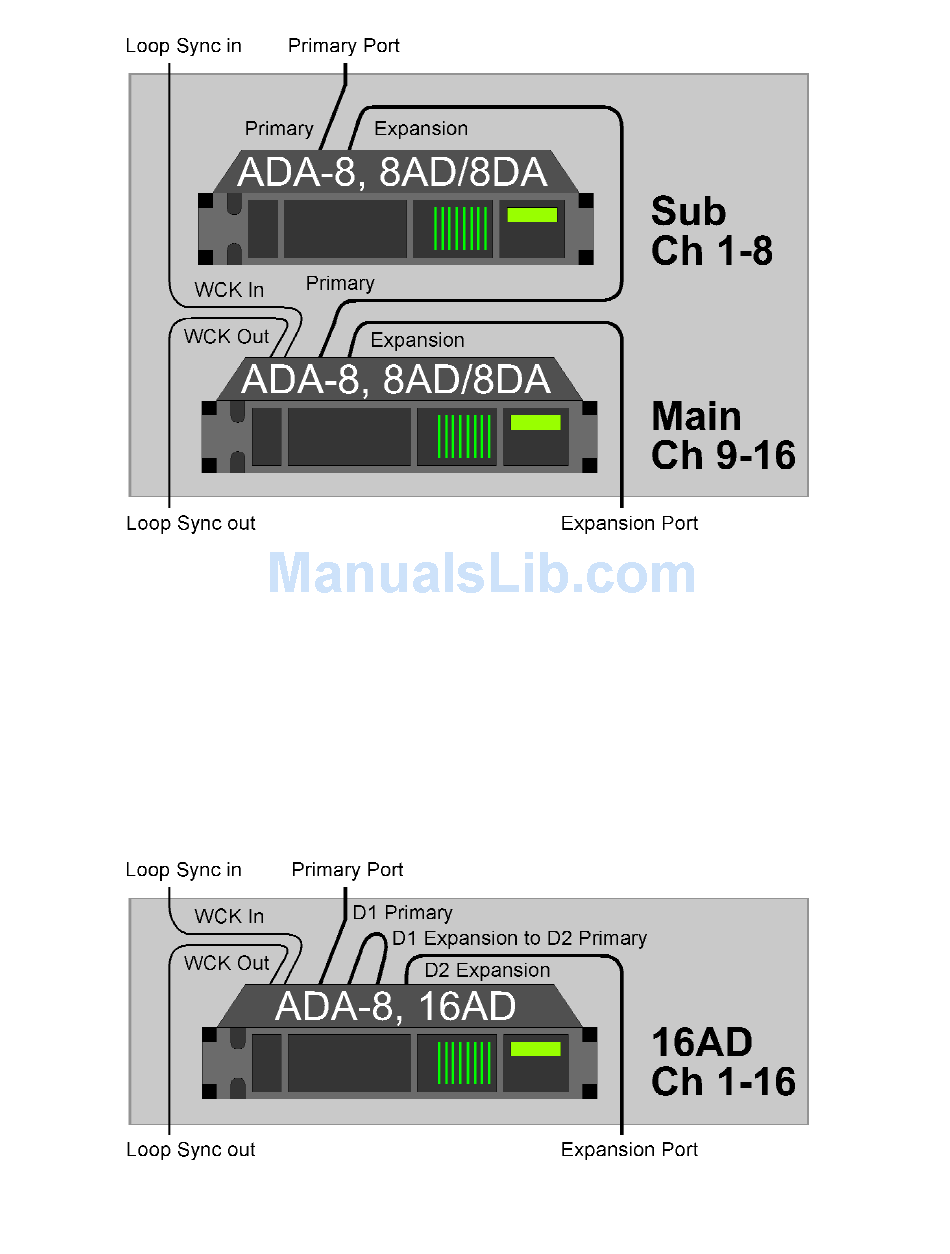

Having connected the ADA-8XRs as above, switch them on and load the following Stores
(these are located in Bank 1 for ADA-8XRs without additional digital I/O, and in Bank 3 for
ADA-8XRs with additional I/O). For 'Main', load the 'ProT HD Main' Store (Store 1); for
'Sub', load the 'ProT HD Sub' Store (Store 2).

7.7.3 Connecting a 16AD ADA-8XR as a 192 I/O

ADA-8XRs equipped with 16 analogue inputs are be fitted with two Pro Tools HD I/O
Modules. The Module in the upper DIO Slot is designated 'D1', and the lower 'D2'. Connect
the Primary Port of 'D1' to the desired Core or Process card in the workstation, and the
Expansion Port of 'D1' to the Primary Port of 'D2' using standard DigiLink cables. A further
Digidesign or Prism Sound I/O can be connected to the Expansion Port of 'D2' in the usual
way. The Wordclock I/O BNCs on the Utility Module are used for Loop Sync I/O if required.
