Eusso UGL2430-RTB Quick Installation Manual

4-port wireless 11n router (2t2r)
Hide thumbs Also See for UGL2430-RTB:

Advertisement

Quick Links

Download this manual See also: User Manual
4-Port Wireless 11n Router (2T2R)
UGL2430-RTB

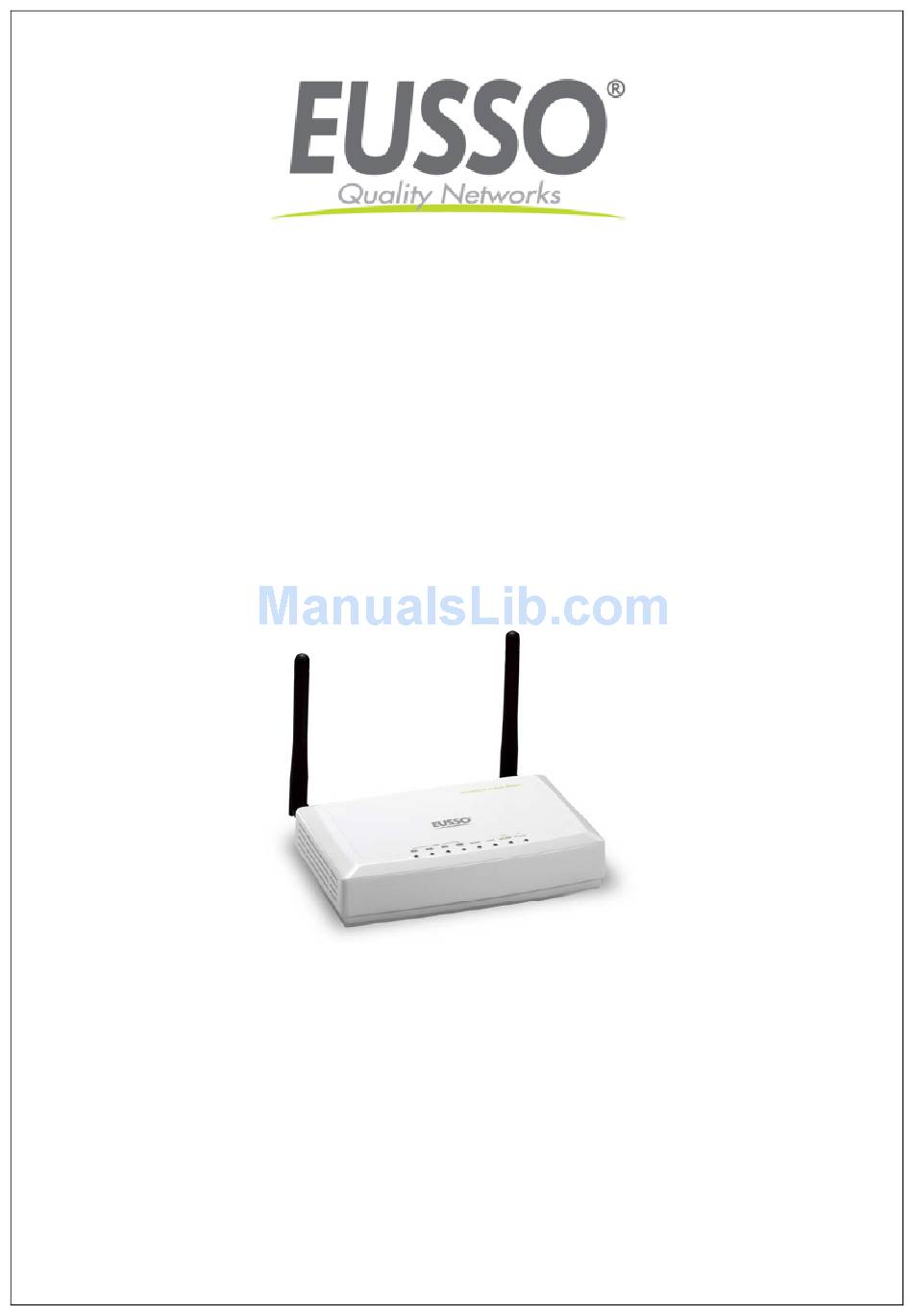

Quick Installation Guide
Copyright EUSSO Technologies, Inc. All rights
reserved.
1 of 11

Advertisement

loading
Need help?

Need help?

Do you have a question about the UGL2430-RTB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eusso UGL2430-RTB

Summary of Contents for Eusso UGL2430-RTB

  • Page 1 4-Port Wireless 11n Router (2T2R) UGL2430-RTB Quick Installation Guide Copyright EUSSO Technologies, Inc. All rights reserved. 1 of 11...
  • Page 2 ※ To avoid users without access right through your WLAN Broadband Router, suggest that use security mechanism like WEP, WPA or set ID/password for web configuration login IP address 192.168.1.254. Preparation. At lease one PC with IEEE802.11b/g/n WLAN client installed. One straight-through Category Ethernet cable, used to link WAN interface to xDSL or CM for Internet connection.
  • Page 3 Server IP Address User Name Password LAN configuration IP Address Subnet Mask WLAN configuration SSID Mode Channel Number LED Panel Description LAN LED WPS LED Power LED WAN LED WLAN LED LED Indicator State Description The WLAN Broadband Router is powered on. 1.
  • Page 4 Port linked. No link. Back Panel Description Type1 Power Reset 4 of 11...
  • Page 5 Interfaces Description Wireless Antenna The Wireless LAN Antenna in box. PWR (Power) The power jack allows an external DC power supply connection. The external DC adaptor provide adaptive power requirement to the WLAN Broadband Router. The RJ-45 sockets allow LAN connection through Category 5 cables.

  • Page 6: Installation

    Installation. Step One – Power On WLAN Broadband Router Connect DC Power Adapter to WLAN Broadband Router and the wall power socket. Notice: It will take about 50 seconds to complete the boot up sequence after powered on the WLAN Broadband Router; Power LED will be active, and after that the WLAN Activity LED will be flashing to show the WLAN interface is enabled and working now.
  • Page 7 2. Click “Setup Wizard” in submenu of Site contents Click “Next>>” button to go next. 3. Configure Operation Mode Click “Gateway”. Click “Next>>” button to go next. 7 of 11...
  • Page 8 4. Configure Time Zone Setting configuration Click “Next>>” button to go next. 5. Configure LAN Interface Setup IP Address: 192.168.1.254. Subnet Mask: 255.255.255.0. Click “Next>>” button to go next. 6. WAN Interface Setup WAN Access Type: Select WAN connection of ISP provides.
  • Page 9 7. Wireless Basic Settings Band: 2.4GHz(B+G) Mode: AP Network Type: disabled SSID: MyWLAN Channel: 11 Enable Mac Clone: disabled Click “Next>>” button to go next. 8. Wireless Security Setup Encryption: None Options: WEP, WPA (TKIP), WPA2 (AES), WPA2 Mixed Click “Finished” button to close setup session.
  • Page 10 Step Three – Connect WLAN client to WLAN Broadband Router wirelessly On your wireless client PC: 1. Move your mouse to the Network icon on the Task bar and right click the mouse button to bring up the pop-up menu. 2.
  • Page 11 The wireless network diagram of WLAN Broadband Router.. Reference. Please consult the user’s manual of WLAN Broadband Router for detailed and complete operation guide. 11 of 11...
