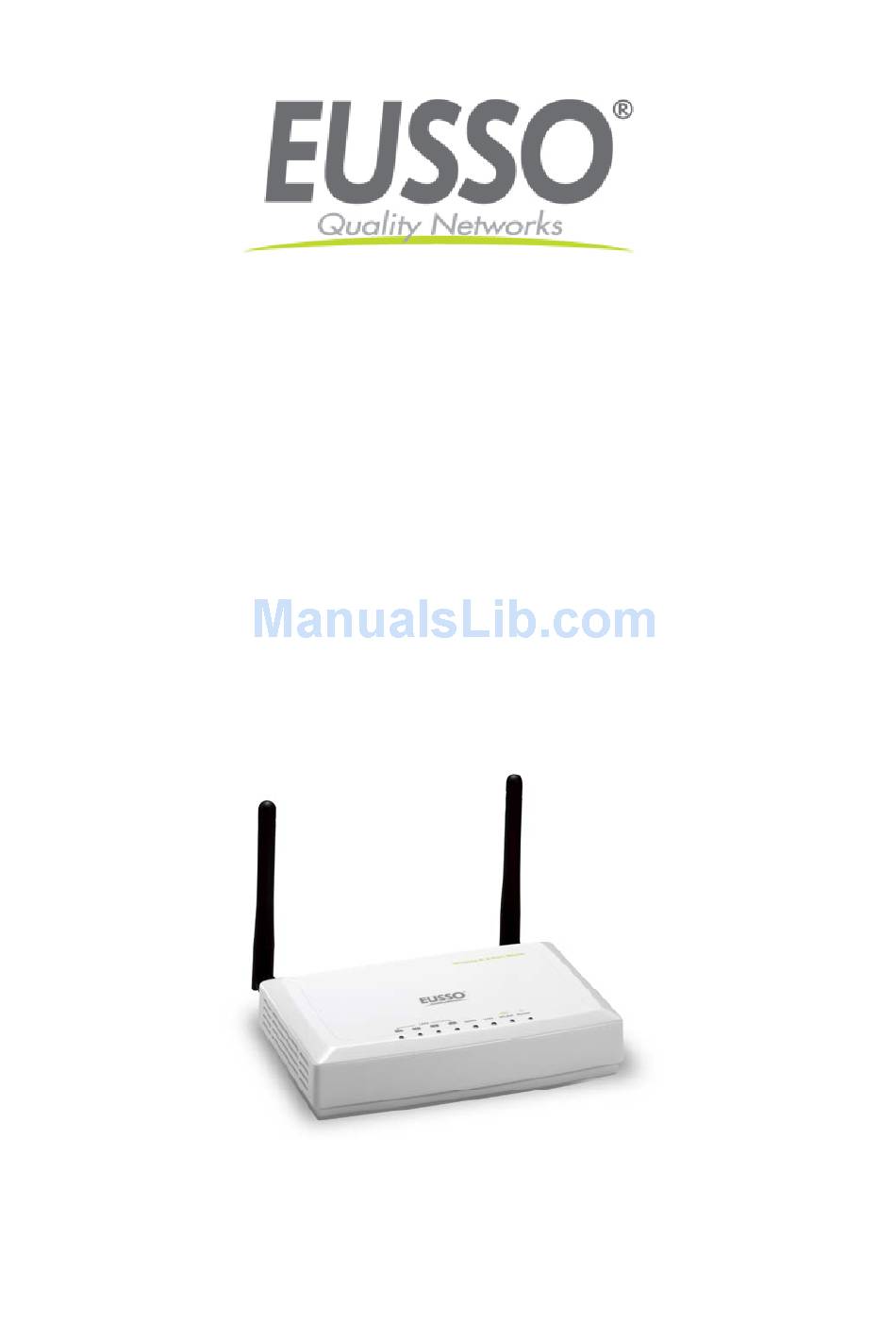

4-Port Wireless 11n Router (2T2R)
UGL2430-RTB
User's Manual
Version: 1.2
Copyright EUSSO Technologies, Inc. All rights
reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UGL2430-RTB and is the answer not in the manual?

Questions and answers

Summary of Contents for Eusso UGL2430-RTB

  • Page 1 4-Port Wireless 11n Router (2T2R) UGL2430-RTB User’s Manual Version: 1.2 Copyright EUSSO Technologies, Inc. All rights reserved.
  • Page 2: Copyright Statement

    Trademarks Copyright @2007 Contents are subject to change without notice. All trademarks belong to their respective proprietors. Copyright Statement THIS DOCUMENT CONTAINS OF PROPRIETARY TECHNICAL INFORMATION THAT IS THE PROPERTY OF THIS COMPANY. AND NO PART OF THIS DOCUMENTATION MAY BE REPRODUCED, STORED IN A RETRIEVAL SYSTEM OR TRANSMITTED IN ANY FORM OR BY ANY MEANS, ELECTRICAL OR MECHANICAL, BY PHOTOCOPYING, RECORDING, OR OTHERWISE, WITHOUT THE PRIOR WRITTEN CONSENT OF THIS COMPANY.
  • Page 3: Table Of Contents

    ARDWARE NSTALLATION ....................6 OFTWARE NSTALLATION SOFTWARE CONFIGURATION..................6 UGL2430-RTB............7 REPARE YOUR TO CONFIGURE THE UGL2430-RTB ..................9 ONNECT TO THE UGL2430-RTB..........9 ANAGEMENT AND CONFIGURATION ON THE 3.3.1 Status.......................... 9 3.3.2 Setup Wizard......................11 Operation Mode ....................... 12 Time Zone Setting ....................
  • Page 4 3.3.11 Schedule........................29 3.3.12 LAN Interface Setup ....................29 Static DHCP Setup....................31 3.3.13 WAN Interface Setup ....................32 Static IP........................33 DHCP Client ......................35 PPPoE ........................37 PPTP ........................40 L2TP ........................43 3.3.14 Firewall - Port Filtering ................... 45 3.3.15 Firewall - IP Filtering....................
  • Page 5 4.10 W ?..................66 HAT IS RAGMENT HRESHOLD 4.11 W RTS (R ? .............. 67 HAT IS EQUEST HRESHOLD 4.12 W ?..................... 67 HAT IS EACON NTERVAL 4.13 W ? ....................68 HAT IS REAMBLE 4.14 W SSID B ? ..................... 68 HAT IS ROADCAST 4.15 W...
  • Page 6: Revision History

    Revision History DATE REVISION OF USER’S MANUAL FIRMWARE 2011/07/12 Version 1.1 GW2x2-1.2.0.0 2011/11/29 Version 1.2 GW2x2-1.2.0.3...
  • Page 7: Terminology

    Terminology 3DES Triple Data Encryption Standard Advanced Encryption Standard ANSI American National Standards Institute Access Point Complementary Code Keying CSMA/CA Carrier Sense Multiple Access/ Collision Avoidance CSMA/CD Carrier Sense Multiple Access/ Collision Detection DDNS Dynamic Domain Name Server Diffie-Hellman Algorithm DHCP Dynamic Host Configuration Protocol DSSS...
  • Page 8 SSID Service Set Identification Transmission Control Protocol TFTP Trivial File Transfer Protocol TKIP Temporal Key Integrity Protocol UPNP Universal Plug and Play Virtual Private Network Wireless Distribution System Wired Equivalent Privacy WISP Wireless Internet Service Provider WLAN Wireless Local Area Network Wi-Fi Protected Access Wi-Fi Protected Setup...
  • Page 9: Introduction

    1 Introduction The UGL2430-RTB is an affordable IEEE 802.11b/g/n UGL2430-RTB solution; setting SOHO and enterprise standard for high performance, secure, manageable and reliable WLAN. This document describes the steps required for the initial IP address assign and other WLAN router configuration. The description includes the implementation of the above steps.
  • Page 10: Product Features

    Dimension 137.6(L) x 93(W) x 98.8(H) mm (with Antenna) 1.2 Product Features Generic Router Complies with IEEE 802.11b/g/n standard for 2.4GHz Wireless LAN. Compatible with IEEE 802.11n Draft 2.0 Specifications provides wireless speed up to 300Mbps data rate. Compatible with IEEE 802.11g high rate standard to provide wireless Ethernet speeds of 54Mbps data rate.
  • Page 11 WPS LED WAN LED WLAN LED Power LED LED Indicator State Description The UGL2430-RTB is powered on. 1. Power LED The UGL2430-RTB is powered off. 2. WLAN LED Data is transmitting or receiving on the Flashing antenna. No data is transmitting or receiving on the antenna.
  • Page 12 Interfaces Description Antenna The Wireless LAN Antenna Power The power jack allows an external DC power supply connection. The external AC to DC adaptor provide adaptive power requirement to the UGL2430-RTB. The RJ-45 socket allows WAN connection through a Category...
  • Page 13 5 cable. Support auto-sensing on 10/100M speed and half/ full duplex; comply with IEEE 802.3/ 802.3u respectively. The RJ-45 sockets allow LAN connection through Category 5 cables. Support auto-sensing on 10/100M speed and half/ full duplex; comply with IEEE 802.3/ 802.3u respectively. Push continually the reset button 5 ~ 10 seconds to enable the WPS feature.
  • Page 14: Installation

    A straight-through Ethernet cable with appropriate cable length is needed. Step 3: Supply DC power to the UGL2430-RTB. Use only the AC/DC power adapter supplied with the UGL2430-RTB; it maybe occur damage by using a different type of power adapter.
  • Page 15: Prepare Your Pc To Configure The Ugl2430-Rtb

    3.1 Prepare your PC to configure the UGL2430-RTB For OS of Microsoft Windows 95/ 98/ Me/XP: 1. Click the Start button and select Settings, then click Control Panel. The Control Panel window will appear. Note: Windows Me users may not see the Network control panel. If so, select View all Control Panel options on the left side of the window 2.
  • Page 16: Version

    6. Select TCP/IP and click the properties button on the Network dialog box. 7. Select Specify an IP address and type in values as following example. IP Address: 192.168.1.1, any IP address within 192.168.1.1 to 192.168.1.253 is good to connect the Wireless LAN Access Point. IP Subnet Mask: 255.255.255.0 8.
  • Page 17: Connect To The Ugl2430-Rtb

    Click OK to complete the IP parameters setting. 3.2 Connect to the UGL2430-RTB Open a WEB browser, i.e. Microsoft Internet Explore 6.1 SP1 or above, then enter 192.168.1.254 on the URL to connect the UGL2430-RTB. 3.3 Management and configuration on the UGL2430-RTB 3.3.1 Status This page shows the current status and some basic settings of the device, includes system, wireless, Ethernet LAN and WAN configuration information.
  • Page 18 It shows the current wireless operating frequency. SSID It shows the SSID of this UGL2430-RTB. The SSID is the unique name of UGL2430-RTB and shared among its service area, so all devices attempts to join the same wireless network can identify it.
  • Page 19: Setup Wizard

    UGL2430-RTB. WAN configuration Attain IP Protocol It shows how the UGL2430-RTB gets the IP address. The IP address can be set manually to a fixed one or set dynamically by DHCP server or attain IP by PPPoE / PPTP connection.
  • Page 20: I Operation Mode

    Screen snapshot – Setup Wizard Operation Mode This page followed by Setup Wizard page to define the operation mode. Screen snapshot – Operation Mode Time Zone Setting This page is used to enable and configure NTP client...
  • Page 21: Lan Interface Setup

    Screen snapshot – Time Zone Settings LAN Interface Setup This page is used to configure local area network IP address and subnet mask Screen snapshot – LAN Interface Setup WAN Interface Setup This page is used to configure WAN access type...
  • Page 22: Wireless Basic Settings

    Screen snapshot – WAN Interface Setup Wireless Basic Settings This page is used to configure basic wireless parameters like Band, Mode, Network Type SSID, Channel Number, Enable Mac Clone(Single Ethernet Client) Screen snapshot – Wireless Basic Settings Wireless Security Setup This page is used to configure wireless security...
  • Page 23: Operation Mode

    Screen snapshot – Wireless Security Setup 3.3.3 Operation Mode This page is used to configure which mode wireless broadband router acts Screen snapshot – Operation Mode Item Description Gateway Traditional gateway configuration. It always connects internet via ADSL/Cable Modem. LAN interface, WAN...
  • Page 24: Wireless - Basic Settings

    interface, Wireless interface, NAT and Firewall modules are applied to this mode Bridge Each interface (LAN, WAN and Wireless) regards as bridge. NAT, Firewall and all router’s functions are not supported Wireless ISP Switch Wireless interface to WAN port and all Ethernet ports in bridge mode.
  • Page 25 Screen snapshot – Wireless Basic Settings Item Description Disable Wireless LAN Click on to disable the wireless LAN data transmission. Interface Band Click to select 2.4GHz(B) / 2.4GHz(G) / 2.4GHz(N) 2.4GHz(B+G)/ 2.4GHz(G+N) / 2.4GHz(B+G+N) Mode Click to select the WLAN AP / Client / WDS / AP+WDS wireless mode.
  • Page 26: Wireless - Advanced Settings

    3.3.5 Wireless - Advanced Settings These settings are only for more technically advanced users who have a sufficient knowledge about wireless LAN. These settings should not be changed unless you know what effect the changes will have on your UGL2430-RTB.
  • Page 27 Screen snapshot – Wireless Advanced Settings Item Description Fragment Threshold Set the data packet fragmentation threshold, value can be written between 256 and 2346 bytes. Refer to 4.10 What is Fragment Threshold? RTS Threshold Set the RTS Threshold, value can be written between 0 and 2347 bytes.
  • Page 28: Wireless - Security Setup

    Short GI Click to enable or disable the short Guard Intervals function. Refer to 4.34 What is Guard Intervals (GI)? WLAN Partition Click to enable or disable that prevents associated wireless clients from communication with each other. STBC Click to enable or disable Space Time Block Coding option.
  • Page 29 Select SSID Select the SSID from multiple APs. Encryption Select the encryption supported over wireless access. The encryption method can be None, WEP, WPA, WPA2 or WPA-Mixed Refer to 4.9 What is WEP? 4.15 What is Wi-Fi Protected Access (WPA)? 4.16 What is WPA2? Use 802.1x While Encryption is selected to be WEP.
  • Page 30: Wireless - Access Control

    Enable Click to enable Pre-Authentication. [WPA2/WPA2 Pre-Authentication Mixed only, Enterprise only] Authentication Set the IP address, port and login password information RADIUS Server of authentication RADIUS sever. Apply Changes Click the Apply Changes button to complete the new configuration setting. Reset Click the Reset button to abort change and recover the previous configuration setting.
  • Page 31: Wds Settings

    It shows the registered clients that are allowed to link to List this UGL2430-RTB. Delete Selected Click to delete the selected clients that will be access right removed from this UGL2430-RTB. Delete All Click to delete all the registered clients from the access allowed list. Reset Click the Reset button to abort change and recover the previous configuration setting.
  • Page 32 Screen snapshot – WDS Setup Item Description Enable WDS Click the check box to enable wireless distribution system. Refer to 4.21 What is Wireless Distribution System (WDS)? MAC Address Fill in the MAC address of AP to register the wireless distribution system access capability.
  • Page 33: Iwds Security Setup

    from the wireless distribution system. Delete All Click to delete all the registered APs from the wireless distribution system allowed list. Reset Click the Reset button to abort change and recover the previous configuration setting. WDS Security Setup Requirement: Set [Wireless]->[Basic Settings]->[Mode]->AP+WDS This page is used to configure the wireless security between APs.
  • Page 34: Site Survey

    Screen snapshot – WDS AP Table Item Description MAC Address It shows the MAC Address within WDS. Tx Packets It shows the statistic count of sent packets on the wireless LAN interface. Tx Errors It shows the statistic count of error sent packets on the Wireless LAN interface.
  • Page 35: Wps

    Screen snapshot – Wireless Site Survey Item Description SSID It shows the SSID of AP. BSSID It shows BSSID of AP. Channel It show the current channel of AP occupied. Type It show which type AP acts. Encrypt It shows the encryption status. Signal It shows the power level of current AP.
  • Page 36 Screen snapshot – Wi-Fi Protected Setup Item Description Disable WPS Click on to disable the Wi-Fi Protected Setup function. WPS Status Show WPS status is Configured or UnConfigured. Self-PIN Number Fill in the PIN Number of AP to register the wireless distribution system access capability.
  • Page 37: Schedule

    3.3.12 LAN Interface Setup This page is used to configure the parameters for local area network that connects to the LAN ports of your UGL2430-RTB. Here you may change the setting for IP address, subnet mask, DHCP, etc.
  • Page 38 Screen snapshot – LAN Interface Setup Item Description IP Address Fill in the IP address of LAN interfaces of this WLAN Access Point. Subnet Mask Fill in the subnet mask of LAN interfaces of this WLAN Access Point. DHCP Click to select Disabled, Client or Server in different operation mode of wireless Access Point.
  • Page 39: I Static Dhcp Setup

    Domain Name Assign Domain Name and dispatch to DHCP clients. It is optional field. 802.1d Spanning Tree Select enable or disable the IEEE 802.1d Spanning Tree function from pull-down menu. Clone MAC Address Fill in the MAC address that is the MAC address to be cloned.
  • Page 40: Wan Interface Setup

    This page is used to configure the parameters for wide area network that connects to the WAN port of your UGL2430-RTB. Here you may change the access method to Static IP, DHCP, PPPoE, PPTP or L2TP by click the item...
  • Page 41: I Static Ip

    Static IP Screen snapshot – WAN Interface Setup – Static IP Item Description Static IP Click to select Static IP support on WAN interface. There are IP address, subnet mask and default gateway settings need to be done. IP Address If you select the Static IP support on WAN interface, fill in the IP address for it.
  • Page 42 in the default gateway for WAN interface out going data packets. MTU Size Fill in the mtu size of MTU Size. The default value is 1500 DNS 1 Fill in the IP address of Domain Name Server 1. DNS 2 Fill in the IP address of Domain Name Server 2.
  • Page 43: Dhcp Client

    DHCP Client Screen snapshot – WAN Interface Setup – DHCP Client Item Description DHCP Client Click to select DHCP support on WAN interface for IP address assigned automatically from a DHCP server. Host Name Fill in the host name of Host Name. The default value is empty MTU Size Fill in the mtu size of MTU Size.
  • Page 44 DNS 1 Fill in the IP address of Domain Name Server 1. DNS 2 Fill in the IP address of Domain Name Server 2. DNS 3 Fill in the IP address of Domain Name Server 3. Clone MAC Address Fill in the MAC address that is the MAC address to be cloned.
  • Page 45: Pppoe

    PPPoE Screen snapshot – WAN Interface Setup – PPPoE Item Description PPPoE Click to select PPPoE support on WAN interface. There are user name, password, connection type and idle time settings need to be done. User Name If you select the PPPoE support on WAN interface, fill in the user name and password to login the PPPoE server.
  • Page 46 Continuous connection type means to setup the connection through PPPoE protocol whenever this UGL2430-RTB is powered on. Connect on Demand connection type means to setup the connection through PPPoE protocol whenever you send the data packets out through the WAN interface; there are...
  • Page 47 Enable Ping Access on Click the checkbox to enable WAN ICMP response. Enable Web Server Click the checkbox to enable web configuration from Access on WAN WAN side. Enable IPsec pass Click the checkbox to enable IPSec packet pass through through on VPN connection Enable PPTP pass...
  • Page 48: Pptp

    PPTP Screen snapshot – WAN Interface Setup – PPTP Item Description PPTP Allow user to make a tunnel with remote site directly to secure the data transmission among the connection. User can use embedded PPTP client supported by this router to make a VPN connection.
  • Page 49 Continuous connection type means to setup the connection through PPTP protocol whenever this UGL2430-RTB is powered on. Connect on Demand connection type means to setup the connection through PPTP protocol whenever you send the data packets out through the WAN interface; there are...
  • Page 50 Compression compression. Attain DNS Click to select getting DNS address for PPTP support. Automatically Please select Set DNS Manually if the PPTP support is selected. Set DNS Manually Click to select getting DNS address for PPTP support. DNS 1 Fill in the IP address of Domain Name Server 1. DNS 2 Fill in the IP address of Domain Name Server 2.
  • Page 51: L2Tp

    L2TP Screen snapshot – WAN Interface Setup – PPTP Item Description L2TP Allow user to make a tunnel with remote site directly to secure the data transmission among the connection. User can use embedded L2TP client supported by this router to make a VPN connection.
  • Page 52 Continuous connection type means to setup the connection through L2TP protocol whenever this UGL2430-RTB is powered on. Connect on Demand connection type means to setup the connection through L2TP protocol whenever you send the data packets out through the WAN interface; there are...
  • Page 53: Firewall - Port Filtering

    Set DNS Manually Click to select getting DNS address for L2TP support. DNS 1 Fill in the IP address of Domain Name Server 1. DNS 2 Fill in the IP address of Domain Name Server 2. DNS 3 Fill in the IP address of Domain Name Server 3. Clone MAC Address Fill in the MAC address that is the MAC address to be cloned.
  • Page 54: Firewall - Ip Filtering

    Screen snapshot – Firewall - Port Filtering Item Description Enable Port Filtering Click to enable the port filtering security function. Port Range To restrict data transmission from the local network on Protocol certain ports, fill in the range of start-port and end-port, Comments and the protocol, also put your comments on it.
  • Page 55: Firewall - Mac Filtering

    Screen snapshot – Firewall - IP Filtering Item Description Enable IP Filtering Click to enable the IP filtering security function. Local IP Address To restrict data transmission from local network on Protocol certain IP addresses, fill in the IP address and the Comments protocol, also put your comments on it.
  • Page 56: Firewall - Port Forwarding

    helpful in securing or restricting your local network. Screen snapshot – Firewall - MAC Filtering Item Description Enable MAC Filtering Click to enable the MAC filtering security function. MAC Address To restrict data transmission from local network on Comments certain MAC addresses, fill in the MAC address and your comments on it.
  • Page 57 necessary if you wish to host some sort of server like a web server or mail server on the private local network behind your Gateway's NAT firewall. Screen snapshot – Firewall - Port Forwarding Item Description Enable Port Forwarding Click to enable the Port Forwarding security function. IP Address To forward data packets coming from WAN to a specific Protocol...
  • Page 58: Firewall - Url Filtering

    Reset Click the Reset button to abort change and recover the previous configuration setting. 3.3.18 Firewall – URL Filtering URL Filtering is used to restrict users to access specific websites in internet. Screen snapshot – Firewall – URL Filtering Item Description Enable URL Filtering Click to enable the URL Filtering function.
  • Page 59: Firewall - Dmz

    3.3.19 Firewall - DMZ A Demilitarized Zone is used to provide Internet services without sacrificing unauthorized access to its local private network. Typically, the DMZ host contains devices accessible to Internet traffic, such as Web (HTTP) servers, FTP servers, SMTP (e-mail) servers and DNS servers. Screen snapshot –...
  • Page 60 Screen snapshot – Firewall – VLAN Item Description Enable VLAN Click to enable the LAN function. Enable Click Enable Ethernet LAN port, Wireless, AP or WAN port. When ‘Tag’ is enabled, Router will add a 802.1Q tagging (4 bytes long w/ VID, Priority, and CFI) in the header of each outgoing packet.
  • Page 61: Qos

    Priority Select port priority. Click to Enable CFI. 3.3.21 QoS This page sets bandwidth control by IP or Mac address. Screen snapshot – QoS Item Description Enable QoS Click to enable the QoS function.
  • Page 62: Route Setup

    Automatic Uplink Click checkbox to enable Uplink speed by system. Speed Manual Uplink Speed Input number to set Uplink speed. (Kbps) Automatic Downlink Click checkbox to enable Downlink speed by system. Speed Manual Downlink Input number to set Downlink speed. Speed (Kbps) Access Type Click the set type either IP or Mac address.
  • Page 63 Screen snapshot – Routing Setup Item Description Enable Dynamic Route Click Enable/Disabled to initialize Dynamic route or not Enable/Disabled dynamic route with NAT Transmit Disable or transmit via RIP 1 or RIP 2 Receive Disable or receive via RIP 1 or RIP 2 Enable Static Route Click to Enable the Static Route function IP Address...
  • Page 64: Management - Statistics

    Apply Changes Click the Apply Changes button to complete the new configuration setting. Reset Click the Reset button to abort change and recover the previous configuration setting. Show Route Table Click button to show route table Delete All Click to delete all the registered entries from static route table list..
  • Page 65: Management - Ddns

    Received Packets Ethernet LAN interface. Ethernet WAN It shows the statistic count of sent packets on the Sent Packets Ethernet WAN interface. Ethernet WAN It shows the statistic count of received packets on the Received Packets Ethernet WAN interface. Refresh Click the refresh the statistic counters on the screen.
  • Page 66: Management - Time Zone Setting

    Password/Key Configure Password, Key. Apply Change Click the Apply Changes button to save the enable DDNS service. Reset Click the Reset button to abort change and recover the previous configuration setting. 3.3.25 Management - Time Zone Setting This page is used to configure NTP client to get current time. Screen snapshot –...
  • Page 67: Management - Denial-Of-Service

    Refresh Click the refresh the current time shown on the screen. 3.3.26 Management – Denial-of-Service This page is used to enable and setup protection to prevent attack by hacker’s program. It provides more security for users. Screen snapshot – Management – Denial-of-Service...
  • Page 68: Management - Log

    Item Description Enable DoS Prevention Click the checkbox to enable DoS prevention. Whole System Flood / Enable and setup prevention in details. Per-Source IP Flood… Select ALL Click the checkbox to enable all prevention items. Clear ALL Click the checkbox to disable all prevention items. Apply Changes Click the Apply Changes button to save above settings.
  • Page 69: Management - Upgrade Firmware

    Click the Browse button to select the new version of web firmware image file. Upload Click the Upload button to update the selected web firmware image to the UGL2430-RTB. Reset Click the Reset button to abort change and recover the previous configuration setting.
  • Page 70: Management - Password Setup

    Load Settings from File Click the Browse button to select the configuration files then click the Upload button to update the selected configuration to the UGL2430-RTB. Reset Settings to Click the Reset button to reset the configuration Default parameter to factory defaults.
  • Page 71 Confirmed Password Because the password input is invisible, so please fill in the password again for confirmation purpose. Apply Changes Clear the User Name and Password fields to empty, means to apply no web management login control. Click the Apply Changes button to complete the new configuration setting.
  • Page 72: Frequently Asked Questions (Faq)

    4 Frequently Asked Questions (FAQ) 4.1 What and how to find my PC’s IP and MAC address? IP address is the identifier for a computer or device on a TCP/IP network. Networks using the TCP/IP protocol route messages based on the IP address of the destination. The format of an IP address is a 32-bit numeric address written as four numbers separated by periods.
  • Page 73: What Is Bssid

    more BSSs forming a single subnetwork. Since most corporate WLANs require access to the wired LAN for services (file servers, printers, Internet links) they will operate in infrastructure mode. Example 1: wireless Infrastructure Mode Ad hoc mode (also called peer-to-peer mode or an Independent Basic Service Set, or IBSS) is simply a set of 802.11 wireless stations that communicate directly with one another without using an access point or any connection to a wired network.
  • Page 74: What Are Potential Factors That May Causes Interference

    4.7 What are potential factors that may causes interference? Factors of interference: Obstacles: walls, ceilings, furniture… etc. Building Materials: metal door, aluminum studs. Electrical devices: microwaves, monitors and electrical motors. Solutions to overcome the interferences: Minimizing the number of walls and ceilings. Position the WLAN antenna for best reception.
  • Page 75: What Is Rts (Request To Send) Threshold

    value, we can get varying fragment sizes. The determination of an efficient fragment threshold is an important issue in this scheme. If the fragment threshold is small, the overlap part of the master and parallel transmissions is large. This means the spatial reuse ratio of parallel transmissions is high.
  • Page 76: What Is Preamble Type

    Beacon Interval represents the amount of time between beacon transmissions. Before a station enters power save mode, the station needs the beacon interval to know when to wake up to receive the beacon (and learn whether there are buffered frames at the access point).
  • Page 77: What Is Wpa2

    4.16 What is WPA2? It is the second generation of WPA. WPA2 is based on the final IEEE 802.11i amendment to the 802.11 standard. 4.17 What is 802.1x Authentication? 802.1x is a framework for authenticated MAC-level access control, defines Extensible Authentication Protocol (EAP) over LANs (WAPOL).
  • Page 78: What Is Universal Plug And Play (Upnp)

    Clone MAC address is designed for your special application that request the clients to register to a server machine with one identified MAC address. Since that all the clients will communicate outside world through the UGL2430-RTB, so have the cloned MAC address set on the UGL2430-RTB will solve the issue.
  • Page 79: What Is Wmm

    BSS communicate with the access point and no longer communicate directly. All frames are relayed between stations by the access point. This local relay function effectively doubles the range of the IBSS 4.30 What is WMM? WMM is based on a subset of the IEEE 802.11e WLAN QoS draft standard. WMM adds prioritized capabilities to Wi-Fi networks and optimizes their performance when multiple concurring applications, each with different latency and throughput requirements, compete for network resources.
  • Page 80: Configuration Examples

    5.1 Example One – PPPoE on the WAN Sales division of Company ABC likes to establish a WLAN network to support mobile communication on sales’ Notebook PCs. MIS engineer collects information and plans the UGL2430-RTB implementation by the following configuration.
  • Page 81 WAN configuration: PPPoE User Name H890123456 Password PW192867543210 LAN configuration IP Address 192.168.1.254 Subnet Mask 255.255.255.0 Default Gateway 0.0.0.0 DHCP Client Range 192.168.1.100 – 192.168.1.200 WLAN configuration SSID MyWLAN Channel Number Figure 3 – Configuration Example One – PPPoE on the WAN...
  • Page 82 Configure the WAN interface: Open WAN Interface Setup page, select PPPoE then enter the User Name “H890123456” and Password “PW192867543210”, the password is encrypted to display on the screen. Press button to confirm the configuration setting. Configure the LAN interface: Open LAN Interface Setup page, enter the IP Address “192.168.1.254”, Subnet Mask...
  • Page 83: Example Two - Fixed Ip On The Wan

    5.2 Example Two – Fixed IP on the Company ABC likes to establish a WLAN network to support mobile communication on all employees’ Notebook PCs. MIS engineer collects information and plans the UGL2430-RTB implementation by the following configuration. WAN configuration: Fixed IP IP Address 192.168.2.254...
  • Page 84 Figure 4 – Configuration Example Two – Fixed IP on the WAN Configure the WAN interface: Open WAN Interface Setup page, select Fixed IP then enter IP Address “192.168.2.254”, subnet mask “255.255.255.0”, Default gateway “192.168.2.10”. Press button to confirm the configuration the setting.
  • Page 85 Configure the LAN interface: Open LAN Interface Setup page, enter the IP Address “192.168.1.254”, Subnet Mask “255.255.255.0”, enable DHCP Server, DHCP client range “192.168.1.100” to “192.168.1.200”. Press button to confirm the configuration setting. Configure the WLAN interface: Open WLAN Interface Setup page, enter the SSID “MyWLAN”, Channel Number “11”.
