Eusso UGL2430-RTH User Manual

Wireless-n 4-port router
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

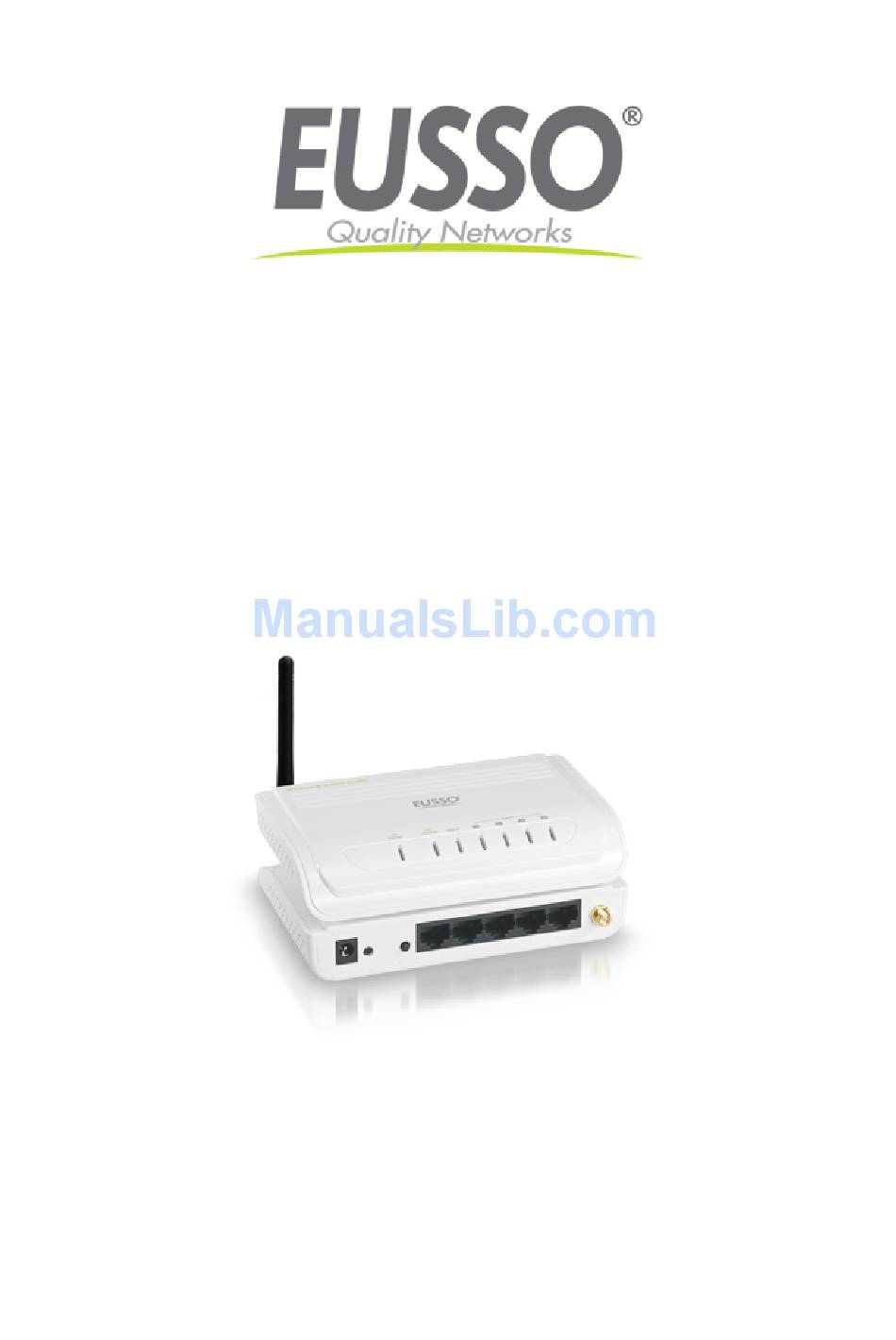

Wireless-N 4-Port Router
UGL2430-RTH
User's Manual
Copyright EUSSO Technologies, Inc. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UGL2430-RTH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eusso UGL2430-RTH

Summary of Contents for Eusso UGL2430-RTH

  • Page 1 Wireless-N 4-Port Router UGL2430-RTH User’s Manual Copyright EUSSO Technologies, Inc. All rights reserved.
  • Page 2 FCC Warning This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication.

  • Page 3: Revision History

    Copyright 2009 All Rights Reserved. No part of this document can be copied or reproduced in any form without written consent from the company. Trademarks: All trade names and trademarks are the properties of their respective companies. Revision History Revision History Release...

  • Page 4: Table Of Contents

    Table of Contents 1. Introduction ..................5 1.1 Features ...................... 5 1.2 Package Contents..................6 1.3 System Requirements ................6 1.4 LEDs Indication & Connectors of Wireless Router ........6 1.5 Installation Instruction ................7 2. PC Configuration ................8 2.1 TCP/IP Networking Setup ................
  • Page 5 3.4.3 Virtual Server ................37 3.4.4 DMZ ....................38 3.5 Firewall ...................... 40 3.5.1 General..................40 3.5.2 URL Filter..................42 3.5.3 MAC Filter ..................42 3.5.4 LAN to WAN Filter ................. 43 3.6 Administration................... 45 3.6.1 Status..................... 45 3.6.2 System ..................46 3.6.3 Firmware Upgrade...............

  • Page 6: Introduction

    1. Introduction This Wireless Broadband Router is a draft 802.11n compliant device that provide faster and farther range than 802.11g while backward compatible with 802.11g and 802.11b devices. This Router uses advanced broadband router chipset and wireless LAN chipset solution let you enjoy high-speed Wired and Wireless connection.

  • Page 7: Package Contents

    1.2 Package Contents ‧ One Wireless AP Router with 1 antennas ‧ One External Power Adapter ‧ One CD-ROM (user’s manual) ‧ One RJ-45 Ethernet Cable 1.3 System Requirements ‧ Computers with an installed Ethernet adapter. ‧ Valid Internet Access account and Ethernet based DSL or Cable modem.

  • Page 8: Installation Instruction

    Back Panel Connectors Button/Port Description Reset Reset configurations to default. You would use the reset button only when a program error has caused your 11n AP router to hang. Press the button and hold for 10 seconds. Click WPS button about 2-3 seconds while you are connecting a PC of wireless adapter with WPS function (you must enable WPS’...

  • Page 9: Pc Configuration

    2. PC Configuration To communicate and configure 802.11n AP router, the PC on your LAN must install TCP/IP protocol. Make sure the TCP/IP protocol of the PC is configured for Obtain IP address from DHCP and is connected to LAN (Ethernet) port of the AP router.
  • Page 10 Click “Properties”, the window below will appear and then click “IP Address” tab, ‧ If you decide to use DHCP, select “Obtain an IP address automatically”, then click “OK” to confirm your settings. Once you...
  • Page 11 restart your system, Wireless Router will obtain an IP address for this system. ‧ If you decide to use fixed IP address for your system, select “Specify an IP address”, and make sure that IP Address and Subnet Mask are correct. Select “Gateway”...
  • Page 12 Checking TCI/IP Setting for Windows NT4.0 Select “Control Panel Network”, window below will appear, click “Protocols” tab then select “TCP/IP protocol”, Click “Properties”, window below will appear.
  • Page 13 ‧ Select the network card on your system from “Adapter” field. ‧ If you decide to use IP address from Wireless Router, select “Obtain an IP address from a DHCP server”. ‧ If you decide to use the IP address you are desired, select “Specify an IP address”.
  • Page 14 Checking TCP/IP Settings for Windows 2000 Select “Start Control Panel Network and Dial-up Connection” and right click “Local Area Connection” then click “Properties”,...
  • Page 15 Select the “Internet Protocol (TCP/IP)” for the network card on your system, then click “Properties”, window below will appear. ‧ If you decide to use IP address from Wireless Router, select “Obtain an IP address automatically”. ‧ If you decide to use the IP address you are desired, select “Use the following IP address”.
  • Page 16 Select “Internet Protocol (TCP/IP)” then click “Properties”, window below will appear.
  • Page 17 ‧ If you decide to use IP address from Wireless Router, select “Obtain an IP address automatically”. ‧ If you decide to use the IP address you are desired, select “Use the following IP address”. Make sure enter correct addresses in “IP Address”...
  • Page 18 ‧ If you decide to use IP address from Wireless Router, select “Obtain an IP address automatically”. ‧ If you decide to use the IP address you are desired, select “Use the following IP address”. Make sure enter correct addresses in “IP Address”...
  • Page 19 Configure IP address Automatically: Select “Obtain an IP address automatically” and “Obtain DNS server address automatically” Click “OK” to finish the configuration.
  • Page 20 Configure IP Address Manually: Select “Use the following IP address” and “Use the following DNS server addresses”. IP address: Fill in IP address 192.168.1.x (x is a number between 2 to 254). Subnet mask: Default value is 255.255.255.0. Default gateway: Default value is 192.168.1.1. Preferred DNS server: Fill in preferred DNS server IP address.

  • Page 21: Configure Wireless Router Via Web Based Utility

    You can use ping command under DOS prompt to check if you have setup TCP/IP protocol correctly and if your computer has successfully connected to this router. 1) Type ping 192.168.1.1 under DOS prompt and the following messages will appear: If the communication link between your computer and router is not setup correctly, after you type ping 192.168.1.1 under DOS prompt following messages will appear:...
  • Page 22 Step1: Enter Wireless Router’s default IP address as http://192.168.1.1 in the Address field then press Enter. admin Step2: Login dialog box will appear, enter as Administrator Name and 1234 as default Administrator Password, and then click “OK” to access Configuration Utility. Step3: After log in, you can see the Main menu as below.

  • Page 23: Wireless

    3.2 Wireless Configure your wireless connection, security, and other advanced parameters. 3.2.1 General This page allows user to configure basic wireless settings.
  • Page 24 SSID: Assign an identification string of up to 32 characters for your wireless connection. Hide SSID: If [YES] is selected, your SSID does not show in site surveys by wireless mobile clients and they can only connect to your Wireless Router with your SSID of AP.

  • Page 25: Wps

    802.11g traffic automatically in the presence of 11b traffic. Authentication Method: This field enables the authentication methods for wireless clients. WPA Encryption: Enable WPA Encryption to encrypt data. WPA Pre-Shared Key: This field requires a password of 8 to 63 characters to start the encryption process.

  • Page 26: Bridge

    authentication of Open system, Share key, WPA-Personal, WPA2-Personal. Not support WPA-Enterprise, WPA2-Enterprise and Radius. Default is Disable. AP PIN Code: Remember the PIN code of AP (the same as PIN code in the bottom of WIRELESS ROUTER). Input this PIN code in client's WPS utility and utility will configure the wireless security setting of WIRELESS ROUTER.
  • Page 27 (2) To ensure the connection, please set the same channel and security method between different APs. (3) To bridge different model and router, the function only supports “Open system WEP” security7 authentication method. AP Mode: There have 3 options for WDS function AP Only –...

  • Page 28: Wireless Mac Filter

    reduces the range at which clients can connect to the repeater access point. Additionally, the repeater access point is communicating with the client as well as the upstream access point over the wireless link, reducing throughput on the wireless segment. Users attached to the repeater access point will likely experience low throughput and high latencies in the scenario.

  • Page 29: Radius Mac Filter

    MAC Filter Mode: In Accept mode, WIRELESS ROUTER only accepts clients with MAC address in the list. In Reject mode, WIRELESS ROUTER will reject clients with MAC address in the list. MAC Address: Enter the complete MAC address which contains 12 hexadecimal letters.

  • Page 30: Professional

    3.2.6 Professional Wireless Professional Setting allows you to set up additional parameters for wireless. But default values are recommended.
  • Page 31 Enable Radio?: Select [Yes] to enable Radio function. Date to Enable Radio: This field defines the dates that wireless function is enabled. Time of Day to Enable Radio: This field defines the time interval that wireless function is enabled. Data Rate (Mbps): This field allows you to select the transmission rate. [Auto] is recommended to maximize performance.

  • Page 32: Lan

    incoming messages (ranging from 256 to 2346 bytes) used as fragmentation boundary. If the frame size is too big, the heavy interference affects transmission reliability. If the frame size is too small, it decreases transmission efficiency. RTS Threshold: Lower the signal RTS (Request To Send) to promote the transmission efficiency in condition of noisy environment or too many clients.

  • Page 33: Dhcp

    192.168.1.1. Subnet Mask: The LAN subnet mask of WIRELESS ROUTER. The Default value is 255.255.255.0 3.3.2 DHCP WIRELESS ROUTER supports up to 253 IP address for your local network. The IP address of a local machine can be is assigned manually by the network administrator or obtained automatically from WIRELESS ROUTER if the DHCP server is enabled.

  • Page 34: Route

    Enable the DHCP Server?: DHCP server administers and assigns IP addresses for LAN clients automatically. WIRELESS ROUTER's Domain Name: The Domain Name for client who requests IP address from the DHCP server. IP Pool Starting Address: The first address in the pool to be assigned by the DHCP server in LAN.

  • Page 35: Wan

    Network/Host IP: It stands for the destination network or host of a route rule. So it could be a host address, such as 「192.168.123.11」 or a network address, such as 「192.168.0.0」. Netmask: It indicates how many bits are for network ID and subnet ID. For example: if the dotted-decimal netmask is 255.255.255.0, then it’s netmask bits is 24.
  • Page 36 fields differ depending on the connection type you selected. WAN Connection Type: WIRELESS ROUTER supports 5 methods of obtaining the WAN IP Address: Automatic IP (DHCP): Automatic gets IP address from your ISP. PPPoE (ADSL): PPPoE is a common connection type used for xDSL. -- PPTP: PPP Tunneling Protocol can support multi-protocol Virtual Private Network (VPN).
  • Page 37 contact between WIRELESS ROUTER and the remote network or host. Connect to DNS Server automatically: This field allows you to get the DNS IP address from the remote network automatically DNS Server 1~2: This field indicates the IP address of DNS that WIRELESS ROUTER contacts to.

  • Page 38: Port Trigger

    MAC address: This field allows you to provide a unique MAC address for WIRELESS ROUTER to connect Internet. It is usually requested by your ISP. 3.4.2 Port Trigger Port Trigger function allows you to open certain TCP or UDP ports to communicate with the computers connected to WIRELESS ROUTER.

  • Page 39: Dmz

    accessible to the outside users, you should specify a local IP address to the server. Then, add the IP address and network protocol type, port number, and name of the service in the following list. Based on the list, the gateway will forward service request from outside users to the corresponding local server.
  • Page 40 IP Address of Exposed Station: Enter the IP address of a particular host in your LAN that will receive all the packets originally going to the WAN port/Public IP address above. Note: You need to give your LAN PC clients a fixed/static IP address for DMZ to work properly 3.4.5 DDNS Dynamic DNS (DDNS) allows you to assign an Internet domain name to a...

  • Page 41: Firewall

    Enable the DDNS Client: Enable/Disable the DDNS server. Default setting is Disable. Server: AP Router supports type: DynDns.org. User Name or E-mail address: Enter the user name or e-mail address that you register in DynDns.org website Password or DDNS Key: Enter the password or DDNS Key that you register in DynDns.org website Hostname: Enter the hostname that you register in...
  • Page 42 [General] Enable Web Access from WAN?: This feature allows you to configure WIRELESS ROUTER from the Internet. If you are under Home Gateway mode, please access WIRELESS ROUTER with 8080 port (i.e. http://Your WAN IP: 8080). Port of Web Access from WAN: To specify the port used to configure WIRELESS ROUTER from the Internet.

  • Page 43: Url Filter

    connect to their corporate intranets or extranets. 3.5.2 URL Filter To specify keyword, URL filter will block specific URL access from clients. Date to Enable URL Filter: This field defines the dates that URL filter will be enabled. Time of Day to Enable URL Filter: This field defines the time interval that URL filter will be enabled.

  • Page 44: Lan To Wan Filter

    MAC Filter Mode: In Accept mode, WIRELESS ROUTER only accepts clients with MAC address in the list. In Reject mode, WIRELESS ROUTER will reject clients with MAC address in the list. MAC Address: Please enter the complete MAC address which contains 12 hexadecimal letters.
  • Page 45 Enable LAN to WAN Filter?: Select [Yes] to enable filter that specify IP or port for control incoming and outgoing packets. Date to Enable LAN to WAN Filter: This field defines the dates that LAN to WAN filter will be enabled. Time of Day to Enable LAN to WAN Filter: This field defines the time interval that LAN to WAN filter will be enabled.

  • Page 46: Administration

    3.6 Administration Configure the system and upgrade the firmware of WIRELESS ROUTER. 3.6.1 Status This page is to view the Wireless system status, such as System Information, Internet Configurations and Local Network information.

  • Page 47: System

    3.6.2 System This section allows you to change system’s Password and Remote server’s information. Remote Log Server: This field allows assigning a remote server to record log messages of WIRELESS ROUTER. If you leave it blank, the system will record up to 1024 messages on WIRELESS ROUTER.

  • Page 48: Firmware Upgrade

    3.6.3 Firmware Upgrade Follow instructions listed below: 1. Check if any new version of firmware is available on website. 2. Download a proper version to your local machine. 3. Specify the path of and name of the downloaded file in the [New Firmware File].

  • Page 49: Restore/Save/Upload

    3.6.4 Restore/Save/Upload This function allows you to save current settings of WIRELESS ROUTER to a file, or load settings from a file. Factory default: Click [Factory default] to restore the router to its factory default settings and delete all the current settings. Wait for a while until the router reboots.

  • Page 50: General

    3.7.1 General The log file keeps a running log of events and activities occurring on the device. The log always displays recent logs. When the device is rebooted, the log would not be cleared. Boot time: Elapsed time since system boot 3.7.2 System Status This page is to view the Wireless system status.

  • Page 51: Dhcp Lease

    3.7.3 DHCP Lease This page displays the DHCP leases log, such as Hose Name, MAC Address, IP address, and Expires In information. 3.7.4 Wireless Log This page displays wireless system log, such as wireless mode, channel, and Stations list.

  • Page 52: Routing Table

    Radio Control: To enable wireless radio or disable. 3.7.5 Routing Table A routing table contains the information necessary to forward a packet along the best path toward its destination. Each packet contains information about its origin and destination. When a packet is received, a network device examines the packet and matches it to the routing table entry providing the best match for its destination.

  • Page 53: Lan Status & Log

    Destination: The IP address of the packet’s final destination. The destination can be an IP address or a class-based, sub-netted, or super-netted network ID. Gateway: The IP address to which the packet is forward. Netmask: Includes directly-attached subnets, indirect subnets that are not attached to the device but can be accessed through one or more hops, and default routes to use for certain types of traffic or when information is lacking.

  • Page 54: Wan Status & Log

    3.7.7 WAN Status & Log This section shows Router’s WAN Status (Upload/Download Status) and Log chart.

  • Page 55: Cpu Status & Log

    3.7.8 CPU Status & Log This section shows Router’s CPU Status (current/Maximum/Average status) and Log chart.

  • Page 56: Nat Status & Log

    3.7.9 NAT Status & Log This section shows Router’s CPU Status (current/Maximum/Average status) and Log chart.
