Eusso Wireless ADSL2+ 4-Port Router User Manual

Wireless adsl2+ 4-port router
Hide thumbs Also See for Wireless ADSL2+ 4-Port Router:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual

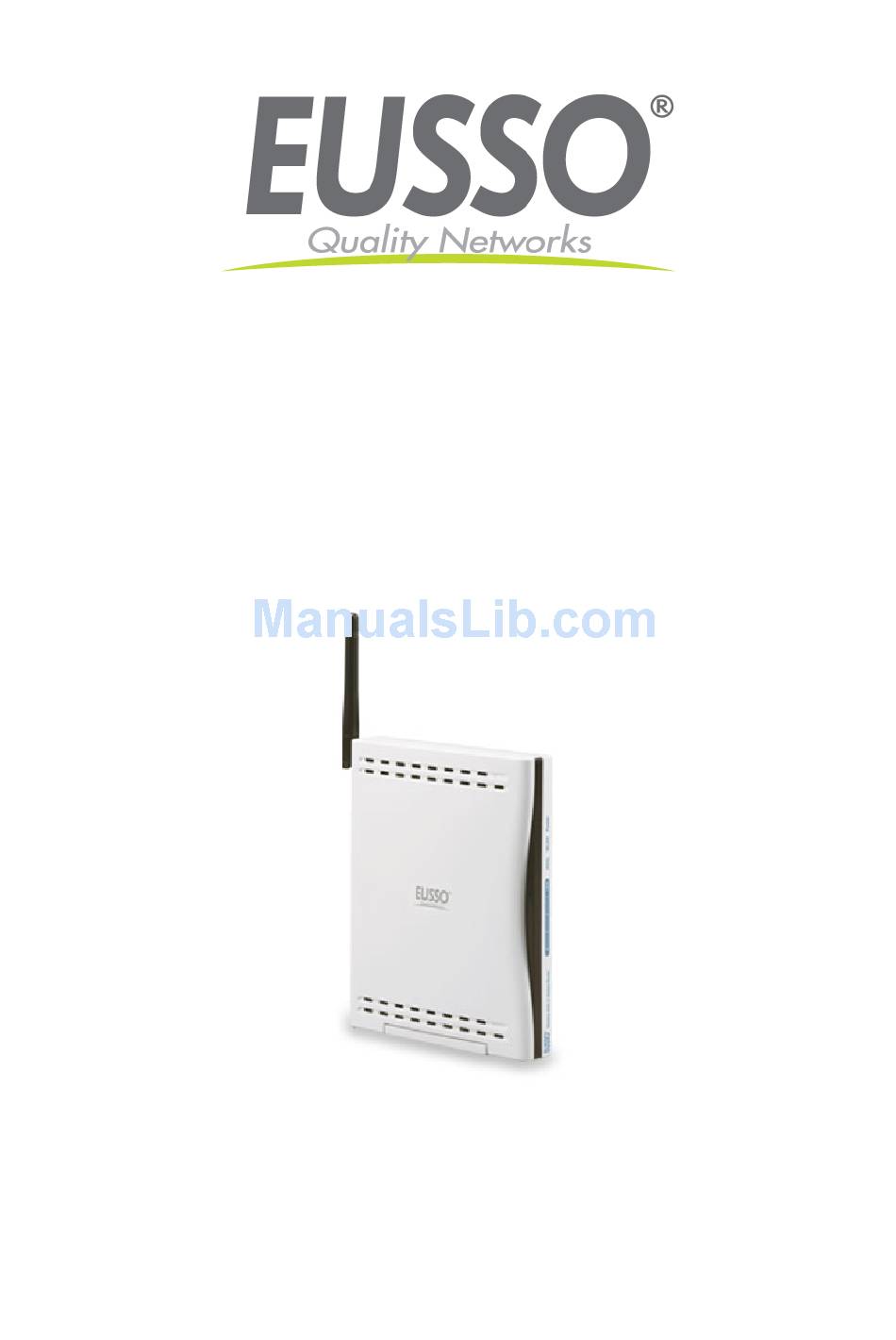

Wireless ADSL2+ 4-Port
Router
User's Manual
Copyright 2007 EUSSO Technologies, Inc. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Wireless ADSL2+ 4-Port Router and is the answer not in the manual?

Questions and answers

Related Manuals for Eusso Wireless ADSL2+ 4-Port Router

Summary of Contents for Eusso Wireless ADSL2+ 4-Port Router

  • Page 1 Wireless ADSL2+ 4-Port Router User’s Manual Copyright 2007 EUSSO Technologies, Inc. All rights reserved.

  • Page 2: Fcc Warning

    April 2008 FCC Warning This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication.
  • Page 3 Copyright 2007 All Rights Reserved. No part of this document can be copied or reproduced in any form without written consent from the company. Trademarks: All trade names and trademarks are the properties of their respective companies. Revision History Revision History V1.3 release...

  • Page 4: Table Of Contents

    Table of Contents 1. Introduction ....................5 1.1 Introduction ..................... 5 1.2 Product Features .................... 5 2. Hardware Installation ................... 9 2.1 System Requirements ..................9 2.2 Package Contents................... 9 2.3 Front Panel Indicators and Description............9 2.4 Back Panel..................... 10 2.5 Connect Related Devices ................
  • Page 5 6.3.2 How NAT Works ................. 43 6.3.3 NAT Application ................. 44 6.3.4 NAT Mapping Types ................45 6.3.5 DMZ ..................... 45 6.3.6 Virtual Server..................46 6.3.7 IP Address Mapping................47 6.4 QoS ........................ 48 6.5 VLAN ......................49 6.6 ADSL ......................51 7.

  • Page 6: Introduction

    1. Introduction 1.1 Introduction This full rate Wireless ADSL2+ router is an all-in-one gateway for Home and SOHO applications. This gateway are with full-featured ADSL router that provides high-speed Internet access, 4-port Ethernet switch direct connections to individual PCs or local area network with 10/100 Base-T Ethernet and 54Mbps IEEE802.11g wireless connectivity.

  • Page 7: Quick Setup Wizard

    ITU-T G.992.4 (ADSL2 G.lite.bis) ITU-T G.992.5 (ADSL2+; Annex A, B, I, J, L & M) Reach Extended ADSL (RE ADSL) Quick Setup Wizard Support Quick Setup Wizard Web GUI and Easy setup software to install this Wireless ADSL2+ router easily and quickly. Multi-connection protocol support Multi Protocol over AAL5 (RFC1483 / 2684) Classical IP over ATM (RFC 1577)

  • Page 8: Device Management

    configuration at start-up from a centralized DHCP server. The ADSL router has built-in DHCP server capability enabled by default. It can assign IP addresses, an IP default gateway and DNS servers to DHCP clients. It can also act as a surrogate DHCP server (DHCP Relay) where it relays IP address assignment from the actual real DHCP server to the clients.
  • Page 9 DoS Protection Stateful Packet Inspection (SPI) VPN (IPSec, PPTP, L2TP) pass through Built-in NAT Firewall IP-based Packet filtering Password Protected System Management...

  • Page 10: Hardware Installation

    2. Hardware Installation 2.1 System Requirements Pentium III 266 MHz processor or higher 128 MB RAM minimum 20 MB of free disk space minimum RJ45 Ethernet Port 2.2 Package Contents Wireless ADSL2+ Router RJ-45 Ethernet cable RJ-11 Phone cable Power Adapter Quick Installation Guide One External Antenna (for detachable model) 2.3 Front Panel Indicators and Description...

  • Page 11: Back Panel

    2.4 Back Panel LINE Connect with phone cable RESET Reset button. Reset the setting to default. Connect with Ethernet Cable to Switch Hub or PC Connect with Ethernet Cable to Switch Hub or PC Connect with Ethernet Cable to Switch Hub or PC Connect with Ethernet Cable to Switch Hub or PC DC IN Connect to DC Power Adapter...

  • Page 12: Connecting Wireless Adsl2+ Router Via Ethernet

    3. Connecting Wireless ADSL2+ Router via Ethernet Your router can be managed from anywhere with the embedded Web configuration using a Web browser, such as Microsoft Internet Explorer or Netscape Navigator. Internet Explorer 6.0 and later or Netscape Navigator 7.0 and later versions with JavaScript enabled should be used. 3.1 Setup Wireless ADSL2+ router via Ethernet Cable If there is an available LAN card present on your PC, you just simply connect ADSL router and PC through the Ethernet cable.
  • Page 13 Option1: Get an IP from Router Automatically Select the IP Address tab. In this page, click Obtain an IP address automatically radio button. Select Gateway tab and click OK...
  • Page 14 Then, select DNS Configuration tab and select Disable DNS then click OK to finish the configuration. Option2: Configure IP Manually 1) At IP Address tab, select Specify an IP address, set default IP address for the Router is 192.168.1.1, so use 192.168.1.X (X is a number between 2 to 254) for IP Address field and 255.255.255.0 for Subnet Mask field.
  • Page 15 2) Select Gateway tab and add default Router IP Address “192.168.1.1” in the New gateway field and click Add. Under DNS Configuration tab, select Enable DNS and add DNS values (192.168.1.1) in DNS Server Search Order field then click Add.
  • Page 16 For Windows 2000 Step 1: (a) Right-click My Network Places and select Properties in the main window screen (b) Or, go to Start / Settings / Control Panel. In the Control Panel, double-click on Network and Dial-up Connections. Step 2: Right click Local Area Connection (your local network hooked up with ADSL router) and select Properties:...
  • Page 17 Step 3: Select Internet Protocol (TCP/IP) then click Properties: Configure IP Automatically: Step 4: Select Obtain an IP address automatically and Obtain DNS server address automatically then click OK to complete IP configuring process.
  • Page 18 Configure IP Manually: Step 4: Select Use the following IP address and Use the following DNS server addresses. IP address: Fill in IP address 192.168.1.x (x is a number between 2 to 254). Subnet mask: Default value is 255.255.255.0. Default gateway: Default value is 192.168.1.1. Preferred DNS server: Fill in preferred DNS server IP address.
  • Page 19 Step 2: Double-click Network Connections icon. Step 3: Right-click Local Area Connection (local network your ADSL hooked up with) and select Properties:...
  • Page 20 Step 4: Select Internet Protocol (TCP/IP) then click Properties: Configure IP address Automatically: Step 5: Select Obtain an IP address automatically and Obtain DNS server address automatically. Click OK to finish the configuration.
  • Page 21 Configure IP Address Manually: Step 5: Select Use the following IP address and Use the following DNS server addresses. IP address: Fill in IP address 192.168.1.x (x is a number between 2 to 254). Subnet mask: Default value is 255.255.255.0. Default gateway: Default value is 192.168.1.1.
  • Page 22 For Windows Vista Step 1: Click Start then select Control Panel (in the Classic View). Step 2: Double-click Network and Sharing Center icon.
  • Page 23 Step 3: Select “Manage Network connections”. Step 4: Right-click Local Area Connection (local network your ADSL hooked up with) and select Properties:...
  • Page 24 Step 5: Select Internet Protocol (TCP/IP) then click Properties: Configure IP address Automatically: Step 6: Select Obtain an IP address automatically and Obtain DNS server address automatically. Click OK to finish the configuration.
  • Page 25 Configure IP Address Manually: Step 7: Select Use the following IP address and Use the following DNS server addresses. IP address: Fill in IP address 192.168.1.x (x is a number between 2 to 254). Subnet mask: Default value is 255.255.255.0. Default gateway: Default value is 192.168.1.1.

  • Page 26: Configure Wireless Adsl2+ Router Via Html

    4. Configure Wireless ADSL2+ Router via HTML This device supports a Web-based (HTML) GUI to allow users to configure Router setting via Web browser. 4.1 Login 1) Launch the Web browser. 2) Enter the default IP address http://192.168.1.1 3) Entry of the username and password will be displayed. Enter the default login User Name and Password: The default login User Name of the administrator is admin, and the default login password is admin.

  • Page 27: Navigating The Web Configurator

    4.2 Navigating the Web Configurator Steps to navigate the Web configuration from the Site Map are summarized as below. Steps to navigate the Web configuration from the Site Map are summarized below. Click on Interface Setup to configure Internet and LAN functions. Click on Advanced Setup to configure advanced features.

  • Page 28: Interface Setup

    5. Interface Setup The physical connections determine whether the router ports are local area network (LAN) ports or wide area network (WAN) ports. There are two kinds of IP networks. The local, private kind is the LAN network; the global, public kind is the WAN network. The following illustration shows the relationship between the router and the two different networks.

  • Page 29: Atm Vc & Qos

    5.1.1 ATM VC & QoS ATM settings are used to connect to your ISP. Your ISP provides VPI, VCI, settings to you. In this Device, you can totally setup 8 PVCs on different encapsulations if you apply 8 different virtual circuits from your ISP.

  • Page 30: Encapsulation

    After MBS is reached, cell rates fall below SCR until cell rate averages to the SCR again. At this time, more cells (up to the MBS) can be sent at the PCR again. CBR is for connections that support constant rates of data transfer. The only parameter you need to worry about in CBR is PCR.
  • Page 31 Default Route Select whether this PVC will be the default route for Internet data. TCP MTU Option Enter TCP MTU Value here Dynamic Route Select the RIP type and direction from the dropdown lists. Multicast Select the multicast protocol you wish to use from the dropdown list. (2) Static IP Address Select this option to set static IP information.
  • Page 32 Please enter the information accordingly. LABEL DESCRIPTION Servicename Enter your Servicename for your PPPoE/PPPoA connection. Username Enter your username for your PPPoE/PPPoA connection. Password Enter your password for your PPPoE/PPPoA connection. Encapsulation Select your encapsulation type from the dropdown list. Bridge Interface Select whether the Interface will be Activated or Deactivated.
  • Page 33 Select whether NAT is Enabled or Disabled. Default Route Select whether this PVC will be the default route for Internet data. TCP MTU Option Enter TCP MTU Value here. Dynamic Route Select the RIP type and direction from the dropdown lists. Multicast Select the multicast protocol you wish to use from the dropdown list.

  • Page 34: Lan

    (4) Bridge Mode The modem can be configured to act as a bridging device between your LAN and your ISP. Bridges are devices that enable 2 or more networks to communicate as if they are 2 segments of the same physical LAN. Please set the Connection type. The following table describes the labels in this screen.

  • Page 35: Router Local Ip

    5.2.1 Router Local IP IP Address: Enter the IP address of your ADSL router in dotted decimal notation, for example, 192.168.1.1 (default setting). IP Subnet Mask: Your ADSL router will automatically calculate the subnet mask based on the IP address that you assign. Unless you are implementing sub netting, use the subnet mask computed by the ADSL router.

  • Page 36: Dhcp Relay

    range of the IP address that will automatically be assigned to the client on the network. LABEL DESCRIPTION Starting IP Address Enter the starting IP address you wish to use as the DHCP server's IP assignment. IP Pool Count Enter the maximum user pool size you wish to allow. Lease Time Enter the amount of time you wish to lease out a given IP address.

  • Page 37: Dns Relay

    5.2.5 DNS Relay The DNS Configuration allows the user to set the configuration of DNS. DNS Rely Selection: If user wants to disable this feature, he just needs to set both Primary & Secondary DNS to 0.0.0.0. Using DNS relay, users can setup DNS server IP to 192.168.1.1 on their computer.

  • Page 38: Wireless

    5.3 Wireless 5.3.1 Access Point Settings Access Point: Select this section for Activated or Deactivated AP function. Channel: Select the local channel from the drop down list. Beacon Interval: The Beacon Interval value indicates the frequency interval of the beacon. Enter a value between 20 and 1000.

  • Page 39: Multiple Ssids Settings

    RTS/CTS Threshold: The RTS (Request To Send) threshold (number of bytes) for enabling RTS/CTS handshake. Data with its frame size larger than this value will perform the RTS/CTS handshake. Set this attribute to be larger than the maximum MSDU (MAC Service Data Unit) size TURNS OFF the RTS/CTS handshake.

  • Page 40: Wds Settings

    5.3.3 WDS Settings A Wireless Distribution System is a system that enables the interconnection of access points wirelessly. It allows a wireless network to be expanded using multiple access points without the need for a wired backbone to link them. WDS is another way for AP router to join an existing Wi-Fi network.

  • Page 41: Advanced Setup

    6 Advanced Setup 6.1 Firewall User can enable or disable firewall feature of the ADSL router in the page. Firewall: Select this option can automatically detect and block Denial of Service (DoS) attacts, such as Ping of Death, SYN Flood, Port Scan and Land Attack. SPI: Select this option to Enabled or Disabled the SPI feature.
  • Page 42 [Static Route] Select this option to set Static Routing information. Destination IP Address: This parameter specifies the IP network address of the final destination of packets routed by this rule. IP Subnet Mask: Enter the subnet mask for this destination. Gateway IP Address: Enter the IP address of the gateway.

  • Page 43: Nat

    remote node in its RIP broadcasts. If you choose Yes, the router in this remote node will be propagated to other hosts through RIP broadcasts. If you choose No, this route is kept private and is not included in the RIP broadcasts. When you are done making changes, click on SAVE to save your changes, DELETE to delete the rule with the parameters you set, BACK to return to the previous screen or CANCEL to exit without saving.

  • Page 44: What Nat Does

    define the Address Mapping rules; for VCs with single IP, since they have only one IP, there is no need to individually define the Address Mapping rule. 6.3.1 What NAT Does NAT changes the source IP address in a packet received from a subscriber (the inside local address) to another (the inside global address) before forwarding the packet to the WAN side.

  • Page 45: Nat Application

    WAN. For incoming packets, the ILA is the destination address on the LAN, and the IGA is the destination address on the WAN. NAT maps private (local) IP addresses to globally unique ones required for communication with hosts on other networks. It replaces the original IP source address (and TCP or UDP source port numbers for Many-to-One and Many-to-Many Overload NAT mapping) in each packet and then forwards it to the Internet.

  • Page 46: Nat Mapping Types

    6.3.4 NAT Mapping Types NAT supports five types of IP/port mapping. They are: a. One-to-One: In One-to-One mode, the TC3162 EVM maps one local IP address to one global IP address. b. Many-to-One: In Many-to-One mode, the TC3162 EVM maps multiple local IP addresses to one global IP address.

  • Page 47: Virtual Server

    DMZ Host IP Address: Enter the specified IP Address for DMZ host on the LAN side When you are done making changes, click on SAVE to save your changes or on BACK to return to the previous screen. 6.3.6 Virtual Server The Virtual Server is the server or server(s) behind NAT (on the LAN), for example, Web server or FTP server, that you can make visible to the outside world even though NAT makes your whole inside network appear as a single machine to the outside world.

  • Page 48: Ip Address Mapping

    6.3.7 IP Address Mapping The IP Address Mapping is for those VCs that with multiple IPs. The IP Address Mapping rule is per-VC based. (only for Multiple IPs’ VCs). Rule Index: The Virtual server rule index for this VC. You can specify up to 10 rules. All the VCs with single IP will use the same Virtual Server rules.

  • Page 49: Qos

    6.4 QoS QoS (Quality of Service). This option will provide better service of selected network traffic over various technologies. Deploying QoS management to guarantee that all application receive the service levels required and sufficient bandwidth to meet performance expectations is indeed one important aspect of modem enterprise network.

  • Page 50: Vlan

    6.5 VLAN Virtual LAN (VLAN) is a group of devices on one or more LANs that are configured so that they can communicate as if they were attached to the same wire, when in fact they are located on a number of different LAN segments.
  • Page 51 membership in a set of VLANs. (2) ATM VLAN-using LAN Emulation(LANE) protocol to map Ethernet packets into ATM cells and deliver then to their destination by converting an Ethernet MAC address into an ATM address. The key for the IEEE 802.1Q to perform the above functions is in its tags. 802.1Q-compliant switch ports can be configure to transmit tagged or untagged frames.

  • Page 52: Adsl

    6.6 ADSL Select this option to set ADSL Mode and ADSL Type information. ADSL Mode: Select which mode your ADSL connection uses from the dropdown list. The option has Auto Sync-up, ADSL2+, ADSL2, G.DMT, T1.413, G.LITE ADSL Type: Select the ADSL type you use from the dropdown list. ANNEX A, ANNEX I, ANNEX A/L, ANNEX M, ANNEX A/I/J/L/M When you are done making changes, click on SAVE to save your changes.

  • Page 53: Access Management

    7. Access Management 7.1 ACL Go to Access Management ACL to enable remote management. Access Control Listing (ACL) is a management tool that acts as a filter for incoming or outgoing packets, based on application. You may use telnet or Web to remotely manage the ADSL Router. User just needs to enable Telnet or Web and give it an IP address that wants to access the ADSL Router.

  • Page 54: Filter

    For Example: How to set your ACL? 1. You must choose Activated to enable your ACL function. 2. Select the ACL Rule Index number (up to 16 number) 3. You can set the specific Secure IP address or set 0.0.0.0 for all IPs. 4.
  • Page 55 Filter Type: You can select IP/MAC Filter, Application, and URL Filter type. IP/MAC Filter Set Index: The IP/MAC Filter Set Index from 1 to 12 and each index can set up to 6 IP Filter. Interface: Choices from PVC0 to PVC7 and LAN. Direction: Choices are Both, Incoming and Outgoing.
  • Page 56 IP/MAC Filter rule Index: The IP/MAC Filter rule Index from 1 to 6. IP/MAC Filter Rule Editing: Select the IP/MAC Filter Rule Index you wish to modify. Active: Toggle this rule index on or off with Yes or No, respectively. Source IP Address: Enter the source IP address you wish to deny access to your system.

  • Page 57: Snmp

    7.3 SNMP The Simple Network Management Protocol (SNMP) is used for exchanging information between network devices. It enables a host computer to access configuration, performance, and other system data that resides in a database on the modem. The host computer is called a management station and the modem is called an SNMP agent.

  • Page 58: Upnp

    Get Community: Select to set the password for incoming Get- and GetNext request from management station. Set Community: Select to set the password for incoming Set request from management station. The default password is ‘public’. When you are done making changes, click on SAVE to save your changes.

  • Page 59: Ddns

    communicate through the ADSL Router, for example by using NAT traversal, UPnP applications automatically reserve a NAT forwarding port in order to communicate with another UPnP enabled device; this eliminates the need to manually configure port forwarding for the UPP enabled application.

  • Page 60: Cwmp

    Username: Type your user name. Password: Type the password assigned to you. Wildcard support: Select Yes or No to turn on DYNDNS Wildcard. DYNDNS Wildcard --> Enabling the wildcard feature for your host causes *.yourhost.dyndns.org to be aliased to the same IP address as yourhost.dyndns.org. This feature is useful if you want to be able to use, for example, www.yourhost.dyndns.org and still reach your hostname.

  • Page 62: Maintenance

    8. Maintenance Administration There is only one account that can access Web-Management interface-Administration. Admin has read/write access privilege. In this web page, you can set new password for admin. New Password: Type the new password in this field. Confirm Password: Type the new password again in this field. Note: If you ever forget the password to log in, you may press the RESET button up to 6 second to restore the factory default settings.
  • Page 63 Current Date/Time: This field displays an updated Date and Time when you reenter this menu. [Time Synchronization] Synchronize time with: You can choose “NTP Server automatically”, “PC’s Clock”, or “Manually” to coordinate the time. Time Zone: Choose the Time Zone of your location. This will set the time difference between your time zone and Greenwich Mean Time (GMT).

  • Page 64: Firmware

    8.3 Firmware You can upgrade the firmware and Romfile of the router in this page. Make sure the firmware you want to use is on the local hard drive of the computer. Click on Browse to browse the local had drive and locate the firmware to be used for the update. Then press UPGRADE to upload new Firmware.

  • Page 65: System Restart

    8.4 System Restart The SysRestart screen allows you to restart your router with either its current settings still in place or the factory default settings. If you wish to restart the router using the factory default settings (for example, after a firmware upgrade or if you have saved an incorrect configuration), select Factory Default Settings to reset to factory default settings.
  • Page 66 Select which PVC you wish to test from the dropdown list. The router will automatically run diagnostic tests on that circuit. A green PASS means that the given test was passed, a red FAIL means that the test was failed and a green SKIPPED means that the test was skipped.

  • Page 67: Status

    9. Status 9.1 Device Info The Device Info screen is a tool that you use to monitor your ADSL Router. It shows the Firmware Version, WAN, LAN, and MAC address information. Note that these fields are read-only and are not meant for diagnostic purposes. Except the Virtual Circuit, click the drop-down list and select the name of the Virtual Circuit on which the system status is to be shown.
  • Page 68 [LAN] IP Address: The LAN port IP address Subnet Mask: The LAN port IP subnet mask. DHCP Server: The status of DHCP Server (Enabled or Disabled) [WAN] Virtual Circuit: Click the drop-down list and select the name of the Virtual Circuit on which the system status is to be shown.

  • Page 69: System Log

    9.2 System Log The System Log displays data generated or acquired by routine system communication with other devices, such as the results of negotiations with the ISP's computers for DNS and gateway IP addresses. The device keeps a running log of events and activities occurring on the Router. You can click Save Log to display a Windows File Download dialog box that enables opening or saving the contents of the log to your PC.

  • Page 70: Statistics

    9.3 Statistics The ADSL Router keeps statistic of traffic that passes through it. You are able to view the amount of packets that passes through the Router on both the WAN port & the LAN port. The traffic counter will reset if the device is rebooted. You can select Ethernet/ADSL/WLAN to view the statistics report of LAN/WAN.
  • Page 71 [ADSL] The ADSL screen gives you information about how much data your router has transmitted or received across the ADSL connection. Click on REFRESH to update the screen. [WLAN] The WLAN screen gives you information about how much data your router has transmitted or received across the ADSL connection.

  • Page 72: Troubleshooting

    10. Troubleshooting If the router is not function properly, first check this session for simple troubleshooting before contacting your Internet service provider (ISP) for support. 10.1 Using LEDs to Diagnose Problems The LEDs are useful aides for finding possible problem causes. 10.1.1 Power LED The PWR LED on the front panel does not light up.

  • Page 73: Problems With The Web Interface

    10.2 Problems with the Web Interface I cannot access the web Interface. STEPS CORRECTIVE ACTION Make sure you are using the correct IP address of the router. Check the IP address of the router. Make sure that there is not a console session running. Check that you have enabled web service access.

  • Page 74: Problems With Lan Interface

    It is highly recommended to change the default username and password. Make sure you store the username and password in a save place. 10.4 Problems with LAN Interface I cannot access the router from the LAN or ping any computer on the LAN. STEPS CORRECTIVE ACTION Check the Ethernet LEDs on the front panel.

  • Page 75: Problems With The Internet Access

    The username and password apply to PPPoE and PPoA encapsulation only. Make sure that you have entered the correct Service Type, User Name and Password (be sure to use the correct casing). 10.6 Problems with the Internet Access I cannot access the Internet. STEPS CORRECTIVE ACTION Make sure the router is turned on and connected to the network.
