Viessmann Vitodens 200 WB2 Series Technical Data Manual

Gas-fired wall-mounted condensing boiler 25 to 230 mbh/7 to 67 kw multi-boiler installation 344 to 920 mbh/
Hide thumbs Also See for Vitodens 200 WB2 Series:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual, Instruction and Installation Manual
Model Nos. and pricing: see Price List

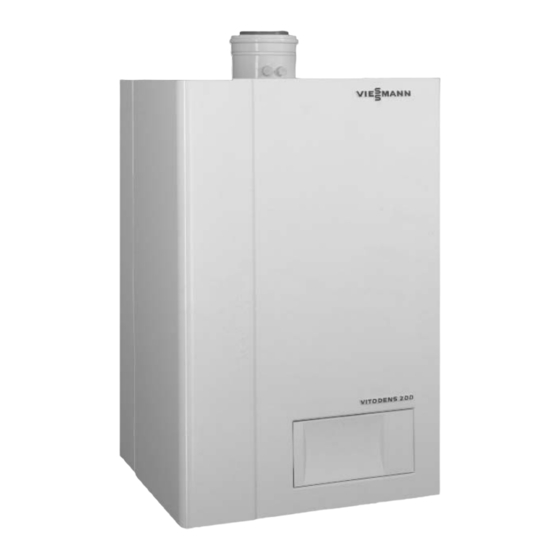

Vitodens 200, WB2-24C/24/32
Vitodens 200
WB2 Series
Gas-Fired Wall-Mounted Condensing Boiler
with modulating MatriX-compact gas burner
for room air independent operation
(using a direct vent system and room air
dependent operation)
For Natural Gas and Liquid Propane
Heating input NG
25 to 230 MBH
7 to 67 kW
Heating input LP
25 to 214 MBH
7 to 63 kW
5167 472 v3.2 11/2006
Gas-fired wall-mounted condensing boiler
25 to 230 MBH/7 to 67 kW
Multi-boiler installation 344 to 920 MBH/
Vitodens 200, WB2-44/60
(with preinstalled vent pipe adaptor)
VITODENS 200
