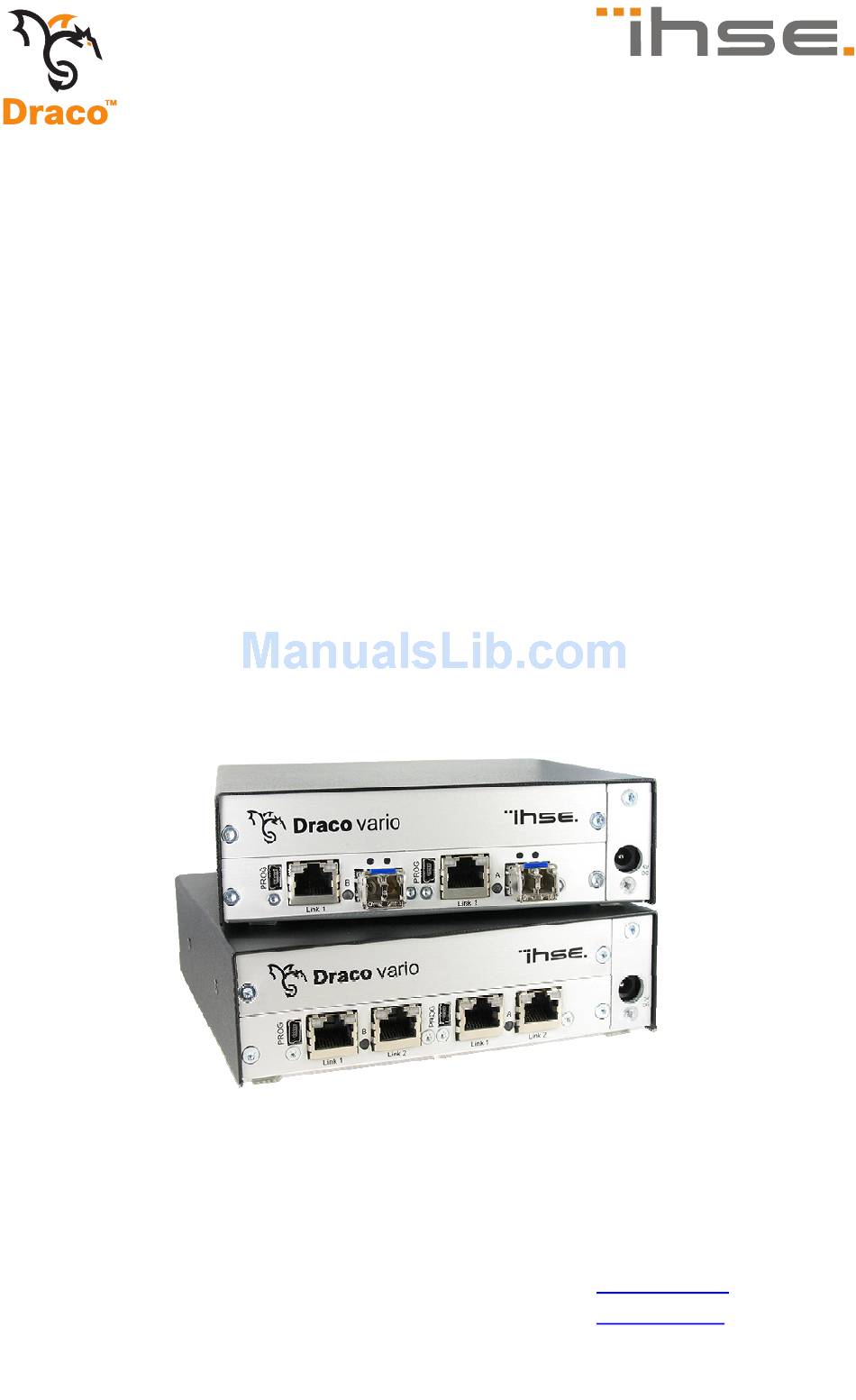

Page 1: User Manual
User Manual Edition: 2014-04-15 Draco (Cross) Repeater Model: 485 Series IHSE GmbH Maybachstrasse 11 88094 Oberteuringen Germany info@ihse.de www.ihse.de Tel. +49 7546-9248-0 Fax +49 7546-9248-48... - Page 2 Draco (Cross) Repeater Copyright © 2014. All rights reserved. This information may not be reproduced in any manner without the prior written consent of the manufacturer. Information in this document is subject to change without notice. Trademarks All trademark and trade names mentioned in this document are acknowledged to be the property of their respective owners.
-
Page 3: Table Of Contents
Contents Contents About This Manual ............... 5 Scope.................. 5 Validity ................5 Cautions and Notes ............5 Safety Instructions ............... 6 Description ................... 7 Application ................7 System Overview ..............8 Product Range ..............9 3.3.1 Chassis ..............9 3.3.2 (Cross) Repeater Modules ........ - Page 4 Draco (Cross) Repeater Installation .................. 22 Package Contents............. 22 System anschließen............22 4.2.1 (Cross) Repeater Setup ........22 Example Applications............23 Configuration................25 Operation ..................25 Specifications ................26 Interfaces ................26 7.1.1 RJ45 (Interconnect) ..........26 7.1.2 Fiber SFP Type LC (Interconnect) ...... 26 Interconnect Cable ............
-
Page 5: About This Manual
About This Manual About This Manual Scope This manual describes how to install your (Cross) Repeater, how to operate it and how to perform trouble shooting. Validity This manual is valid for all devices listed on the front page. The product code is printed on the base of the devices. -
Page 6: Safety Instructions
Draco (Cross) Repeater Safety Instructions To ensure reliable and safe long-term operation of your (Cross) Repeater please note the following guidelines: Installation Only use in dry, indoor environments. The (Cross) Repeater and the power supply units can get warm. Do not install components in an enclosed space without any airflow. -
Page 7: Description
Description Description Pos: 4 /806-IHSE/Beschreibung/Verwendungszweck/485-xx @ 11\mod_1395145109102_6.doc @ 140748 @ 2 @ 1 Application The (Cross) Repeater is basically used in order to double the maximum cabling distance between a KVM extender CON or CPU Unit or even a KVM matrix. In addition to that the device can also be used for media conversion from Cat X to fiber or vice versa. -
Page 8: System Overview
Draco (Cross) Repeater System Overview The (Cross) Repeater consists of at least one module depending on the application. The device is connected between a KVM extender CON and CPU Unit via the interconnect cable or can be alternatively connected between a KVM extender unit and a KVM matrix. -
Page 9: Product Range
Description Product Range 3.3.1 Chassis Model Description 474-BODY2 Empty chassis for up to 2 boards, 1x external power supply unit 474-BODY2R Empty chassis for up to 2 boards, 1x external power supply unit, preparation for redundancy for a second power supply unit (external) 474-BODY2N Empty chassis for up to 2 boards, 1x internal power supply unit, preparation for redundancy for a second... -
Page 10: Cross) Repeater Modules
Draco (Cross) Repeater 3.3.2 (Cross) Repeater Modules Model Description 485-BC Repeater module Cat X for range extension up to 280 m 485-BS Repeater module fiber (Single-Mode) for range extension up to 20,000 m 485-BX Repeater module Cat X/fiber (Single-Mode) for an... -
Page 11: Accessories
Description (Cross) Repeaters and the power supply units can get warm and must not be installed in closed rooms with no air circulation. For rack-mount installations, at least 0.5 U (height unit) is required above the (Cross) Repeater for ventilation. Pos: 8 /806-IHSE/Beschreibung/Zubehör/485-xx @ 11\mod_1395145995119_6.doc @ 140842 @ 2 @ 1 Accessories Model... -
Page 12: 2-Fold Vario Chassis 474-Body2N
Draco (Cross) Repeater 3.6.2 2-fold Vario Chassis 474-BODY2N CPU and CON Unit Rear View Slot for modules #1 Connect to power supply (standard) Slot for modules #2 Connect to 5VDC power supply (redundancy) The 2-fold vario chassis with an internal power supply is not equipped with a fuse on its primary side. -
Page 13: 4-Fold Vario Chassis 474-Body4/4R
Description 3.6.3 4-fold Vario Chassis 474-BODY4/4R CPU and CON Unit Rear View Slot for modules #3 Slot for modules #1 Connect to 5VDC power supply (standard) Slot for modules #4 Slot for modules #2 Connect to 5VDC power supply (redundancy, optional) For operation with three KVM Extender CON modules and a USB 2.0 CON module in a 4-fold vario chassis, two power supplies are necessary. -
Page 14: 6-Fold Vario Chassis 474-Body6R
Draco (Cross) Repeater 3.6.4 6-fold Vario Chassis 474-BODY6R CPU and CON Unit Rear View Slot for modules #5 Slot for modules #3 Slot for modules #1 Connect to power supply (standard) Connect to 5VDC power supply (standard) Slot for modules #6... -
Page 15: 6-Fold Vario Chassis 474-Body6Bp
Description 3.6.5 6-fold Vario Chassis 474-BODY6BP CPU and CON Unit Front View Connect to power supply 1 Connect to power supply 2 (redundancy) Grounding Rear View Slot for modules #5 Slot for modules #3 Slot for modules #1 Slot for modules #6 Slot for modules #4 Slot for modules #2 Pos: 15 /806-IHSE/Beschreibung/Geräteansichten/474-xx/6-fach Vario-Gehäuse 474-BODY6BPF @ 11\mod_1392644763729_6.doc @ 132650 @ 3 @ 1... -
Page 16: 6-Fold Vario Chassis 474-Body6Bpf
Draco (Cross) Repeater 3.6.6 6-fold Vario Chassis 474-BODY6BPF CPU and CON Unit Rear View Slot for modules #5 Slot for modules #3 Slot for modules #1 Connect to power supply 1 Connect to power supply 2 (redundancy) Slot for modules #2... -
Page 17: 21-Fold Vario Chassis 474-Body21R
Description Pos: 17 /806-IHSE/Beschreibung/Geräteansichten/474-xx/21-fach Vario-Gehäuse 474-BODY21R @ 8\mod_1348579151346_6.doc @ 69400 @ 3 @ 1 3.6.7 21-fold Vario Chassis 474-BODY21R CPU and CON Unit Rear View Slots for modules #1 - #21 Front View Connect to power supply 2 Locking for power supply 2 (redundancy) Locking for power supply 1 (standard) Connect to power supply 1 Pos: 18 /806-IHSE/Beschreibung/Geräteansichten/485-xx/485-BC @ 11\mod_1395150015320_6.doc @ 140874 @ 3 @ 1... -
Page 18: Model 485-Bc
Draco (Cross) Repeater 3.6.8 Model 485-BC Module Rear View Service port Connect to interconnect cable 1 Connect to interconnect cable 2 Pos: 19 /806-IHSE/Beschreibung/Geräteansichten/485-xx/485-BS @ 11\mod_1395151298709_6.doc @ 140905 @ 3 @ 1 3.6.9 Model 485-BS Module Rear View Service port... -
Page 19: 3.6.11 Model 485-Bcc
Description 3.6.11 Model 485-BCC Module Rear View Service port (repeater #1) Connect to interconnect cable 1 (repeater #1) Connect to interconnect cable 2 (repeater #1) Service port (repeater #2) Connect to interconnect cable 1 (repeater #2) Connect to interconnect cable 2 (repeater #2) Pos: 22 /806-IHSE/Beschreibung/Geräteansichten/485-xx/485-BSS @ 11\mod_1395154011282_6.doc @ 140998 @ 3 @ 1 3.6.12 Model 485-BSS... -
Page 20: 3.6.13 Model 485-Bxx
Draco (Cross) Repeater 3.6.13 Model 485-BXX Module Rear View Service port (repeater #1) Connect to interconnect cable 1 (repeater #1) Connect to interconnect cable 2 (repeater #1) Service port (repeater #2) Connect to interconnect cable 1 (repeater #2) Connect to interconnect cable 2 (repeater #2) Pos: 24 /806-IHSE/Beschreibung/Diagnose LEDs/UEB_Diagnose_LEDs @ 6\mod_1304584004723_6.doc @ 51146 @ @ 1... -
Page 21: Status Leds
Description Status LEDs Pos: 25 /806-IHSE/Beschreibung/Diagnose LEDs/485-xx @ 11\mod_1395154726794_6.doc @ 141055 @ 3 @ 1 3.7.1 Status (Cross) Repeater Module The (Cross) Repeater module is fitted with a multi color LED for overall status indication and with two further LEDs for indication of the connection status. -
Page 22: Installation
Draco (Cross) Repeater Installation Pos: 27 /806-IHSE/Installation/Lieferumfang prüfen/485-xx @ 11\mod_1395155216299_6.doc @ 141092 @ 2 @ 1 Package Contents Your extender package contains the following items: (Cross) Repeater: (Cross) Repeater in the vario chassis 1x (redundancy 2x) 5 VDC international power supply unit per KVM Extender unit (depending on chassis) ... -
Page 23: Example Applications
Installation Example Applications This section illustrates typical installations of (Cross) Repeaters: Pos: 58 /806-IHSE/Installation/Installationsbeispiele/477-xx_COMP @ 5\mod_1291124264328_258.doc @ 44766 @ @ 1 Single Media Conversion Source (computer, CPU) KVM Extender CPU Unit Interconnect cable (Cat X) (Cross) Repeater Interconnect cable (fiber) KVM Extender CON Unit Console (monitor, keyboard, mouse) The example shown in this application scenario will be primarily... - Page 24 Draco (Cross) Repeater Pos: 46 /806-IHSE/zz_Layout/Seitenumbruch @ 8\mod_1348581820516_0.doc @ 69459 @ @ 1 Dual Media Conversion Source (computer, CPU) KVM Extender CPU Unit Interconnect cable (Cat X) (Cross) Repeater #1 Interconnect cable (fiber) (Cross) Repeater #2 Interconnect cable (Cat X)
-
Page 25: Configuration
Configuration Configuration Pos: 31 /806-IHSE/Konfiguration/485_Einleitung @ 11\mod_1395156666210_6.doc @ 141185 @ @ 1 The (Cross) Repeater does not require any configuration and is ready for use per default. Pos: 32 /806-IHSE/Betrieb/UEB_Betrieb @ 5\mod_1278577614980_6.doc @ 41970 @ 1 @ 1 Operation Pos: 33 /806-IHSE/Betrieb/485_Einleitung @ 11\mod_1395156725331_6.doc @ 141216 @ @ 1 The (Cross) Repeater does not have any adjustable operating modes and is ready for use per default. -
Page 26: Specifications
Draco (Cross) Repeater Specifications Pos: 35 /806-IHSE/Technische Daten/Schnittstellen/UEB_Schnittstellen @ 5\mod_1278578201870_6.doc @ 42114 @ 2 @ 1 Interfaces Pos: 36 /806-IHSE/Technische Daten/Schnittstellen/RJ45 (Gerätekommunikation) @ 5\mod_1278578339308_6.doc @ 42186 @ 3 @ 1 7.1.1 RJ45 (Interconnect) Communication between Cat X devices requires a 1000BASE-T connection. -
Page 27: Interconnect Cable
Specifications Interconnect Cable Pos: 39 /806-IHSE/Technische Daten/Verbindungskabel/Verbindungskabel (Cat X) @ 5\mod_1278578406026_6.doc @ 42205 @ 3 @ 1 7.2.1 Cat X A point-to-point connection is required. Operation with several patch fields is possible. Routing over an active network component, such as an Ethernet Hub, Router or Matrix, is not allowed. -
Page 28: Fiber
Draco (Cross) Repeater 7.2.2 Fiber A point-to-point connection is necessary. Operation with multiple patch panels is allowed. Routing over active network components, such as Ethernet Hubs, Switches or Routers, is not allowed. Type of Interconnect Cable (Cable notations according to VDE) -
Page 29: Connector Pinouts
Specifications Connector Pinouts Pos: 44 /806-IHSE/Technische Daten/Pinbelegungen/Buchse Mini-USB Typ B @ 5\mod_1278578794167_6.doc @ 42387 @ @ 1 Connector Mini USB Type B Picture Signal Color VCC (+5VDC) Data – White ..5 Data + Green n.c. – Black Pos: 45 /806-IHSE/Technische Daten/Pinbelegungen/RJ45 @ 5\mod_1278578820011_6.doc @ 42405 @ @ 1 RJ45 Picture Signal... -
Page 30: Power Supply
Draco (Cross) Repeater Power Supply AC Power Supply Model Max. Current Max. Voltage Frequency 474-BODY2N 700 mA max. 100-240 V 50/60 Hz 474-BODY6R 1,400 mA max. 100-240 V 47-63 Hz 474-BODY6BP 800 mA max. 100-240 V 50/60 Hz 474-BODY6BPF 800 mA max. -
Page 31: Size
Specifications Size Devices in the 2-fold Vario Chassis 1 CPU Unit / CON Unit 145 x 147 x 41 mm (5.7" x 5.8" x 1.7") Shipping Box 210 x 140 x 165 mm (8.3" x 5.5" x 6.5") Devices in the 2-fold Vario Chassis 2 CPU Unit / CON Unit 221 x 147 x 41 mm (8.7"... -
Page 32: Shipping Weight
Draco (Cross) Repeater Pos: 51 /806-IHSE/Technische Daten/Transportgewicht /474-xx @ 6\mod_1304586413879_6.doc @ 51363 @ 2 @ 1 Shipping Weight Devices in the 2-fold Vario Chassis 1 CPU Unit / CON Unit 0.4 kg (0.9 lb) Shipping Box 2.2 kg (4.9 lb) -
Page 33: Troubleshooting
Troubleshooting Troubleshooting Pos: 53 /806-IHSE/Hilfe im Problemfall/Allgemeine Störung/485-xx @ 11\mod_1395218793981_6.doc @ 141316 @ 2 @ 1 General Failures Module 2 3 4 2 3 4 5 1 2 3 4 5 Rear View Diagnosis Possible Reason Measure LED 3 off Power supply ... -
Page 34: Technical Support
Draco (Cross) Repeater Technical Support Prior to contacting support please ensure you have read this manual, and then installed and set-up your (Cross) Repeater as recommended. Support Checklist To efficiently handle your request it is necessary that you complete a support request checklist (Download). -
Page 35: Certificates
Council Directive on the approximation of the laws of the Member States relating to electromagnetic compatibility CE Marking 2009 Product list: 485 Series The products comply with the following harmonized standards for Information Technology Equipment: EN 55022:2010 + A1:2007 (Class A) ... -
Page 36: North American Regulatory Compliance
Draco (Cross) Repeater 10.2 North American Regulatory Compliance This equipment has been found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 37: Weee
Certificates 10.4 WEEE The manufacturer complies with the EU Directive 2012/19/EU on the prevention of waste electrical and electronic equipment (WEEE). The device labels carry a respective marking. Pos: 59 /806-IHSE/Zertifikate/ATB_RoHS @ 5\mod_1278579714214_6.doc @ 42722 @ 2 @ 1 10.5 RoHS/RoHS 2 This device complies with the Directive 2011/65/EU of the European Parliament and of the council of 8 June 2011 on the restriction of the use... -
Page 38: Glossary
Draco (Cross) Repeater Glossary The following terms are commonly used in this guide or in video and KVM technology: Term Explanation AES/EBU Digital audio standard that is officially known as AES3 and that is used for carrying digital audio signals between devices. - Page 39 Glossary Term Explanation Digital video standard, introduced by the Digital Display Working Group (http://www.ddwg.org). Single Link and Dual Link standard are distinguished. The signals have TMDS level. DVI-I A combined signal (digital and analog) that allows running a VGA monitor at a DVI-I port – in contrast to DVI-D (see DVI).
- Page 40 Draco (Cross) Repeater Term Explanation S-Video (Y/C) S-Video (Y/C) is a video format transmitting luminance and chrominance signals separately. Thereby it has a higher quality standard than CVBS. TOSLINK Standardized fiber connection system for digital transmission of audio signals (F05 plug connection)
