Connections: Mono System - Turtle Beach Hyper Sound Owner's Manual

7. C
ONNECTIONS
NOTE: Unplug equipment while configuring all audio and
power connections.
STEP 1: S
PEAKER
Connect only one set of cables with red and
black banana connections to the back of the
speaker and the corresponding ends to the
back of the amplifier as shown to the L – left
channel.
STEP 2: RCA C
Take the dual female RCA cable with the
single male RCA cable at the other end, and
connect the single male RCA to only the L
(left) input channel. Connect the other end to
your audio source (iPhone, iPad, PC, MP3
Player, TV, etc.) The input impedance is
approximately 10k Ohms.
©2014 Turtle Beach Corporation. All rights reserved.
: M
ONO
C C
ABLE ONNECTIONS
C
ABLE ONNECTIONS
S
YSTEM

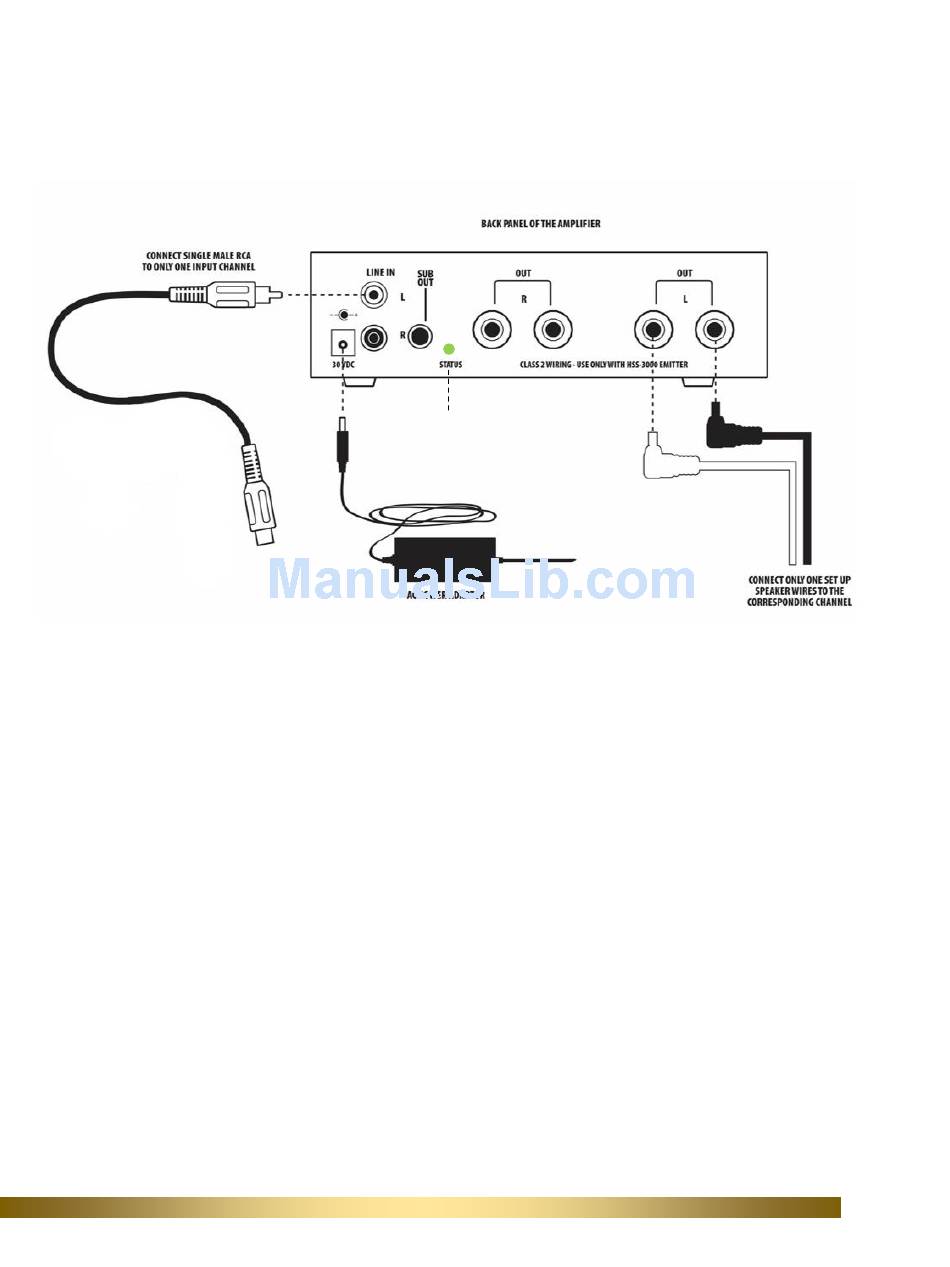

LED STATUS
LIGHT
NOTE: Upon applying power to the system, the volume
will slowly ramp up taking up to 1 minute to reach full
volume. Wait for this time to be exceed before adjusting
the input level to the amplifier.
STEP 3: A
a) Plug the amplifier power cord into the 30v
DC Supply located on the back of the
amplifier
b) Plug the amplifier power supply into a
properly grounded AC outlet
NOTE: The unit does not have a power switch. It will
automatically turn ON when AC power is established.
After connecting to the AC power outlet, a small LED
light located next to the DC power receptacle will glow
green, indicating the unit is on.
P C
MPLIFIER OWER ONNECTION
