10. C
ONNECTIONS
(O
PTIONAL
NOTE: Unplug equipment while configuring all audio and
power connections.
STEP 1: S
PEAKER
Connect cables with red and black banana
connections to the back of each speaker and
the corresponding ends to the back of the
amplifier as shown.

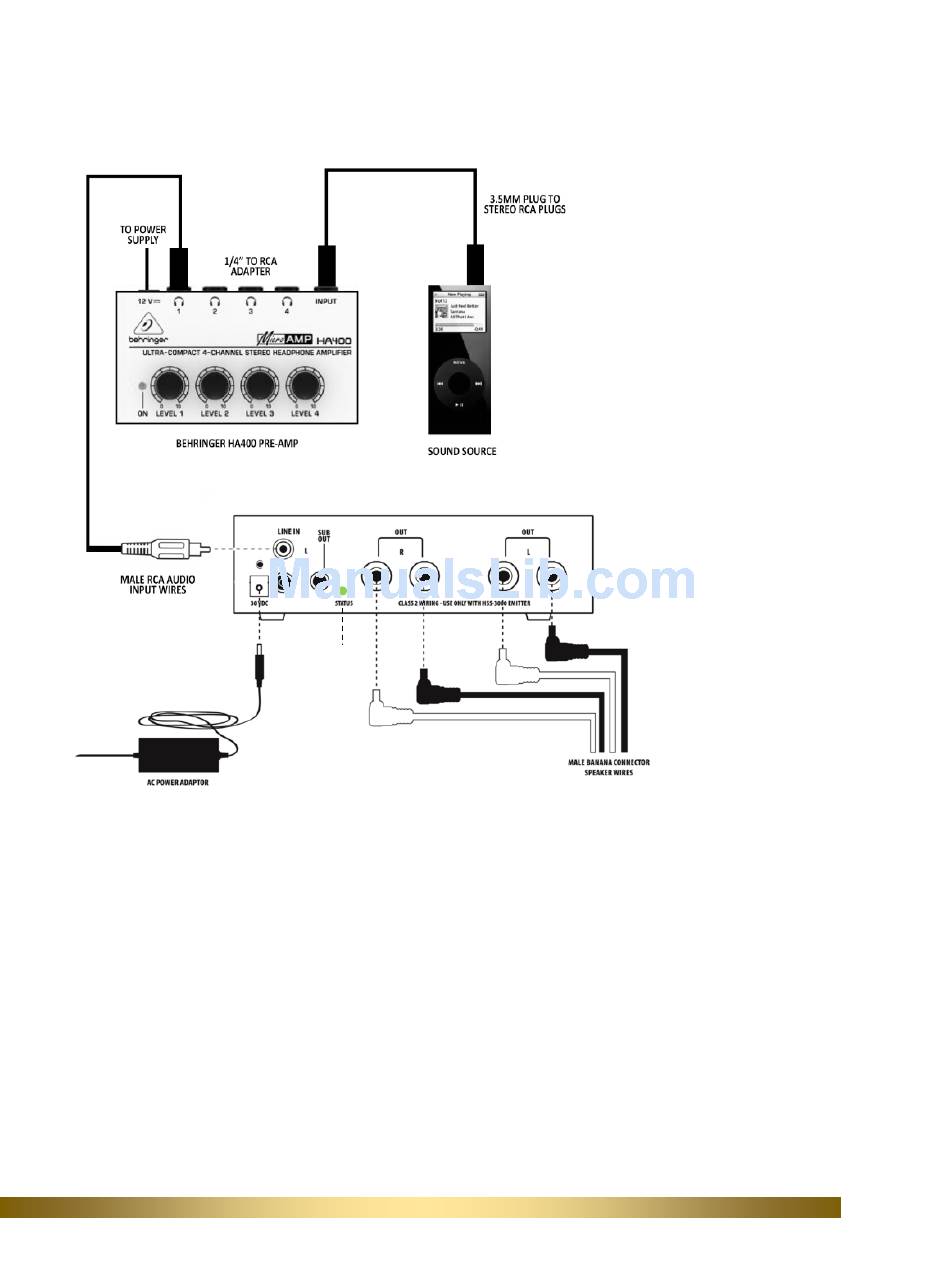

STEP 2: RCA C
a) Plug the dual RCA Jack end of this cable
into the amplifier. Connect the other end
to The Behringer Pre-Amp.
b) Plug a 3.5MM RCA Jack into the Pre-
Amp's Input, and the other end to your
sound source.
©2014 Turtle Beach Corporation. All rights reserved.
: B
EHRINGER
)
LED STATUS
LIGHT
C C
ABLE ONNECTIONS
C
ABLE ONNECTIONS
P -A C
RE MP ONNECTIONS
W
HEN TO
B
EHRINGER
If you decide to use a media
player that has low output
levels, the HyperSound
amplifier may not be
sufficient for achieving
desired loudness from the
emitters.
In this case, we recommend
using a Behringer Pre-Amp,
which will provide the signal
boosting needed for optimal
results.
NOTE: Up to 4 HyperSound Amplifiers can be
connected to the Behringer HA4000. Connect to Outputs
1 – 4.
STEP 3: B
EHRINGER
a) Plug the Behringer HA400 12vdc power
cord into the 12vd DC Supply located on
the back of the Behringer Amplifier.
b) Plug the Behringer amplifier power supply
into a properly grounded AC outlet.
NOTE: To make adjustments, start with the Behringer
HA4000 level at 0 and turn clockwise until you reach
desired output level. If status light on HyperSound
Amplifier flashes, you are over-driving the input and
should reduce the input level until light is solid.
U
SE A
P -A
RE MP
P C
OWER ONNECTION
