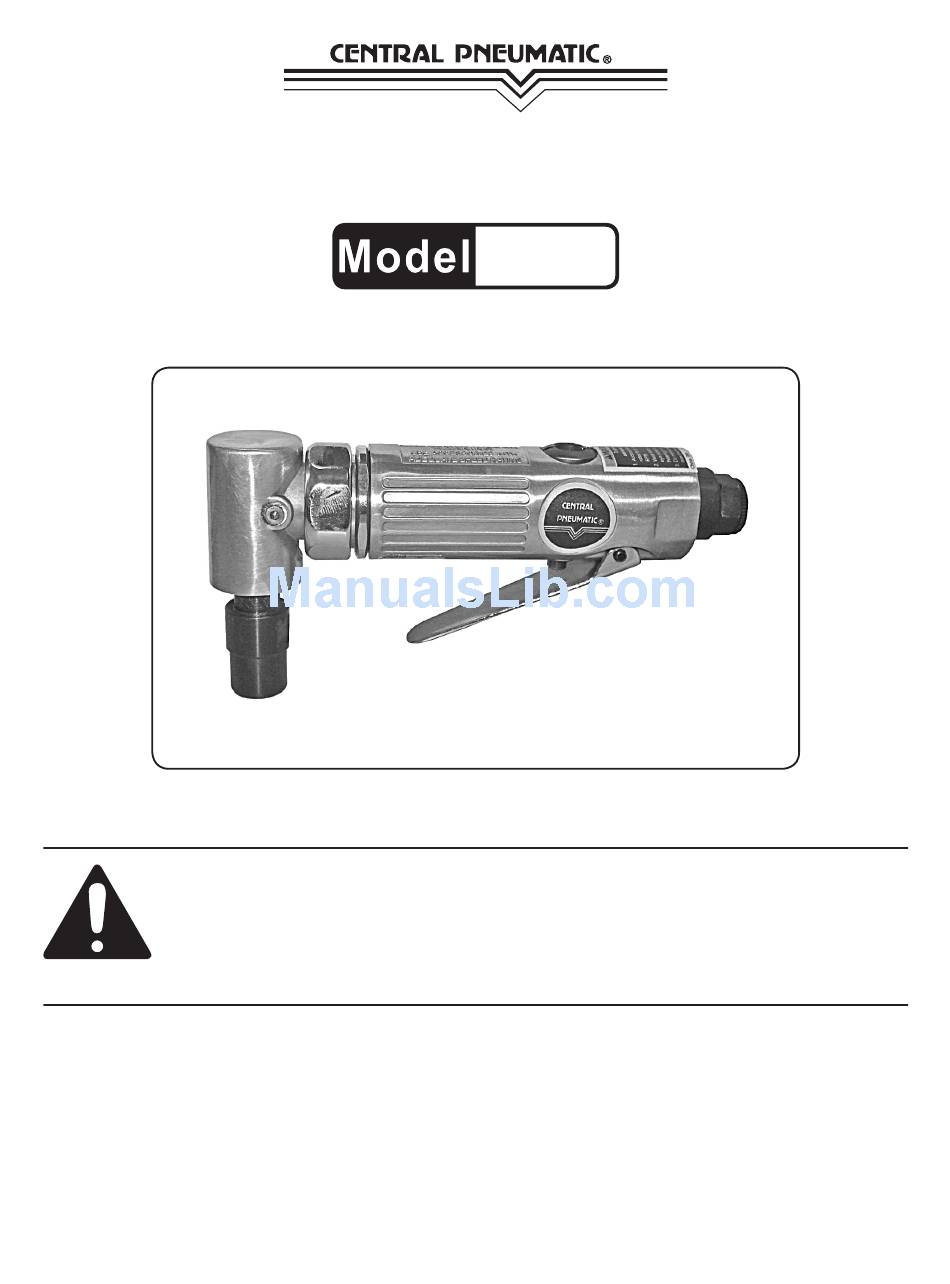

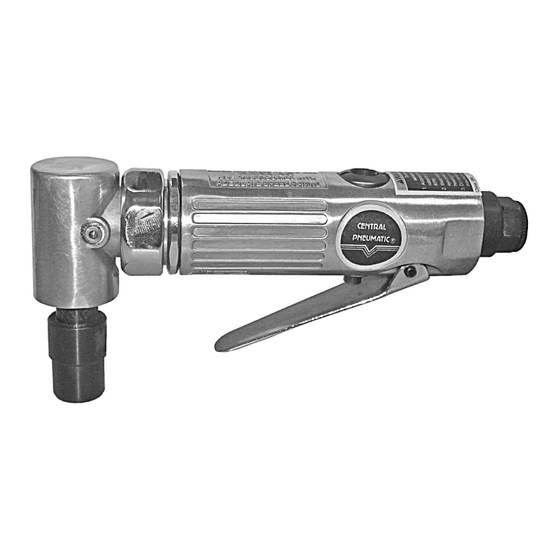

1/4" air angle die grinder
Set up and Operating inStructiOnS
Visit our website at: http://www.harborfreight.com
read this material before using this product.
Failure to do so can result in serious injury.
SaVe thiS manual.
©
Copyright
1997, 2009 by Harbor Freight Tools
artwork contained herein may be reproduced in any shape or form without the express written consent of
Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein. Tools required for as-
sembly and service may not be included.
For technical questions or replacement parts, please call 1-800-444-3353.
Revised 09i
32046
®
. All rights reserved. No portion of this manual or any
Advertisement
Table of Contents
Related Manuals for Central Pneumatic 32046
Summary of Contents for Central Pneumatic 32046
- Page 1 Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing improvements, actual product may differ slightly from the product described herein. Tools required for as- sembly and service may not be included.
- Page 2 Air Angle Die Grinder is able to create hazardous situation which, if sparks resulting in the ignition of the not avoided, could result in dust or fumes. minor or moderate injury. SKU 32046 For technical questions, please call 1-800-444-3353. Page 2...
-
Page 3: Personal Safety
Holding the work by hand or against Proper footing and balance enables the body is unstable and is able to better control of the tool in unexpect- lead to loss of control. ed situations. SKU 32046 For technical questions, please call 1-800-444-3353. Page 3... -
Page 4: Air Source
There is a risk of burst- ing if the tool is damaged. inStructiOnS. use only accessories that are identified by the manufacturer for the specific tool model. Use of an SKU 32046 For technical questions, please call 1-800-444-3353. Page 4... -
Page 5: Symbol Definitions
A loose accessory may detach or all possible conditions and situations break during operation. that may occur. It must be under- stood by the operator that common sense and caution are factors which SKU 32046 For technical questions, please call 1-800-444-3353. Page 5... - Page 6 Do not smoke during use. Nico- tine reduces the blood supply to the hands and fingers, increasing the risk of vibration-related injury. Wear suitable gloves to reduce the vibration effects on the user. SKU 32046 For technical questions, please call 1-800-444-3353. Page 6...
-
Page 7: Functional Description
If any parts are missing or broken, please call Maximum Air Pressure 90 PSI Harbor Freight Tools at the number shown Air Inlet 1/4” -18 NPT Female throughout the manual as soon as pos-... -
Page 8: Operating Instructions
Turn on the air compressor according installing bits or making any to the manufacturer’s directions and adjustments to the die allow it to build up pressure until it grinder. cycles off. SKU 32046 For technical questions, please call 1-800-444-3353. Page 8... - Page 9 Die Grinder. Warning! Grip the Die Grinder firmly with both hands. Slowly apply hand pressure to the Control Lever (4) until the desired speed is obtained. SKU 32046 For technical questions, please call 1-800-444-3353. Page 9...
-
Page 10: User Maintenance Instructions
Apply a few drops of oil to the Control lubricants may damage the Lever. Work the Lever a few times to mechanism and may be lubricate. highly flammable, causing an explosion. SKU 32046 For technical questions, please call 1-800-444-3353. Page 10... -
Page 11: Troubleshooting
Damaged valve or housing. Replace damaged components. Clean or replace valve assembly. Dirty, worn or damaged valve. Follow all safety precautions whenever diagnosing or servicing the tool. disconnect air supply before service. SKU 32046 For technical questions, please call 1-800-444-3353. Page 11... -
Page 12: Please Read The Following Carefully
If product has no serial number, record month and year of purchase instead. note: Some parts are listed and shown for illustration purposes only, and are not avail- able individually as replacement parts. SKU 32046 For technical questions, please call 1-800-444-3353. Page 12... -
Page 13: Parts List & Assembly Diagram
Nipple Valve Bevel Gear O-Ring Spring Angle Head Speed Bevel Gear O-Ring O-Ring Chuck Casing Valve Bearing Cap Ball Bearing Collet Rear End Plate Collet Nut Ball Wrench Cylinder Wrench SKU 32046 For technical questions, please call 1-800-444-3353. Page 13... -
Page 14: Limited 90-Day Warranty
90 daY WarrantY Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this prod- uct is free from defects in materials and workmanship for the period of 90 days from the date of purchase.
