owner's manual

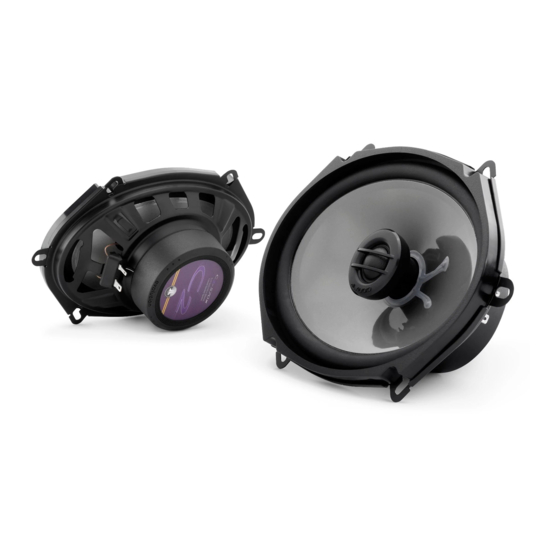

5 x 7-inch (125 x 180 mm) Coaxial Loudspeakers
Thank you for choosing a JL Audio Evolution™ C2 Coaxial Speaker System
for your automotive sound system.
These Evolution™ Speakers have been designed and manufactured to
exacting standards in order to ensure years of musical enjoyment in your
vehicle. For maximum performance, we highly recommend that you have
your new speakers installed by an authorized JL Audio dealer. Your
authorized dealer has the training, expertise and installation equipment
to ensure optimum performance from this product. Should you
decide to install the speakers yourself, please take the time
to read this manual thoroughly so as to familiarize yourself
with its installation requirements and setup procedures.
If you have any questions regarding the instructions in this
manual or any aspect of your amplifier's operation, please contact your
authorized JL Audio dealer for assistance. If you need further assistance,
please call the JL Audio Technical Support Department
at (954) 443-1165 during business hours.
Advertisement
Related Manuals for JL Audio C2-570x
Summary of Contents for JL Audio C2-570x

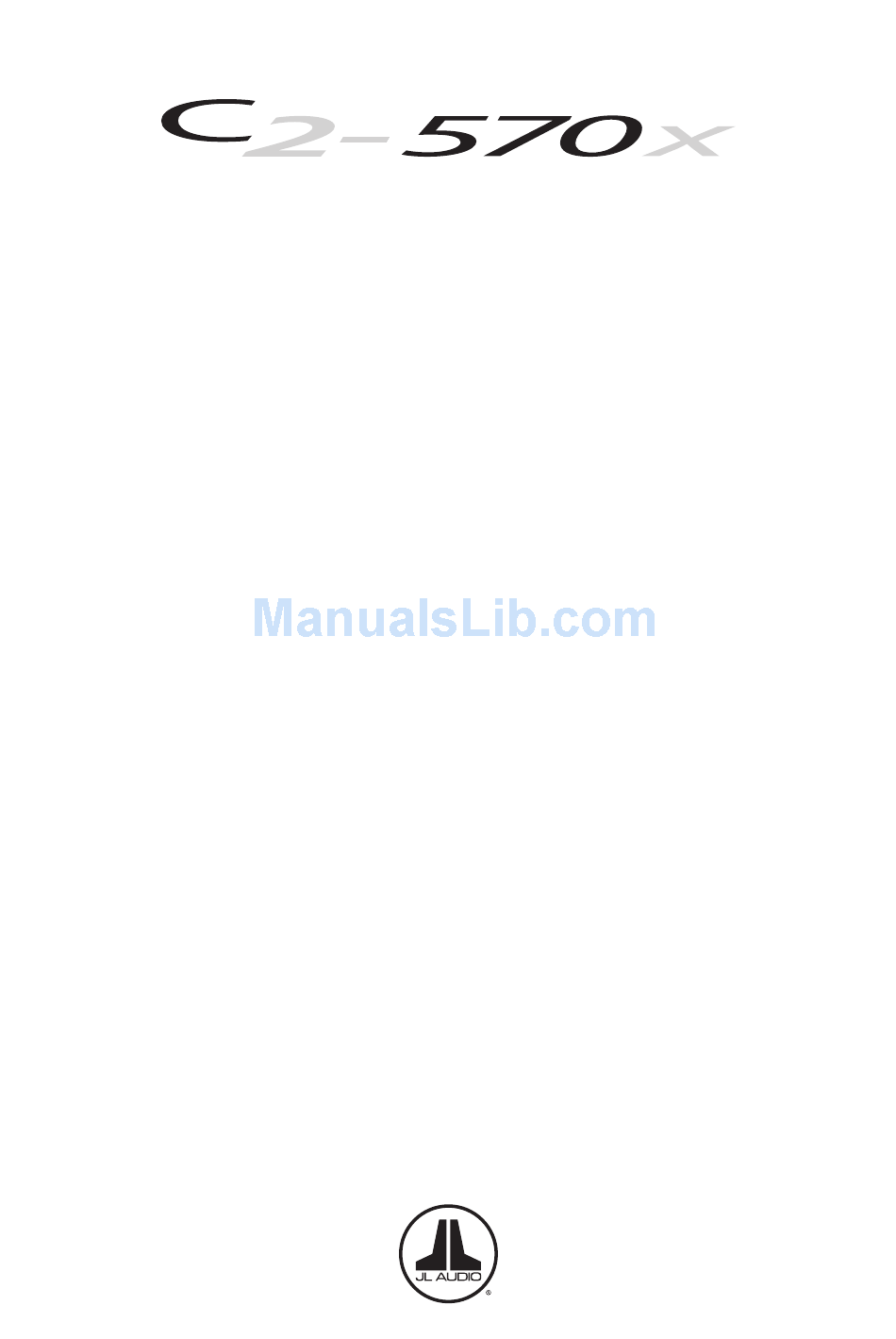

- Page 1 5 x 7-inch (125 x 180 mm) Coaxial Loudspeakers Thank you for choosing a JL Audio Evolution™ C2 Coaxial Speaker System for your automotive sound system. These Evolution™ Speakers have been designed and manufactured to exacting standards in order to ensure years of musical enjoyment in your vehicle.
- Page 2 Frontal Tweeter Protrusion (C) 0.47 in. / 11.9 mm mounting Depth (D) 2.43 in. / 61.9 mm w/o cover Due to ongoing product development, all specifications are subject to change without notice. 2 | JL Audio - C2-570x Owner’s Manual...
-
Page 3: Getting Started
Frequency Response: 53 Hz - 22 KHz ± 3 dB Included Components and Parts: • Two C2-570x 5 x 7-inch (125 x 180 mm) Coaxial loudspeakers • Two Woofer Spacer Gaskets • Eight #8 x 1 1/4-inch (30mm) sheet metal screws •... -
Page 4: Speaker Installation
Connectthespeakerwirestobothsetsof terminalsoneachspeaker,observingcorrect polarityandmakingsurethatthetweeterand wooferwirescorrespondtothecorrectterminals onboththespeakerandthecrossover. Securethespeakerandspacergasket(if applicable)tothepanelbyevenlytightening byhandmountingscrews.Usethesupplied mountingclipsandthetheprovided#8x1.25 inch(32mm)mountingscrewsunlessthe factoryholesalreadyfeaturethreadedinserts. 4 | JL Audio - C2-570x Owner’s Manual Custom location:Runspeakerwiretothedesired mountinglocations.Ifyouarerunningwiresinto adoor,useexistingfactorywiringbootswhenever possible.Ifyouaredrillingnewholes,filetheiredges andinstallrubbergrommetsintoeachhole.Wires shouldthenbecoveredwithaprotective,flexible PVCsleeveandthenrunthroughthedoorjamb. Makesurethatthewireswillcleardoorhingesand otherstructuresinthedoor.Ifyouareunsureabout anypartofthisprocess,pleasecontactyourJLAudio dealerforinstallationhelp. WAR NI NG Double check the clearance for both speakers before proceeding. - Page 5 Connectthespeakerwirestobothsetsof terminalsoneachspeaker,observingcorrect polarityandmakingsurethatthetweeterand wooferwirescorrespondtothecorrectterminals onboththespeakerandthecrossover. Securethespeakerandspacergasket(ifapplicable) tothepanelbyevenlytighteningbyhandthe provided#8x1.25inch(32mm)mountingscrews. Diagram a: Factory woofer location installation Diagram B: Custom location woofer installation Diagram C: Custom location woofer installation WAR NI N G Hand-tighten the screws evenly in a criss-cross pattern to avoid bending the speaker frame or stripping the mounting clips.
- Page 6 6 | JL Audio - C2-570x Owner’s Manual...
- Page 7 noTes...
- Page 8 For service information in the u.s.a. please call Jl audio Customer service: (954) 443-1100 Products purchased outside the United States of America are covered only by that country’s distributor and not by JL Audio, Inc. 9:00 AM – 5:30 PM (Eastern Time Zone) Jl audio, inc 10369 North Commerce Pkwy.
