JL Audio Evolution C5-570x Owner's Manual

5-inch x 7-inch (125 x 180 mm) coaxial speaker system

Download this manual

OWNER'S MANUAL

5-inch x 7-inch (125 x 180 mm) Coaxial Speaker System

Thank you for choosing a JL Audio Evolution™ C5 Coaxial Speaker System

for your automotive sound system.

These Evolution™ Speakers have been designed and manufactured to

exacting standards in order to ensure years of musical enjoyment in your

vehicle. For maximum performance and extended warranty

coverage, we highly recommend that you have your new speakers installed

by an authorized JL Audio dealer. Your authorized

dealer has the training, expertise and installation equipment to ensure

optimum performance from this product. Should you

decide to install the speakers yourself, please take the time

to read this manual thoroughly so as to familiarize yourself

with its installation requirements and setup procedures.

If you have any questions regarding the instructions in this

manual or any aspect of your amplifier's operation, please contact your

authorized JL Audio dealer for assistance. If you need further assistance,

please call the JL Audio Technical Support Department

at (954) 443-1100 during business hours.

Need help?

Do you have a question about the Evolution C5-570x and is the answer not in the manual?

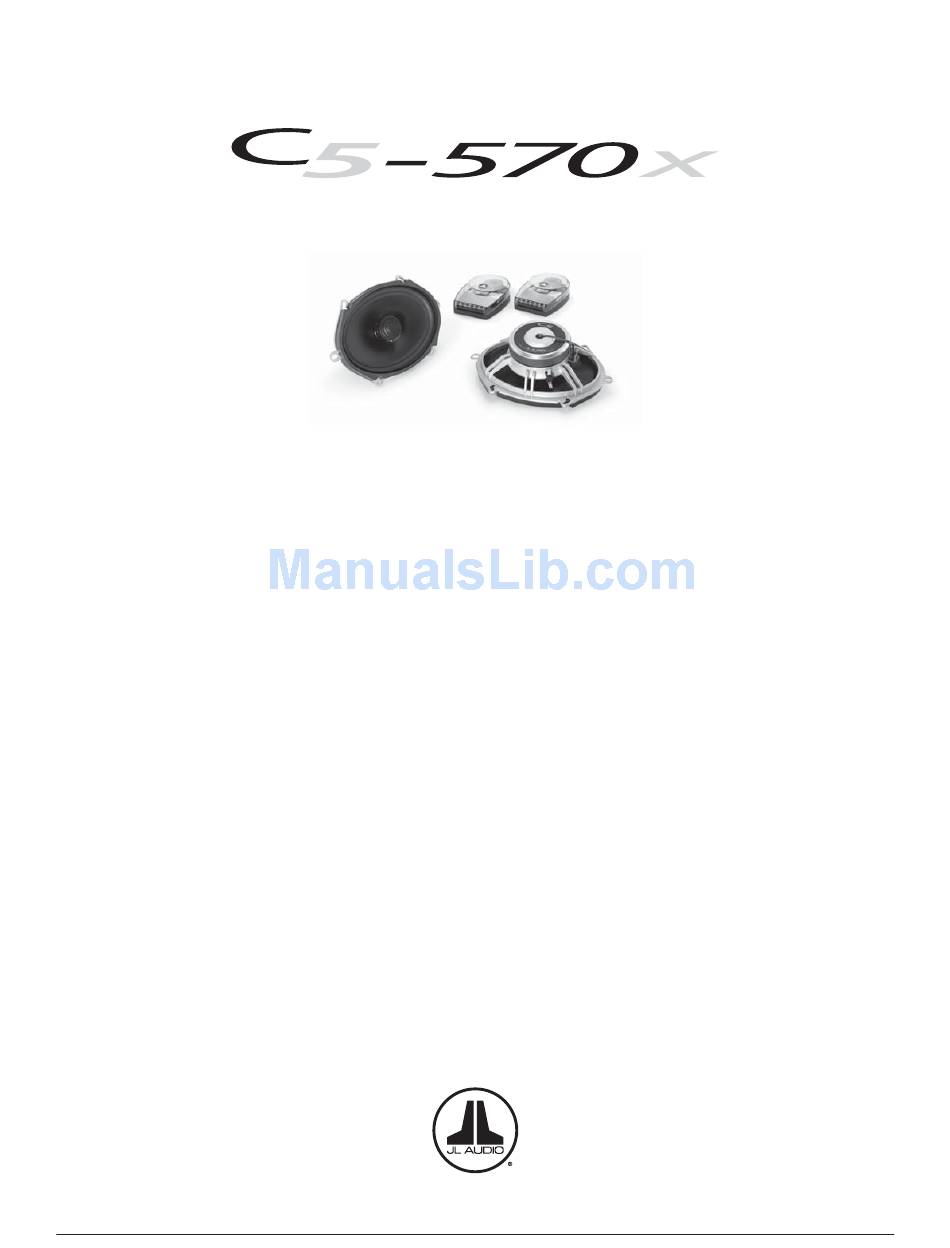

Page 1 OWNER’S MANUAL 5-inch x 7-inch (125 x 180 mm) Coaxial Speaker System Thank you for choosing a JL Audio Evolution™ C5 Coaxial Speaker System for your automotive sound system. These Evolution™ Speakers have been designed and manufactured to exacting standards in order to ensure years of musical enjoyment in your vehicle.
Page 2 4.72 in. / 119.9 mm Width (B) 3.36 in. / 85.3 mm Depth (C) 1.44 in. / 36.6 mm Due to ongoing product development, all specifications are subject to change without notice. 2 | JL Audio - C5-570x Owner’s Manual...
Page 3: Getting Started
NOT covered under warranty. Black Do not substitute different crossover networks into your C5 System. Do not use crossover networks intended for different C5 models. Amplifier Output 4 | JL Audio - C5-570x Owner’s Manual...
Page 4: Speaker Placement Considerations
-OR- Double check the clearance for both speakers before proceeding. WA RNI NG Hand-tighten the screws evenly in a criss-cross pattern to avoid bending the speaker frame or stripping the mounting clips. 6 | JL Audio - C5-570x Owner’s Manual...
Page 5 10369 North Commerce Pkwy. Miramar, FL 33025 (do not send product for repair to this address) International Warranties: Products purchased outside the United States of America are covered only by that country’s distributor and not by JL Audio, Inc. C5-570x-05152007...
