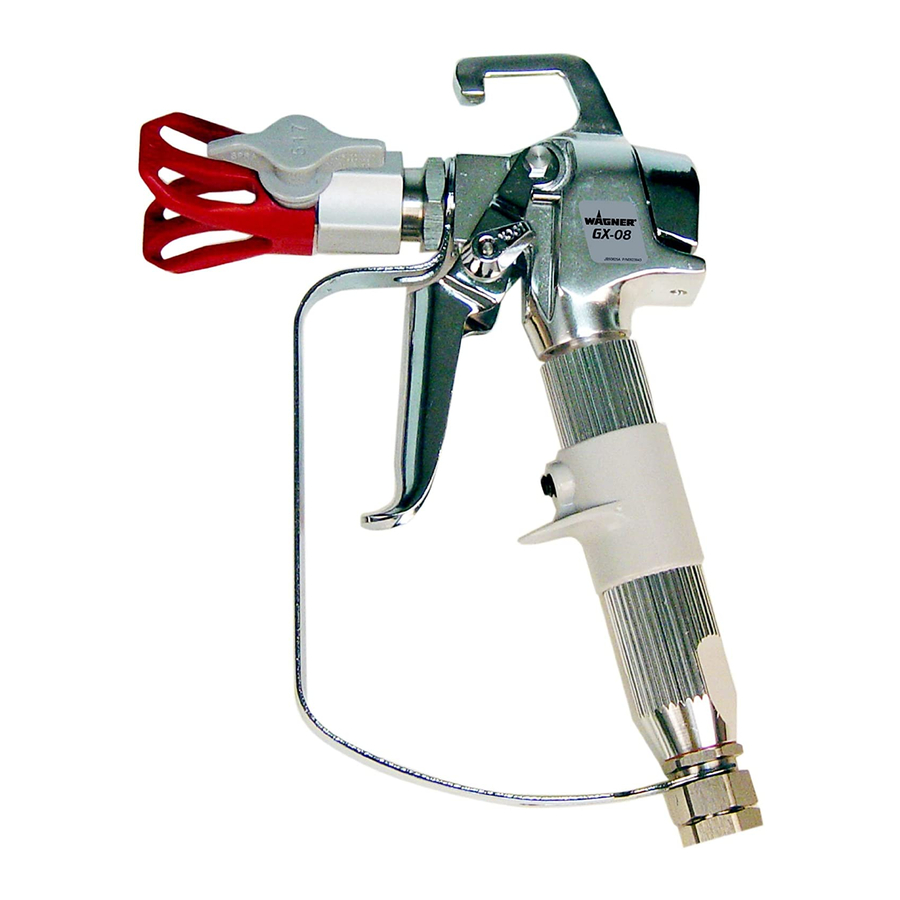

WAGNER GX-08 Operating Instructions

GX-08 H C
IGH APACITY
7/8
INCH TIP THREAD
S P
AFETY RECAUTIONS
WARNING
HAZARD: Injection injury - A high pressure stream produced
by this equipment can pierce the skin and underlying
tissues, leading to serious injury and possible
amputation. See a physician immediately.
DO NOT TREAT AN INJECTION INJURY AS A SIMPLE CUT!
Injection can lead to amputation. See a physician immediately.
The maximum operating range of the gun is 3600 PSI / 25 MPa
fluid pressure.
PREVENTION:
• NEVER aim the gun at any part of the body.
• NEVER allow any part of the body to touch the fluid stream. DO
NOT allow body to touch a leak in the fluid hose.
• NEVER put hand in front of the gun. Gloves will not provide
protection against an injection injury.
• ALWAYS lock the gun trigger, shut the pump off, and release all
pressure before servicing, cleaning the tip or guard, changing tip, or
leaving unattended. Pressure will not be released by turning off the
motor. The PRIME/SPRAY valve must be turned to PRIME to
relieve the pressure. Refer to the PRESSURE RELIEF PRESSURE
described in the pump manual.
• ALWAYS keep the tip guard in place while spraying. The tip guard
provides some protection but is mainly a warning device.
• ALWAYS remove the spray tip before flushing or cleaning the
system.
• The paint hose can develop leaks from wear, kinking and abuse.
A leak can inject material into the skin. Inspect the hose before
each use.
• NEVER use a spray gun without a trigger lock and trigger guard
in place and in good working order.
• All accessories must be rated at or above 3600 PSI / 25 MPa.
This includes spray tips, guns, extensions, and hose.
NOTE TO PHYSICIAN:
Injection into the skin is a traumatic injury. It is
important to treat the injury as soon as possible. DO
NOT delay treatment to research toxicity. Toxicity is a
concern with some coatings injected directly into the
blood stream. Consultation with a plastic surgeon or
reconstructive hand surgeon may be advisable.
HAZARD: EXPLOSION OR FIRE - Solvent and paint fumes can
explode or ignite. Severe injury and/or property
damage can occur.
PREVENTION:
• Provide extensive exhaust and fresh air introduction to keep the
air within the spray area free from accumulation of flammable
vapors.
• Avoid all ignition sources such as static electricity sparks,
electrical appliances, flames, pilot lights, hot objects, and sparks
from connecting and disconnecting power cords or working light
switches.
• Do not smoke in spray area.
© 2003 Wagner Spray Tech, 1770 Fernbrook Lane, Plymouth, MN 55447, 1-800-880-0993 All Rights Reserved.
S G
PRAY UN
Form no. 0278995C
0803 •
• Fire extinguisher must be present and in good working order.
• Place pump at least 20 feet (6.1 m) from the spray object in a
well ventilated area (add more hose if necessary). Flammable
vapors are often heavier than air. Floor area must be extremely
well ventilated. The pump contains arcing parts that emit sparks
and can ignite vapors.
• The equipment and objects in and around the spray area must
be properly grounded to prevent static sparks.
• Use only conductive or grounded high pressure fluid hose. Gun
must be grounded through hose connections.
• Power cord must be connected to a grounded circuit.
• Always flush unit into a separate metal container, at low pump
pressure, with spray tip removed. Hold gun firmly against side of
container to ground container and prevent static sparks.
• Follow the material and solvent manufacturer's warnings and
instructions.
• Use extreme caution when using materials with a flashpoint
below 70° F (21° C). Flashpoint is the temperature that a fluid
can produce enough vapors to ignite.
• Plastic can cause static sparks. Never hang plastic to enclose a
spray area. Do not use plastic drop cloths when spraying
flammable materials.
• Use lowest possible pressure to flush equipment.
HAZARD: EXPLOSION HAZARD DUE TO INCOMPATIBLE
MATERIALS - will cause severe injury or property
damage.
PREVENTION:
• Do not use materials containing bleach or chlorine.
• Do not use halogenated hydrocarbon solvents such as bleach,
mildewcide, methylene chloride and 1,1,1 - trichloroethane.
They are not compatible with aluminum.
• Contact your coating supplier about the compatibility of material
with aluminum.
HAZARD: HAZARDOUS VAPORS - Paints, solvents,
insecticides, and other materials can be harmful if
inhaled or come in contact with the body. Vapors can
cause severe nausea, fainting, or poisoning.
PREVENTION:
• Use a respirator or mask if vapors can be inhaled. Read all
instructions supplied with the mask to be sure it will provide the
necessary protection.
• Wear protective eyewear.
• Wear protective clothing as required by coating manufacturer.
HAZARD: GENERAL - Can cause severe injury or property
damage.
PREVENTION:
• Read all instructions and safety precautions before operating
equipment.
• Always disconnect the motor from the power supply before
working on the equipment.
• Follow all appropriate local, state, and national codes governing
ventilation, fire prevention, and operation.
• The United States Government Safety Standards have been
adopted under the Occupational Safety and Health Act (OSHA).
These standards, particularly part 1910 of the General Standards
and part 1926 of the Construction Standards should be consulted.
• Use only manufacturer authorized parts. User assumes all risks
and liabilities when using parts that do not meet the minimum
specifications and safety devices of the pump manufacturer.
• Before each use, check all hoses for cuts, leaks, abrasion or
bulging of cover. Check for damage or movement of couplings.
Immediately replace the hose if any of these conditions exist.
Never repair a paint hose. Replace it with another grounded
high-pressure hose.
• All hoses, swivels, guns, and accessories must be pressure
rated at or above 3600PSI / 25 MPa.
• Do not spray outdoors on windy days.
• Wear clothing to keep paint of skin and hair.
