Siemens SXL-EX Datasheet

s

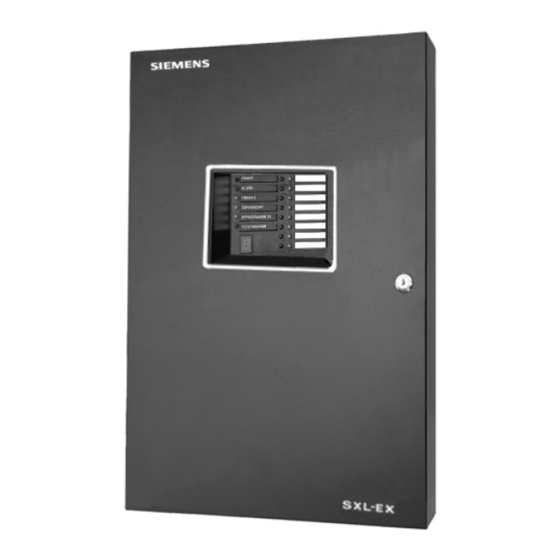

SXL-EX Fire Control Panel
Conventional Zone Fire Alarm Control Panel
ARCHITECT AND ENGINEER SPECIFICATIONS
• Four (4) zones ─ expandable to eight (8) zones
• Series 3 and 11 compatible detectors and
accessories
• Microprocessor-based control
• Factory programmed ─ field configurable
• Two (2) Style Y notification appliance circuits
(NACs)
• 3 Amps notification and auxiliary power
• 24 and 60-hour battery backup
• Eight (8) 'Form C' relay-output option
• 220/240 VAC, 50 Hz power-supply option
• Remote serial-annunciator option
• Sprinkler supervisory service
• Non-silenceable bell service
• Alarm verification by zone
• One-person test feature
• Zone / output bypass feature
• Subsequent Alarm and Trouble commands with
24-hour reminders
• Alarm, Trouble and Supervisory last-event records
•
UL 864 9 Edition Listed & ULC Listed;
th
CSFM Approved

System Overview

Model SXL-EX from Siemens
microprocessor-based fire-alarm control panel (FACP)
supplied with four (4) conventional zones, and is
expandable to eight (8) conventional zones. Model
SXL-EX also contains features, such as: field
programmability; power-limited circuits, one-person
person test; remote annunciation, and sufficient
power to meet ADA requirements for signaling.
Model SXL-EX is designed to meet the varied fire-
alarm needs for small office buildings, apartment
buildings, department stores, hotels, strip malls or
anywhere a cost-efficient, general-purpose FACP is
required.
*
Asterisks shown in the second column denote Models DI‐3C;
PE‐11C and PE‐11TC, respectively, in Canada
Industry, Inc.
s
Building Technologies Division
Fire Safety is a
─
Fire Safety & Security Products
Additionally, the SXL-EX can be used to supply remote
bell power for larger systems such as the MXL FACP.

Initiating Circuits

Model SXL-EX has four (4) conventional, Style B (Class
B) zones, which are typically compatible with the
ionization detector (Model DI-3*); the photoelectric
detector (Model PE-11*) and the photo-thermal
detector (Model PE-11T*); Siemens Fire Safety thermal,
flame and beam detectors, and the MS Series of
manual stations. (Please refer to the detector-
compatibility list in the wiring diagram for specific
compatibility questions).
Data Sheet
7906
SXL-EX
