Gerber EDGE FX Installation Manual

Unpacking/packing and installation guide
Hide thumbs Also See for EDGE FX:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual
Unpacking/Packing
and Installation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EDGE FX and is the answer not in the manual?

Questions and answers

Related Manuals for Gerber EDGE FX

Summary of Contents for Gerber EDGE FX

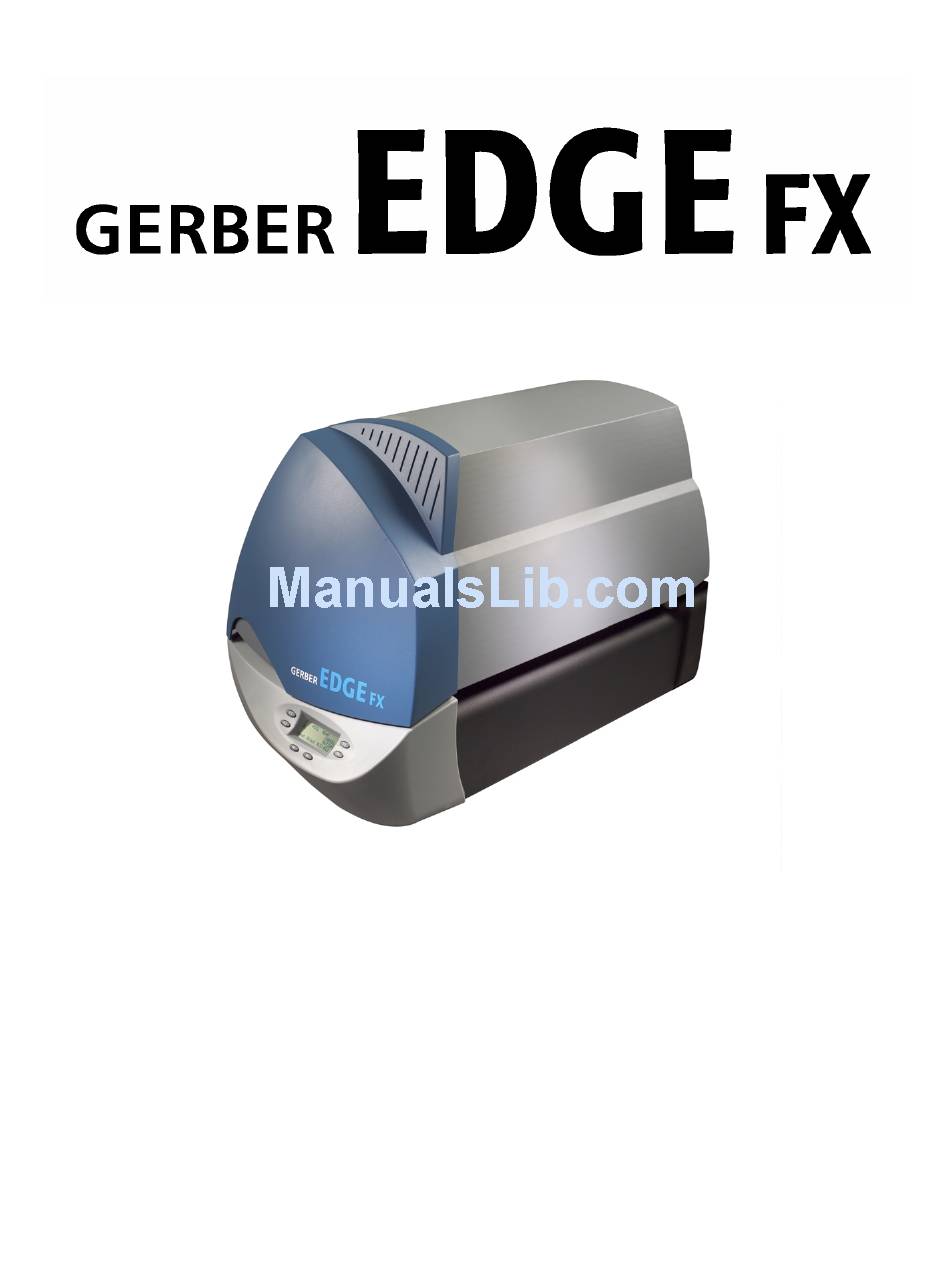

  • Page 1 Unpacking/Packing and Installation Guide...

  • Page 2: Copyright Notice

    This document may not be reproduced by any means, in whole or in part, without written permission of the copyright owner. This document is furnished to support the GERBER EDGE FX printer. In consideration of the furnishing of the information contained in this document, the party to whom it is given assumes...

  • Page 3: Fcc Compliance

    FCC Compliance Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules.

  • Page 4: Table Of Contents

    Network connection to a network router equipped with DHCP..........13 Using direct connection ........................14 Setting the network address of the GERBER EDGE FX from the printer keypad ....15 Setting the IP Address and Network Mask of your computer for direct connection ....18 Using network connection with static addresses................

  • Page 5: Chapter 1: Introduction

    Chapter 3: Connecting the GERBER EDGE FX to the computer: details how to connect the GERBER EDGE FX to your computer through a network interface or through a direct connection.

  • Page 6: Customer Support

    Chapter 1 Introduction Customer support If you have questions on unpacking, packing, or installing the GERBER EDGE FX please contact your Gerber distributor or GSP Technical Support. phone: 800-828-5406 / 860-644-6971 (Technical Support) fax: 860-648-8376 e-mail: gspservice@gspinc.com (hardware) or "...

  • Page 7: Chapter 2: Unpacking The Gerber Edge Fx

    OMEGA software literature for current specifications. Environmental requirements The GERBER EDGE FX should be installed in a room that is relatively clean and dust-free. The recommended working environment is as follows: ♦ Operating temperature: 50º to 95º F / 10º to 35º C ♦...

  • Page 8: Gerber Edge Fx Size And Weight

    38 kg GERBER EDGE FX space requirements The GERBER EDGE FX is designed to be placed on a table or counter that is at least 30 inches/762 mm deep. See the following illustration for minimum space requirements. Approximate Space Requirements for GERBER EDGE FX (Measurements are estimates)

  • Page 9: Storage Of Materials And Foils

    When not in use, the material should be stored in the original plastic bag to protect it from dust and dirt. Save the original box for long-term storage of material rolls. Never store the material lying down or loaded in the GERBER EDGE FX, which can leave impressions on the material. Storing the foil Foil Inserts and Cartridge Assemblies must be stored between 40º...

  • Page 10: Unpacking The Gerber Edge Fx Printer

    The GERBER EDGE FX is shipped from the factory in reusable packaging materials. Save these packaging materials for future use in case you need to ship the GERBER EDGE FX. This document also includes detailed repacking instructions. Save this important document along with the packaging materials for future reference.
  • Page 11 5 Using two people, one on each side of the printer, carefully lift the GERBER EDGE FX printer from the box using the cardboard sling and set it on a table. Protective foam packaging 6 Lift the GERBER EDGE FX off of the cardboard sling and save the sling for future use.
  • Page 12 CHAPTER 2 Unpacking the GERBER EDGE FX 7 Open the printer cover and remove the three foam blocks and foam and cardboard assembly that cushions the print head during shipping. Save all foam blocks and the cardboard assembly with the original packaging.

  • Page 13: Connecting Gerber Edge Fx

    GERBER EDGE FX back panel After connecting the computer to the GERBER EDGE FX, plug the power cord into the receptacle at the back of the printer and then into a 110 V power outlet. Turn on the power switch located at the back of the printer.

  • Page 15: Chapter 3: Connecting The Gerber Edge Fx To The Computer

    Chapter 3: Connecting the GERBER EDGE FX to the Computer The GERBER EDGE FX is a network device which has a 10/100 Mbps auto-switch network interface that can communicate with your computer's 10/100 Mbps network card. (A network interface board is in most new computers or is readily available for your computer at local computer stores.) Data needs to be supplied above a minimum rate to prevent printing...

  • Page 16: Network Connection To A Network Hub Or Switch Using Static Addresses

    Network connection to a network hub or switch using static addresses Some locations may connect the EDGE FX to a new or existing network that uses static network addresses. Two typical scenarios are shown in the following illustrations: a new network or an existing network.

  • Page 17: Network Connection To A Network Router Equipped With Dhcp

    Some locations may activate DHCP (dynamic host configuration protocol) on the GERBER EDGE FX and allowing a network equipped with a DHCP server to automatically assign addresses. Two typical scenarios are shown in the following illustrations: a new network with...

  • Page 18: Using Direct Connection

    DHCP server, the computer automatically selects a network address using Windows Automatic IP Addressing. The range of IP addresses in Automatic Private IP Addressing are as follows: ♦ 169.254.000.000 to 169.254.255.255 The default network address of the GERBER EDGE FX falls with in the range of Automatic Private IP Addressing:...

  • Page 19: Setting The Network Address Of The Gerber Edge Fx From The Printer Keypad

    Setting the network address of the GERBER EDGE FX from the printer keypad The default address for the GERBER EDGE FX was chosen to work with a crossover cable and Windows Automatic Private IP Addressing. For computers that have not been configured for networking, the default address should be acceptable.
  • Page 20 If necessary, replace the network address in this procedure with the proper address obtained from your network administrator or IT professional. To set the network address of the GERBER EDGE FX from the printer keypad 1 From the MAIN MENU use F1 to toggle to OFFLINE.
  • Page 21 Continue until the entire IP Address is updated. Note: This procedure uses the default IP address of the GERBER EDGE FX as an example. Your IP address for the printer may be different.

  • Page 22: Setting The Ip Address And Network Mask Of Your Computer For Direct Connection

    14 Press F3, CANCEL to exit the menu and return to the MAIN MENU. 15 Cycle the power to the GERBER EDGE FX. The network address will be active after cycling the printer power. Setting the IP Address and Network Mask of your computer for direct...
  • Page 23 5 Click Properties to open the TCP/IP Properties dialog box. Note: Depending on your setup, your computer's IP address may vary. 6 On the IP Address tab, click Specify an IP Address: 7 Enter 169.254.128.130 for the IP Address. 8 Enter 255.255.000.000 for Network Mask. 9 Do not enter a Gateway address;...
  • Page 24 CHAPTER 3 Connecting the GERBER EDGE FX to the Computer To set the IP Address and Network Mask for Windows XP 1 Click Start > Control Panel. 2 Click Network and Internet Connections. 3 Click the Network Connections icon. 4 Right click the Local Area Connections icon and choose Properties to open the Local Area Connections Properties dialog box.
  • Page 25 9 Enter 255.255.000.000 for Network Mask. 10 Do not enter a Default Gateway; it is not required for direct connection. Leave the fields blank. 11 Click OK to save the settings and exit the Internet Protocol (TCP/IP) Properties dialog box. 12 Click OK to close the Local Area Connections Properties dialog box.

  • Page 26: Using Network Connection With Static Addresses

    Ethernet cables with RJ45 connectors (or crossover cables if the switch is auto-sensing): one cable to connect the GERBER EDGE FX and the switch and one to connect the computer and the switch. The Ethernet switch, network interface board, and additional cables are readily available at local computer stores.

  • Page 27: Setting The Ip Address And Network Mask Of Your Computer For Connection To A Larger (Or Existing) Network

    “Setting the IP Address and Network Mask of your computer for network connection” on page 23. 5 Install the GERBER EDGE FX using GSPTray. See “Installing the GERBER EDGE FX in OMEGA software” on page 30. 6 If you are having trouble finding or communicating with the GERBER EDGE FX, check network connectivity of the computer and printer as described in “Checking...
  • Page 28 CHAPTER 3 Connecting the GERBER EDGE FX to the Computer 5 Click Properties to open the TCP/IP Properties dialog box. Note: Depending on your network and other equipment currently residing on the network, your computer's IP address may vary. If necessary, replace the network address in this procedure with the proper address obtained from your network administrator or IT professional.
  • Page 29 To set the IP Address and Network Mask for Windows XP 1 Click Start > Control Panel. 2 Click Network and Internet Connections. 3 Click the Network Connections icon. 4 Right click the Local Area Connections icon and choose Properties to open the Local Area Connections Properties dialog box.
  • Page 30 CHAPTER 3 Connecting the GERBER EDGE FX to the Computer 9 Enter 255.255.000.000 for Network Mask. 10 Do not enter a Gateway address unless directed by your network administrator. Leave the fields blank. 11 Click OK to save the settings and exit the Internet Protocol (TCP/IP) Properties dialog box.

  • Page 31: Using Dhcp To Assign Network Addresses

    IP Address from the IP Address pool. By default DHCP is disabled on the GERBER EDGE FX to allow you to assign a static network address. You can activate DHCP from the GERBER EDGE FX control panel, or from the web interface (if network connectivity has already been established).
  • Page 32 CHAPTER 3 Connecting the GERBER EDGE FX to the Computer 3 Press F1, NETWORK to display the NETWORK MENU. NETWORK MENU TCP/IP CANCEL ETHERNET 4 Press F1, TCP/IP to open the TCP/IP MENU. TCP/IP MENU IP ADDRESS CANCEL SUBNET MASK DHCP 5 Press F4, DHCP to open the DHCP menu.

  • Page 33: Checking Network Connections

    Checking network connections You can check the network connections to be sure that the computer and GERBER EDGE FX can communicate. Tip: When a live network cable is plugged into the computer, the RJ45 jack LEDs will light. To check network connections 1 In Windows 98 click Start >...

  • Page 34: Installing The Gerber Edge Fx In Omega Software

    3 Click the Network tab. 4 If the GERBER EDGE FX is visible on the network it is shown in the Devices Found drop down list. Choose the printer to install from the list. Click the Browse button to navigate to the printer location.
  • Page 35 8 Click OK to return to the Add or Delete Gerber Vinyl Printer(s) dialog box. 9 Click the Device Home page button if you wish to open the web interface of the GERBER EDGE FX. Once open, you may wish to make a shortcut on your desktop for easy access.

  • Page 37: Chapter 4: Packing The Gerber Edge Fx

    Chapter 4: Packing the GERBER EDGE FX The GERBER EDGE FX printer is shipped from the factory in reusable packaging materials. Use these original packaging materials when you need to ship the GERBER EDGE FX. CAUTION: Failure to repackage the printer with the specified packaging materials may result in damage to the unit during shipping.
  • Page 38 CHAPTER 4 Packing the GERBER EDGE FX 4 Install the cardboard and foam assembly over the platen as shown in the following photo. Tape the cardboard to the front cover with masking tape. Close the cover securely. Position the cardboard and foam protective packaging over the platen and tape in position as shown 5 Install the original plastic bag in the shipping carton.
  • Page 39 Accessories box Foam base – curved portion faces accessories box. 7 Put the cardboard sling on a flat surface and place the printer on top of it. Cardboard sling 8 Using two people, lift the printer using the cardboard sling (one on each side of the printer) and place the printer in the carton on top of the protective foam.
  • Page 40 CHAPTER 4 Packing the GERBER EDGE FX Protective foam 10 Close the plastic bag and secure with tape. 11 Store the accessories in the box. 12 Close the shipping carton and secure with tape.
