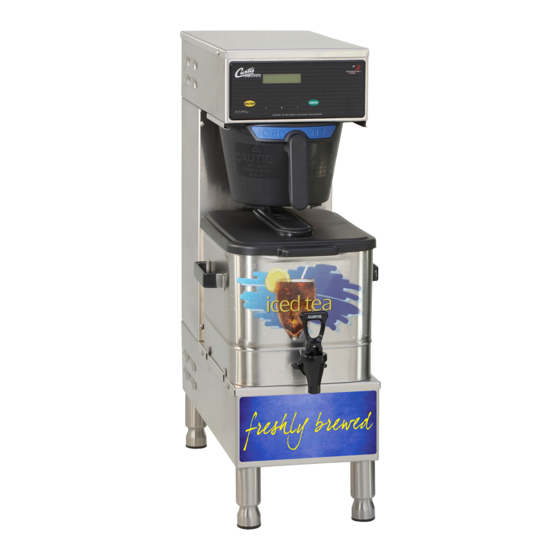

Curtis TCTS/T Service Manual

Iced tea & combo brewer
Hide thumbs Also See for TCTS/T:

Advertisement

Table of Contents

Models Included:
• TCTS/T
• PTT3
Starting on Page 7:
• CBS
• CBP
CAUTION: Please use
this setup procedure
before attempting to use
this brewer. Failure to
follow the instructions can result in
injury or the voiding of the warranty.
CAUTION: DO NOT
connect this brewer to hot
water. The inlet valve is
not rated for hot water.
IMPORTANT: After
setup, run a FULL
brewcycle. Place a tea
container to catch both
hot water from the brewcone and
dilution water from spout on the front
cover.
WARNING HOT LIQUID,
Scalding may occur.
Avoid splashing.
ISO 9001 REGISTERED
WILBUR CURTIS COMPANY
Montebello, CA 90640
W
ilbur

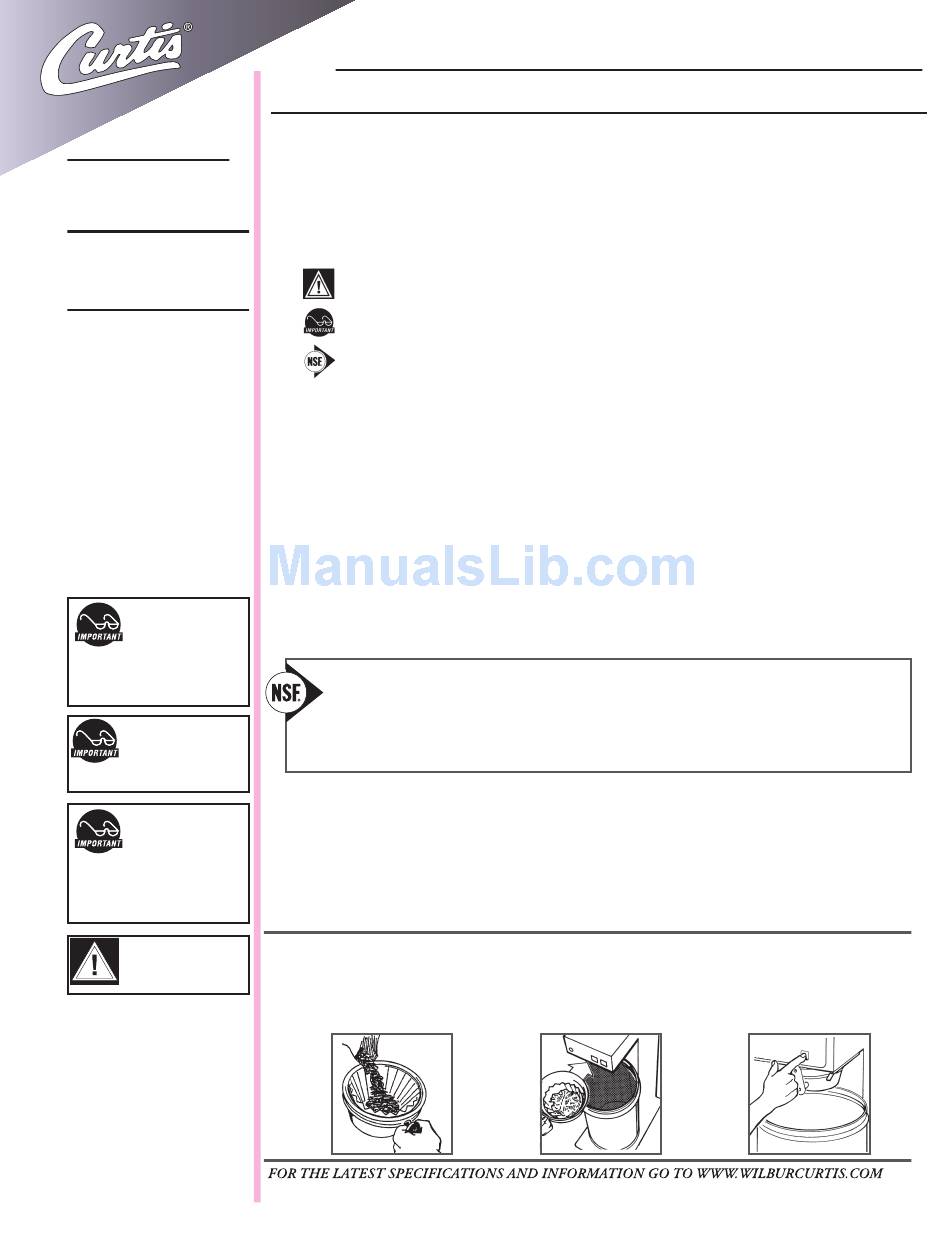

Service Manual – Iced Tea & Combo Brewer
Important Safeguards/Conventions
This appliance is designed for commercial use. Any servicing other than cleaning and maintenance
should be performed by an authorized Wilbur Curtis service center.
• Do NOT immerse the unit in water or any other liquid
• To reduce the risk of fire or electric shock, do NOT open top or front panel. No user serviceable parts
inside. Repair should be done only by authorized service personnel.
• Keep hands and other items away from hot parts of unit during operation.
• Never clean with scouring powders, bleach or harsh implements.
Conventions
WARNINGS – To help avoid personal injury
Important Notes/Cautions – from the factory
Sanitation Requirements
Your Curtis G3 Tea Brewer is Factory Pre-Set and Ready to Go... Right out of the Carton.
Following are the Factory Settings for your TCT or PTT Iced Tea Brewing System:
• Brew Temperature = 204°F
• Brew Volume = Set to dispensing vessel requirements
Generally there will never be a reason to change the G3 programming. However, should you need to make slight adjustments to meet
your brewing needs, programming instructions are provided later in this manual.
System Requirements:
• Water Source 20 – 90 PSI. Minimum flow rate of ½ GPM (preferred flow rate is 1gpm)
• Electrical: See attached schematic for standard model or visit www.wilburcurtis.com for your model.
Equipment to be installed to comply with applicable federal, state, or local plumbing/electrical codes having jurisdiction.
SETUP STEPS
The unit should be level (left to right and front to back), located on a solid counter top. Connect a water line from the water filter to the
brewer. NOTE: Some type of water filtration device must be used to maintain a trouble-free operation. (In areas with extremely hard
water, we suggest that a sedimentary and taste & odor filter be installed.) This will prolong the life of your brewing system and enhance
coffee quality.
NSF International requires the following water connection:
1. A quick disconnect or additional coiled tubing (at least 2x the depth of the unit) so that the machine can be moved for
cleaning underneath.
2. This equipment is to be installed with adequate back flow protection to comply with applicable federal, state and local
codes..
3. Water pipe connections and fixtures directly connected to a potable water supply shall be sized, installed and maintained
in accordance with federal, state, and local codes.
1. A 1/4" Flare has been supplied for water line connection. Use tubing sized sufficiently to provide ½ GPM (preferred flow rate is 1gpm).
2. Connect the unit to an appropriate electrical power circuit.
3. Turn on the toggle (STANDBY/ON) switch behind the unit. The heating tank will start to fill. When the water level in the tank rises
to the correct volume, the heating element will energize automatically. With G3 tea brewers there is no danger of element burnout
caused by an empty tank.
4. The heating tank will require 20 to 30 minutes to reach operating temperature (204°F) as indicated by the READY-TO-BREW LCD
readout.
5. Important: Run one full brewcycle, to purge the water lines and valves of air. Five seconds of dilution water at the beginning of each
brewcycle is normal pre-programmed operating behavior.
BREWING INSTRUCTIONS
1. Brewer should be ON (Confirm at rear toggle switch, then press ON/OFF button) and Ready-to-Brew displayed.
2. Place filter in brew basket.
Pour leaf tea into basket.
C
C
urtis
ompany
(2.2 liters)
3. Slide brew cone into brew
rails. Place tea container
under brew cone.
, i
.
nC
4. Press the BREW button to
brew tea.
1
