Models Included
• TCT with Sweet
Tea Option
CAUTION: Equipment
must be installed to
comply with applicable
federal, state, and local plumbing/
electrical codes having jurisdiction.
CAUTION: Follow this
setup procedure before
attempting to use this
unit. Failure to follow these instruc-
tions can result in injury and/or void
of warranty.
CAUTION: DO NOT
connect the unit to hot
water. The inlet valve is
not rated for hot water.
IMPORTANT: After
setup, run a FULL
brewcycle. Place a tea
container to catch both hot water
from the brewcone and dilution
water from spout on the front
cover.
ISO 9001:2008 REGISTERED
WILBUR CURTIS CO.
Montebello, CA 90640
For the latest information go to
www.wilburcurtis.com
Tel: 800/421-6150

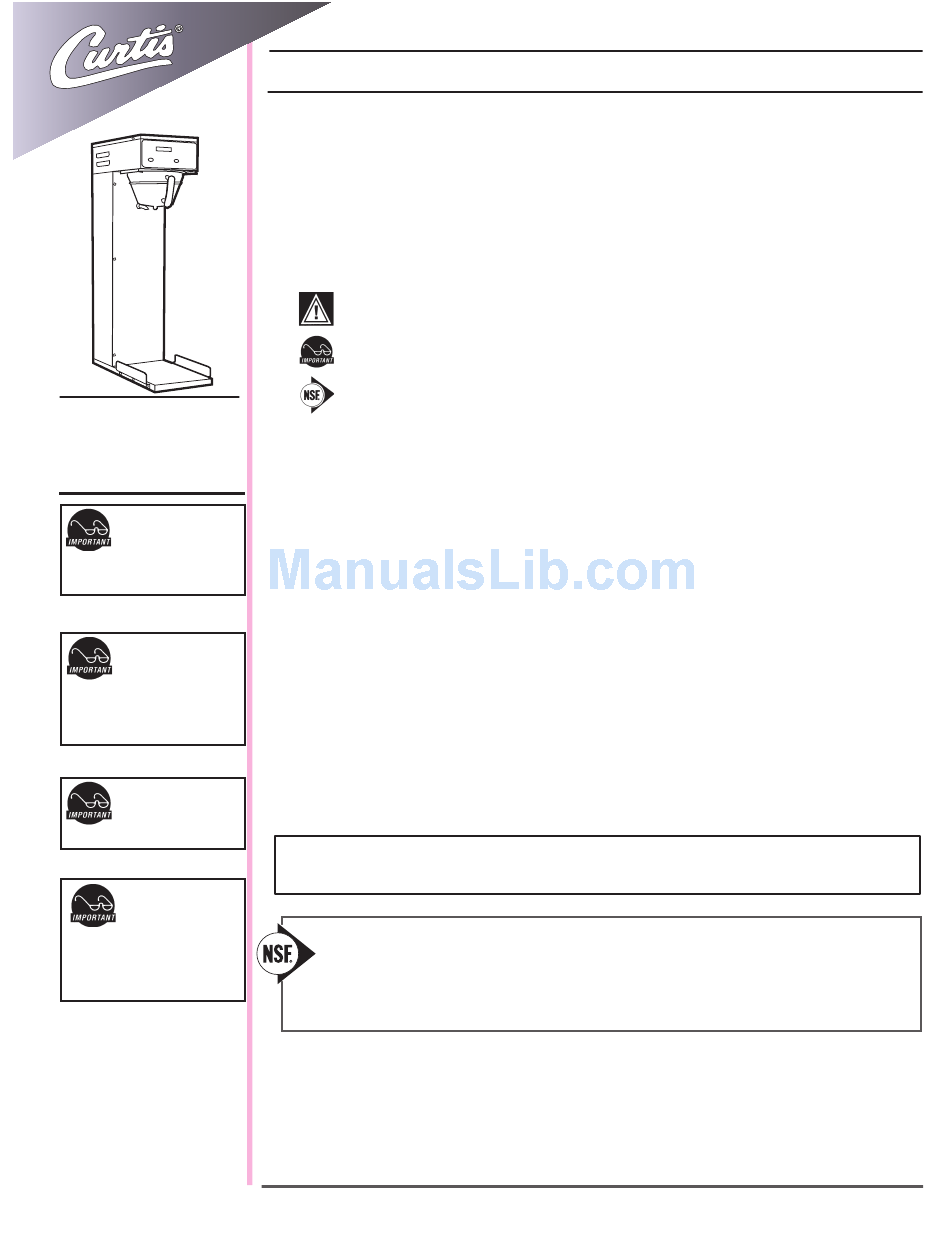

Service Manual – TCT Sweet Tea Brewer
Important Safeguards/Symbols
This appliance is designed for commercial use. Any servicing other than cleaning and routine main-
tenance should be performed by an authorized Wilbur Curtis Company service technician.
• DO NOT immerse the unit in water or any other liquid
• To reduce the risk of fire or electric shock, DO NOT open service panels. There are no user
serviceable parts inside.
• Keep hands and other items away from hot areas of the unit during operation.
• Never clean with scouring powders or harsh chemicals.
Symbols:
WARNINGS – To help avoid personal injury
Important Notes/Cautions – from the factory
Sanitation Requirements
Your Curtis G3 Brewer is Factory Pre-Set and Ready to Go, Right Out of the Box.
Following are the Factory Settings for your TCT Iced Tea Brewing System:
• Brew Temperature = 204°F
• Brew Volume = Set to dispensing vessel requirements (2.2 liters)
Generally there will never be a reason to change your G3 programming. However, should you
need to make slight adjustments to meet your brewing needs, programming instructions are pro-
vided later in this manual.
System Requirements:
• Water Source 20 – 90 PSI (Minimum Flow Rate of 1 GPM)
• Electrical: See attached schematic for standard model or visit www.wilburcurtis.com for
your model.
Equipment to be installed to comply with applicable federal, state, or local plumbing/electrical codes
having jurisdiction.
SETUP STEPS
The unit should be level (left to right and front to back), located on a secure surface. Connect a
water line from the water filter to the brewer.
NOTE: Some type of water filtration device must be used to maintain a trouble-free operation.
(In areas with extremely hard water, we suggest that a sedimentary and taste & odor filter be
installed.) This will prolong the life of your brewing system and enhance tea quality.
NSF International requires the following water connection:
1. A quick disconnect or additional coiled tubing (at least 2x the depth of the unit) so that the machine
can be moved for cleaning underneath.
2. This equipment is to be installed with adequate backflow protection to comply with applicable
federal, state and local codes..
3. Water pipe connections and fixtures directly connected to a potable water supply shall be sized,
installed and maintained in accordance with federal, state, and local codes.
1. Plug in power cord.
2. Plumb water line. A 1/4" Flare has been supplied for water line connection. Use tubing sized suf-
ficiently to provide a minimum of 1.0 GPM.
3. Connect the Bag-in-Box sweetener. Take the clear line with the QCD bag connector and hookup
to the matching connector on the BIB sweetener (see Sweetener Connection, page 5). Insert the
other end into the sweetener connector, behind the brewer..
FOR THE LATEST SPECIFICATIONS AND INFORMATION GO TO WWW.WILBURCURTIS.COM
W
C
C
ilbur
urtis
ompany
, i
.
nC
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Curtis TCT
Summary of Contents for Curtis TCT
- Page 1 Service Manual – TCT Sweet Tea Brewer Important Safeguards/Symbols This appliance is designed for commercial use. Any servicing other than cleaning and routine main- tenance should be performed by an authorized Wilbur Curtis Company service technician. • DO NOT immerse the unit in water or any other liquid • To reduce the risk of fire or electric shock, DO NOT open service panels. There are no user serviceable parts inside.
-
Page 2: Setup Steps
CAUTION HOT LIQUID, Scalding may occur. Avoid splashing. Your Curtis ADS System is Factory Pre‑Set for Optimum Performance. After connection to water and power; the rear toggle switch must be on. You will hear a beep sound, indicating power is available to the controller. - Page 3 Programming ENTER PROGRAMMING: Turn off at the ON/OFF button (yellow). Press and hold BREW button (green) and then press and release ON/OFF button (yellow). Continue holding BREW button. Display will read , wait until is displayed Enter the 4-digit access code, the digits 1-4 correspond to the buttons (see illustration below).
- Page 4 Access Code Press to display number and change number, (the number can be changed 1 to 4) or < to move place and ex to exit. Banner Name (Factory set to CURTIS) Banner Name Press to display letters and change letters or < to move place and EX to exit. This feature allows up to 14 letters to be programmed for company name.
- Page 5 PROGRAM MENUS CONTINUED Quality Timer (Factory set to OFF) Press to Select. Press < or > to adjust from 1 to 10 hours in 1 hour increments. Timing starts when a brew button Quality Timer is pressed. When time expires, the UCM will emit an audio alarm and the words Quality Timer will appear flashing on the screen.
- Page 6 TEA BREWER DAILY CLEANING 1. Wipe any spills, dust or debris from the exterior surfaces with a damp cloth. The outside surfaces of the brewer should be cleaned with stainless steel polish only, to IMPORTANT: Clean out prevent scratches. the screen, within the brewcone, to maintain 2. Clean the sprayhead and domed area around the sprayhead with a mild detergent the flow of brewed and warm water solution. Scrub well to remove residue. Rinse with and clear water. tea. Neglecting this screen will Dry with clean cloth. eventually cause the brewcone to 3. Remove the plastic brewcone and wash with a detergent solution or put through a overflow, spilling hot liquid over the dishwasher.
- Page 7 4. Place an empty tea container on the brew deck and an empty brewcone into the rails below the sprayhead. 5. Press the SWEET TEA brew button to run one complete brewcycle. 6. Allow the brewer to sit overnight with the cleaning solution in the sweetener line before flushing cleaning solution. 7. Flush the system by filling a one gallon container with clean hot water (no cleaning solution) and press the SWEET TEA brew button to run a brewcyle until all the cleaning solution has been flushed from the system. 8. Discard solution that poured into the container. 9. Remove the QCD from the flushing container and replace the cap. Reconnect the QCD to the Bag in the Box sweetener. 10. If desired, reset Tea Fast Brew to OFF. The unit is ready to resume brewing. TEA TIPS WARNING DO NOT refrigerate unused • Store tea bags in a dark, cool and dry place away from strong odors and moisture. tea overnight for later Do not refrigerate. consumption. • Do not hold brewed tea overnight. • Make sure your equipment is clean at all times. Clean tea-brewing equipment at least once a day. • Sanitize equipment at least once per week. • Do not let fresh-brewed iced tea sit at room temperature for more than 8 hours. As with other food products, if you adhere to proper preparation, holding and sanitation procedures, fresh-brewed iced tea is a safe beverage. The primary cause for high bacteria counts found in tea from food service businesses is related to excessive holding times and/or poor cleaning and sanitizing procedures.
-
Page 8: Illustrated Parts List
ILLUSTRATED PARTS LIST... -
Page 9: Parts List
COVER, TOP BREWER WC-2977-101 FITTING ASSY, SPRAYHEAD W/O-RING WC-37276* UCM KIT, LABEL & OVERLAY 120V TCTS/T WC-39600* LABEL, UCM OVERLAY TCT SWEET TEA CURTIS LOGO WC-39683 LABEL, UCM OVERLAY SWEET W/HALF BATCH CURTIS WC-29025* SPRAYHEAD, PURPLE ADVANCE FLOW WC-2942 SPRAYHEAD, GRAY (OLDER UNITS) - Page 10 PARTS LIST 2 FEET SWEET TEA DETAIL 2 FEET 6 FEET ITEM PART Nº DESCRIPTION WC-37313 KIT, PUMP AND FITTINGS TEA SWEETENER WC-43003 CLAMP, WORM GEAR 7/32”-5/8” SS WC-8653 QCD, LIQUID BOX BAG CONNECTOR WC- 800 VALVE, TRANSFER FLOJET SWEET TEA WC-53116 TUBE, CLEAR BEV 3/8 SWEETENER SYS SWEETENER...
-
Page 11: Electrical Schematic
ELECTRICAL SCHEMATIC... - Page 12 All in-warranty service calls must have prior authorization. For Authorization, call the Technical Support Department at 1-800-995- 0417. Effective date of this policy is April 1, 2003. Additional conditions may apply. Go to www.wilburcurtis.com to view the full product warranty information. CONDITIONS & EXCEPTIONS The warranty covers original equipment at time of purchase only. The Wilbur Curtis Company, Inc., assumes no responsibility for substitute replacement parts installed on Curtis equipment that have not been purchased from the Wilbur Curtis Company, Inc. The Wilbur Curtis Company will not accept any responsibility if the following conditions are not met. The warranty does not cover and is void under the following circumstances: 1) Improper operation of equipment: The equipment must be used for its designed and intended purpose and function. 2) Improper installation of equipment: This equipment must be installed by a professional technician and must comply with all local electrical, mechanical and plumbing codes. 3) Improper voltage: Equipment must be installed at the voltage stated on the serial plate supplied with this equipment. 4) Improper water supply: This includes, but is not limited to, excessive or low water pressure, and inadequate or fluctuating water flow rate.
