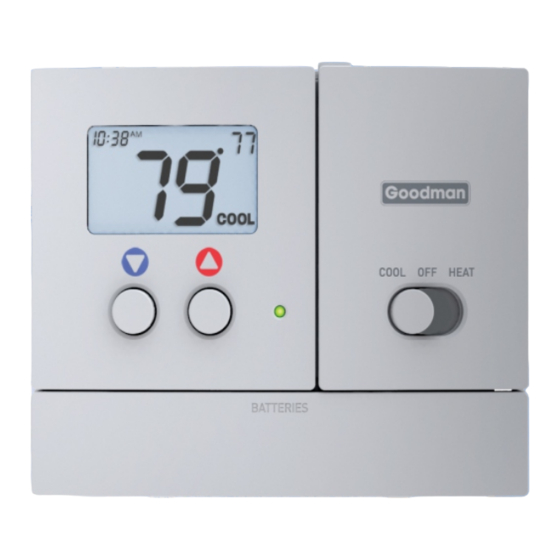

Goodman TSTATG1152-2 User Manual

Digital thermostat 5+2day programmable
Hide thumbs Also See for TSTATG1152-2:

Advertisement

Table of Contents

See also: Owner's Manual
Enlarged version

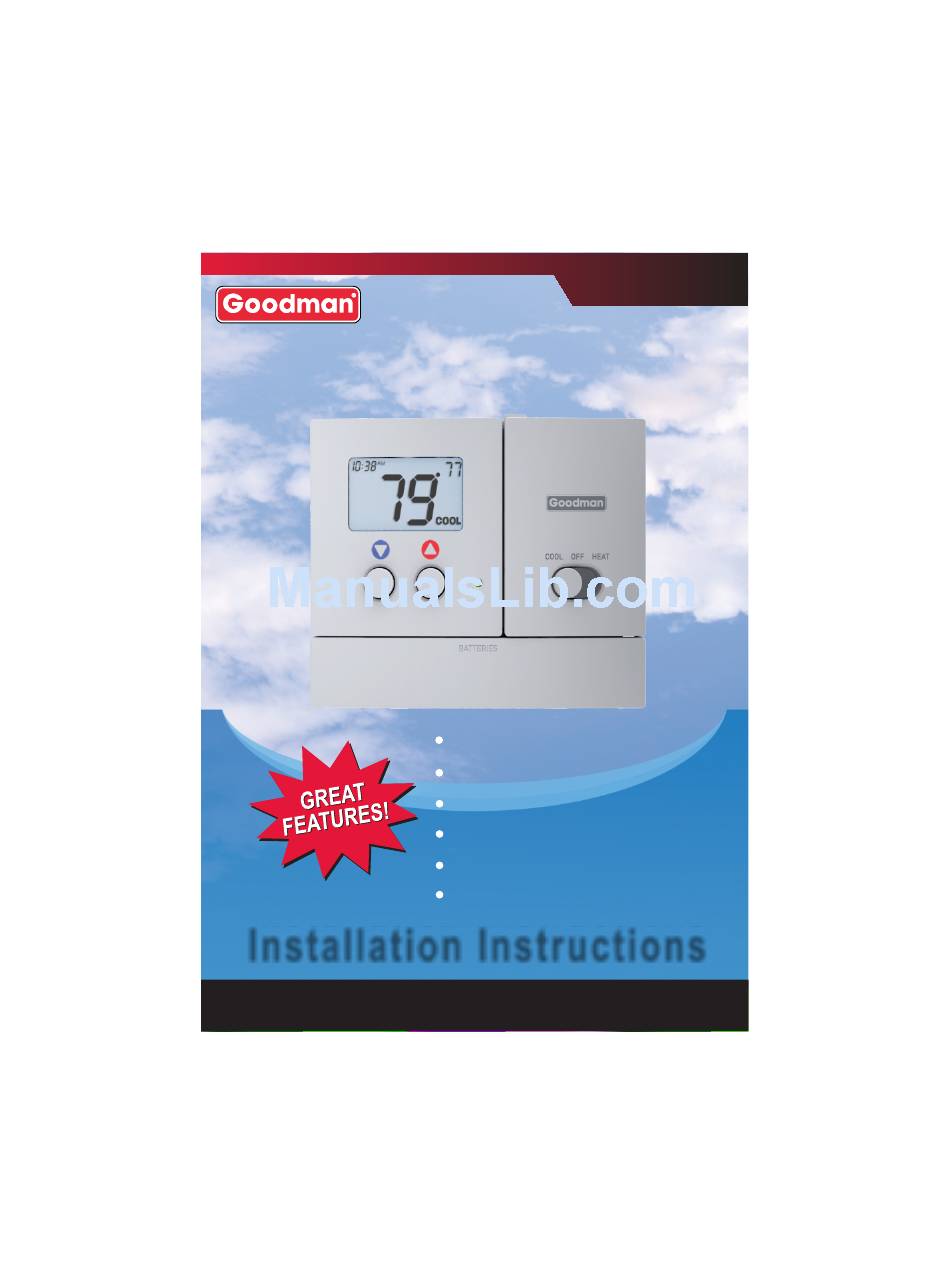

Air Conditionin g & Heatin g
5+2 Day Programmable
g
Di
ital Thermostat
Installation Instructions
Thank goodness for Goodman.
Model TSTATG1152-2
1-Heat & 1-Cool
Heat Pump Compatible
Battery or System Powered
Backlit Digital Display
Fahrenheit or Celsius
Service Filter Indicator
TM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TSTATG1152-2 and is the answer not in the manual?

Questions and answers

Related Manuals for Goodman TSTATG1152-2

Summary of Contents for Goodman TSTATG1152-2

  • Page 1 Model TSTATG1152-2 Air Conditionin g & Heatin g 5+2 Day Programmable ital Thermostat 1-Heat & 1-Cool Heat Pump Compatible Battery or System Powered Backlit Digital Display Fahrenheit or Celsius Service Filter Indicator Installation Instructions Thank goodness for Goodman.

  • Page 2: Remove Old Thermostat

    INSTALLATION INSTRUCTIONS TSTATG1152-2 Contents Page # Safety Warnings Preparation Remove Old Thermostat Battery Replacement Wire Connections Jumper Configuration Test Operation Troubleshooting Warranty Page 2...

  • Page 3: Safety Warnings

    INSTALLATION INSTRUCTIONS TSTATG1152-2 Safety Warnings P/N TSTATG1152-2 Follow Installation Instructions carefully. CAUTION DISCONNECT POWER TO THE HEATER - AIR CONDITIONER BEFORE REMOVING THE OLD THERMOSTAT AND INSTALLING WARNING THE NEW THERMOSTAT. CAUTION The two Alkaline “AA” batteries must be replaced at least once every 12 months to ensure proper operation.
  • Page 4 INSTALLATION INSTRUCTIONS TSTATG1152-2 Preparation Proper installation of the thermostat will be accomplished by following these step by step instructions. If you are unsure about any of these steps, call a qualified technician for assistance. These tools will be required: Flat Blade...

  • Page 5: Remove & Replace Old Thermostat

    INSTALLATION INSTRUCTIONS TSTATG1152-2 Remove & Replace Old Thermostat Remove the cover of the old thermostat. If it does not come off easily check for screws. Loosen the screws holding the thermostat base or subbase to the wall, and lift away.

  • Page 6: Battery Replacement

    INSTALLATION INSTRUCTIONS TSTATG1152-2 Battery Replacement The batteries are easily accessible from the battery door located on the bottom front of the thermostat (fig. 1). To open the battery slot, pull out on the battery door (fig. 1) and swing down (fig. 2).

  • Page 7: Wire Connections

    Remove this jumper to control dual transformer systems. Thermal Insulating Sheet A label is provided on the backplate that prevents drafts originating inside the wall from MODEL: TSTATG1152-2 97061606 4Z95 USE SIZE “AA” entering the thermostat. ALKALINE BATTERIES...

  • Page 8: Sample Wiring Diagrams

    INSTALLATION INSTRUCTIONS TSTATG1152-2 Sample Wiring Diagrams Gas or Electric Heat 4 Wire, 1 Stage Cooling, 1 Stage Heating Residential Gas or Electric Heat, Electric Cool, split systems & package units. For jumper configuration see pages 14 and 15. Common wire optional...
  • Page 9 INSTALLATION INSTRUCTIONS TSTATG1152-2 Sample Wiring Diagrams Gas or Electric Heat 4 Wire, 1 Stage Cooling, 1 Stage Heating-Heat Pump with O reversing valve. Residential Heat Pumps, split systems & package units, with no auxiliary heat. For jumper configuration see page 16.
  • Page 10 INSTALLATION INSTRUCTIONS TSTATG1152-2 Sample Wiring Diagrams Gas or Electric Heat 4 Wire, 1 Stage Cooling, 1 Stage Heating-Heat Pump with B reversing valve. Residential Heat Pumps, split systems & package units, with no auxiliary heat. For jumper configuration see page 17.
  • Page 11 INSTALLATION INSTRUCTIONS TSTATG1152-2 Sample Wiring Diagrams Gas or Electric Heat 3 Wire, 1 Stage Heating Residential Gas or Electric Heat units with a separately controlled fan. For jumper configuration see pages 14 and 15. Common wire optional C O/B Y W G RC RH...
  • Page 12 INSTALLATION INSTRUCTIONS TSTATG1152-2 Sample Wiring Diagrams Gas or Electric Heat 2 Wire, 1 Stage Gas Heat Residential Gas or Millivolt units. For jumper configuration see page 14. Common wire optional C O/B Y W G RC RH Factory installed jumper between...
  • Page 13 INSTALLATION INSTRUCTIONS TSTATG1152-2 Sample Wiring Diagrams Gas or Electric Heat Dual Transformer 5 Wire, 1 Stage Cooling, 1 Stage Heating Residential Gas or Electric Heat, Electric Cool, split systems & package units. For jumper configuration see pages 14 and 15.

  • Page 14: Installation Instructions

    INSTALLATION INSTRUCTIONS TSTATG1152-2 Jumper Configuration Cooling and Gas Heat Residential Gas or Electric Heat, Electric Cool, split systems & package units. ASDF ASDF ASDF GAS/ELEC ELEC Jumper #1 (J1) should be set for GAS (FAN) and Jumper #2 (J2) should be set for GAS for for typical gas furnace heating with electric cooling.
  • Page 15 INSTALLATION INSTRUCTIONS TSTATG1152-2 Jumper Configuration Cooling and Electric Heat Residential Electric Heat units with a separately controlled fan. ASDF ASDF ASDF ELEC GAS/ELEC ELEC Jumper #1 (J1) should be set for ELEC (FAN) and Jumper #2 (J2) should be set for GAS for for typical electric heating with electric cooling.
  • Page 16 INSTALLATION INSTRUCTIONS TSTATG1152-2 Jumper Configuration Cooling and Heat Pump-Heat with O reversing valve. Residential Heat Pumps, split systems & package units, with no auxiliary heat. ASDF ASDF ASDF ELEC GAS/ELEC ELEC Jumper #1 (J1) should be set for ELEC (FAN),...
  • Page 17 INSTALLATION INSTRUCTIONS TSTATG1152-2 Jumper Configuration Cooling and Heat Pump-Heat with B reversing valve. Residential Heat Pumps, split systems & package units, with no auxiliary heat. ASDF ASDF ASDF ELEC GAS/ELEC ELEC Jumper #1 (J1) should be set for ELEC (FAN),...

  • Page 18: Test Operation

    INSTALLATION INSTRUCTIONS TSTATG1152-2 Test Operation Turn on the power to the Heating/Air Conditioning system. On the thermostat, slide the Mode Switch to HEAT. Press the COOLER or WARMER button until the set temperature is 10 degrees above room temperature. The HVAC unit should energize in the heating mode.

  • Page 19: Troubleshooting

    INSTALLATION INSTRUCTIONS TSTATG1152-2 Trouble Shooting SYMPTOM: The slide switches on the thermostat are very difficult to move. CAUSE: The backplate of the thermostat is screwed too tightly into a wall that is not perfectly flat. REMEDY: Loosen the screws holding the thermostat into the wall.

  • Page 20: Replace The Batteries

    4Z95 Air Conditionin g & Heatin g Goodman Manufacturing Company, L.P ., reserves the right to discontinue, or change at any time, specifications or designs without notice or without incurring obligations. Copyright © 2009 • Goodman Manufacturing Company, L.P . • Houston, Texas P/N 88-844 Rev.

  • Page 21: Limited Warranty

    No warranty applies to, and no warranty is offered by Goodman on, Goodman is not responsible for: any thermostat ordered over the Internet.
